Wavlink AX1800 WiFi 6 Mesh 5GHz Dual Band WiFi Extender Wifi Router Signal Booster Repeater Extend Gigabit Amplifier For Home

Wavlink AX1800 WiFi 6 Mesh 5GHz Dual Band WiFi Extender Wifi Router Signal Booster Repeater Extend Gigabit Amplifier For Home

SPECIFICATIONS

Brand Name: WAVLINK

With Modem Function: No

Type: WireLess

WAN Ports: 1 x10/100/1000Mbps

Wi-Fi Supported Frequency: 2.4G & 5G

5G Wi-Fi Transmission Rate: 1300Mbps

2.4G Wi-Fi Transmission Rate: 600Mbps

Function: Firewall

Function: VPN

Certification: CE

Certification: FCC

Number of USB Interfaces: 1 x USB 3.0

Max. LAN Data Rate: 1750Mbps

Standards And Protocols: Wi-Fi 802.11g

Standards And Protocols: Wi-Fi 802.11b

Standards And Protocols: Wi-Fi 802.11n

Standards And Protocols: Wi-Fi 802.11ac

Wired Transfer Rate: 10/100/1000Mbps

Package: Yes

Supports WDS: No

LAN Ports: 4

Supports WPS: Yes

CPU: Dual core 880Mhz

Flash: 16MB

DDR3: 256MB

Interface: 1*GE WAN +4*GE LAN +1*USB3.0

Button: 1*Reset +1*Pair+1*Power on-off

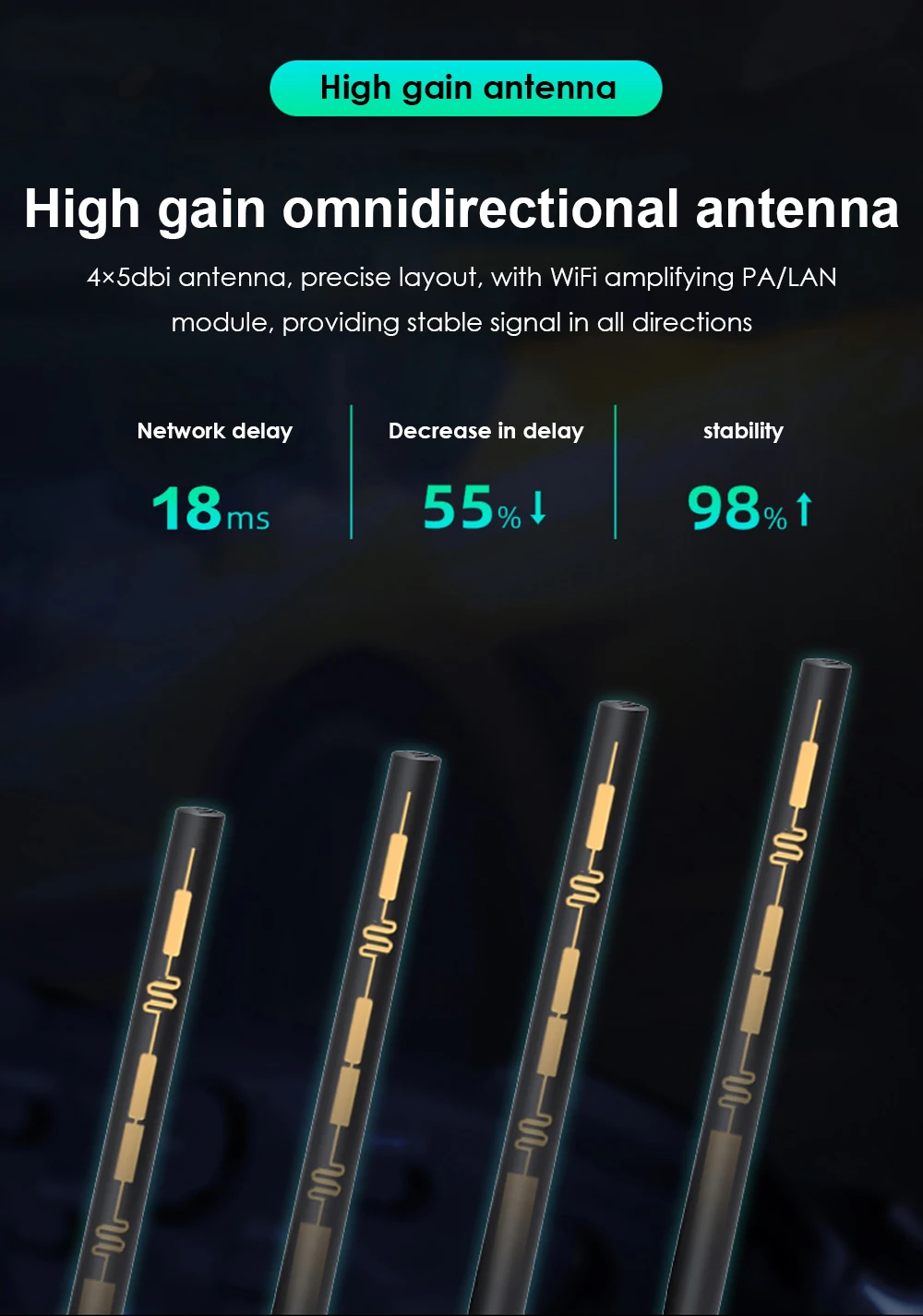

Antenna: 4*External 5 dBi Spiral copper omnidirectional antenna

Power: 12V 1A

Accessories: 1*8P8C CAT5 Cable 1*User Guide 1*warranty card

WiFi Speed: 2.4G: 574Mbps; 5G:1201Mbps

Default IP: 192.168.10.1 or wifi.wavlink.com

Operating mode: Router/Mesh Router

IPV6: Support

USB: USB Samba/USB Storage

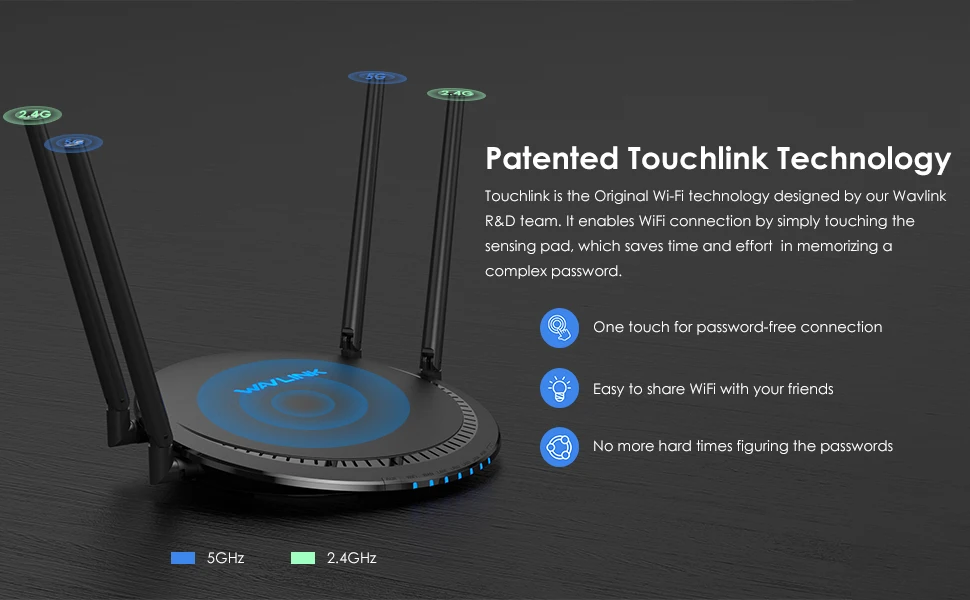

Guest WiFi: TouchLink or Enabled on software

DMZ: Support

VPN: PPTP/L2TP

Port Forwarding: Support

Feature 1: WIFI 6 Mesh Router/Extender

Feature 2: Gigabit Wireless Internet Router

Feature 3: AX1800 WIFI6 Mesh Router

Feature 4: 1.8 Gbps WIFI 6 Mesh Dual Band Wireless Router

Feature 5: Wireless WiFi Router/Extender

Description

Wavlink AX1800 WiFi 6 Mesh Router/Wavlink AX1800 WiFi 6 Mesh Range Extender-Internet Booster, Dual Band Wireless Signal Booster & Repeater

Product description

WN531AX2 is a dual-band gigabit router that’s specifically designed for medium and large households within 1000M network, covering an area about 120㎡(≈1,290 sq.ft. ). (The exact Wi-Fi coverage varies according to your home environment).Both 2.4G and 5G frequency bands support the newest Wi-Fi 6 (802.AX) technology with the aggregated speeds up to 1775Mbps (2.4GHz: 574Mbps; 5GHz: 1201Mbps);

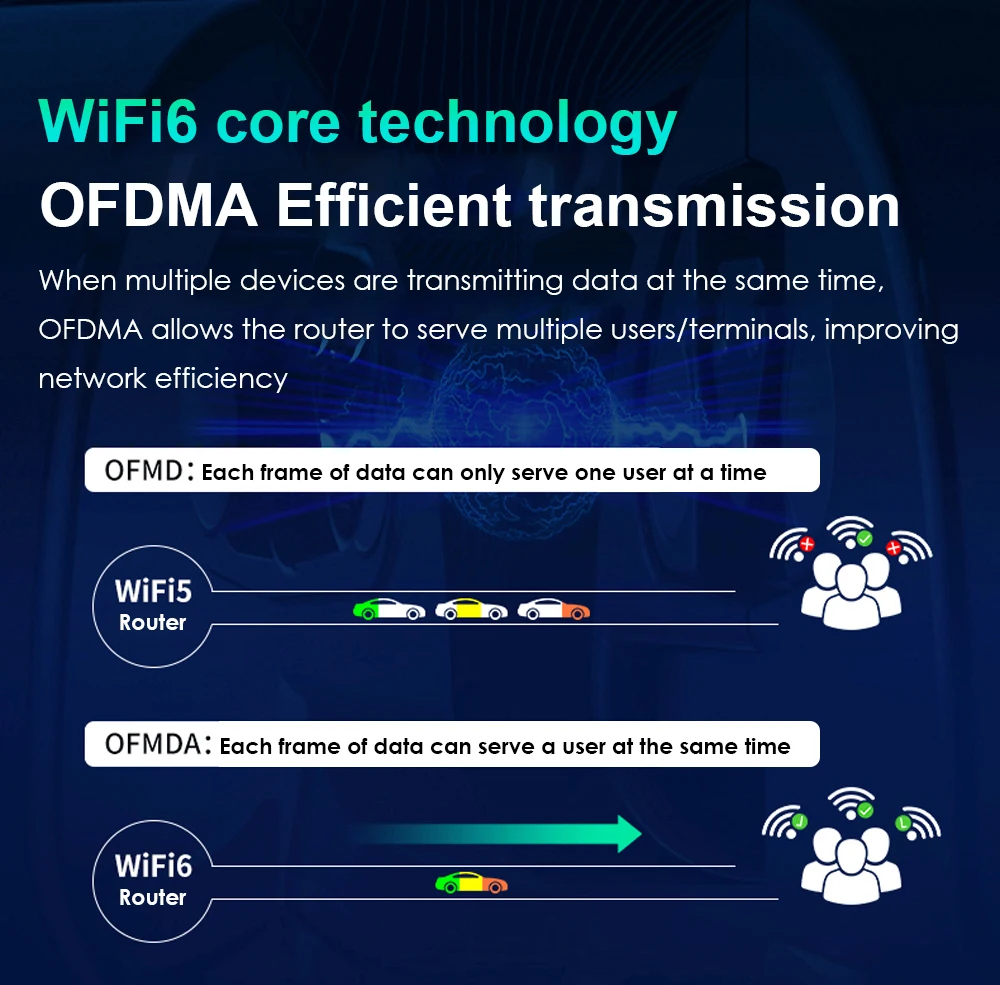

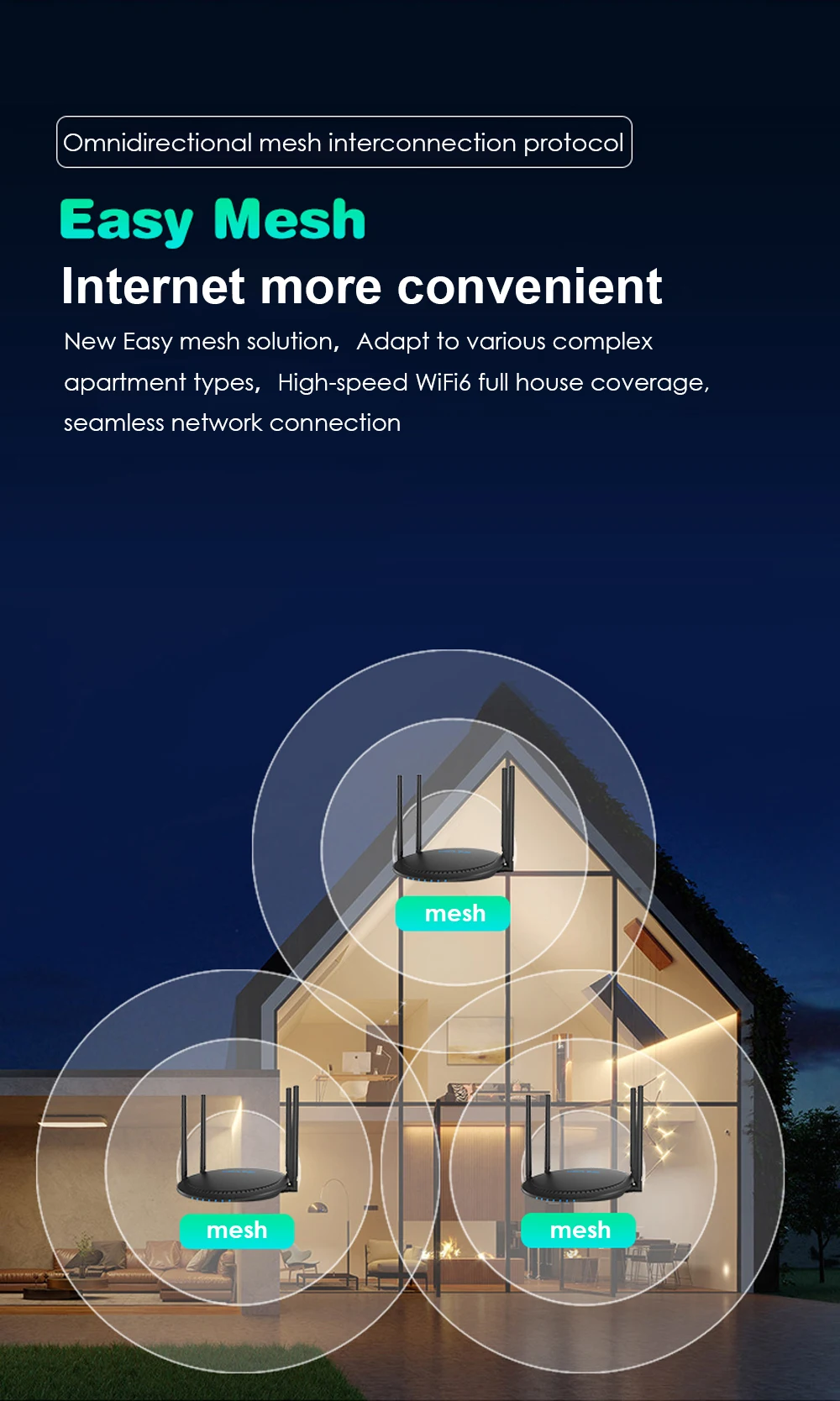

with the 880Mhz dual-core CPU and OFDMA + MU-MIMO technology, the device improves the efficiency and reduces more buffering when multiple other devices work at the same time.Most importantly, the Mesh technique allows various devices to form a whole home mesh system.

Easy to set up and control

Through a few simple steps, you can effortlessly connect to the WiFi of the AC1800 WiFi 6 mesh router and enjoy an ultra-high-speed network environment; and through the cloud APP control, you can easily manage various WiFi settings and Parental Control & QoS, etc.

1. Connect the router to the modem and power supply;

2. Reset the router and turn on the power button;

3. Log in to the router's web management page( the initial password is "admin");

4. Follow the page guide for various settings.

Product Feature:

1, Complies with IEEE 802.11ax/ac/a/n/g/b standards.

2, MU-MIMO TX/RX; MU-OFDMA TX/RX; STBC, LDPC, TX Beamformmer and RX BeamFormee

3, WPA2, WPA2/WPA3 Mix.

4, Simultaneous dual AX bands of 573Mbps@2.4GHz and 1201Mbps@5GHz; backward compatible with AC band of 867Mbps@5GHz, N band of 300Mbps@2.4G.

5, Supports PPPoE, Dynamic IP, static IP access to the Internet.

6,Built-in DHCP server & client with automatic dynamic IP address distribution.

7, Provides 10/100/1000Mbps Auto-Negotiation Ethernet WAN port and LAN ports.

8, External antennas provide omni-directional stable signal and superior wireless coverage.

9, Cloud APP supports device management functions for easy control.

Package:

1x AX1800 WiFi 6 Mesh Router

1x DC 12V/1A Power adapter

1x RJ-45 Ethernet cable

1x Quick Start Guide

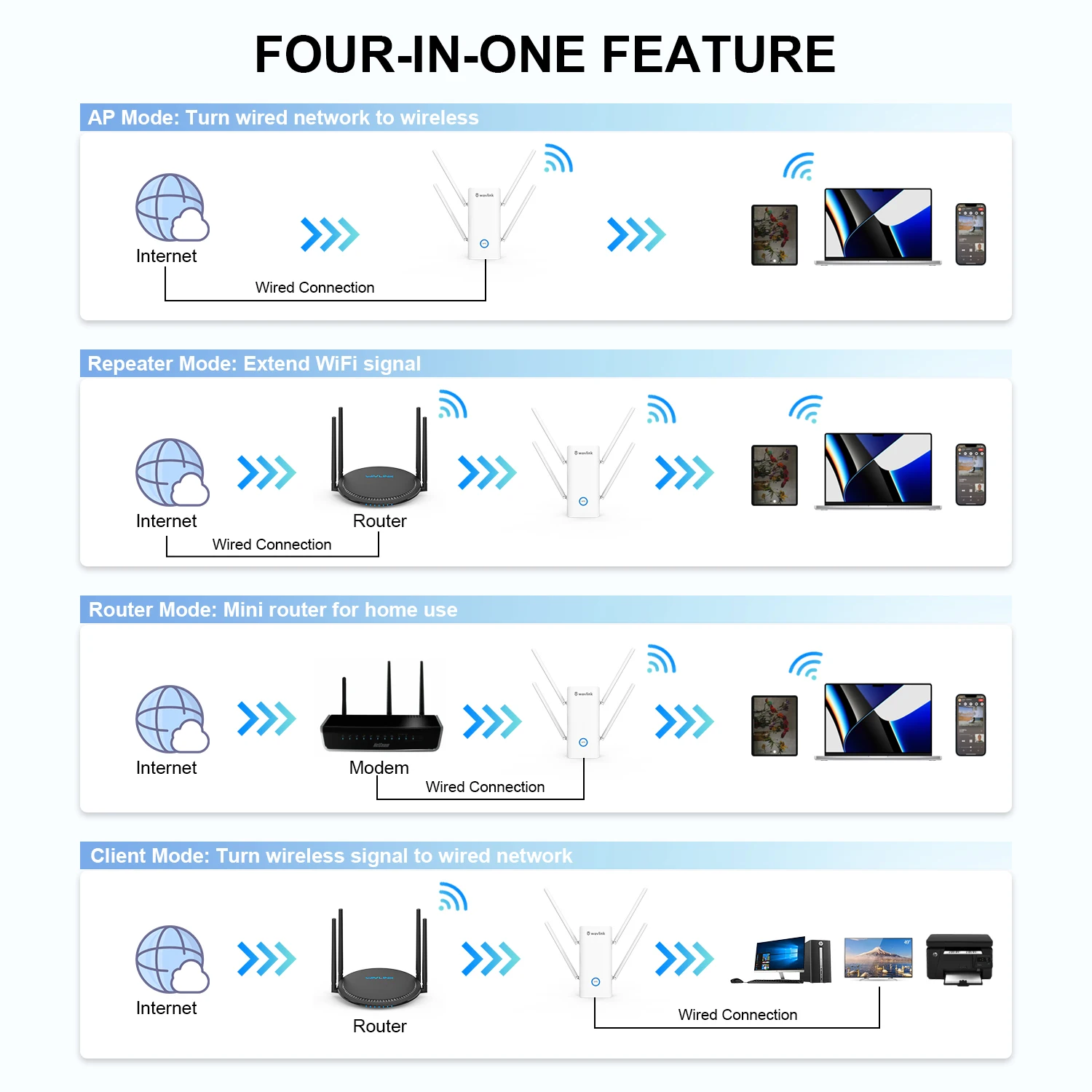

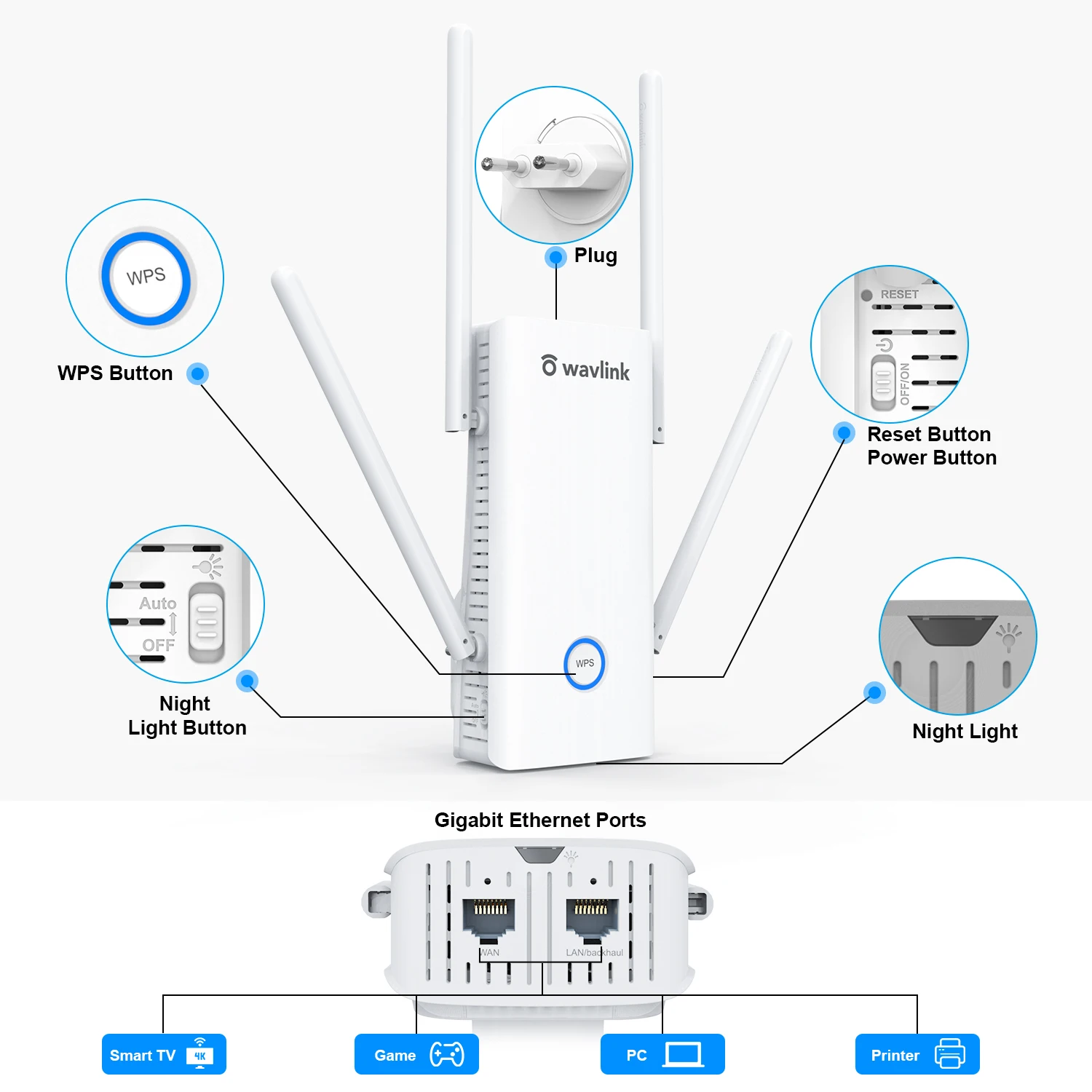

Wavlink AX1800 WiFi 6 Mesh Range Extender-Internet Booster, Dual Band Wireless Signal Booster & Repeater up to 1.8Gbps Speed, AP Mode, Mesh Node with Ethernet Port Extend Internet WiFi to Home Device
