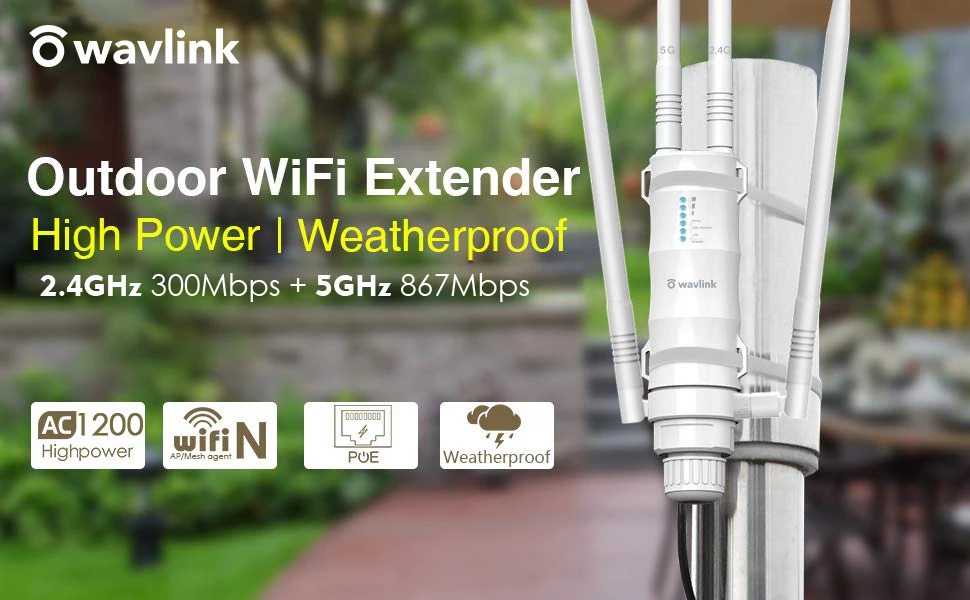

Wavlink AC600 Weatherproof Outdoor WiFi Extender PoE Long Range AP/Repeater/Router Extender 5G 2.4G Signal Booster WiFi 5GHz
SPECIFICATIONS
Brand Name: WAVLINK
Item Type: Repeater
Hign-concerned Chemical: none
Certification: CE
Ports: 1x10/100mbps WAN/LAN
Rated Voltage: 100-240 Va.c. 50/60Hz

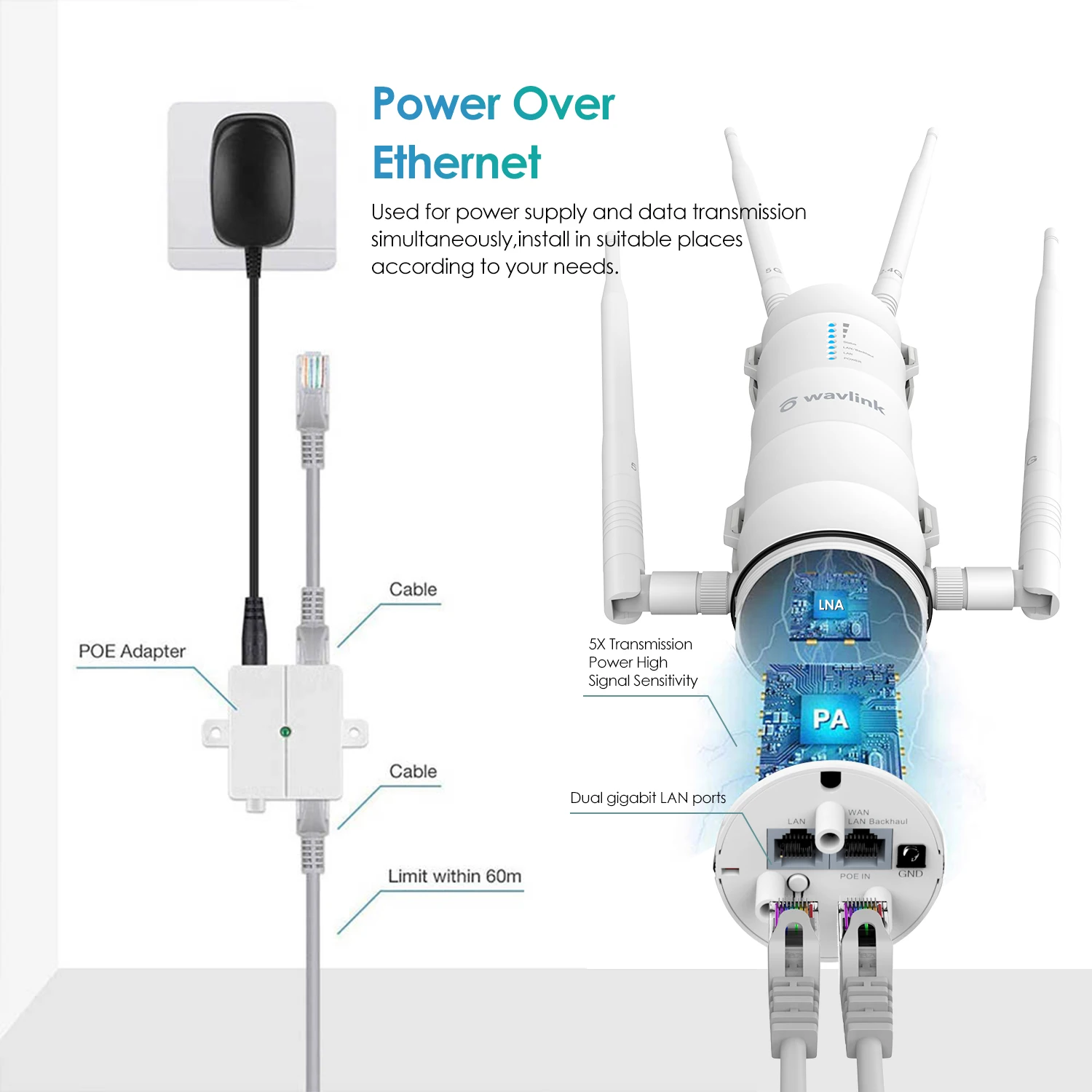

Power Supply: DC24V / 0.5A Power over Ethernet ( Passive PoE)
Transmit Power: 27DBm MAX
WAN Type: PPPoE, Dynamic IP, Static IP,Repeater
Antennas: 2 Omni High Gain Directional Antennas
Chipset: N300:MT7628NN ;AC600:MT7688A+7610E
Band: N300 : 2.4Ghz AC600:2.4Ghz and 5Ghz
Product: Outdoor Wireless Access Point WiFi Repeater/Router
DESCRIPTION
MAIN FEATURES
Notes:
There are N300, AC600 and AC1200 Models optional, N300 model only suppport 2.4 G, AC600 and AC1200 models are support Dual band 2.4Ghz and 5Ghz.please place order according to your actual needs:
* 1 ) N300 and AC600 wifi repeater it is 10/100Mbps WAN/LAN; AC1200 wifi repeater it is 1 x 10/100/1000Mbps WAN and 1 x 10/100Mbps LAN.
* 2 ) N300 and AC600 wifi repeater it is 2 x 7dBi Detachable Omni Directional Antennas; AC1200 repeater it is 4 x 7dBi Detachable Omni Directional Antennas.
The N300(570HN2) one is about 50 to 200 meters.

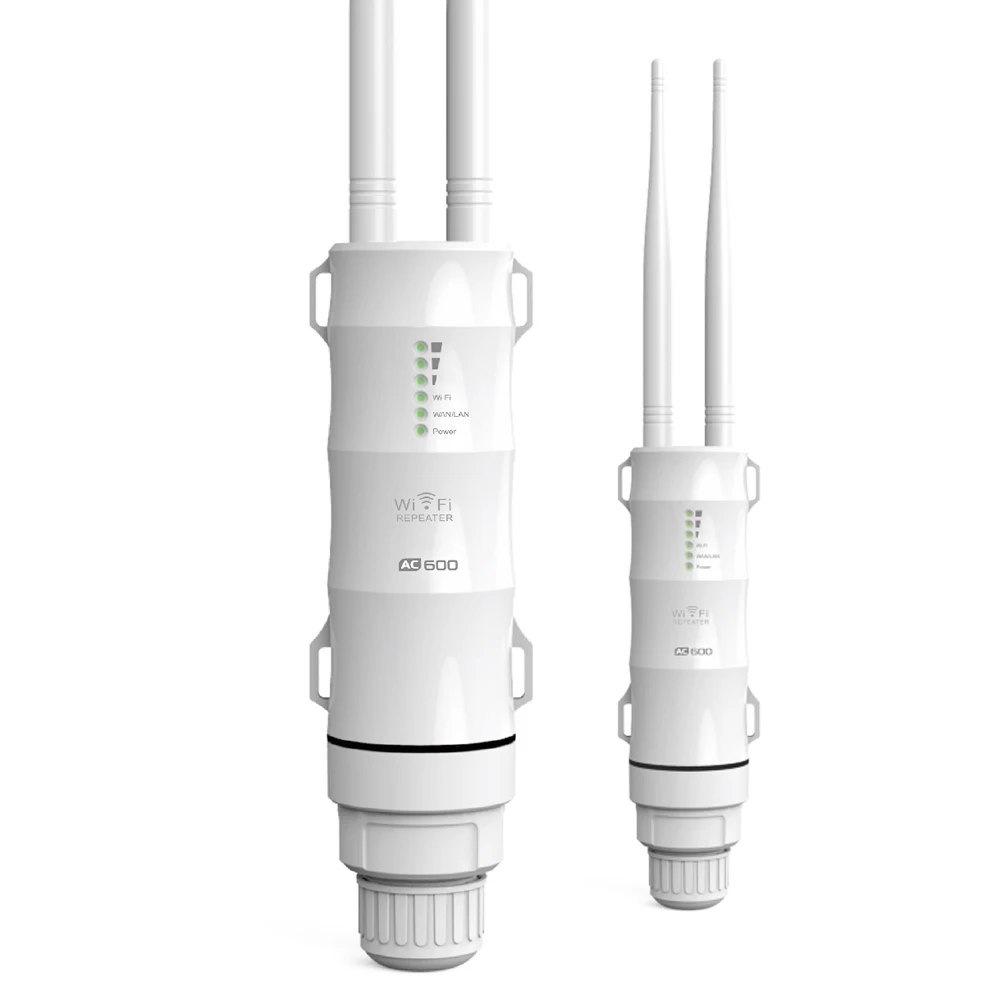

The AC600(570HA1) one is about 50 to 300 meters.
The AC1200(H72HG3/572HP3) one is about 100 to 500 meters.
*These data are from the Wavlink lab, the actual effect depends on your actual use environment
