UOTEK 10 Ports Gigabit Managed POE Industrial Ethernet Switch IEEE802.3af/at Compatible 48VDC Voltage Input UT-6410GM-8GT2GSC-POE

Regular price: R 31,067.44
Sale price: R 31,067.44
Regular price: ~~R 43,203.16~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Backplane bandwidth: 22G

Brand Name: UOTEK

Cache size: 2Mb

CAT5E: 100m

DIY Supplies: Electrical

Forwarding Rate: 1488095pps

High-concerned chemical: None

Input voltage: 48VDC(46-57V),redundant input,support reverse connection protection

MAC address size: 16K

Maximum frame length: 10KB

Multimode: 1310nm 2Km

Single-mode: 1310nm 20/40/60Km 1550nm 80/100/120Km

Transmission mode: Store and Forward

Brand Name: UOTEK

Function: POE, QoS, SNMP

Model Number: UT-6410GM-8GT2GSC-POE

Ports: 10

Products Status: Stock

Transmission Rate: 10/100/1000Mbps

Product Description

UOTEK 10 Ports Gigabit Managed POE Ethernet Switch IEEE802.3af/at Compatible 48VDC Voltage Input UT-6410GM-8GT2GSC-POE

The UT-6410GM series managed Gigabit industrial Ethernet switch supports 8 10/100/1000Base-T Ethernet ports (IEEE802.3af/at(POE) compatible) and 2 1000Base-X ports. Each POE port can provide up to 30W of power to connected devices (such as surveillance cameras, wireless access points and IP phones) when AC power is not available or limited by other factors. interference capability to ensure stable operation in harsh industrial environments, providing greater advantages for industrial automation, intelligent transportation, video surveillance and other industrial applications.

> Support 8-port POE management function
> Support Ethernet and optical ports (ST/FC/SC/SFP types)
> Support IGMP Snooping to filter multicast packets
> Support IEEE 802.1 Q VLAN for easy network planning
> Support QoS (IEEE 802.1 p/1 Q) and TOS/DiffServ to increase network stability
> Support STP/RSTP and MSTP network redundancy and SNMPv1/v2/v3 to ensure network security management
> Support UT-Ring ring function
> Support IEEE802.1x
> Support link aggregation to optimize network bandwidth
> Support Access Control List (ACL)
> Support port mirroring function for online debugging
> Support port speed limit, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression to ensure
network stability
> Support power, port,UT-Ring abnormal state relay output alarm
> Operating temperature: -40-75°C

PARAMETER

>>Protocol Standards
Standards: IEEE 802.3af/at, IEEE802.3, IEEE802.3u, IEEE802.3u IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D,IEEE802.1W, IEEE802.1W IEEE802.1s, IEEE802.3ad, IEEE802.1x
Protocols: ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/ RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3. DHCP Server, NTP, RMON, Syslog
Flow control: IEEE802.3x flow control, backpressure flow control

>>LED indicator light
Power Indicator, Optical Port Indicator, RJ45 Indicator Alarm Indicator, Operation Indicator, POE Indicator

>>Interfaces
Fiber optic interface: 1000Base-X,(SC/FC/ST/SFP slot)
RJ45 interface: 10/100/1000Base-T, support POE output
POE pins: V+ ,V+, V-,V- corresponding to pins 1,2,3,6 (default)

>>Switching Performance
Forwarding rate: 1488095pps
Transmission mode: store and forward
MAC address size: 16K
Cache size: 2Mb
Backplane bandwidth: 22G
Max. frame length: 10KB

>>Transmission Distance
Cat.5e: 100m
Fiber Optic Module
Single-mode: 1310nm 20/40/60Km
1550nm 80/100/120Km
Multi-mode: 1310nm 2Km

>>Power Requirement
Voltage input: 48VDC(46-57V),redundant input,support reverse connection protection

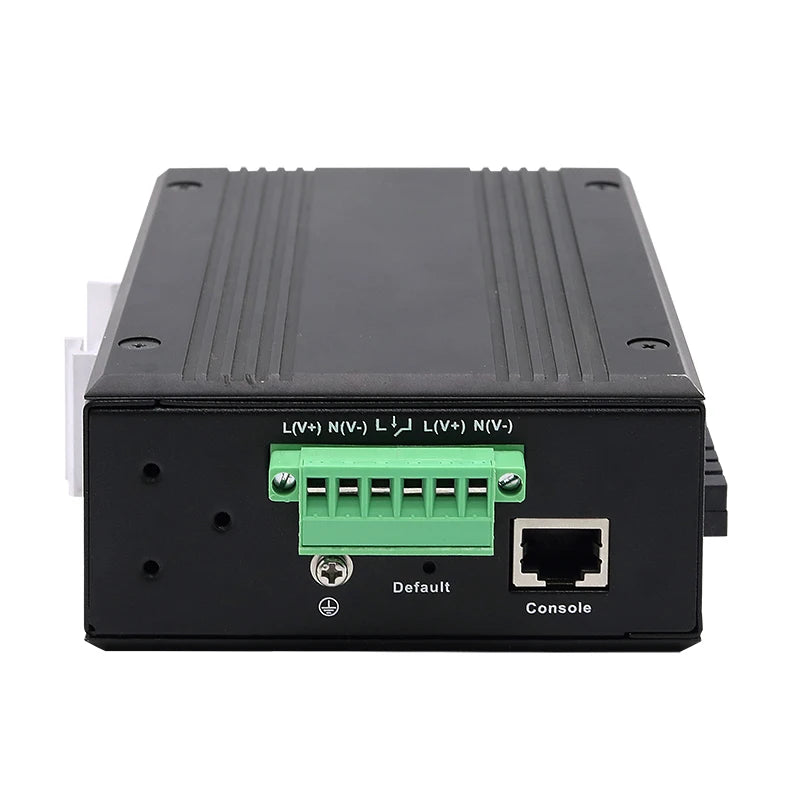

Interface terminal: 1 pluggable 6 pin terminal block

>>Consumption
Max. consumption power for each POE port about 30 W, total power consumption no more than 150W.

>>Mechanical Dimension
Dimension (W x H x D): 150mm x 47.6mm x 100mm
Package dimension: 250mm x 205mm x 55mm
Weight: 837g

>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail /Wall Mounted

>>Operating Environment
Operating temperature: -40~75°C
Storage temperature: -40~85°C
Relative humidity: 0~95% (non-condensing)

>>Industrial Standards
EMI
FCC Part 15 ISPR (EN55022) class A
EMS
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
