UOTEK 10/100M 5-Port Unmanaged Ethernet Switch Industrial DIN-rail Switch Plug and Play 12/24/48VDC(10.8~52.8VDC) Voltage UT-6405SA

Regular price: R 4,329.60
Sale price: R 4,329.60
Regular price: ~~R 5,195.52~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Backplane bandwidth: 1.6G

Brand Name: UOTEK

Cache size: 448Kb

Forwarding Rate: 148810pps

High-concerned chemical: None

IP protection level: IP40

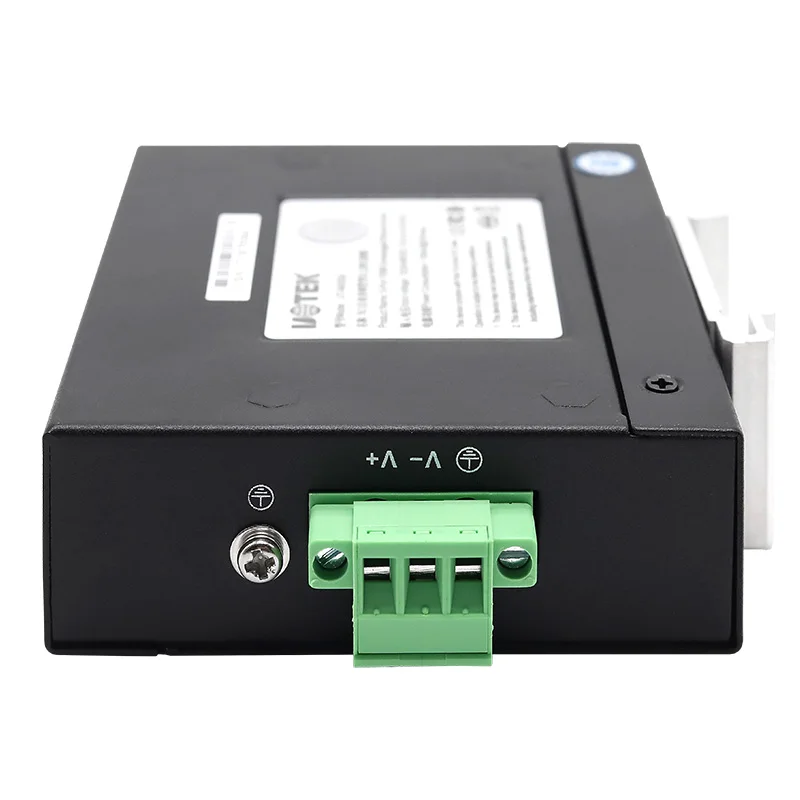

Interface terminal: 1 pluggable 3-pin terminal block

MAC address size: 1K

Overload protection: Support

Reverse connection protection: Support

Transmission mode: store and forward

Voltage input: 12/24/48VDC(10.8~52.8VDC)

Brand Name: UOTEK

Communication Mode: Full-Duplex & Half-Duplex

Model Number: UT-6405SA

Ports: 5

Products Status: Stock

Transmission Rate: 10/100Mbps

Description

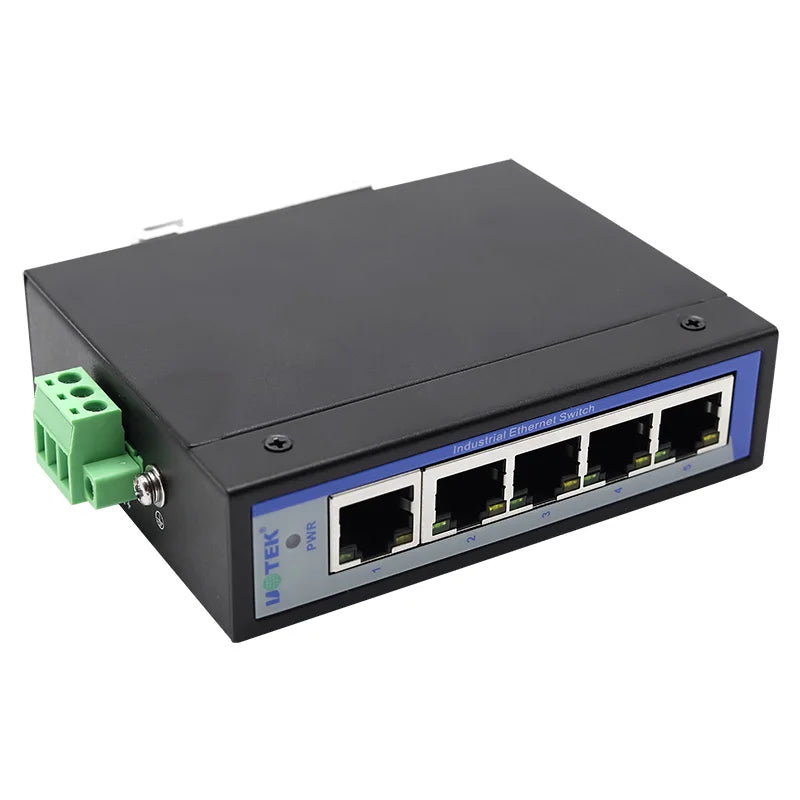

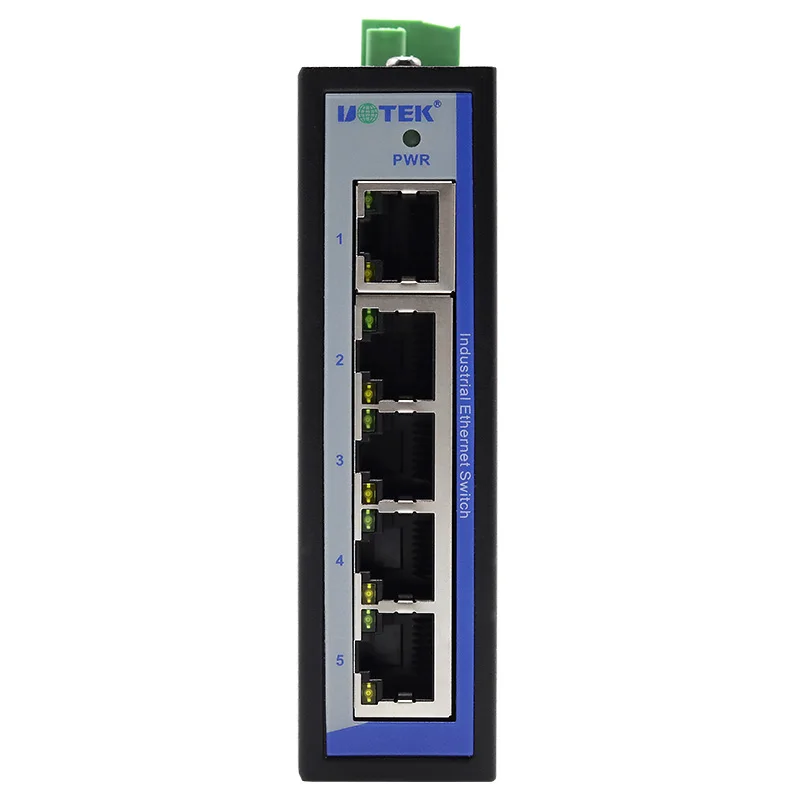

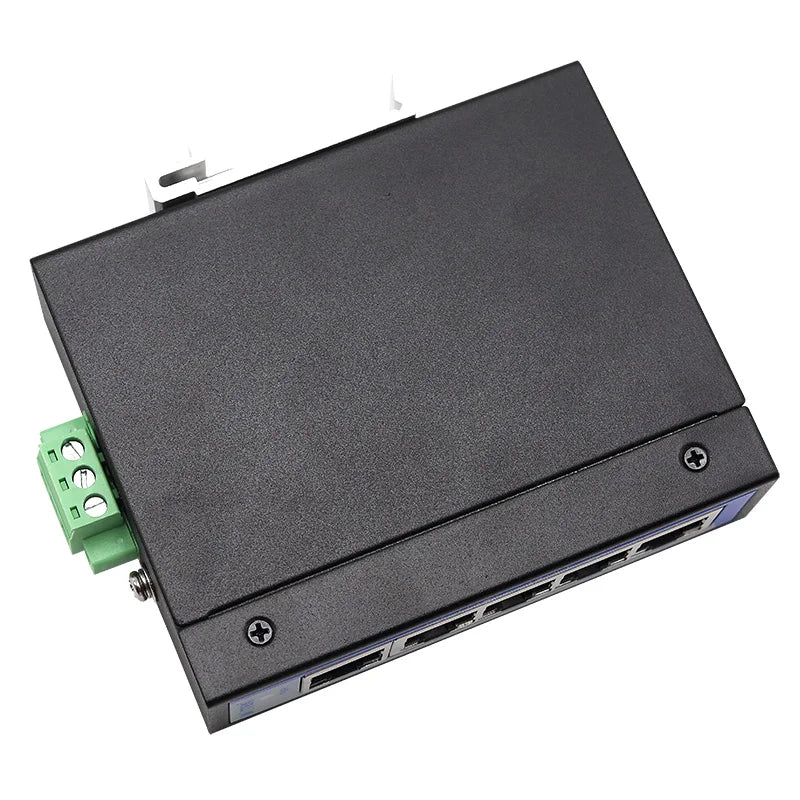

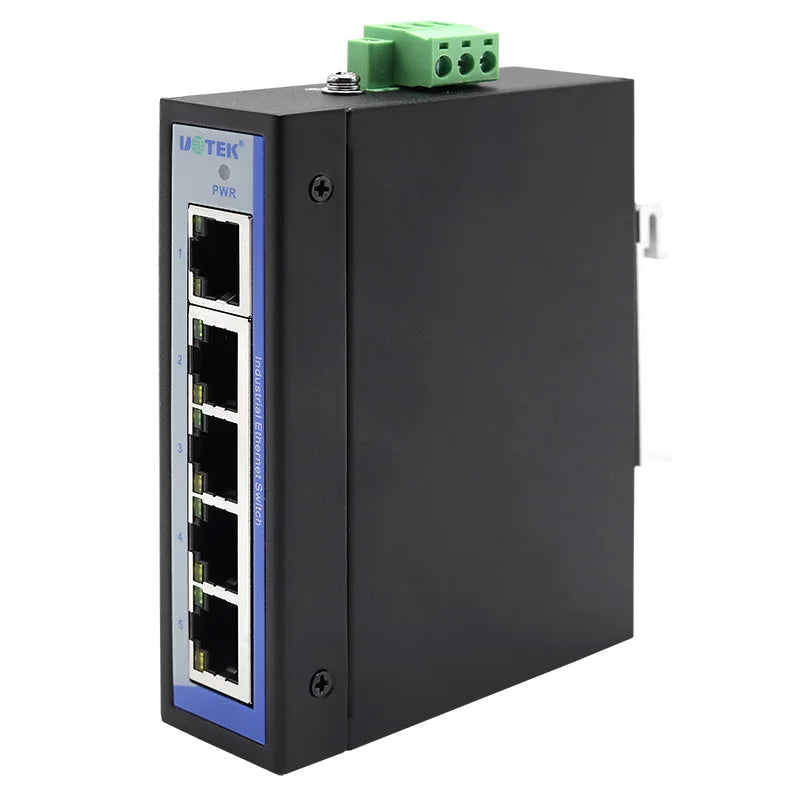

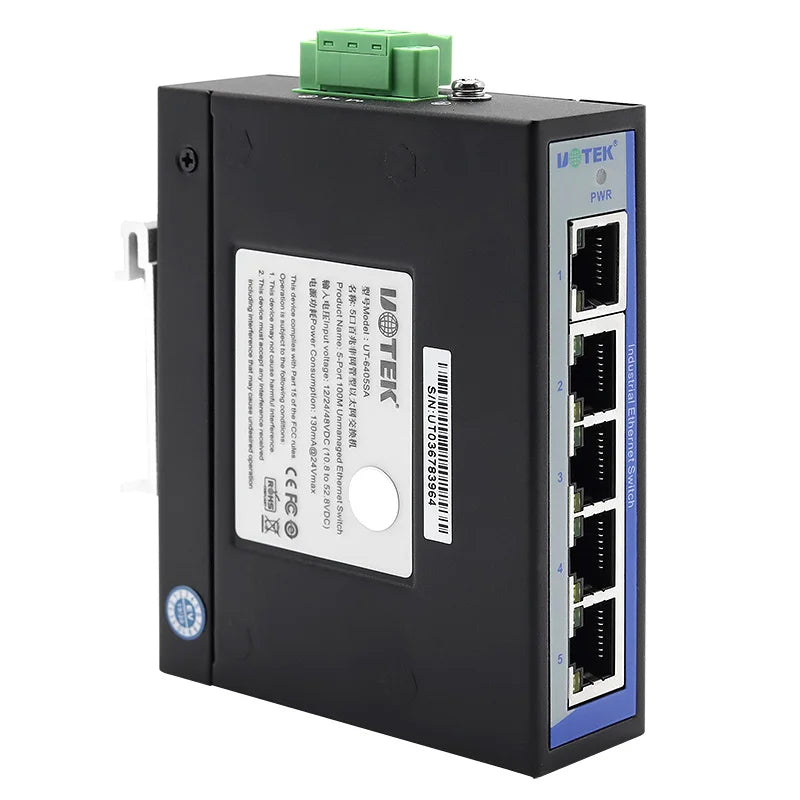

UOTEK 10/100M 5-Port Unmanaged Ethernet Switch Industrial DIN-rail Switch Plug and Play UT-6405SA

The UT-6405SA is a 5-port 100M unmanaged Ethernet switch that provides DC input positive and negative protection to prevent burnout of the instrument. It has a compact design and supports industrial standard DIN-rail mounting, it is easy to install in any industrial network application.

Characteristics

> Reliable data transmission and long lifecycle
> Supports full-duplex and half-duplex, auto MDI/MDI-X
> Auto 10/100Mbps
> Fully automatic recognition of network interface
> Plug and play for easy access
> Operating temperature: -40 ~ 85°C
> Voltage input: 12/24/48VDC (10.8~52.8VDC), support reverse connection protection

Parameters

>>Protocol Standards
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

>>Interfaces
RJ45 interface: 5* 10/100/Base-TX, auto-detection, full/half duplex, auto MDI/MDI-X

>>Switching Performance
Forwarding rate: 148810pps
Transmission mode: store and forward
MAC address size: 1K
Cache size: 448Kb
Backplane bandwidth: 1.6G

>>Power Requirement
Voltage input: 12/24/48VDC(10.8~52.8VDC)
Interface terminal: 1 pluggable 3-pin terminal block
Overload protection: Support
Reverse connection protection: Support

>>Mechanical Characteristics
IP protection level: IP40

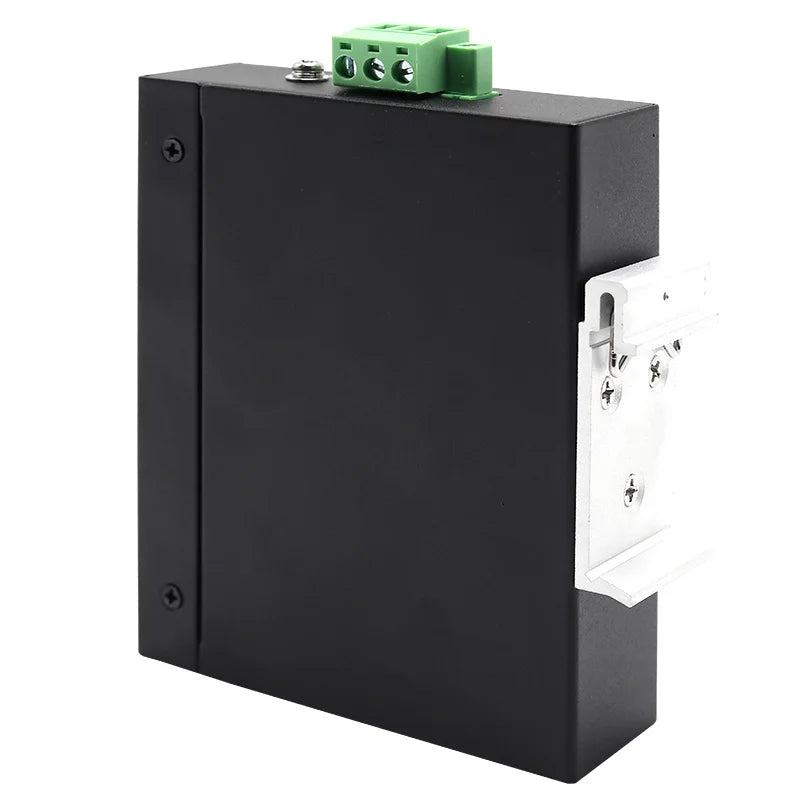

Installation: DIN-Rail Mounted

>>Power consumption
120mA@24Vmax

>>LED indicator light
PWR power indicator, Network indicator

>>Mechanical Dimension
Dimension (W x H x D): 100mm x 80mm x 40.2mm
Weight: 500g
Packaging dimension: 190mm x 182mm x 65mm

>>Operating Environment
Operating temperature: -40 ~ 85°C
Storage temperature: -40 ~ 85°C
Relative humidity: 0~95% (non-condensing)

>>Industrial Standards
EMI:
FCC Part 15 Subpart B class A N55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the UOTEK 10/100M 5-Port Unmanaged Ethernet Switch Industrial DIN-rail Switch Plug and Play 12/24/48VDC(10.8~52.8VDC) Voltage UT-6405SA is for you.

Inventory Last Updated: Jun 21, 2026
