UOTEK 10/100/1000M 5-Port Unmanaged Industrial POE Ethernet Switch IEEE 802.3af/at Standard 48VDC Voltage Input UT-6405GCA-POE

UOTEK 10/100/1000M 5-Port Unmanaged Industrial POE Ethernet Switch IEEE 802.3af/at Standard 48VDC Voltage Input UT-6405GCA-POE

SPECIFICATIONS

Brand Name: UOTEK

Certification: CE,FCC,RoHS

Communication Mode: Full-Duplex & Half-Duplex

High-concerned Chemical: None

Model Number: UT-6405GCA-POE

Package: Yes

Switch Type: Ethernet

Transmission Rate: 10/100/1000Mbps

Description

UOTEK 10/100/1000M 5-Port Unmanaged Industrial POE Ethernet Switch IEEE 802.3af/at Standard 48VDC Voltage Input UT-6405GCA-POE

UT-6405GCA POE Series is a 5-port unmanaged Gigabit Ethernet switch, which supports 4 POE(IEEE 802.3af/at) ports. It also supports reverse polarity protection. The industrial standard DIN-rail/wall mounting design makes it easy to install in any industrial network applications. The switch offers three working modes: Extend, Standard, and VLAN mode, it also supports POE watchdog function and POE power consumption limitation function. All these solve the problem of device clash when working or restart

4* Gigabit POE ports(IEEE 802.3af/at)

Full-duplex or half-duplex mode, auto-negotiation

10/100/1000Mbps, auto-MDI/MDI-X

Plug and play, easy to use

Wide voltage input: 48VDC (46~57VDC)

Operating temperature: -40℃ to 75℃

UT-6405GCA-POE Parameters

Standard

IEEE 802.3 af/at

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-T(X)

IEEE 802.3ab 1000Base-T

IEEE802.3x

Interface

RJ-45 port: 5* 10/100/1000Base-T, ports 1-4 support POE function

POE power: +(1, 2) pins, -(3,6) pins

LED indicator

PWR, RJ-45, POE indicators

Switch property

Forwarding rate: 1,488,095pps

Transmission mode: Store-and-forward

MAC address space: 2K

Cache size: 1Mb

Switching bandwidth: 10G

Maximum frame length: 16KB

Power requirement

Input voltage: 48VDC (46~57VDC)

Interface terminal: 1 pluggable 3-pin

Overload protection: Support

Reverse polarity protection: Support

Power consumption

Single POE port up to 30W, total power consumption not exceed to 60W

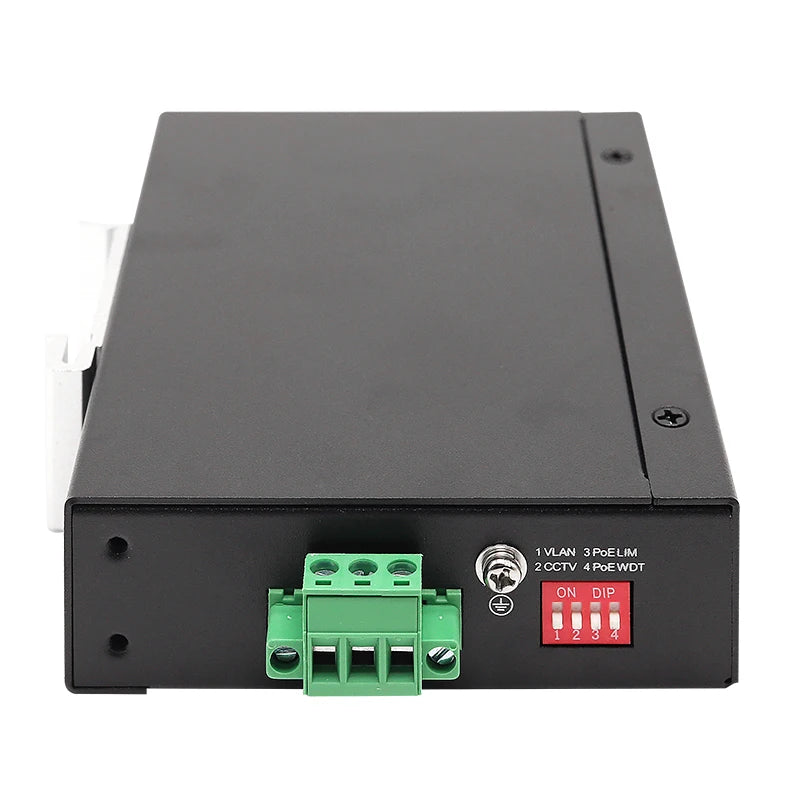

DIP function

VLAN mode: ports 1-4 are isolated from each other and can only communicate with the uplink port; network storm suppression; flow control is disabled.

CCTV mode: downlink port self-negotiate with a speed reduction of 10M, with the farthest transmission distance of 250 meters.

POE LIM mode: POE power consumption limitation, each port is limited to 30W(IEEE802.3at powered model); while power over 30W, the port will stop to power for the PD; while exceed to the full load POE power consumption, there is priority on power: 4th port is the top priority, and then 3rd port, 2nd port, 1st port.

POE WDT mode: the switch auto-detect the PD working status, and will restart the PD device if in abnormal status.

Mechanical characteristic

IP rating: IP40

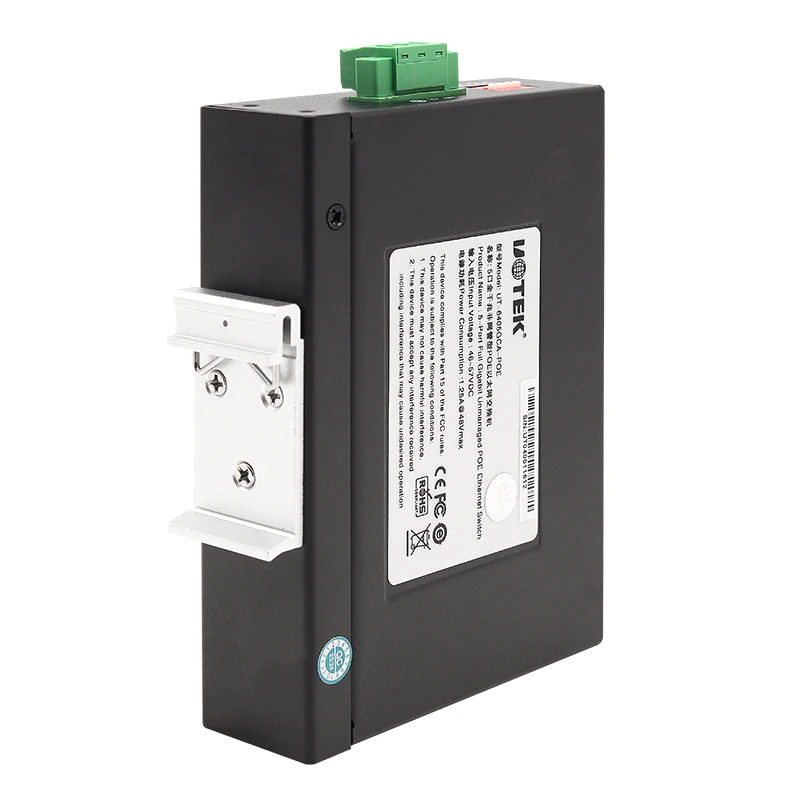

Installation: DIN-Rail\Wall-mounting

Dimension(W x H x D): 125mmx30mmx90mm

Packaging dimension

250mmx205mmx55mm

Operating environment

Operating temperature: -40℃ ~ 75℃

Storage temperature: -40℃ ~ 85℃

Relative humidity: 0 ~ 95% (non-condensing)

Industrial standard

EMI: FCC Part 15 Subpart B classA, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)

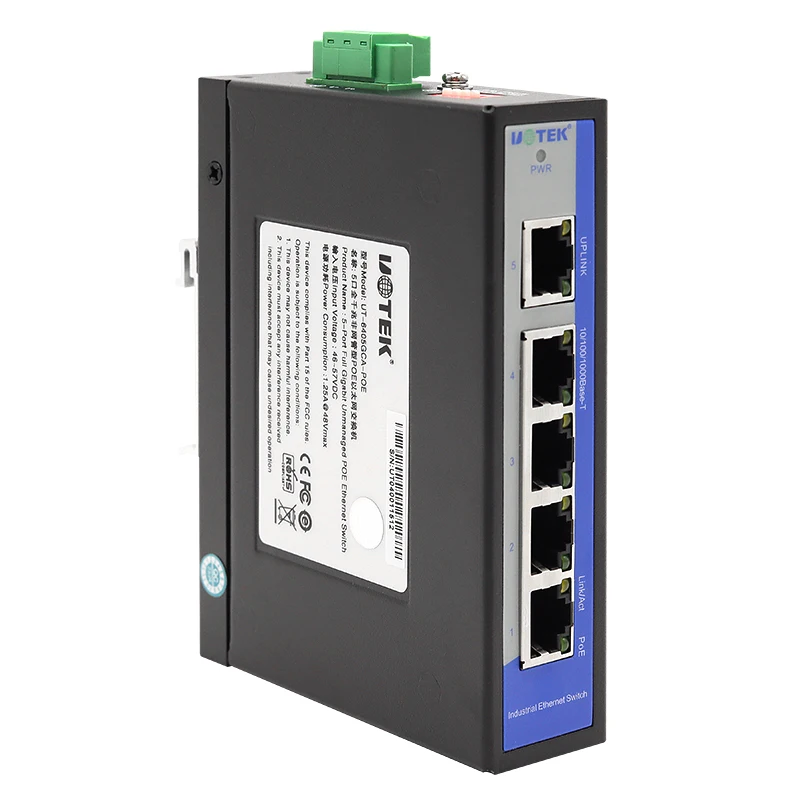

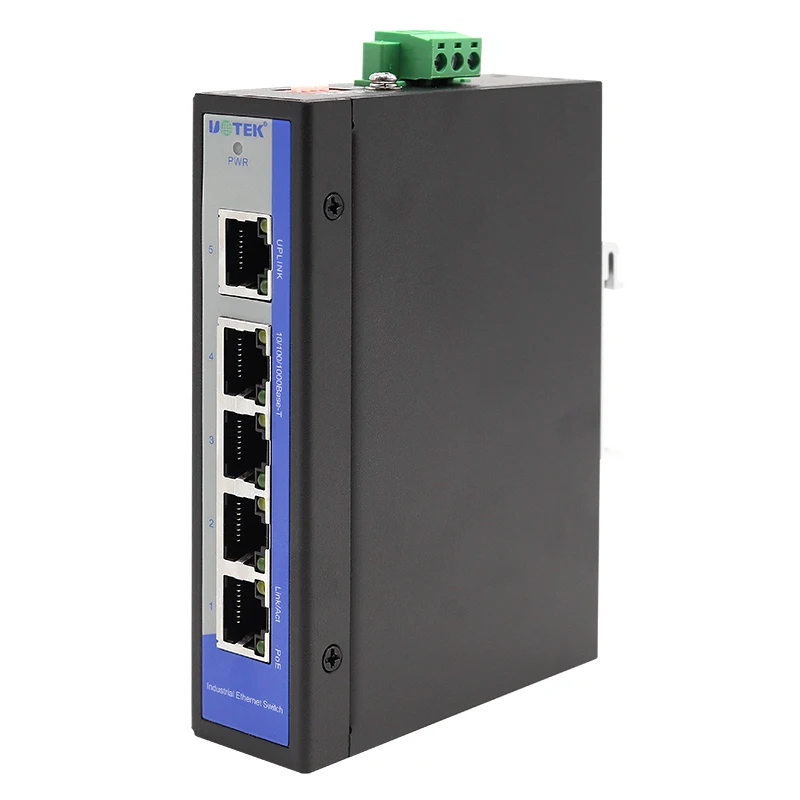

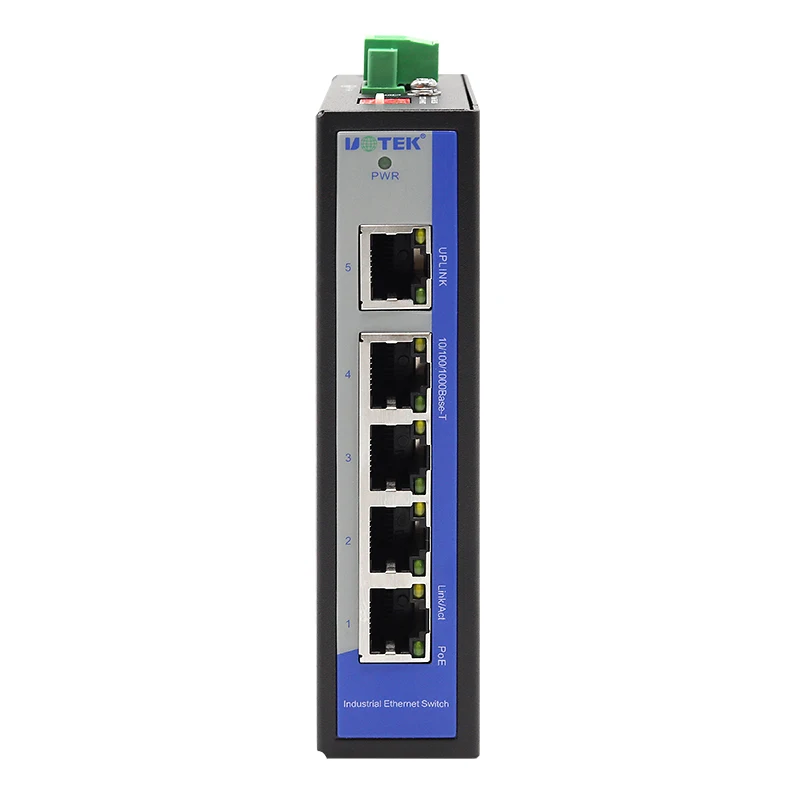

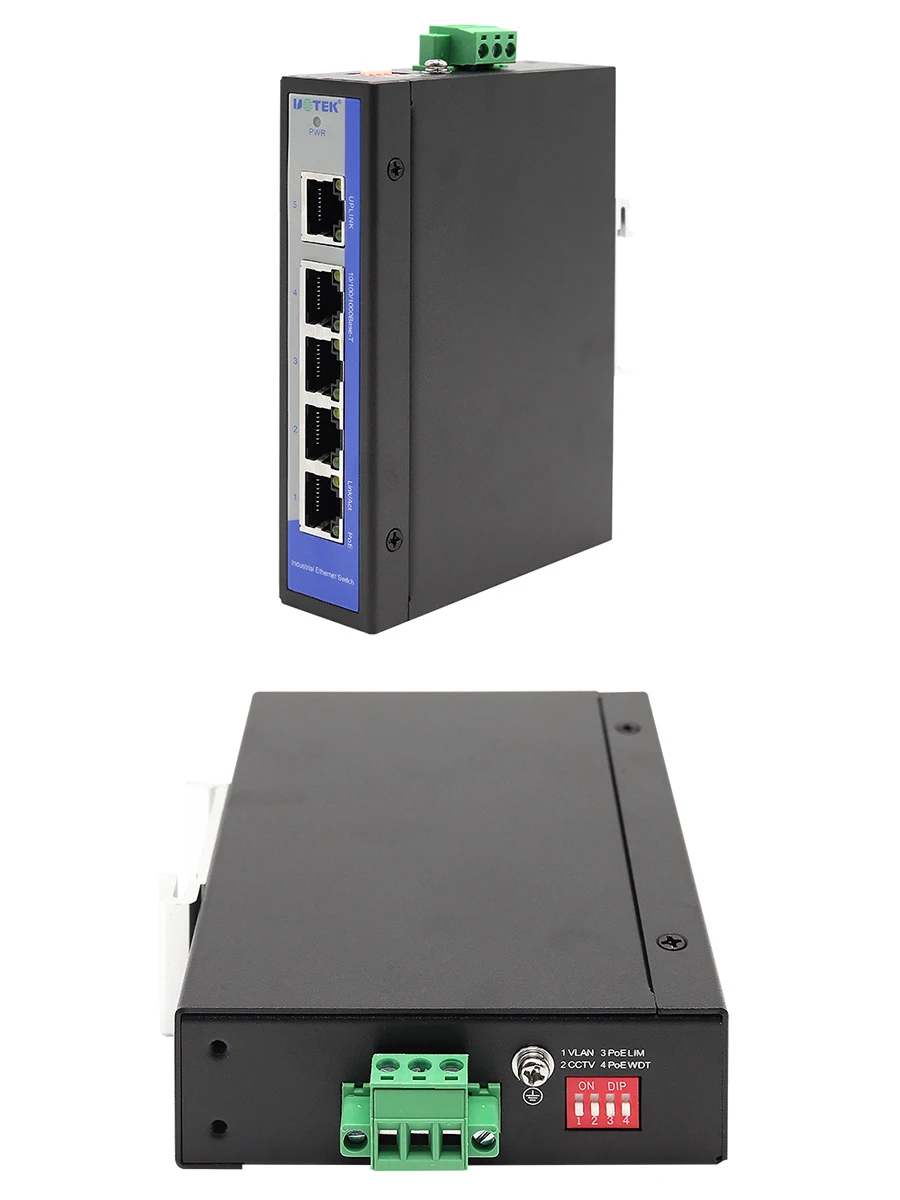

UT-6405GCA-POE Details
