Ubiquiti Pbe-M5-400 UISP airMAX PowerBeam M5 400mm Wireless Bridge incorporating a dish reflector design with advanced technology

Description

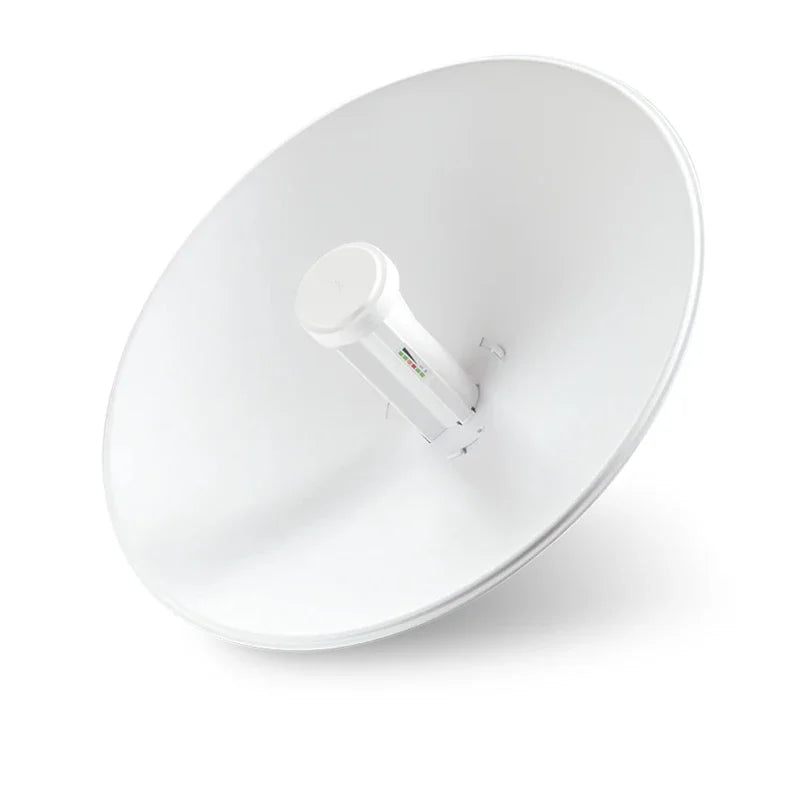

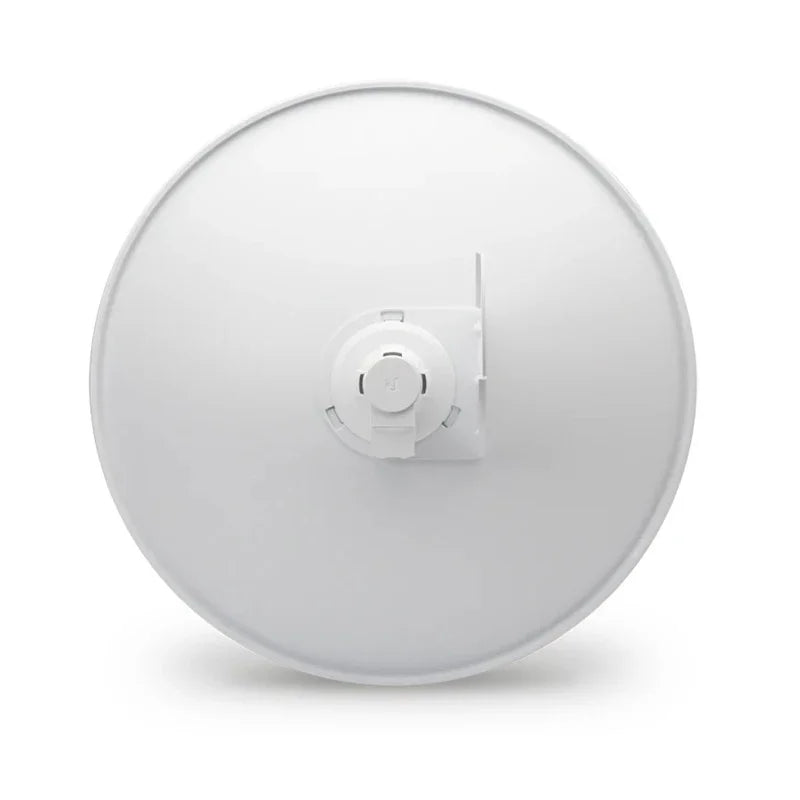

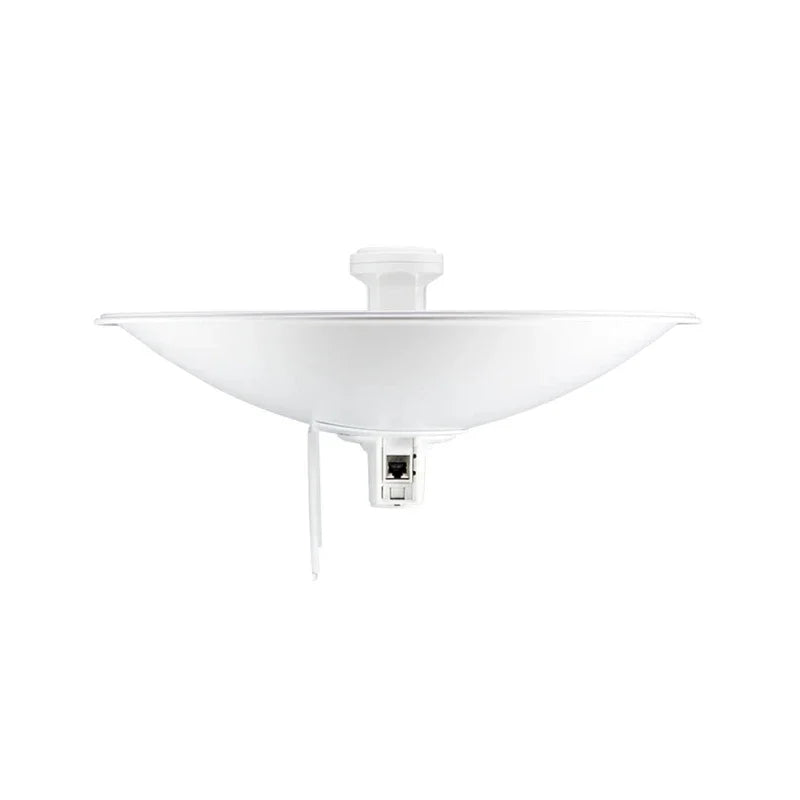

UISP airMAX PowerBeam M5, 400 mm Bridge

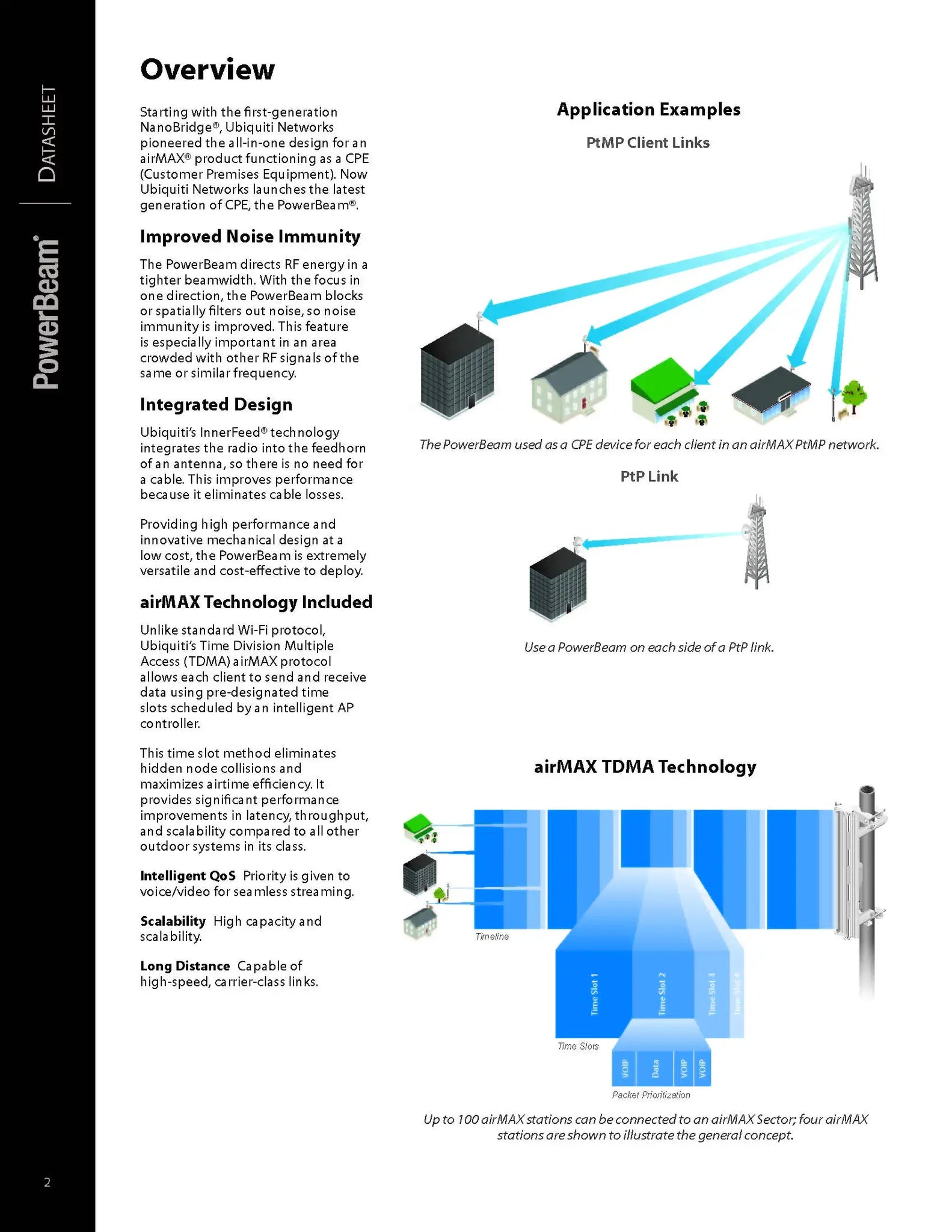

  • Incorporating a dish reflector design with advanced technology, the PowerBeam is Ubiquiti airMAX CPE for customer locations.

  • Ubiquiti Pbe-M5-400 UISP airMAX PowerBeam M5 400mm Wireless Bridge incorporating a dish reflector design with advanced technology

  • airMAX PowerBeam M5 400 - PBE-M5-400

    5 GHz, 25 dBi bridge with 150+ Mbps throughput.

    5 GHz, 25+ km link range

    150+ Mbps throughput

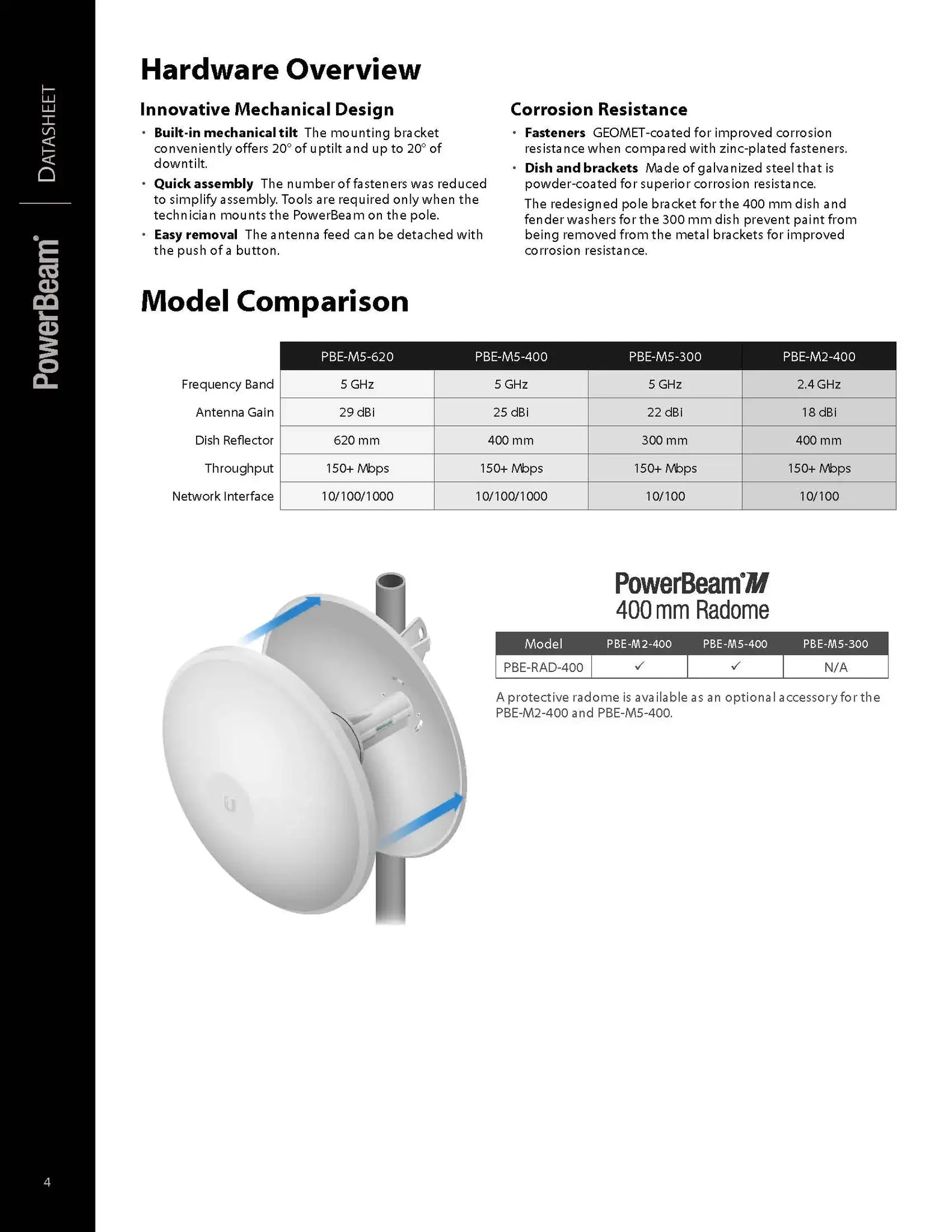

    Improved mounting

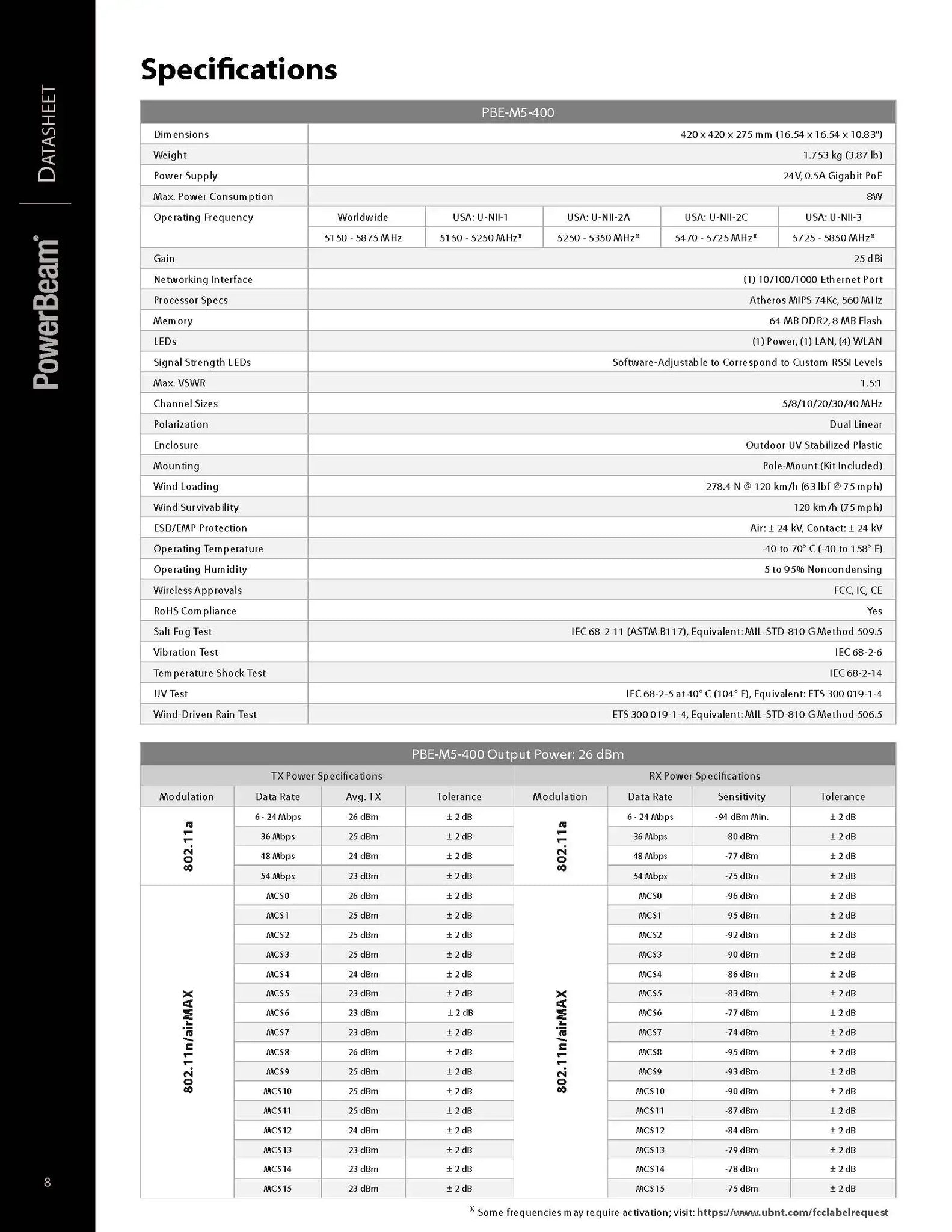

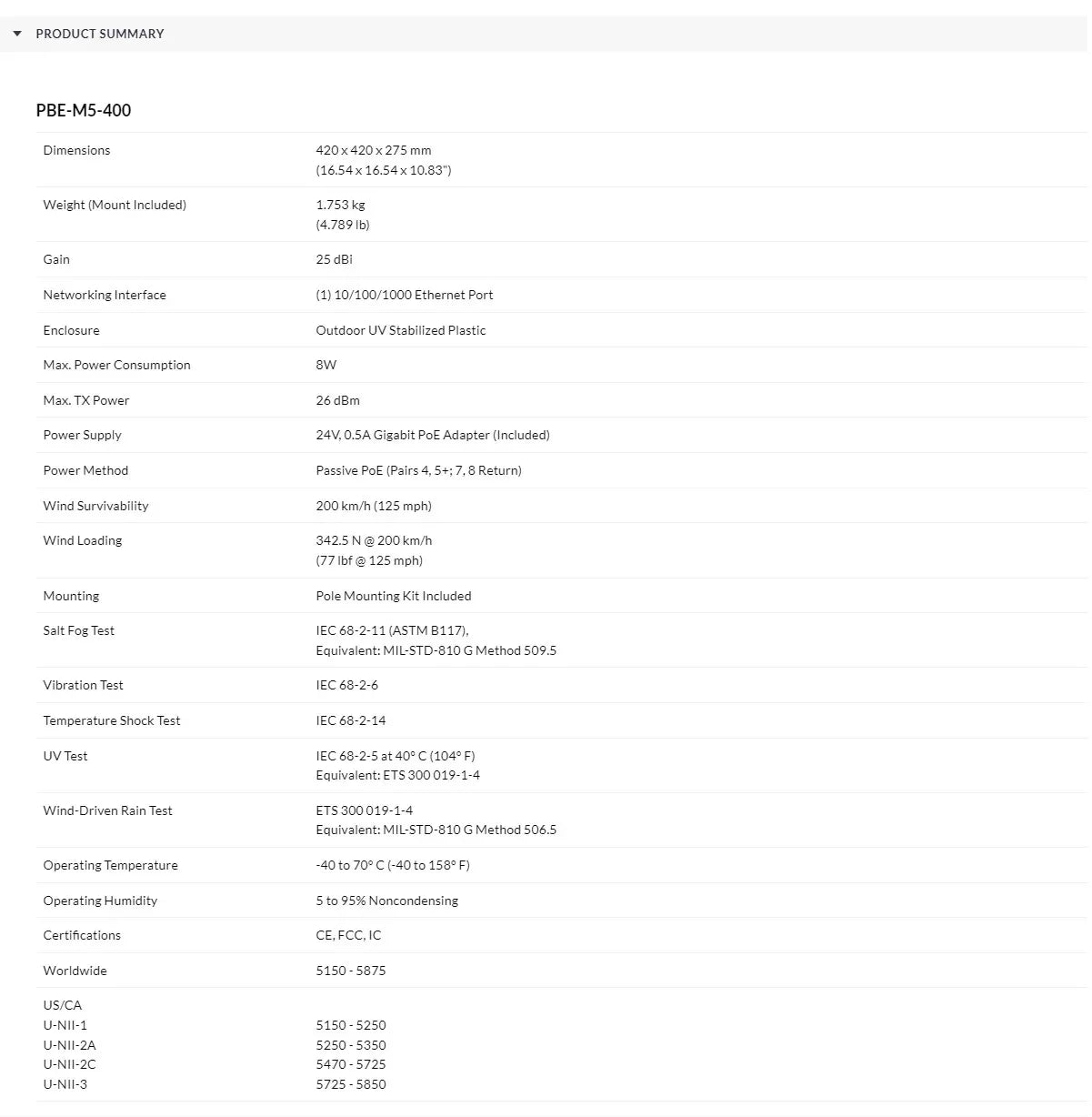

    Technical Specification

    Mechanical
    Dimensions 420 x 420 x 275 mm (16.5 x 16.5 x 10.8")
    Weight 1.8 kg (4.8 lb)
    Enclosure material UV-stabilized plastic
    Mounting Pole mount kit (Included)
    Wind survivability 200 km/h (125 mph)
    Wind loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
    Hardware
    Networking interface (1) GbE RJ45 port
    Power method Passive PoE 2-pair (Pairs 4, 5+; 7, 8 Return)
    Power supply 24V, 0.5A gigabit PoE adapter (Included)
    Supported voltage range 20–27V DC
    Max. power consumption 8W
    Max. TX power 26 dBm
    Gain 25 dBi
    ESD/EMP protection Air/contact: ± 24 kV
    LEDs (1) Power, (1) LAN, (4) WLAN
    Signal Strength LEDs Software-adjustable to correspond to custom RSSI levels
    RoHS compliance Yes
    Salt fog test IEC 68-2-11 (ASTM B117)
    Equivalent: MIL-STD-810 G method 509.5
    Vibration test IEC 68-2-6
    Temperature shock test IEC 68-2-14
    UV test IEC 68-2-5 at 40° C (104° F)
    Equivalent: ETS 300 019-1-4
    Wind-driven rain test ETS 300 019-1-4
    Equivalent: MIL-STD-810 G method 506.5
    Ambient operating temperature -40 to 70° C (-40 to 158° F)
    Ambient operating humidity 5 to 95% noncondensing
    Certifications CE, FCC, IC
    System
    Gain 22 dBi
    Channel sizes 5/8/10/20/30/40 MHz

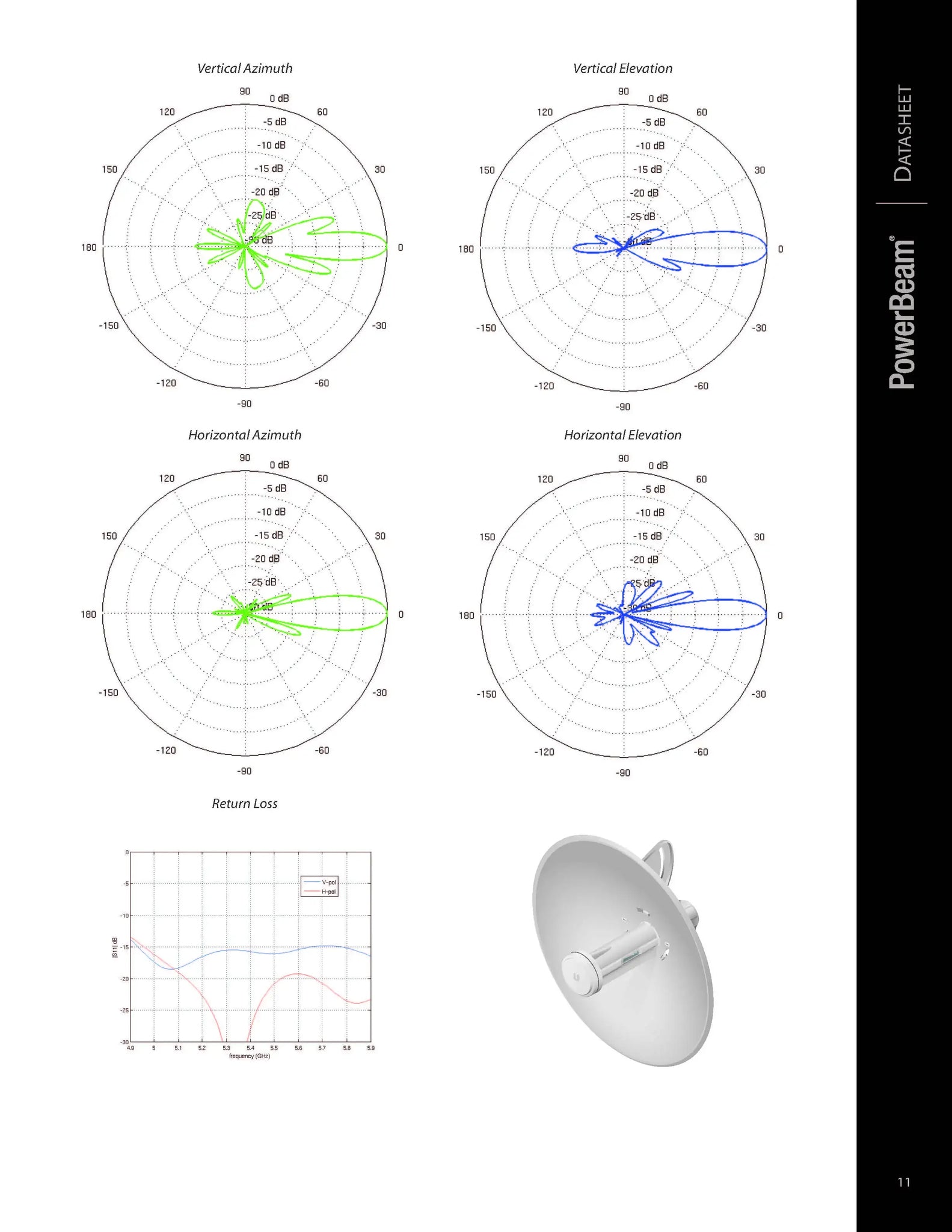

    Polarization Dual linear
    Operating Frequency (MHz)
    Worldwide 5170 - 5875 MHz
    US/CA 5725 - 5850 MHz

  • Specifications

    Model: PBE-M5-400

    Certification: CE

    Certification: FCC

    Brand Name: UBIQUITI

  • Product Details

Life is too short to live without the Ubiquiti Pbe-M5-400 UISP airMAX PowerBeam M5 400mm Wireless Bridge incorporating a dish reflector design with advanced technology. Be happy. Be Content. Be Satisfied.
