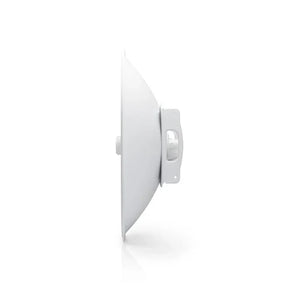

Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate
Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate
Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate
Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate
  • Load image into Gallery viewer, |&lt;none&gt;|3256804898600670
  • Load image into Gallery viewer, Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate
  • Load image into Gallery viewer, Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate
  • Load image into Gallery viewer, Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate
  • Load image into Gallery viewer, Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate

Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate

R 27,913.95
R 27,913.95
R 28,356.95
Sold out
Shipping calculated at checkout.

Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate

Description

airMAX PowerBeam 5AC 620
PBE-5AC-620

5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.

5 GHz, 25+ km link range

450+ Mbps throughput

Improved mounting

Dedicated spectral analysis radio

Dedicated WiFi management radio

Note. This product should be purchased in pairs in order to form links.

UISP airMAX PowerBeam AC 5 GHz, 620 mm Bridge

5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.

      • High-Performance airMAX ac Bridge Incorporating a dish reflector design with proprietary airMAX ac technology, the PowerBeam ac is ideal for CPE deployments requiring maximum performance.

      • Specifications

        Model: PBE-5AC-620

        Certification: CE

        Certification: FCC

        Brand Name: UBIQUITI

      • Mechanical
        Dimensions 620 x 620 x 386 mm (24.4 x 24.4 x 15.2")
        Weight 6.4 kg (14.1 lb)
        Enclosure material Outdoor UV-stabilized plastic
        Mounting Pole mount kit (Included)
        Wind loading Without radome: 1510 N at 200 km/h (340 lbf at 125 mph)
        With radome: 1830 N at 200 km/h (411 lbf at 125 mph)
        Wind survivability 200 km/h (125 mph)
        Hardware
        Networking interface (1) GbE RJ45 port
        Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
        Power supply 24V, 0.5A gigabit PoE adapter (Included)
        Supported voltage range 20-27V DC
        Max. power consumption 8.5W
        ESD/EMP protection Air/contact: ± 24 kV
        LEDs (1) Power, (1) LAN, (4) WLAN
        Signal strength LEDs Software-adjustable to correspond to custom RSSI levels
        Salt fog test IEC 68-2-11 (ASTM B117)
        Equivalent: MIL-STD-810 G method 509.5
        Vibration test IEC 68-2-6
        Temperature shock test IEC 68-2-14
        UV test IEC 68-2-5 at 40° C (104° F)
        Equivalent: ETS 300 019-1-4
        Wind-driven rain test ETS 300 019-1-4
        Equivalent: MIL-STD-810 G method 506.5
        Ambient operating temperature -40 to 70° C (-40 to 158° F)
        Ambient operating humidity 5 to 95% noncondensing
        Certifications FCC, IC, CE, RoHS
        System
        Gain 29 dBi
        Max. VSWR 1.6:1
        Channel sizes PtP Mode: 10/20/30/40/50/60/80 MHz
        PtMP Mode: 10/20/30/40 MHz
        Polarization Dual linear
        Operating Frequency (Mhz)
        Worldwide 5150 - 5875 MHz
        USA
        U-NII-1
        U-NII-2A
        U-NII-2C
        U-NII-3
        5150 – 5250 MHz
        5250 – 5350 MHz
        5470 – 5725 MHz
        5725 – 5850 MHz

      • Features:

        • Highly Efficient Antenna Beam Performance

        • Custom Ubiquiti airMAX ac Processor

        • Up to 450+ Mbps Real TCP/IP Throughput

        • Innovative Snap and Lock Assembly

        • Proprietary InnerFeed Technology


The Ubiquiti Pbe-5AC-620 UISP airMAX PowerBeam AC 5GHz 620mm Bridge 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate is a sensational customer favorite, and we hope you like it just as much.
