UBIQUITI Networks UAP-AC-IW Unifi Panel AP 802.11ac AP, Gigabit Dual-Radio PoE, In-Wall WiFi Access Point

Features

Model: UAP-AC-IW

Certification: CE

Certification: FCC

Brand Name: Ubiquiti

Wall-mounted WiFi 5 AP with 4 spatial streams and a built-in 2-port switch ideal for seamless coverage of smaller rooms.

WiFi 5

4 spatial streams

25 m² (300 ft²) coverage

250+ connected devices

Powered using PoE+

(2) GbE ports with (1) PoE output*

GbE uplink

*PoE output cannot be disabled.

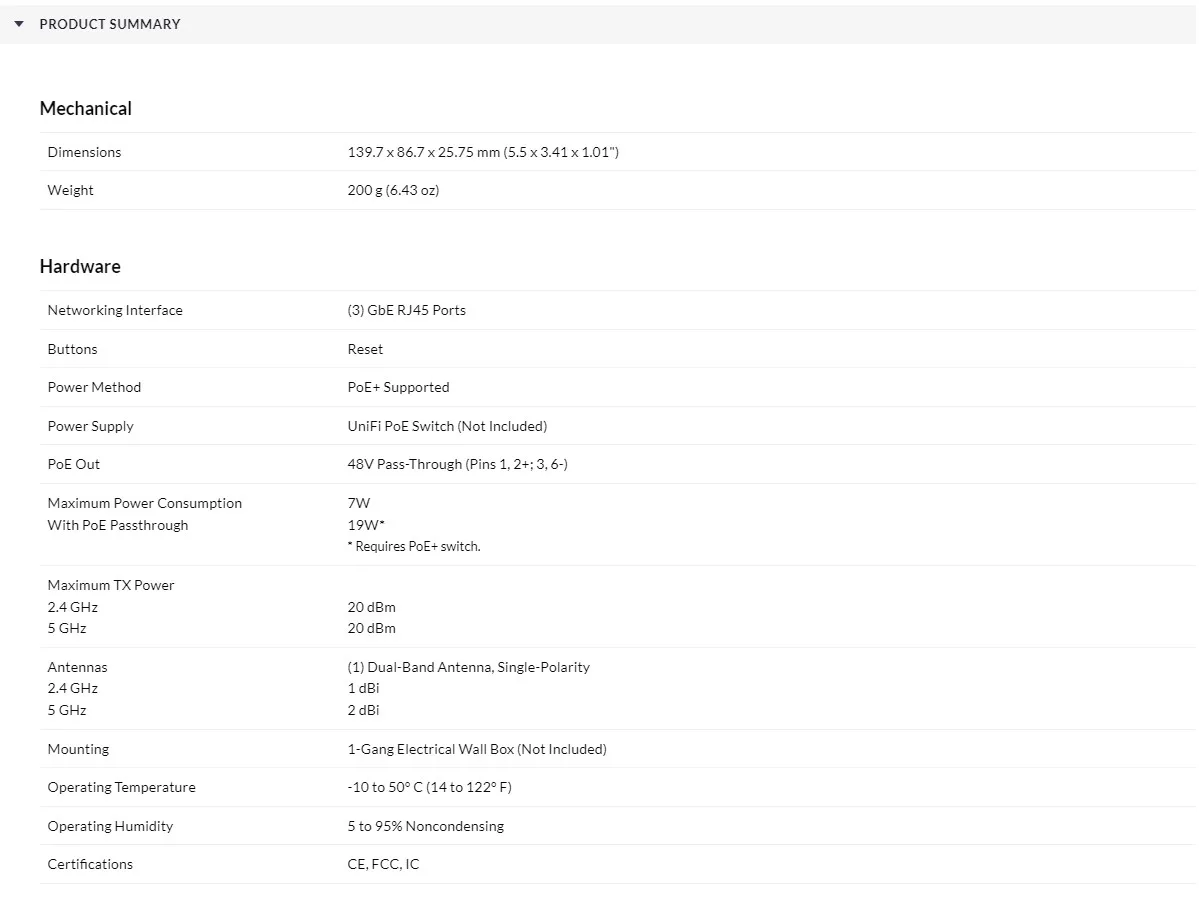

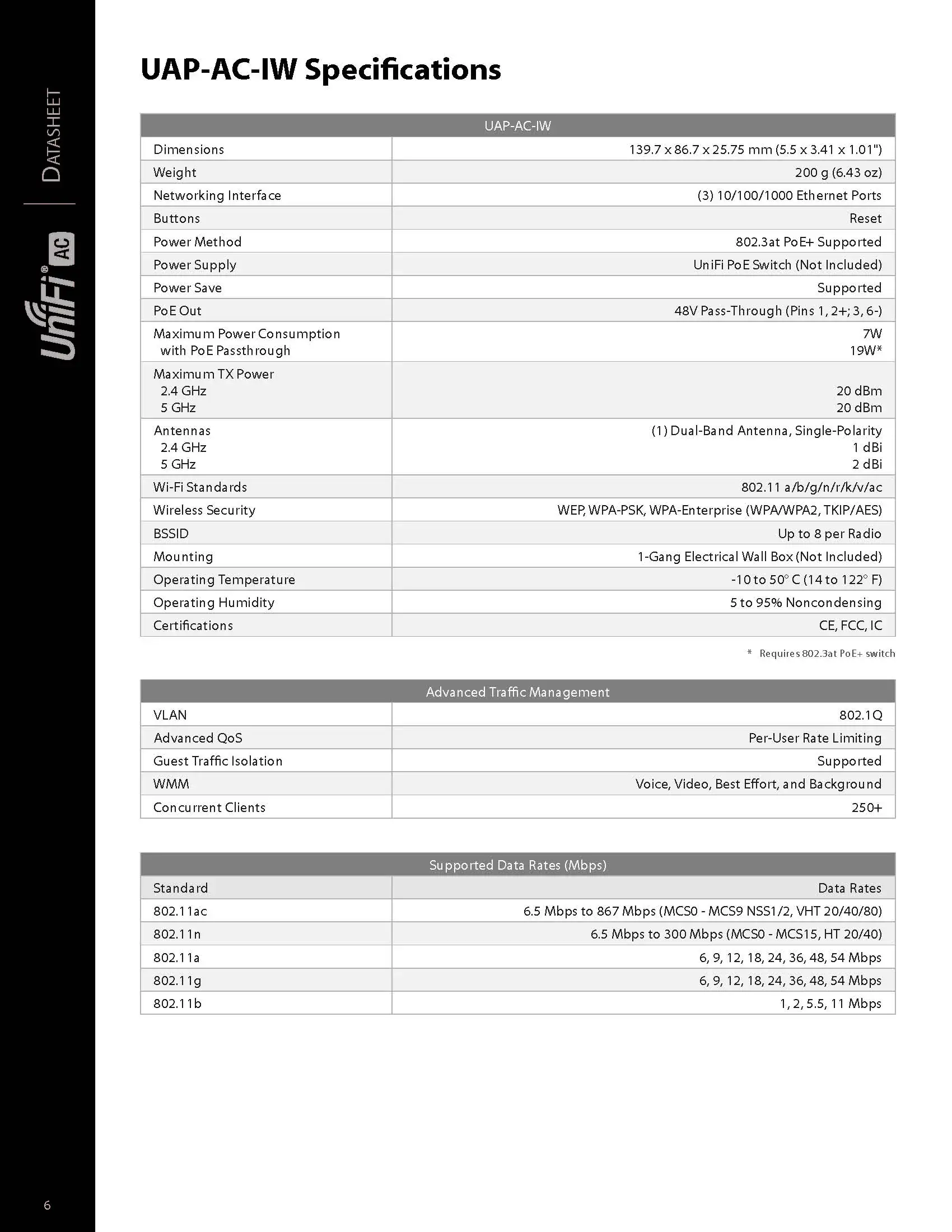

Technical Specifications


Mechanical
Dimensions 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1")
Weight 200 g (6.4 oz)
Hardware
Networking interface (3) GbE RJ45 ports
Management interface Ethernet
PoE interface (1) PoE/PoE+ in
(1) PoE out
Power method PoE
PoE+ (Required for PoE passthrough)
Power supply UniFi PoE switch
PoE out 48V pass-through (Pins 1, 2+; 3, 6-)
Max. power consumption 7W (Excluding PoE output)
Max. PoE wattage per port by PSE 19W*
* Requires PoE switch.
Max. TX power
2.4 GHz
5 GHz
6 GHz
20 dBm
20 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2
2 x 2
–
Throughput rate
2.4 GHz
5 GHz
6 GHz
300 Mbps
867 Mbps
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
1 dBi
2 dBi
–
Button Factory reset
Mounting 1-Gang electrical wall box (Optional)
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC

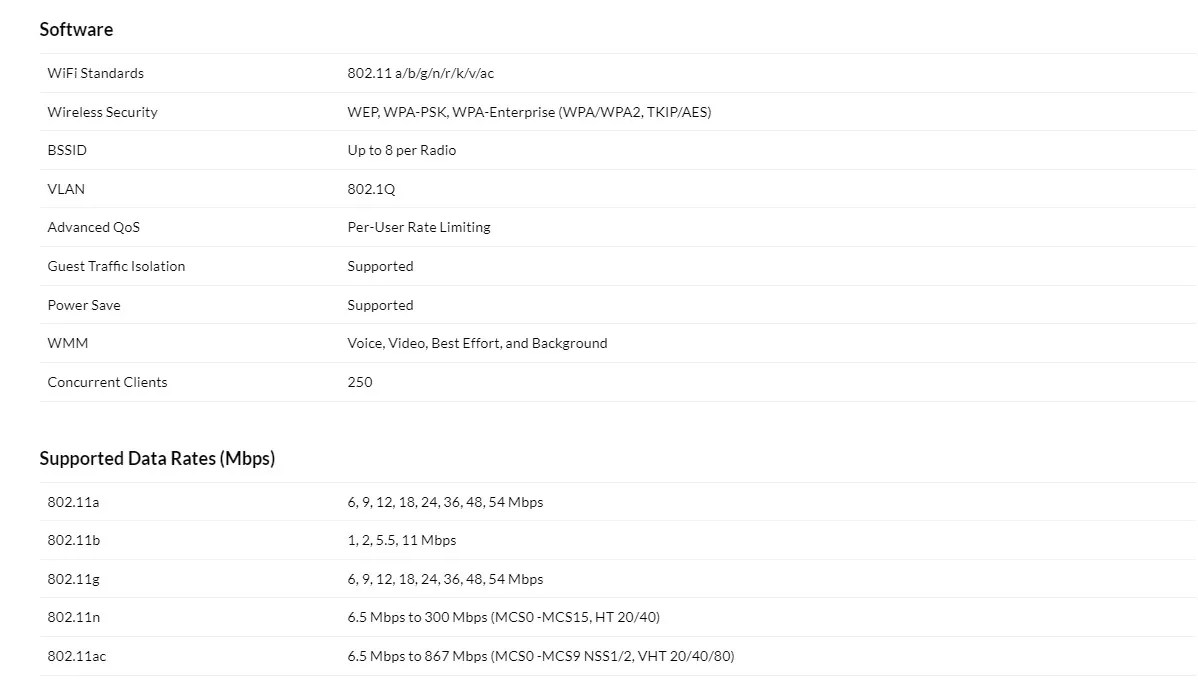

Software
WiFi standards 802.11 a/b/g/n/r/k/v/ac
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
WMM Voice, video, best effort, and background
Concurrent clients 250+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 -MCS9 NSS1/2, VHT 20/40/80)

The UBIQUITI Networks UAP-AC-IW Unifi Panel AP 802.11ac AP, Gigabit Dual-Radio PoE, In-Wall WiFi Access Point with 4 spatial streams and built-in 2-port is a sensational customer favorite, and we hope you like it just as much.
