Ubiquiti Networks NSM2 NanoStation M2 MIMO CPE/AP AirMax Wireless Network Bridge for 5KM, Only 1 Piece/Unit

SPECIFICATIONS

Package: Yes

Model Number: NSM2

Certification: CE

Certification: FCC

Brand Name: UBIQUITI

Description

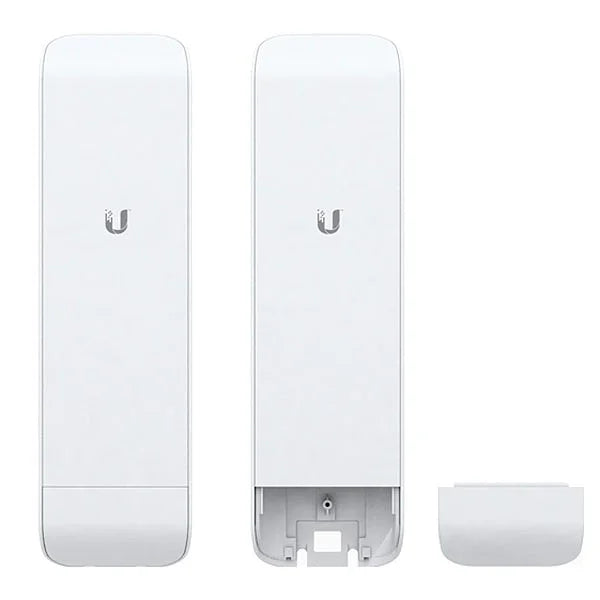

airMAX NanoStation M2
NSM2

Indoor/Outdoor airMAX 2.4 GHz CPE.

2.4 GHz frequency band

Cost-effective, high-performance

Plug-and-play integration with airMAX antennas

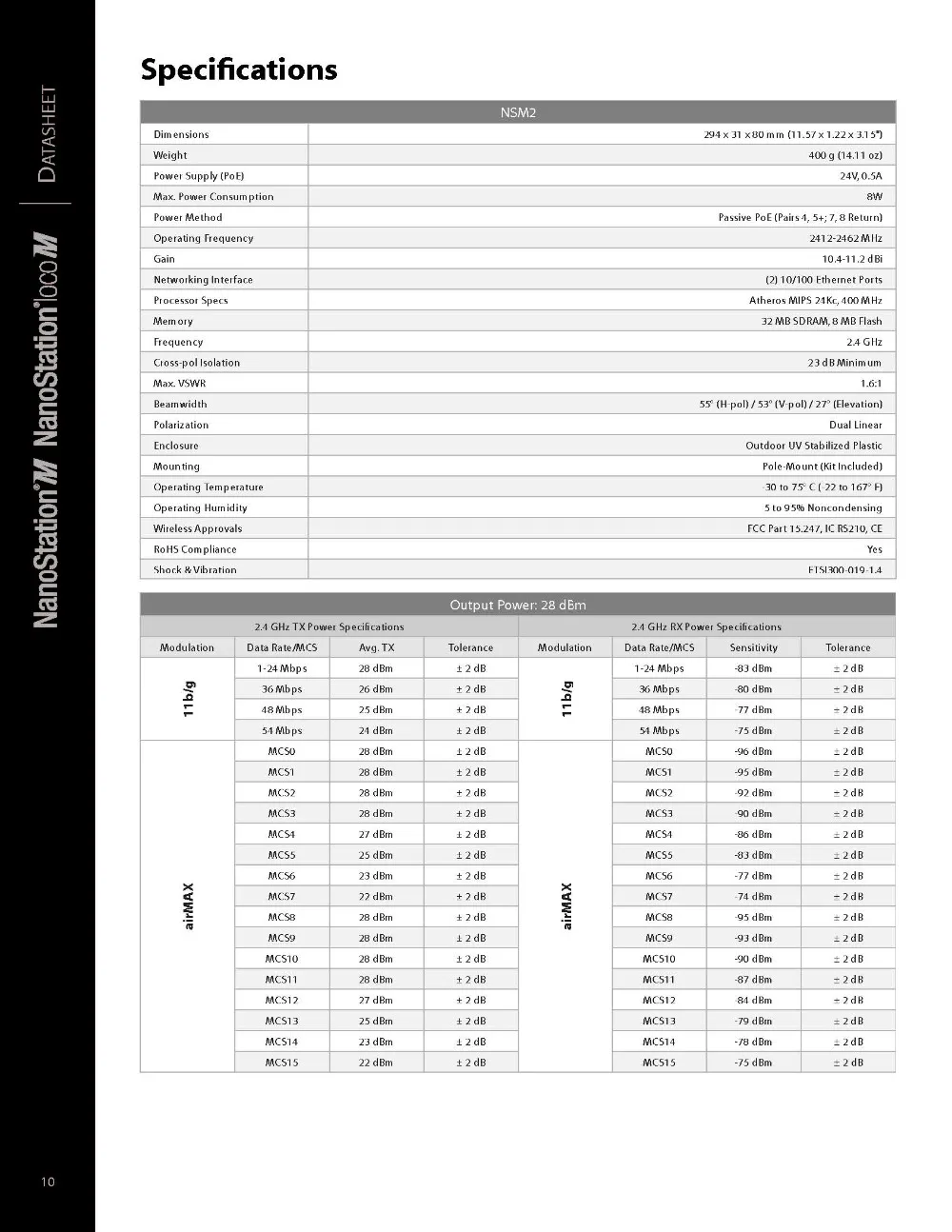

Technical Specifications


Mechanical
Dimensions 294 x 31 x 80 mm (11.6 x 1.2 x 3.2")
Weight 400 g (14.1 oz)
Enclosure material Outdoor UV-stabilized plastic

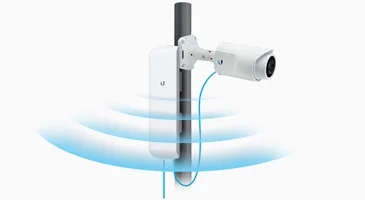

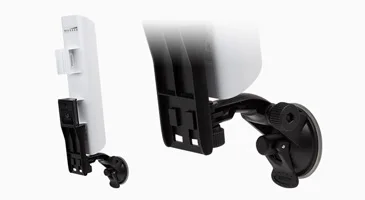

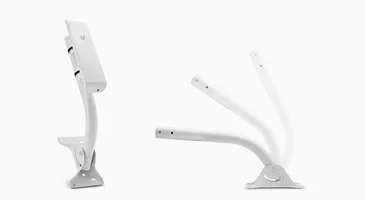

Mounting Pole-mount (Kit included)
Hardware

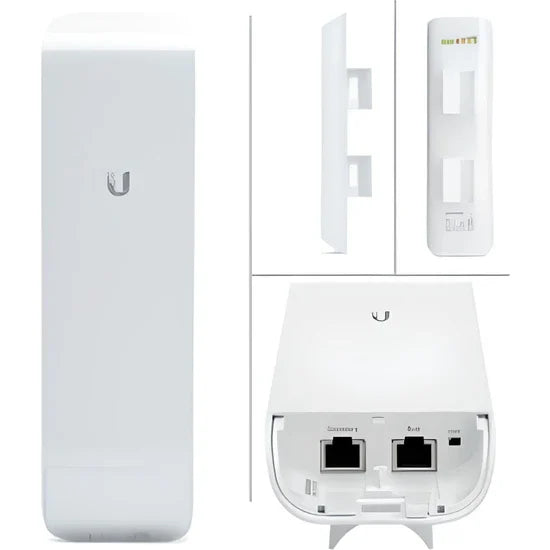

Networking interface (2) 10/100 MbE RJ45 ports
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.5A PoE adapter (Included)
Supported voltage range 22–27V DC
Max. power consumption 5.5W
Ambient operating temperature -30 to 75° C (-22 to 167° F)
Ambient operating humidity 5 to 95% noncondensing
Shock & vibration ETSI300-019-1.4
Certifications FCC, ICC, CE, RoHS
System
Frequency 2.4 GHz
Operating frequency 2412-2462 MHz
Gain 10.4-11.2 dBi
Cross-pol isolation 23 dB Min.
Max. VSWR 1.6:1
Beamwidth 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
Polarization Dual linear



The Ubiquiti Networks NSM2 NanoStation M2 MIMO CPE/AP AirMax Wireless Network Bridge for 5km, 2.4GHz frequency band, 2x 10/100 MbE RJ45 ports,Only 1 Piece is a sensational customer favorite, and we hope you like it just as much.
