TP-Link 450Mbps wireless panel access point TL-AP450I-PoE RJ45 11N Type 86 Fat and thin Weak signal rejection 802.3af/at standard PoE

TP-Link 450Mbps wireless panel AP access point TL-AP450I-PoE RJ45 11N Type 86 Fat and thin Weak signal rejection 802.3af/at standard PoE

Product Description

National standard 86 type panel design, PoE power supply, easy to install and easy to use

The national standard 86 type panel design can directly replace the original network panel without rewiring or destroying the original decoration. It supports 802.3af/at standard PoE network cable power supply. Each AP only needs one network cable, which is not restricted by power supply conditions. AP deployment is simple and construction is convenient.

Automatically select the appropriate channel, the network is smooth and stableAccording to the wireless channel usage of the AP's environment, the appropriate channel is automatically selected to avoid co-channel interference and ensure wireless stability.Body fat and thin, wireless networks of different sizes can be managed efficiently

Fat AP (FAT AP) mode (suitable for small area wireless coverage): No need to use TP-LINK wireless controller (AC), AP can work independently, and wireless network cost is low;Thin AP (FIT AP) mode (suitable for large-area wireless coverage): It needs to be used with a TP-LINK wireless controller (AC), which can manage all APs through the AC to reduce the difficulty of wireless management.

Automatic radio frequency tuning to optimize the overall performance of the wireless networkSupports automatic radio frequency tuning, automatically calculates the neighbor relationship between APs in the network, and automatically adjusts the wireless transmission power and channel according to the real-time interference and load conditions of nearby devices to ensure that the overall wireless network is always in a high-speed, high-performance operating state.

Multiple unified management methods, support remote management

Support TP-LINK commercial network cloud platform centralized management

Support TP-LINK network management system centralized management

Support TP-LINK Shangyun APP remote viewing/management

Hardware specifications

Product model: TL-AP450I-PoE

Installation method: Directly installed in the national standard 86 network junction cassette size 86*86*33mm

Wireless working frequency band: 2.4GHz-2.483GHz

Wireless rate: 450Mbps

Port front: 1 10/100M RJ45

The back of the port: 1 10/100M RJ45 port antenna, built-in antenna indicator, 1 system indicator button, 1 WiFi/LED/Reset multiplexing button, 1 FAT/FIT mode toggle switch, 1 power-off restart button, standard PoE power supply

The maximum power consumption of the whole machine is 4.28W.

Management FIT AP mode: unified management by TP-LINK wireless controller (AC).

FAT AP mode: independent web page management. Operating environment

Working temperature: 0℃～40℃

Working humidity: 10%～90% RH non-condensing

storage temperature: -40℃～70℃

storage humidity: 5%～90% RH non-condensing

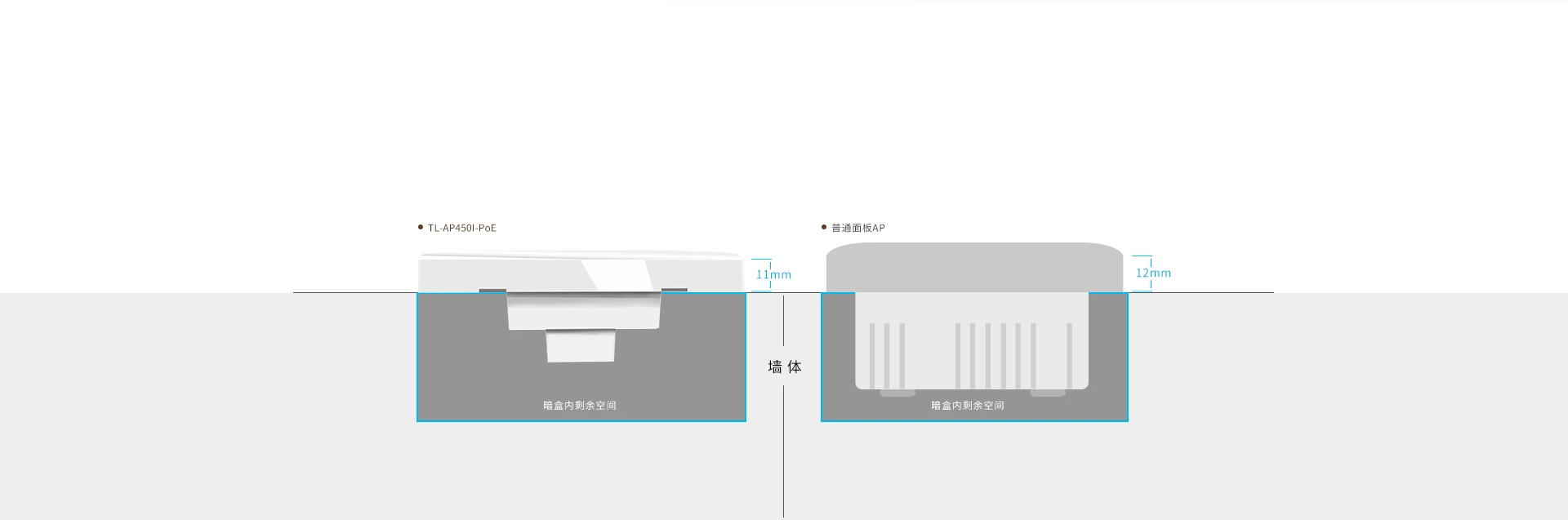

Thinner shell, smaller wall entry volume, more fashionable appearance design

The appearance thickness is only 11mm, noble and elegant, matching other panels in the room, and perfectly blending with various decoration styles.

Standard PoE power supply, construction is more convenient

Using standard PoE power supply, no external power supply is required. Each AP only needs one network cable to transmit data and power at the same time. The maximum power supply distance can reach 100m. There is no need to
change the original power line layout, and the construction is convenient.

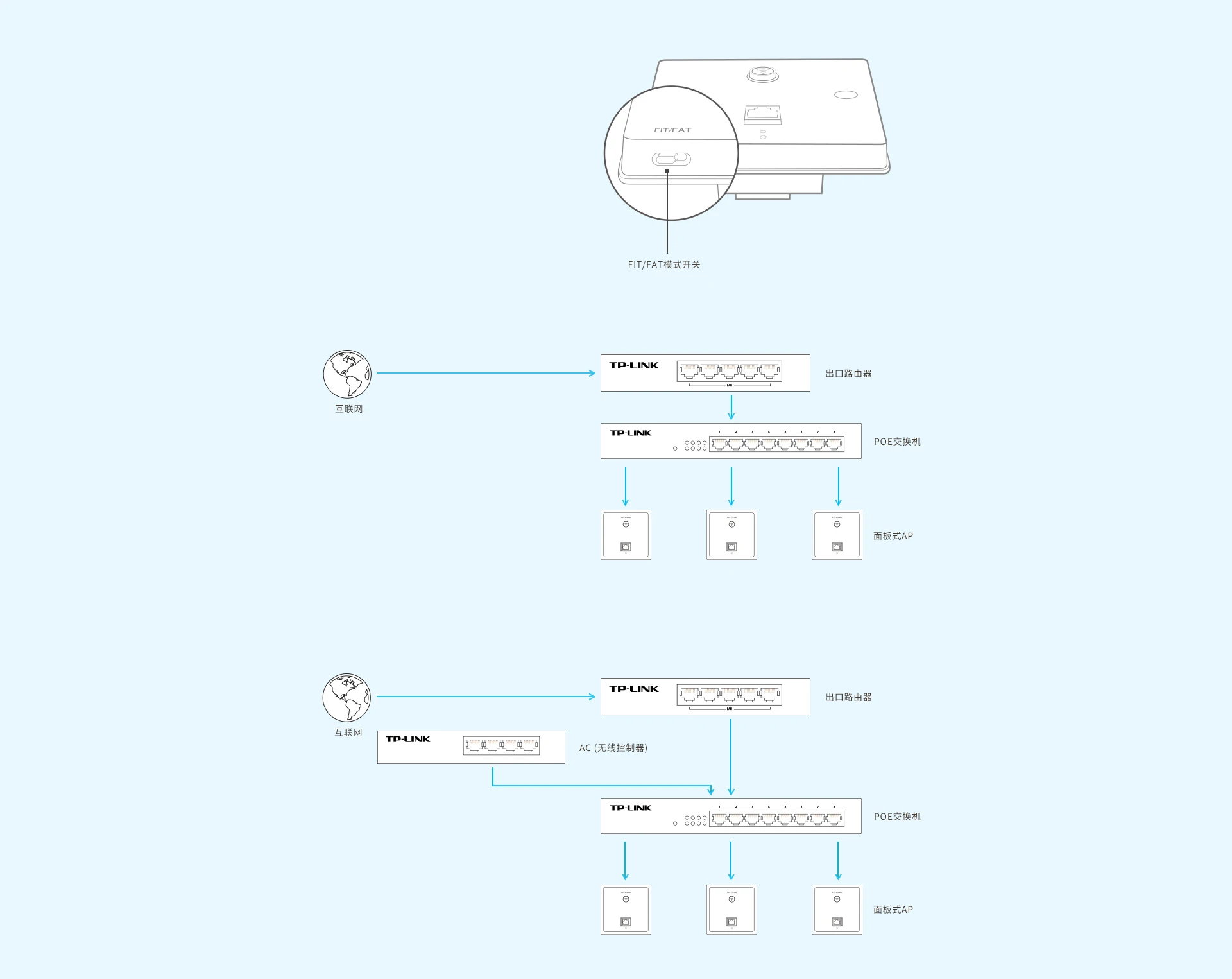

Body fat and thin, more widely used

The switch between fat and thin modes is adopted, and different working modes can be freely selected according to different environments, which is more widely used.

Fat AP mode (FAT AP):
It is suitable for small area wireless coverage, AP is used alone, it can work independently without TP-LINK wireless controller (AC), and the cost of wireless networking is low.

Thin AP mode (FIT AP):
It is suitable for large-area wireless coverage, through TP-LINK wireless control (AC), unified
management of all APs, AP zero configuration, plug and play. AC provides real-time viewing of AP
working status, unified AP configuration, unified AP software upgrade, wireless MAC address filtering and other management functions, which greatly reduces the burden of wireless network management.

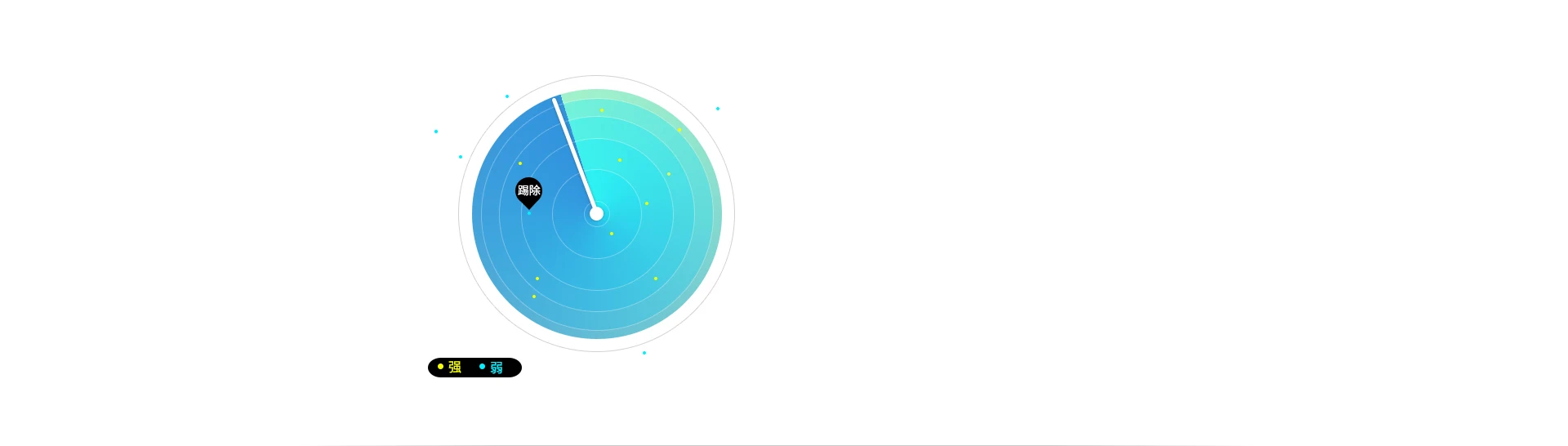

Intelligent recognition, weak signal equipment in seconds. It can set the minimum signal strength, intelligently identify, prohibit, and kick out devices below the specified signal strength, effectively saving channel air interface resources, thereby improving the quality of wireless roaming
and the performance of the entire wireless network.

High-performance wireless, providing sufficient wireless bandwidth for mobile devices

As more and more mobile devices such as mobile phones, tablet computers, and notebook computers access wireless networks, the bandwidth requirements for wireless networks are increasing
