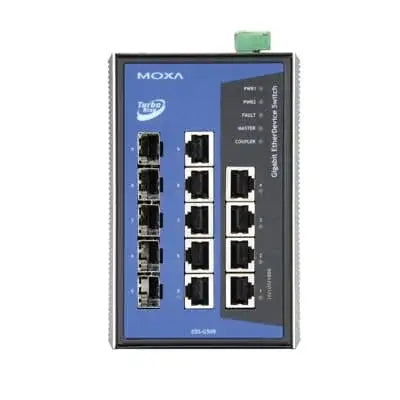

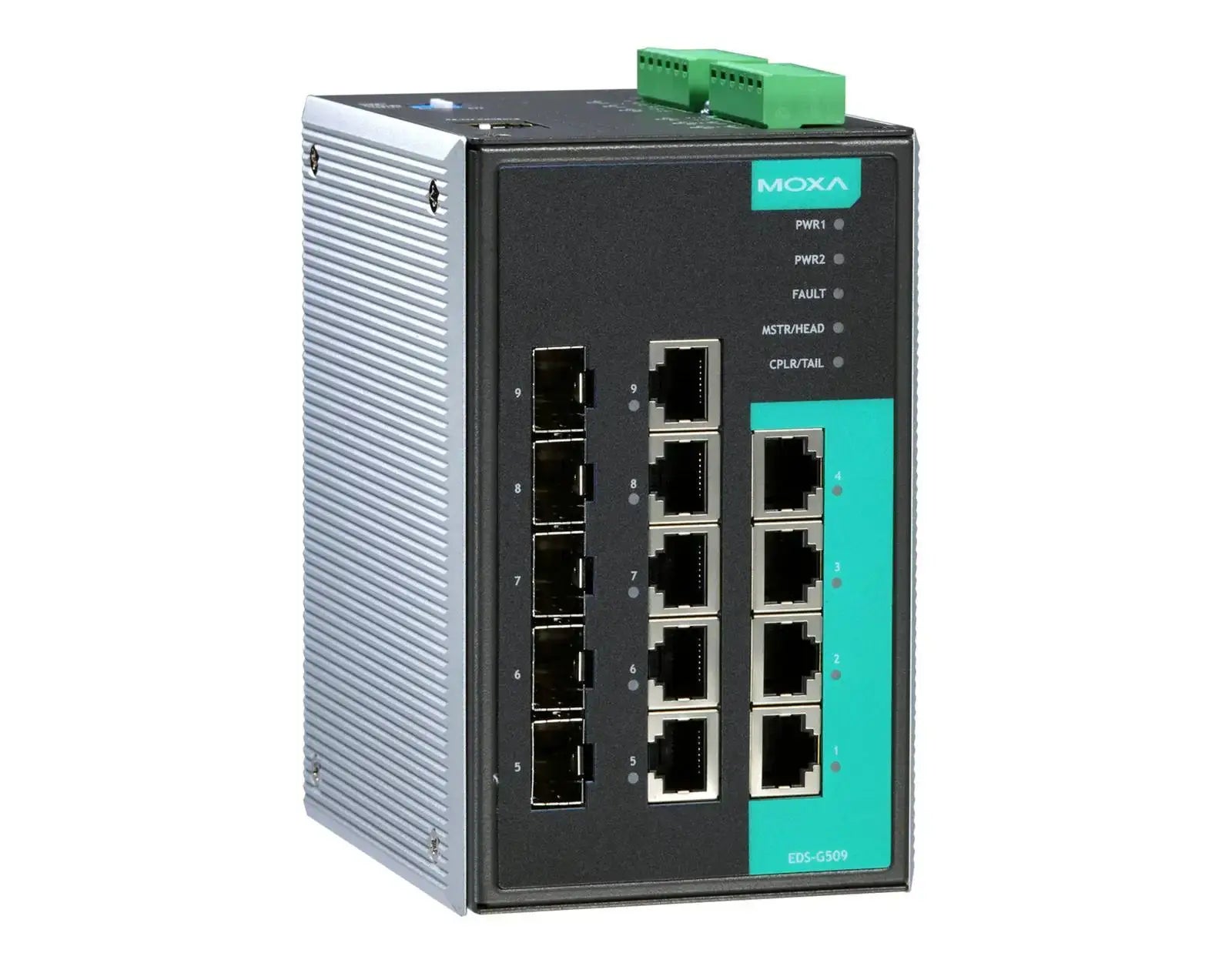

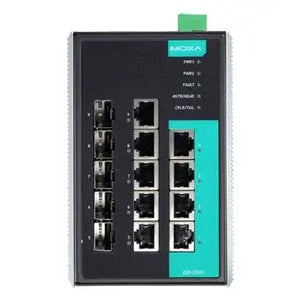

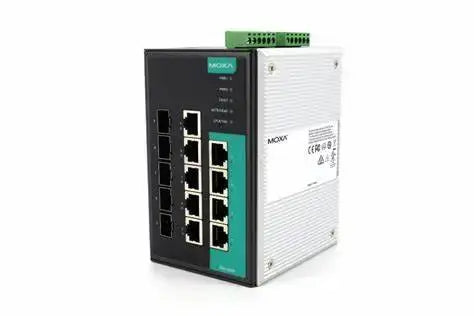

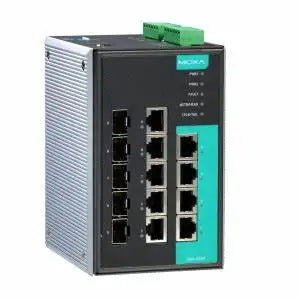

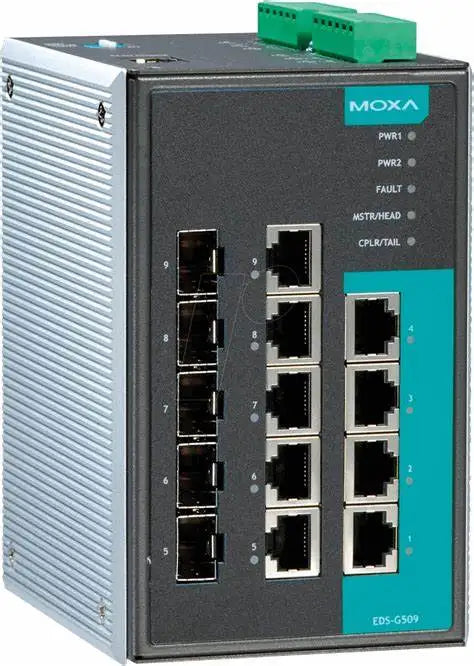

Moxa EDS-G509/EDS-G509-T Industrial Ethernet L2 managed switch with industrial-grade reliability, network redundancy, based on IEC 62443

Moxa EDS-G509/EDS-G509-T Industrial Ethernet L2 managed switch with industrial-grade reliability, network redundancy, based on IEC 62443 standard

Description

Layer 2 Managed Switches

Moxa's Layer 2 managed switches feature industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. We offer toughened, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for rail applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.

Introduction

The EDS-G509 Series is equipped with 9 Gigabit Ethernet ports and up to 5 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of video, voice, and data across a network quickly.

Redundant Ethernet technologies Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase system reliability and the availability of your network backbone. The EDS-G509 Series is designed especially for communication demanding applications, such as video and process monitoring, shipbuilding, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.

Additional Features and Benefits

• Command line interface (CLI) for quickly configuring major managed functions

• DHCP Option 82 for IP address assignment with different policies

• Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

• Compatible with PROFINET protocol for transparent data transmission

• IGMP snooping and GMRP for filtering multicast traffic

• Compatible with the ABC-01 (Automatic Backup Configurator) for system configuration backup

• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

• Port Trunking for optimum bandwidth utilization

• SNMPv1/v2c/v3 for different levels of network management

• RMON for proactive and efficient network monitoring

• Bandwidth management to prevent unpredictable network status

• Lock port function for blocking unauthorized access based on MAC address

• Port mirroring for online debugging

• Automatic warning by exception through email and relay output

Features and Benefits

• 4 10/100/1000BaseT(X) ports plus 5 combo (10/100/1000BaseT(X) or 100/1000BaseSFP slot) Gigabit ports
• Enhanced surge protection for serial, LAN, and power
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• Supports MXstudio for easy, visualized industrial network management

EDS-G509-T

EDS-G509 Series

Industrial full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports, 5 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, -40 to 75°C operating temperature

Switch Properties

• IGMP Groups

  • 256

• MAC Table Size

  • 8 K

• Max. No. of VLANs

  • 64

• Packet Buffer Size

  • 1 Mbits

• Priority Queues

  • 4

• VLAN ID Range

  • VID 1 to 4094

LED Interface

• LED Indicators

  • PWR1, PWR2, FAULT, 10/100/1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL

Serial Interface

• Console Port

  • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

• DIP Switches

  • Turbo Ring, Master, Coupler, Reserve

Power Parameters

• Power Connector

  • 2 removable 6-contact terminal block(s)

• Input Current

  • 0.69 A @ 24 VDC

• Input Voltage

  • 12/24/48 VDC
    Redundant dual inputs

• Operating Voltage

  • 9.6 to 60 VDC

• Overload Current Protection

  • Supported

• Reverse Polarity Protection

  • Supported

Physical Characteristics

• Housing

  • Metal

• IP Rating

  • IP30

• Dimensions

  • 87.1 x 135 x 107 mm (3.43 x 5.31 x 4.21 in)

• Weight

  • 1510 g (3.33 lb)

• Installation

  • DIN-rail mounting
    Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature

  • -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• Safety

  • EN 62368-1
    UL 508

• EMC

  • EN 55032/35

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

• Railway

  • EN 50121-4

• Vibration

  • IEC 60068-2-6

• Shock

  • IEC 60068-2-27

• Freefall

  • IEC 60068-2-32

• Maritime

  • ABS
    DNV
    LR
    NK

MTBF

• Time

  • 598,659 hrs

• Standards

  • Telcordia (Bellcore), GB

Warranty

• Warranty Period

  • 5 years
