MikroTik wAP LTE Weatherproof 2G/3G/LTE CPE with 2.4 GHz Wi-Fi Router, 650 MHz CPU, 64MB RAM, 802.11b/g/n dual-chain, 1 FE LAN, LTE/3G/2G, RouterOS L4

Regular price: R 4,965.00
Sale price: R 4,965.00
Regular price
Unit price: per

Shipping calculated at checkout.

Quantity must be 1 or more

MikroTik wAP LTE - Weatherproof 2G/3G/LTE CPE with 2.4 GHz Wi-Fi Router

Description

MikroTik wAP LTE Weatherproof 2G/3G/LTE CPE with 2.4 GHz Wi-Fi Router, 650 MHz CPU, 64MB RAM, 802.11b/g/n dual-chain, 1 FE LAN, LTE/3G/2G, RouterOS L4

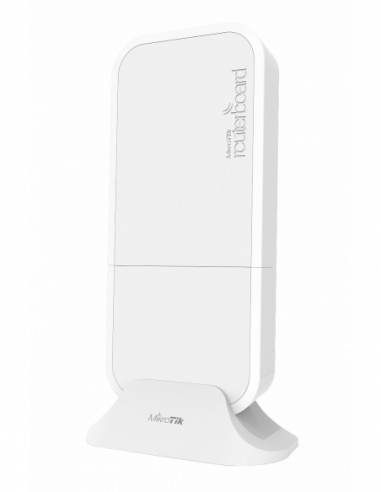

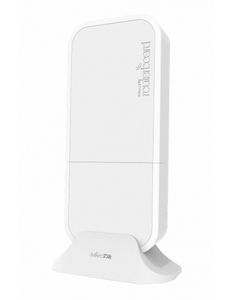

The wAP LTE is a small weatherproof wireless access point with a built-in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. The weatherproof device can be mounted outside your house, in a vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.

wAP LTE kit

Small weatherproof wireless access point with International LTE modem

The wAP LTE is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.

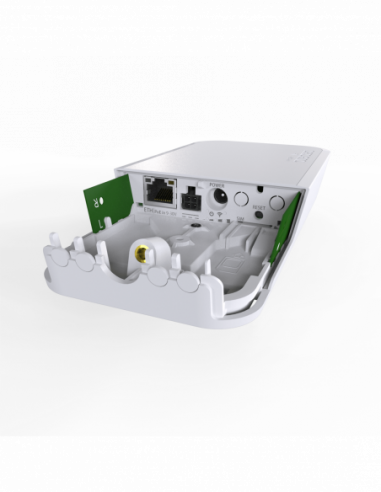

LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.

RBwAPR-2nD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.

SKU#: MT-RBWAP-LTE

Warranty: 1 Year

Manufacturer SKU#: RBwAPR-2nD&R11e-LTE

Key Features

650 MHz CPU, 64MB RAM, 802.11b/g/n dual-chain, 1 FE LAN, LTE/3G/2G, RouterOS L4, PoE in

Specifications

Details
Product code	RBwAPR-2nD&R11e-LTE
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	185 x 85 x 30 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 50°C
Suggested price	N/A

Powering

Details
Number of DC inputs	3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage	9-30 V
Automotive input Voltage	9-30 V
Max power consumption	8 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	9-30 V

Mobile

Details
2G Category	Class12
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz)
TAC	35565409

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, E-MARK, EAC, ROHS
IP	IP54

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71

Included parts
