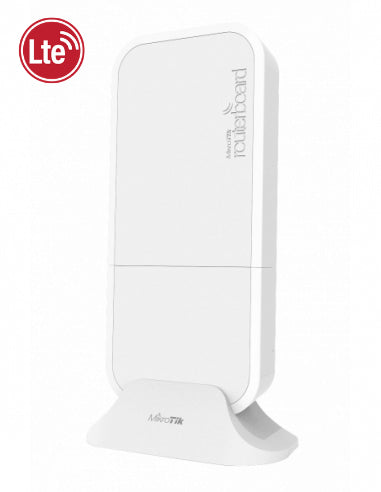

MikroTik wAP ac LTE kit - Weatherproof 2G/3G/LTE CPE with 2.4/5 GHz Wi-Fi Router
Description
MikroTik wAP ac LTE kit Weatherproof 2G/3G/LTE CPE with 2.4/5 GHz Wi-Fi Router, 716 MHz CPU, 128MB RAM, 802.11b/g/n/ac dual-chain, 2 Gb LAN, RouterOS
The wAP ac LTE is a powerful dual-band wireless AP with LTE backup and two Gigabit Ethernet ports, available in several versions. Based on the popular wAP form factor, the device is weatherproof and ready for outdoor and indoor installations. You can mount it on walls, ceilings, poles or stand it on a flat surface.
wAP ac LTE kit
A small package with a huge ambition – the wAP ac LTE is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. It has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can also enjoy wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C and can be easily mounted on walls, ceilings or poles.
Don’t be fooled by the compact size – this device is powered by a four-core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.
RBwAPGR-5HacD2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac LTE will meet most demands without making sacrifices.
SKU#: MT-RBWAP-LTE-AC
Warranty: 1 Year
Manufacturer SKU#: RBwAPGR-5HacD2HnD&R11e-LTE
Key Features
716 MHz CPU, 128MB RAM, 802.11b/g/n/ac dual-chain, 2 GB LAN, LTE/3G/2G, RouterOS L4, PoE in
Specifications
Details | |
---|---|
Product code | RBwAPGR-5HacD2HnD&R11e-LTE |
Architecture | ARM 32bit |
CPU | IPQ-4018 |
CPU core count | 4 |
CPU nominal frequency | 716 MHz |
Switch chip model | IPQ-4018 |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -30°C to 50°C |
IPsec hardware acceleration | Yes |
Suggested price | N/A |
Powering
Details | |
---|---|
Number of DC inputs | 2 (PoE-IN, DC jack) |
DC jack input Voltage | 10-57 V |
Max power consumption | 14 W |
Max power consumption without attachments | 10 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 18-57 V |
Mobile
Details | |
---|---|
2G Category | Class12 |
2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) |
TAC | 35565409 |
Wireless specifications
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2.5 |
Wireless 2.4 GHz chip model | IPQ-4018 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 867 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 2.5 |
Wireless 5 GHz chip model | IPQ-4018 |
Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 2 |
Peripherals
Details | |
---|---|
Number of SIM slots | 1 Modem (Micro SIM) |
MiniPCI-e slots | 1 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP54 |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 22 | -100 |
11MBit/s | 22 | -94 |
6MBit/s | 23 | -95 |
54MBit/s | 19 | -78 |
MCS0 | 23 | -95 |
MCS7 | 18 | -73 |
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 24 | -95 |
54MBit/s | 20 | -78 |
MCS0 | 24 | -95 |
MCS7 | 19 | -73 |
MCS9 | 17 | -68 |
Included parts
Plastic zip tie
Metal ring (one)
Gigabit PoE injector
24V 0.8A power adapter
wAP desktop stand
wAP ceiling mount bracket
wAP mount
K-50 locking set
K-52 fastening set
