MikroTik RouterBOARD 912UAG-5HPnD with 5GHz radio, 1 Gb port, 1 MiniPCI-e, 1 USB, 1 Sim slot & 2 MMCX, 600MHz CPU, 64MB RAM, 802.11a/n dual chain, ROS

Regular price: R 3,680.00
Sale price: R 3,680.00
Regular price
Unit price: per

Shipping calculated at checkout.

Quantity must be 1 or more

MikroTik RouterBOARD 912UAG-5HPnD with 5GHz radio, 1 Gb port,1 MiniPCI-e, 1 USB, 1 Sim slot and 2 MMCX

Description

MikroTik RouterBOARD 912UAG-5HPnD with 5GHz radio,1 Gb port,1 MiniPCI-e,1 USB,1 Sim slot and 2 MMCX

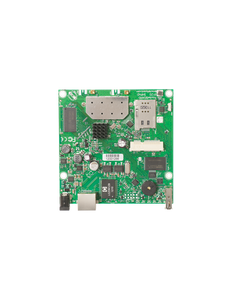

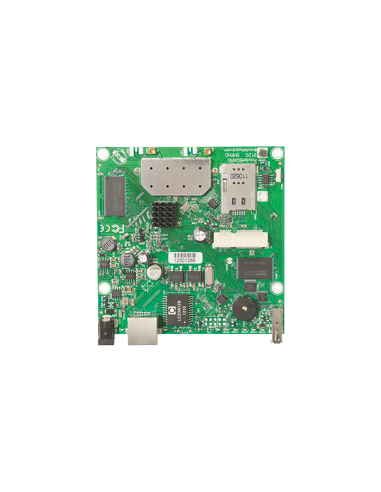

RB912UAG-5HPnD

600MHz CPU, 64MB RAM, 1xGigabit Ethernet, onboard 5Ghz wireless, miniPCI-express, USB, SIM slot, RouterOS L4

The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

It has built in 16kV ESD protection on both the Ethernet and the MMCX ports

- RB912UAG-5HPnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RB912UAG-5HPnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

SKU#: MT-RB912UAG-5HPnD
Warranty: 1 Year
Manufacturer SKU#: RB912UAG-5HPnD

Categories:
Broadband Wireless, MikroTik, RouterBOARD
Brand: MikroTik

Features

600MHz CPU, 64MB RAM, 802.11a/n dual chain, RouterOS L4, PoE in, 8 V - 30 V

Specifications

Details
Product code	RB912UAG-5HPnD
Architecture	MIPSBE
CPU	AR9342
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	105x105mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	N/A

Powering

Details
Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	8-30 V
Max power consumption	12 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	8-30 V

Wireless specifications

Details
Wireless 5 GHz Max data rate	300 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Wireless 5 GHz chip model	AR9342
Wireless 5 GHz generation	Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP00

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	30	-96
54MBit/s	27	-78
MCS0	30	-96
MCS7	26	-75

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
