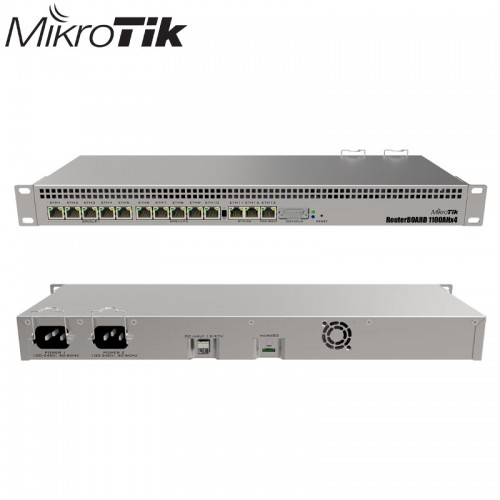

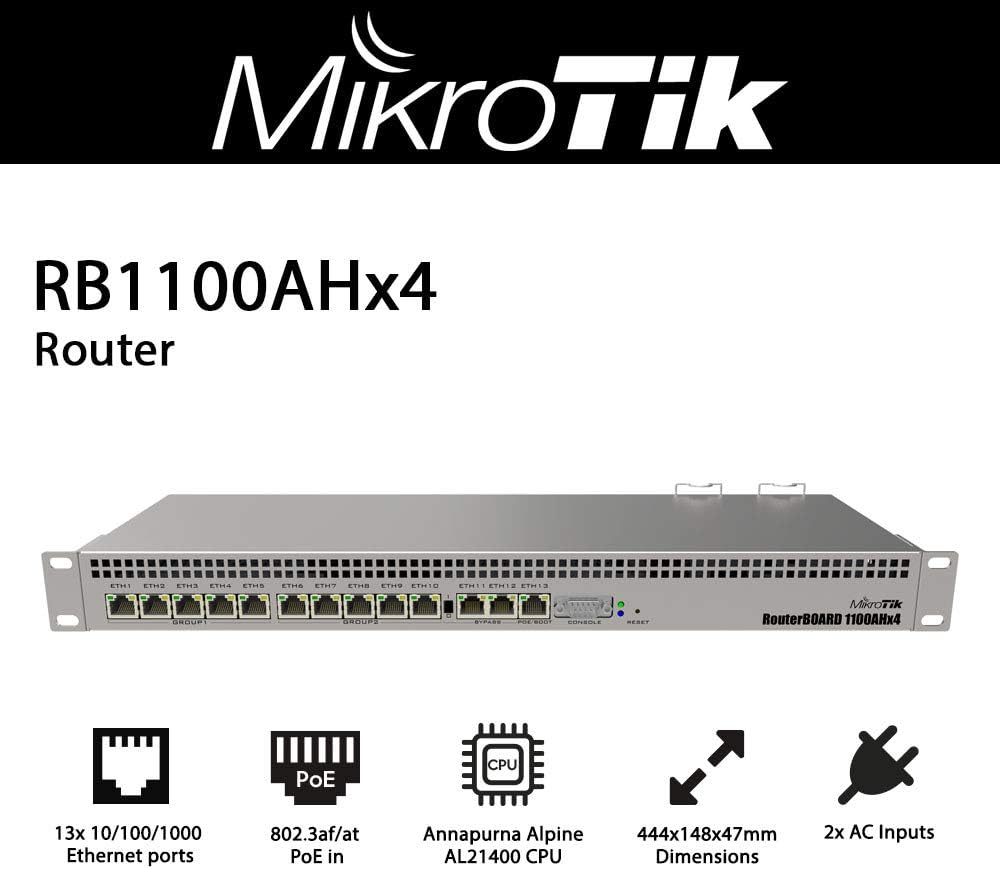

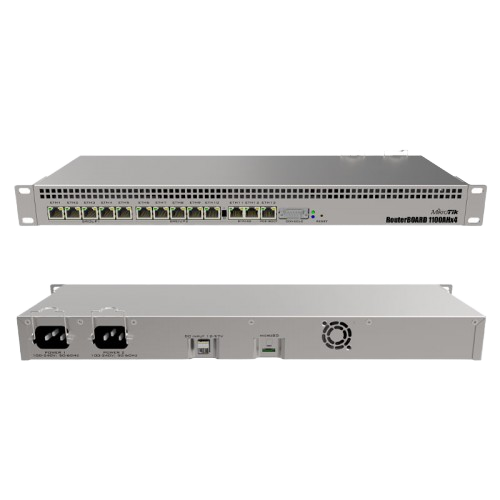

MikroTik RB1100AHx4 13-port Gigabit router 1U rack, 13×10/100/1000, RouterOS L6, 4 cores CPU, 2-pin terminal, PoE-IN

RB1100AHx4, 13x Gigabit Ethernet port router, powered by an Annapurna Alpine AL21400 CPU and four Cortex A15 cores, each clocked at 1.4GHz, with a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (AES128 up to 2.2Gbps).

The unit comes with a 1U rackmount chassis, RS232 serial ports and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

Product Specifications

Product Code RB1100x4

Architecture ARM 32-bit

CPU AL21400-1400-A0-E-1AN-8-C

Number of CPU cores 4

CPU nominal frequency 1.4 GHz

Dimensions 444 x 148 x 47 mm

License level 6

Operating System RouterOS

RAM size 1 GB

Storage size 128 MB

Storage type NAND

Test ambient temperature -40C .. + 70C

powered by

Maximum power consumption 20W

PoE input 802.3af/at

PoE input voltage 20-57 V

Number of AC Inputs 2

AC input range 100-240

Number of DC inputs 2 (2-pin terminal, PoE-IN)

2-pin terminal input voltage -48,12-57V

Ethernet

10/100/1000 Ethernet ports 13

Peripherals

Serial port RS232

other

Current Monitor Yes

PCB Temperature Monitor Yes

voltage monitor yes

Specifications

Powering

Ethernet

Peripherals

Other

Certification & Approvals

Included parts

•
  K10 screw kit
•
  Rack ears
•
  2x IEC cords
