MikroTik OmniTIK UPA-5HnD 5GHz Outdoor AP with 360° Omni-Antenna, 400MHz CPU, 64MB RAM,802.11a/n dual chain,1FE LAN,1USB, RouterOS L5,PoE in/out, 7dBi

Regular price: R 3,548.95
Sale price: R 3,548.95
Regular price
Unit price: per

Shipping calculated at checkout.

Quantity must be 1 or more

MikroTik OmniTIK UPA-5HnD - 5GHz Outdoor AP with 360 Degree Omni-Antenna, RBOmnitikUPA-5HnD

Description

MikroTik OmniTIK UPA-5HnD 5GHz Outdoor AP with 360° Omni-Antenna, 400MHz CPU, 64MB RAM,802.11a/n dual chain,1FE LAN,1USB, RouterOS L5,PoE in/out, 7dBi

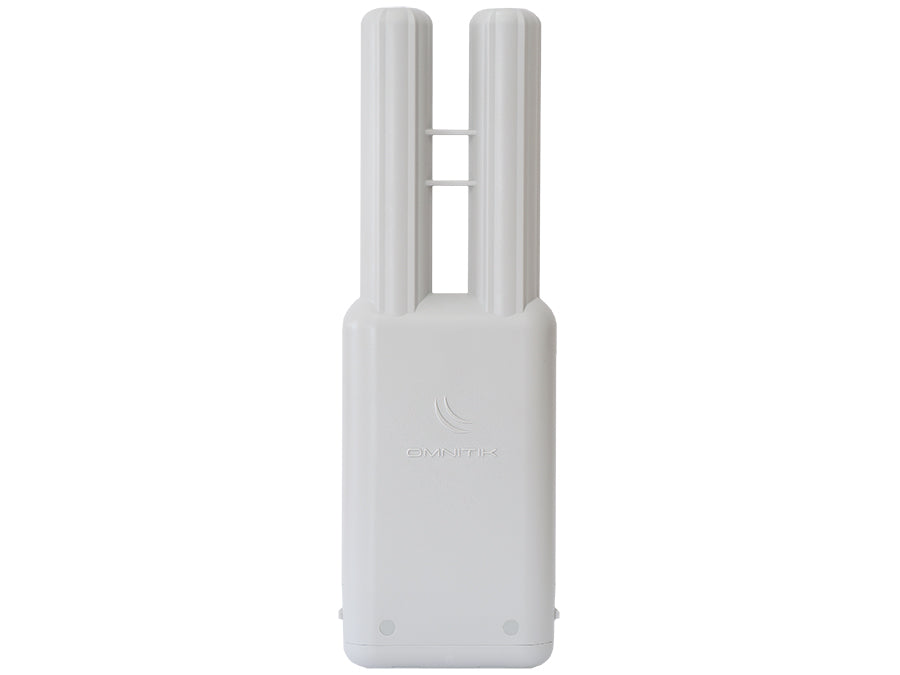

The OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT or for any other 5GHz 802.11a/n standard device. It's weatherproof, durable and ready to use.

SKU#: MT-RBOMNUPA5HnD
Warranty: 1 Year
Manufacturer SKU#: RBOmnitikUPA-5HnD

Categories:
Broadband Wireless, MikroTik, Outdoor CPE
Brand: MikroTik

Key Features

400MHz CPU, 64MB RAM,802.11a/n dual chain,1 FE LAN,1 USB, RouterOS L5,PoE in/out, 7dBi gain,9V-30V

Full Product Details

OmniTIK 5 PoE

7.5dBi Integrated AP, 5GHz Dual chain, 5xEthernet ports with PoE output

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device. Weatherproof, durable and ready to use. It has ve 10/100 Ethernet ports, PoE support and a built-in 1000mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

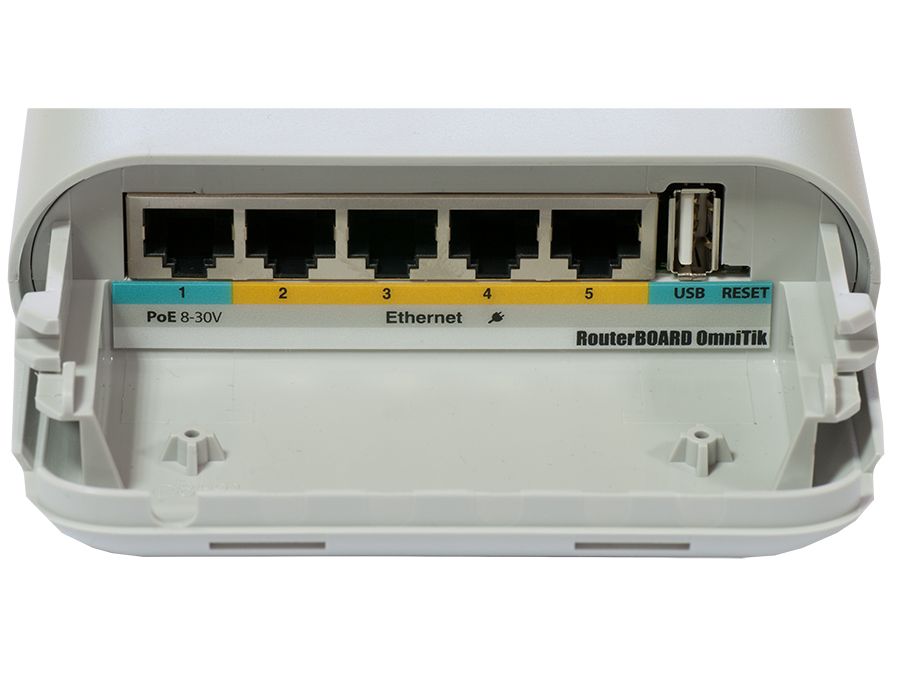

LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.

The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters to worry about.

Box contains OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter

- RBOmniTikUPA-5HnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBOmniTikUPA-5HnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Details
Product code	RBOmniTikUPA-5HnD
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Switch chip model	AR9344
Dimensions	368x125x55mm
RouterOS license	5
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	N/A

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	59 W
Max power consumption without attachments	11 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	11-30 V

PoE-out

Details
PoE-out ports	Ether2-Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	1 A
Max total out (A)	2 A

Wireless specifications

Details
Wireless 5 GHz Max data rate	300 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Antenna gain dBi for 5 GHz	7.5
Wireless 5 GHz chip model	AR9344
Wireless 5 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	5

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification and Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP54

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	30	-96
54MBit/s	27	-78
MCS0	30	-96
MCS7	26	-75

Included parts

The MikroTik OmniTIK UPA-5HnD 5GHz Outdoor AP with 360° Omni-Antenna, 400MHz CPU, 64MB RAM,802.11a/n dual chain,1FE LAN,1USB, RouterOS L5,PoE in/out, 7dBi was built with people like you in mind. Something to keep you happy. Every. Single. Day.
