MikroTik NetMetal ax WiFi 6 ODU 2.5G SFP - RBL23UGSR-5HaxD2HaxD-NM

Description

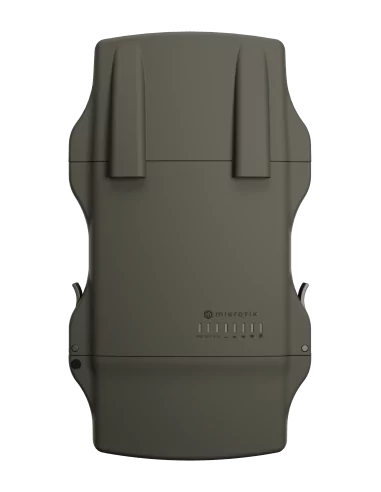

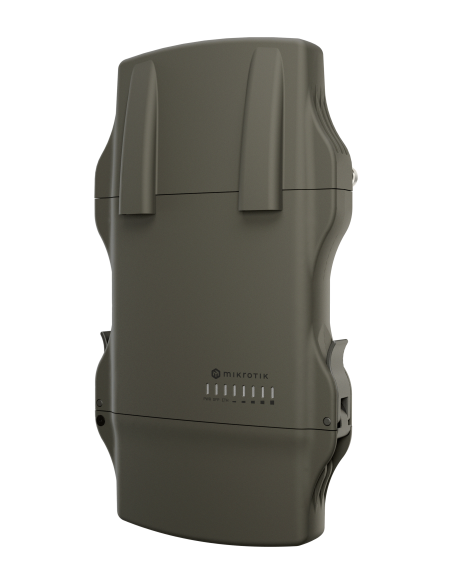

NetMetal ax

The Mars rover of networking. Our toughest long-range outdoor access point – now with Wi-Fi 6!

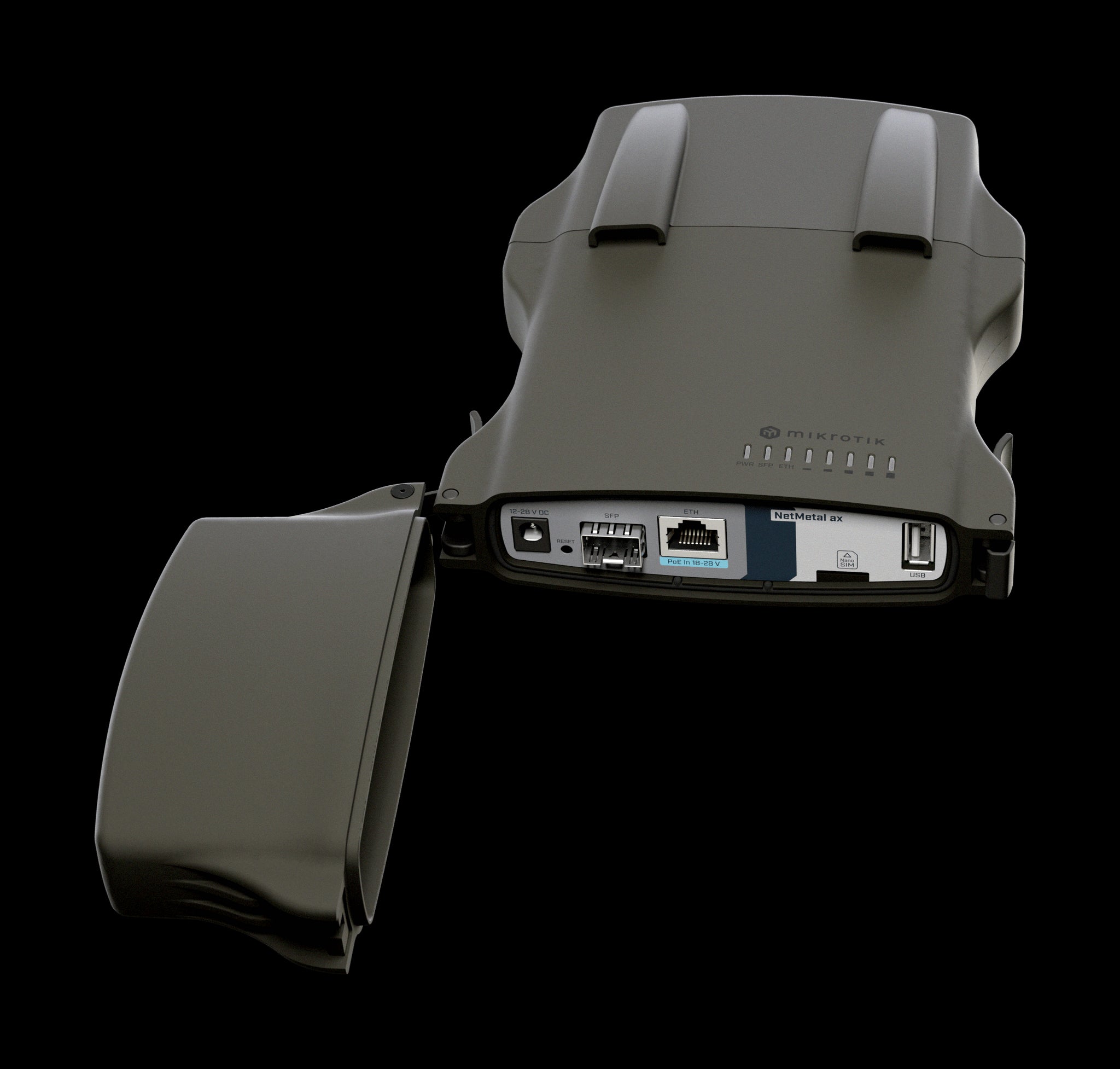

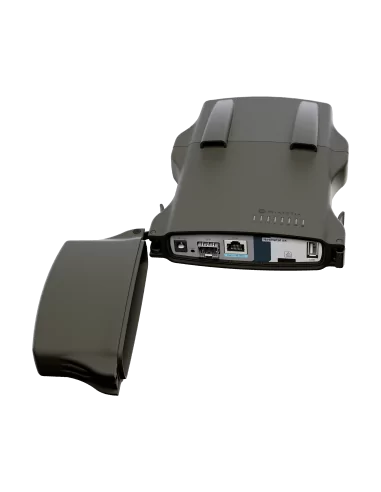

Meet one of your most versatile companions: the NetMetal ax – a powerful long-range outdoor access point that thrives in any environment. Designed for extra durability, it can be installed almost anywhere with ease – you can open and close the case with one hand. The rated IP66 protection will keep the device safe from dust and powerful water jets - in damp attics and elevator shafts, bustling docks, or coastal tower structures. No terrain is too rough for the NetMetal ax – the Mars rover of networking!

It features a modern dual-core ARM CPU, Gigabit Ethernet and 2.5 Gigabit SFP for fiber connectivity, a USB port, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the NetMetal! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!

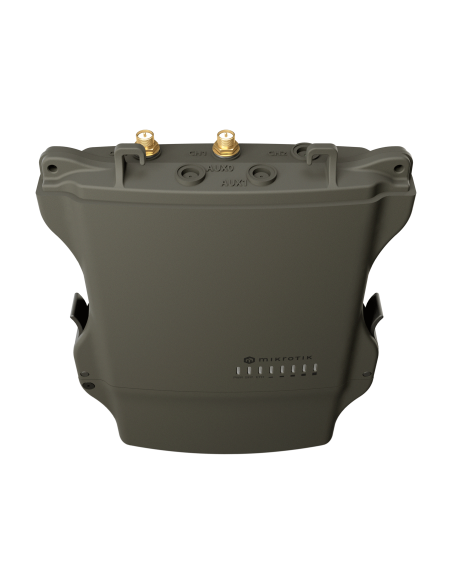

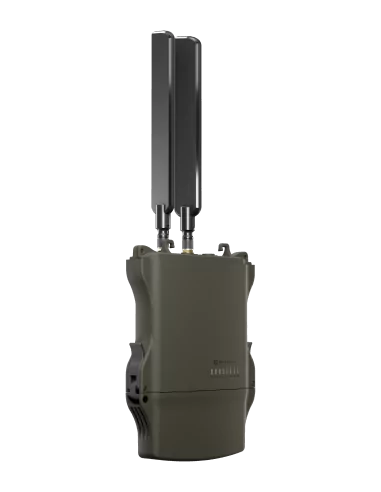

A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols. Two RP-SMA Female connectors allow adding an antenna of your choice for distances up to 30 kilometers.*. If necessary, you can adapt the NetMetal ax for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit. It provides 3.3 dBi gain for the 2.4 GHz band and 5.5-7.1 dBi gain for the 5 GHz band.

If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.

SKU: MT-RBL23UGSR-5HAXD2HAXD-NM
Warranty: 1 Year
Manufacturer SKU: L23UGSR-5HaxD2HaxD-NM
Barcode: 4752224009234

Categories:
Broadband Wireless, MikroTik, 2.4GHz / 5GHz Base Station
Brand: MikroTik

Features

Dual-Core IPQ-5010 800 MHz, 256 MB RAM, Gigabit ethernet, IP66, miniPCIe for LTE or LoRa

Specifications

Details
Product code	L23UGSR-5HaxD2HaxD-NM
Architecture	ARM
CPU	IPQ-5010
CPU core count	2
CPU nominal frequency	800 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	N/A

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-28 V
Max power consumption	25 W
Max power consumption without attachments	12 W
PoE in	Passive PoE
Cooling type	Passive
PoE in input Voltage	18-28 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Wireless 2.4 GHz chip model	IPQ-5010
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	2400 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Wireless 5 GHz chip model	QCN-6102
Wireless 5 GHz generation	Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports	1

Fiber

Details
SFP ports	1 (2.5G supported)

Peripherals

Details
Number of SIM slots	1 Modem (Nano SIM)
MiniPCI-e slots	1
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1.5

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	66

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	27	-100
11MBit/s	27	-94
6MBit/s	29	-96
54MBit/s	27	-80
MCS0	29	-96
MCS7	26	-75
MCS9	24	-70
MCS11	22	-67

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	28	-96
54MBit/s	26	-80
MCS0	28	-96
MCS7	25	-75
MCS9	23	-70
MCS11	20	-67

Included parts
