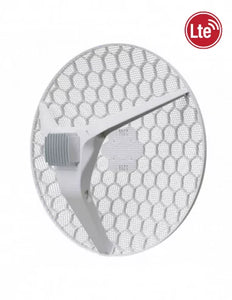

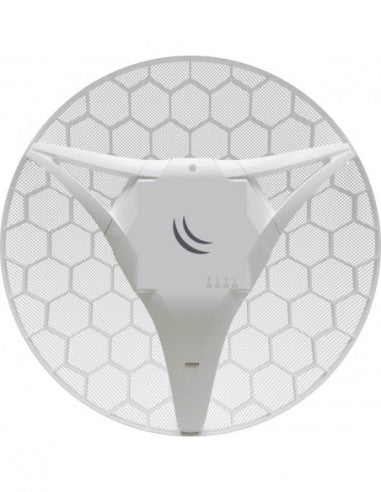

MikroTik LHG LTE - LTE Outdoor CPE, with 17dBi gain, 1 Sim Slot, 1 FE ports, PoE in, device for very remote locations within cellular network coverage
Description

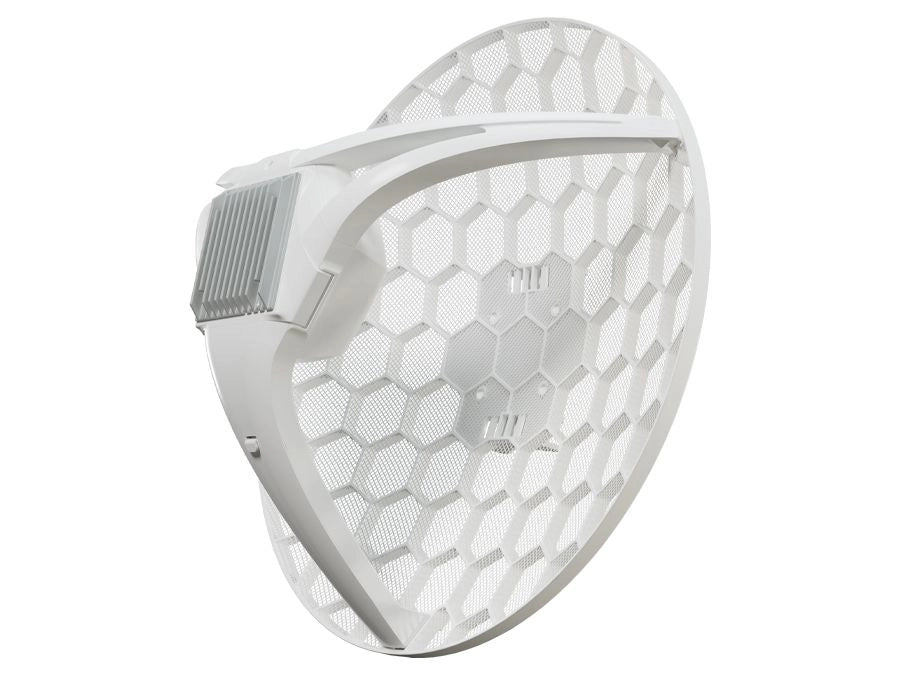

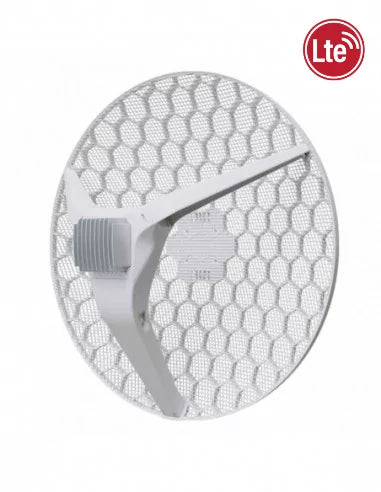

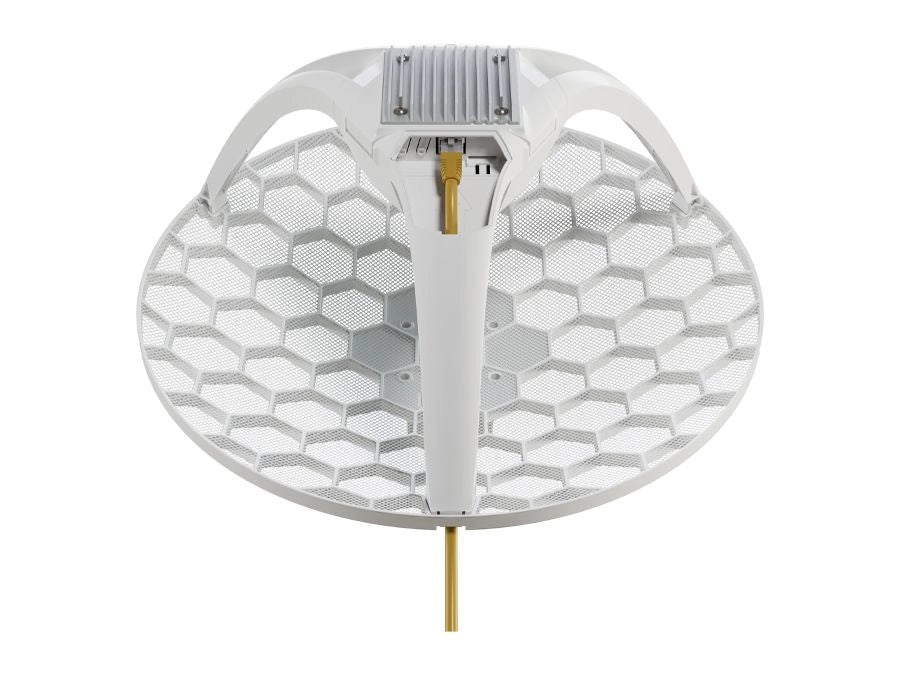

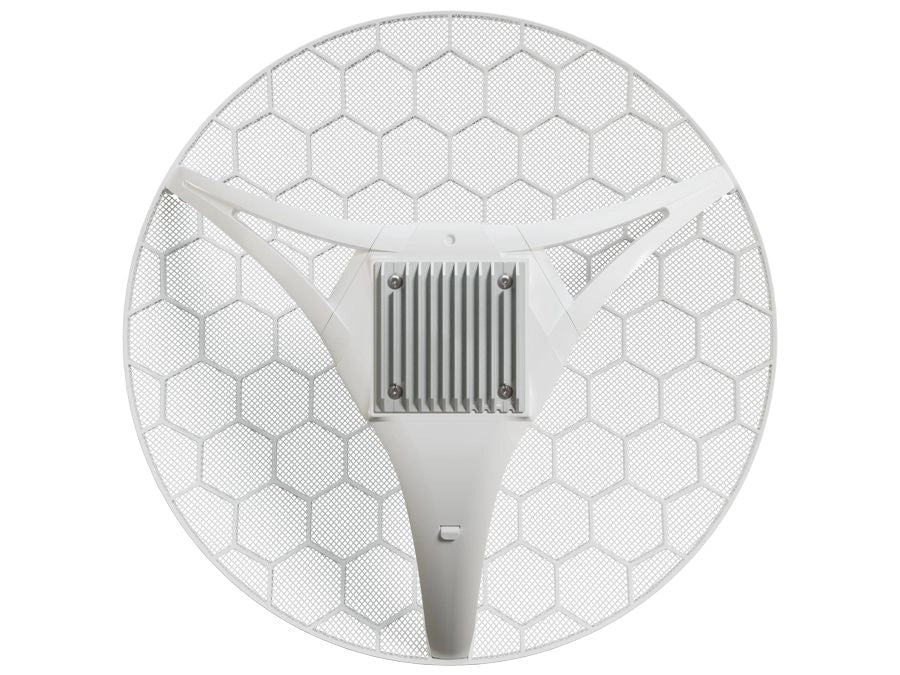

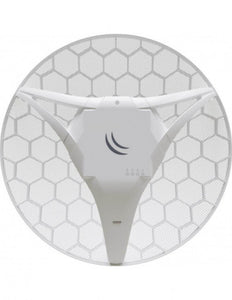

LHG LTE kit
LHG 2G/3G/4G/LTE High gain 17dBI CPE for very remote areas, International bands

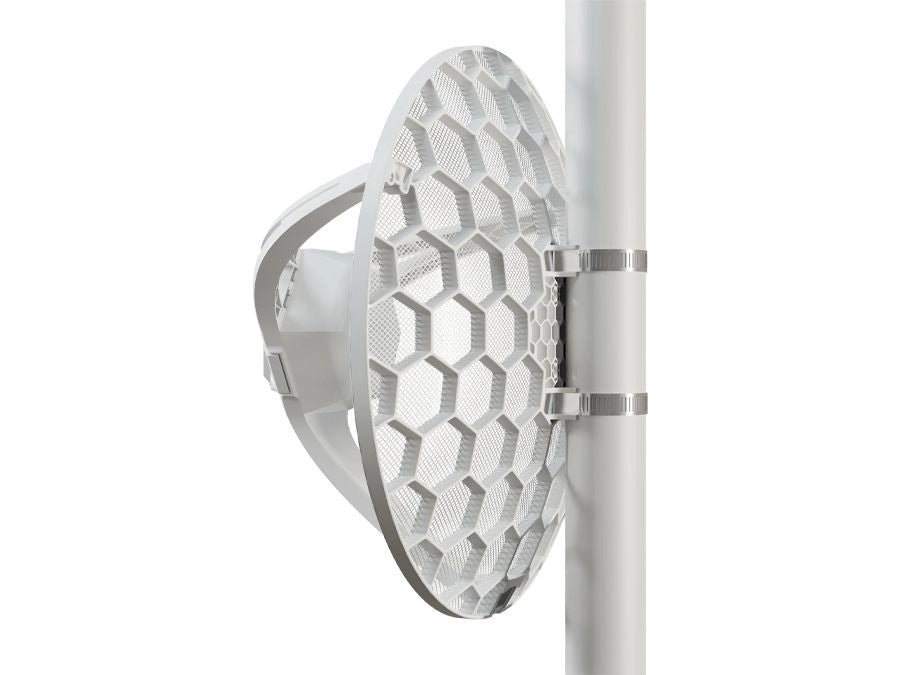

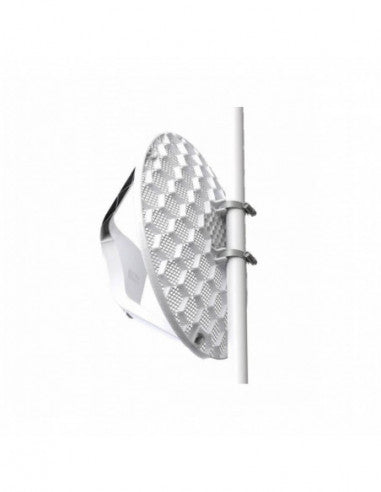

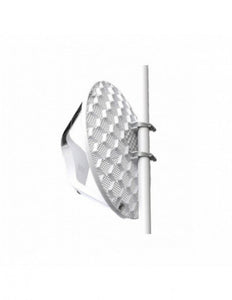

The LHG LTE kit is a device for remote locations that are within cellular network coverage. It can be mounted outdoors on a pole or mast or any other structure that's high enough. It can connect where cell phones can't and due to its large sized high gain antenna the device is capable to connect to cell towers in extreme rural locations. It gives you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
RBLHGR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.
SKU#: MT-RBLHG-LTE
Warranty: 1 Year
Manufacturer SKU#: RBLHGR&R11e-LTE
Key Features
17 dBi gain, 1 Sim Slot, 1 FE ports, PoE in, Band 1,2,3,4,7,8,20,38 and 40
Specifications
Details | |
---|---|
Product code | RBLHGR&R11e-LTE |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 391 x 391 x 227 mm |
RouterOS license | 3 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 50°C |
Suggested price | N/A |
Powering
Details | |
---|---|
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 6 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
Mobile
Details | |
---|---|
2G Category | Class12 |
2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) |
TAC | 35565409 |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 1 |
Peripherals
Details | |
---|---|
Number of SIM slots | 1 Modem (Micro SIM) |
MiniPCI-e slots | 1 |
Other
Details | |
---|---|
Mode button | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | IP54 |
Included parts
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
