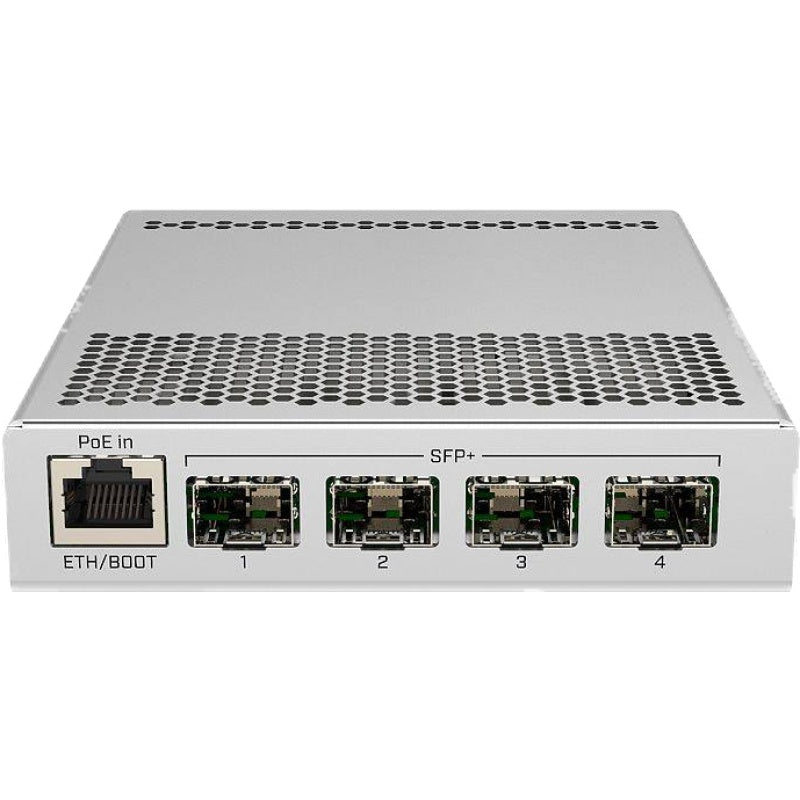

MikroTik CRS305-1G-4S+IN Gigabit Network Management Switch - Metal Casing - Redundant Power Supply - 10Gbps SFP+ Ports - RouterOS/SwOS

CRS305 has four SFP+ 10 Gigabit ports, each port is up to 10Gbps. There is also a Gigabit Ethernet port for management access to 2 DC jacks for power redundancy. The device is a very stylish and compact metal casing without any fan, achieving a silent effect.

The device has a "dual boot" feature that allows you to choose between two operating systems-Routeros or SwS. If you want to have a simplified operating system with only switch-specific functions, use SwOS. If you want to be able to use routing and other layer 3 functions in CRS, please use RouterOs. You can select the required operating system from RouterOS, SwOS or Router BOOT loader settings

Technical Specifications

Details
Product code	CRS305-1G-4S+IN
Architecture	ARM 32bit
CPU	98DX3236
CPU core count	1
CPU nominal frequency	800 MHz
Switch chip model	98DX3236
Dimensions	141 x 115 x 28 mm
RouterOS license	5
Operating System	RouterOS / SwitchOS
Size of RAM	512 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	N/A

Powering

Details
Number of DC inputs	3 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	18 W
Max power consumption without attachments	10 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

Ethernet

Details
10/100/1000 Ethernet ports	1

Fiber

Details
SFP+ ports	4

Other

Details
CPU temperature monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Included parts

•
  24V 0.8A power adapter
