MikroTik Cloud Router Switch 24 Port Gigabit 2SFP+, with Dual Boot - SwOS/RouterOS (Level 5 Licence), 1 x RJ45 Port, 24V 1.2A Power | CRS326-24G-2S+RM

MikroTik Cloud Router Switch 24 Port Gigabit 2SFP+ | CRS326-24G-2S+RM

Description

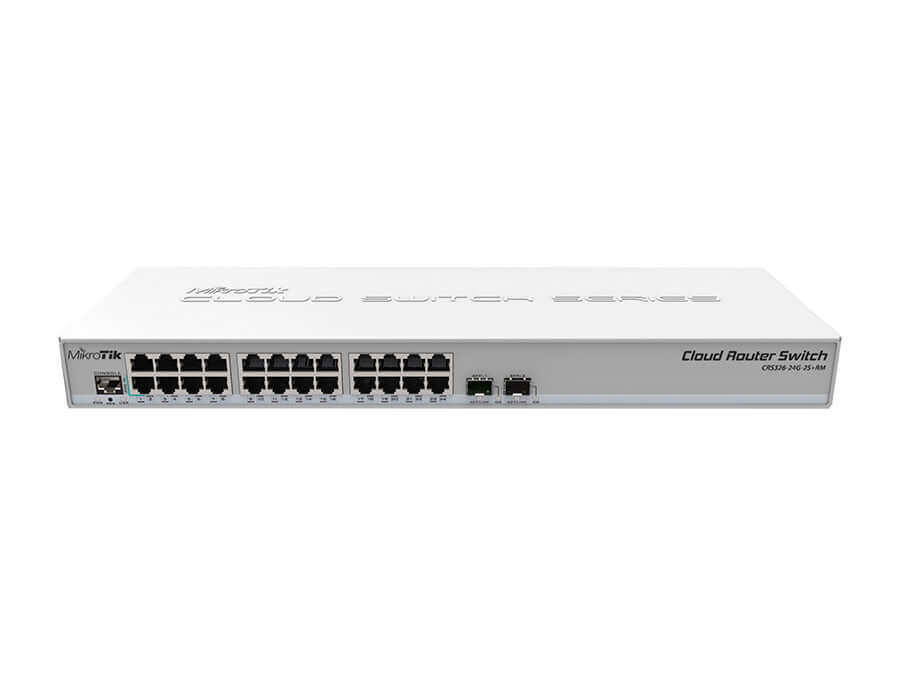

MikroTik' s CRS326 is a Cloud Router Switch featuring 24x Gigabit Ethernet Ports, 2x 10Gbps SFP+ ports and 1x Gigabit Ethernet port for either management or PoE Input. The unit supports the dual boot function which supports either SwOS or RouterOS with a Level 5 License.

CRS326-24G-2S+RM

24 Gigabit port switch with 2 x SFP+ cages in 1U rackmount case, Dual boot (RouterOS or SwitchOS)

SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Features

Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 24W
Mounting: Rack-Mount
Operating System: Dual Boot - SwOS or RouterOS (Level 5 Licence)
Operating Temperature: -40°C to 60°C
PoE Input: 10V-30V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Processor: 1 Core 800MHz 98DX3236
Serial Interface: 1x RJ45 Serial Port
SFP Ports: 2x 10Gbps
Supported Voltage Range: 10V-30V
System Memory: 512MB
USB Ports: None
Other: None

Dimensions: 440 x 144 x 44mm

Specifications

Powering

Ethernet

Fiber

Peripherals

Certification & Approvals

Included parts

•
  24V 1.2A power adapter
•

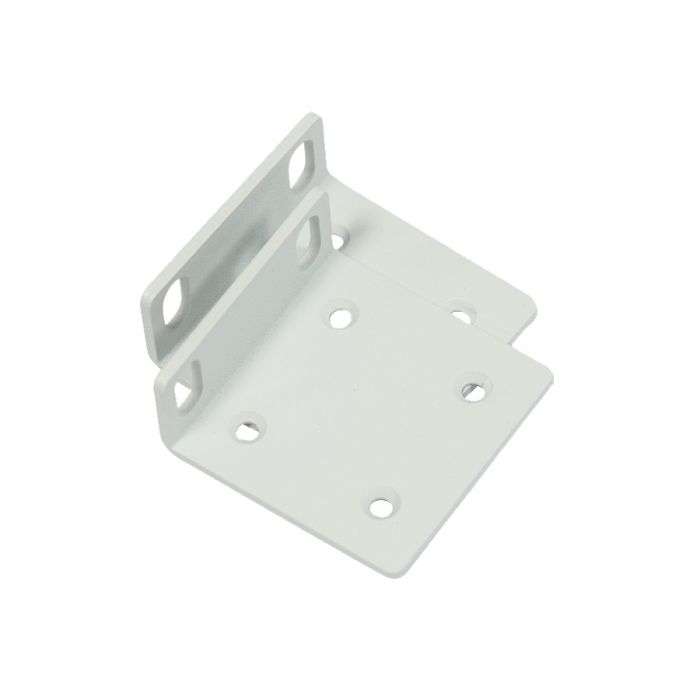

  Rack ears
•
  Screw set
