Huawei NetEngine 8000 Series Routers NetEngine 8000 M6 Enterprise Router, 320Gbit/s Switching, 72Mpps Forwarding, 88.4 (2U)*442*220mm
SPECIFICATIONS
Brand Name: HUAWEI
Installation Method: Assembly
High-concerned Chemical: None
Model Number: NetEngine 8000 M6
Type: Enterprise Router
Brand Name: HUAWEI
Use: Enterprise Network
Products Description
Huawei NetEngine 8000 Series Routers NetEngine 8000 M6 Enterprise Router, 320Gbit/s Switching, 72Mpps Forwarding, 88.4 (2U)*442*220 mm
Using ultra-broadband pipes to construct simplified networks, and Segment Routing (SR) and Segment Routing over IPv6 (SRv6) protocols to establish intelligent connections, NetEngine 8000 combines with Huawei's next generation Network Cloud Engine (NCE) to implement full-lifecycle automation and proactive Operations and Maintenance (O&M). An intent-driven approach frees customers from unnecessary constraints, unleashing network potential.
Available in a range of form factors and applicable to core, aggregation, and access networks, the award-winning NetEngine 8000 offers high performance and reliability, with low power consumption and full evolution capabilities. Applications include functioning as a core node for an enterprise Wide Area Network (WAN), as an access node on a large enterprise network, as a Data Center Interconnect (DCI) node, or as a campus or Internet Data Center (IDC) network egress.

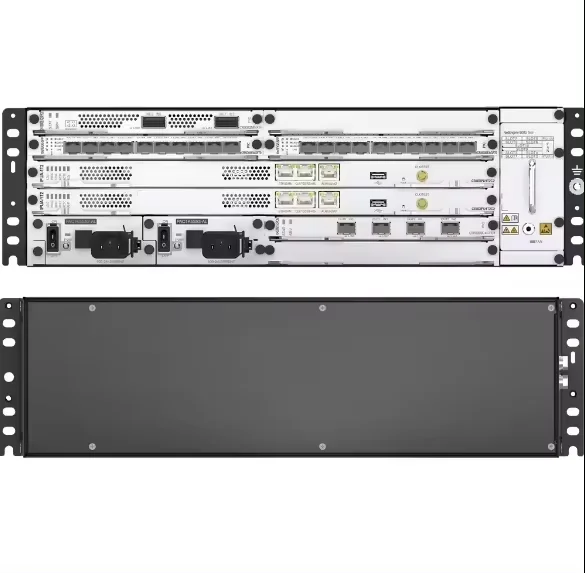

Product Images
Specifications
Product Model |
NetEngine 8000 M14 |
NetEngine 8000 M8 |
NetEngine 8000 M6 |
NetEngine 8000 M4 |
Switching Capacity |
4 Tbit/s |
2.4 Tbit/s |
320 Gbit/s |
2.4 Tbps |
Forwarding Performance |
906 Mpps |
453 Mpps |
72 Mpps |
455 Mpps |
Maximum Board Capability |
200 Gbit/s |
200 Gbit/s |
50 Gbit/s |
200 Gbps |
Capacity Density (G/U) |
400 |
400 |
80 |
800 |
Main Control Board |
2, 1:1 |
2, 1:1 |
2, 1:1 |
Single |
SFU |
2, 1:1 |
2, 1:1 |
2, 1:1 |
2,1+1 |
Line Card |
14(DC) |
8(DC) |
6(DC) |
4 |
Power Module |
2, 1 + 1 (DC) |
2, 1 + 1 |
2, 1 + 1 |
2, 1 + 1 |
Fan Module |
4, 3 + 1 |
2, 1 + 1 |
2, 1 + 1 |
2,1+1 |
Dimensions (H x W x D) |
222 (5U) x 442 x 220 mm |
132.6 (3U) x 442 x 220 mm |
88.9 (2U) x 442 x 220 mm |
88.4 mm (2U) x 442 mm x 220 mm |
Typical Power Consumption |
1270 W |
485 W |
220 W |
305.1 W |
Weight in Full Configuration |
27.4 kg |
16.5 kg |
3.52 kg |
7.2 kg (15.87 lb) |
