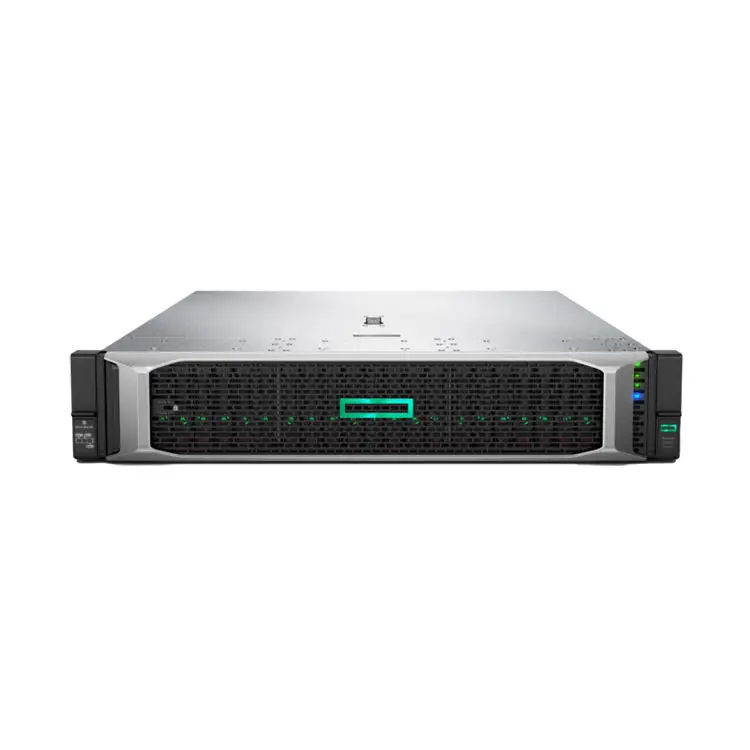

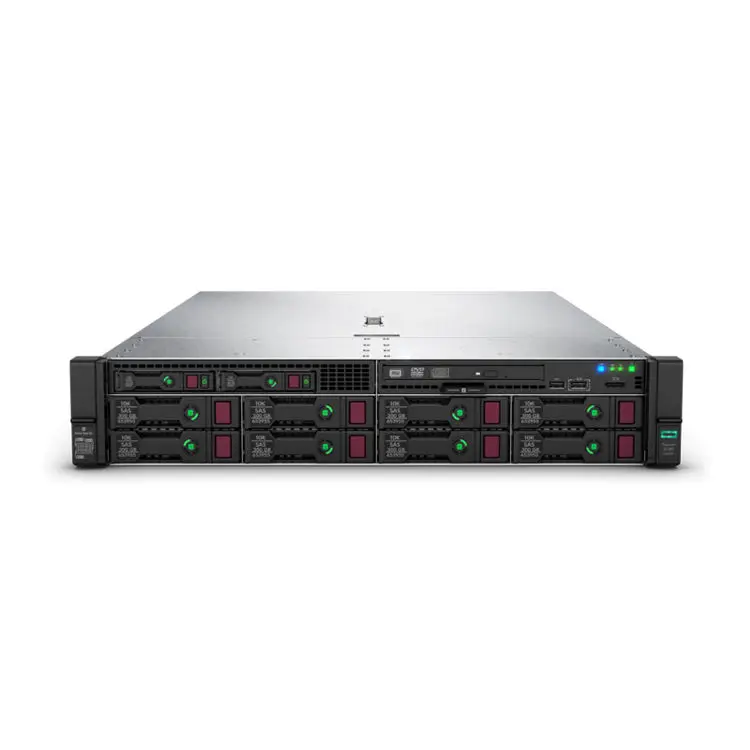

HPE ProLiant DL380 gen10 Xeon expandable series 16gb-r p408i-a NC 8sff 500W PS server hpe dimm HPE ILO advanced security edition server
Description
Flexible design and easy expansion: HPE ProLiant DL380 gen10 server has a flexible expandable chassis and provides a new HPE modular hard disk backplane as a configurable option. It supports up to 30 2.5 "small disks, 19 3.5" large disks, or 20 nvme hard disk options, and supports up to 3 double width GPUs at the same time.
HPE DC permanent memory combined with DRAM can create a fast, high-capacity and low-cost memory and storage device to realize the rapid storage, movement and processing of data, so as to help carry out the transformation of big data workload and analysis. Combined with the integrated SATA HPE dynamic intelligent array controller s100i to meet the needs of startup, data and media, the redesigned HPE intelligent array controller allows users to flexibly select 12gb / s controllers more suitable for customers' environment, and supports SAS interface and HbA mode at the same time. On board 4x1gbe network controller / network card optional NC model does not include on-board network controller.
You can choose HPE flexible LOM or standard PCI-E network adapter to provide network bandwidth range and structure selection from 1gbe to 40gbe. Customers can adapt and develop changing business needs. Safety Innovation Only HPE provides industry standard servers that fix the main firmware directly on silicon chips. With the help of trusted silicon root, the built-in security protection runs through the whole life cycle of the server.
HPE ILO advanced security edition provides the core system firmware to verify the validity and reliability of the server firmware every 24 hours. The security recovery function allows the server firmware to return to the last normal state or factory setting when a bad code is detected. Enhanced security features include server configuration locks, ILO security dashboards, and workload performance advisor, which provide tuning advice in real time to improve performance.
TPM provides additional security options to prevent unauthorized server access. With the authorization of the security storage unit, when the server cover is removed, the intrusion detection kit will leave records and alarms. Excellent performance Through the innovation of intelligent system optimization technology, HPE server can use custom configuration files to adjust internal resources, optimize workload performance, and provide enhanced performance for all loads, including delay sensitive loads, such as delay mitigation and high-frequency transactions.
HPE ProLiant dl380gen10 server supports industry standard technology, Intel Xeon. The second generation scalable processor series provides up to 28 cores, 12g SAS, 3.0tb HPE DDR4 2933mt / s intelligent memory. The HPE ProLiant DL380 gen10 supports up to three dual wide or seven single wide GPUs to accelerate workloads.
Specifications
processor |
Up to 2 Intel Xeon Second generation scalable family processors, 4 / 8 / 12 / 16 / 18 / 20 / 22 / 24 / 26 / 28 cores, maximum |
Memory |
It supports up to 24 DDR4 memory sockets, with a maximum rate of 2933mt / s, rdimm or lrdimm, and a maximum capacity of 3.0tb |
Permanent memory |
It supports 12 nvdimm permanent memory, with a maximum capacity of 192gb / HPE DC permanent memory and a maximum capacity of 6tb |
Storage controller |
The standard onboard array controller supports SATA RAID 0 / 1 / 10 / 5, optional HbA card based on the special slot of the array |
storage |
24 + 6 SFF / 12lff + 4lff + 3 LFF + up to 2 SFF HDD / SSD hard drives, 20 nvme PCIe SSDs and + m.2 available Extensions |
network |
On board 4-port gigabit network adapter / network card optional NC model without on-board network controller 6 optional |
Expansion Slots |
Three PCIe 3.0 available slots are configured as standard, with a maximum of eight PCIe available slots |
Interface |
Optional front VGA and serial port, standard rear VGA; 5 USB 3.0 (1 front, 2 rear, 2 built-in); Optional 2 microsds |
GPU support |
Up to (7) single width / (3) double width |
CD drive |
Support external optical drive; 8lff and 8sff models support built-in optical drives |
Administration |
Standard ILO Standard Edition, optional ILO advanced edition and OneView Advanced Edition |
Power supply and heat dissipation |
Optional 500W / 800W / 1600W 1 + 1 hot plug redundant power supply, up to 96% titanium, |
Chassis size |
44.54 x 67.94 x 8.73 cm (W x D x h, SFF model)
44.54 x 73.02 x 8.73 cm (W x D x h, LFF model) |
