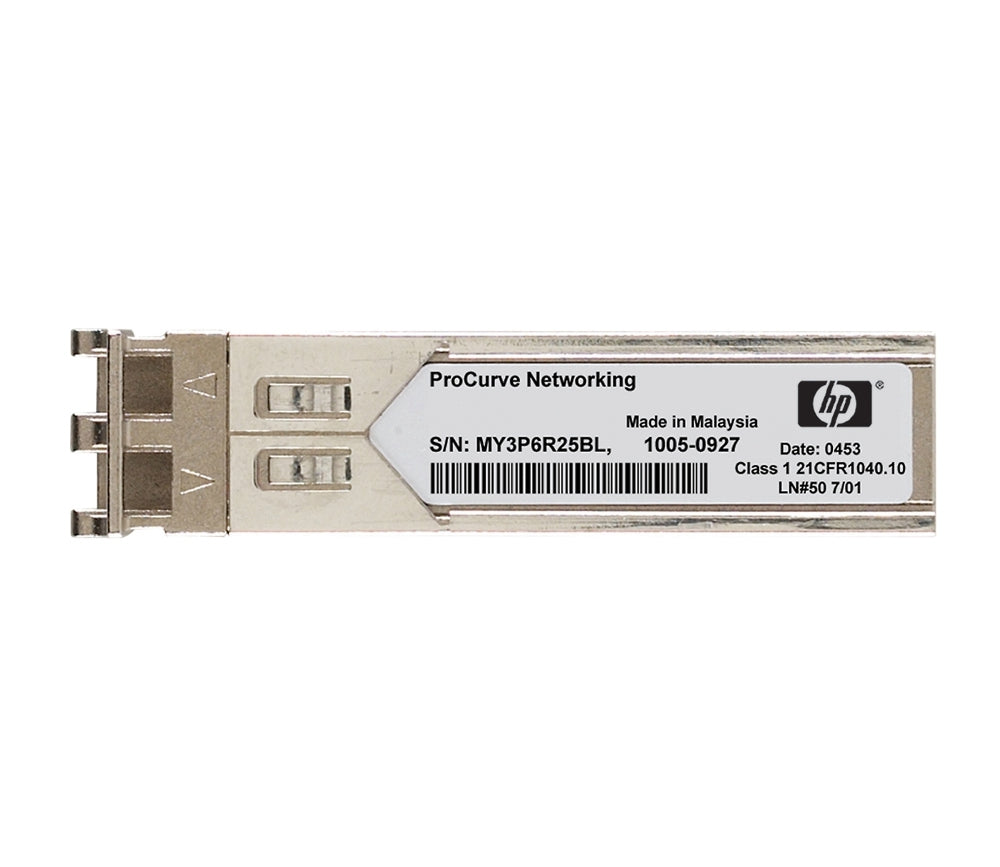

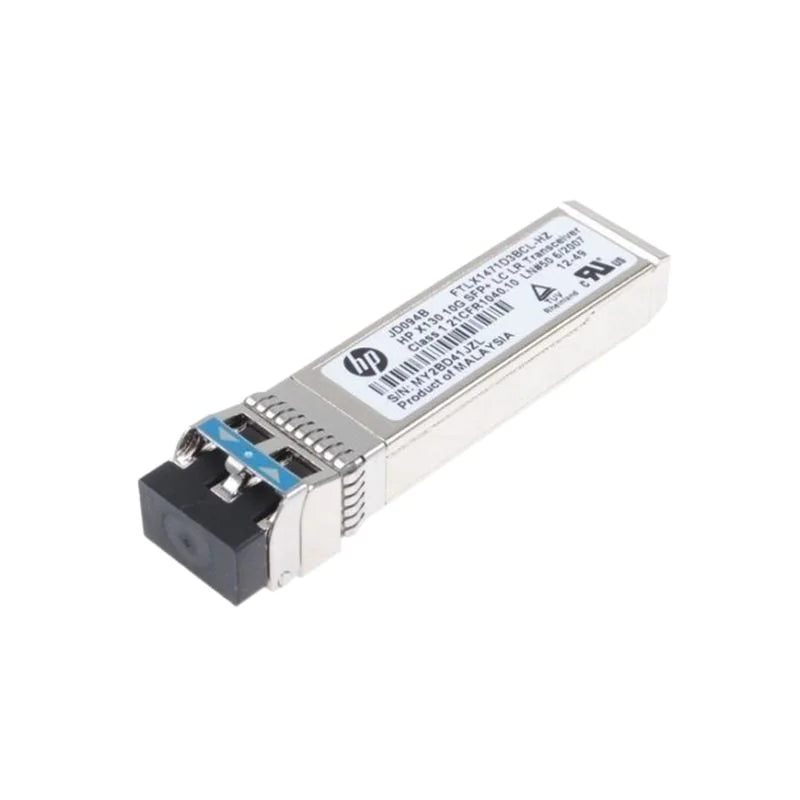

HPE Networking X130 10G SFP+ LC LR Transceiver JD094B

Description

HPE Transceiver Module 10000 Mbit/s SFP+ SFP Module

The Aruba JD094B, an HP X130 10G SFP+ LC LR Transceiver, is a cutting-edge solution designed for high-speed networking. This transceiver module provides 10 Gigabit Ethernet connectivity options for data centers, enterprises, and service provider transport applications. It offers low power consumption with high reliability and superior performance.

Quick Specs

Parameter Data
Brand Aruba
Model JD094B
Form Factor SFP+
Data Rate 10G
Connector Type LC
Max Transmission Distance 10 km

Product Features

  • ● Support for 10 Gigabit Ethernet at lengths up to 10km over single-mode fiber
  • ● Low power consumption for energy efficiency
  • ● Hot-swappable with other SFP+ devices for easy maintenance and minimal downtime
  • ● LC connector for widespread compatibility with existing network equipment
  • ● Robust design for high reliability and enhanced performance

Product Applications

This Aruba Transceiver can be utilized in various scenarios, including:

  • ● Connecting data centers over long distances for reliable, high-speed data transfer
  • ● Upgrading enterprise networks to accommodate for increased bandwidth demands
  • ● Facilitating network service providers' infrastructure for better service delivery

Supported Options

Accessory Model
Fiber Optic Cable LC-LC
Cleaning Kit CK-10G
Rack Mount Kit RMK-X130

Compare to Similar Items

Model Difference
JD092B Shorter maximum distance (300m) but lower cost
JD093B Similar features but optimized for MMF with a reach of up to 220m
JD095C Direct Attach Cable (DAC) for shorter reach (7m) but significantly lower cost and power consumption



Specifications

JD094B Specifications
Brand Aruba
Product Name HP X130 10G SFP+ LC LR Transceiver
Transceiver Type SFP+
Data Rate 10 Gbps
Media Type LC
Transmission Distance LR (Long Range)
Wavelength 1310 nm
Compatibility Compatible with a wide range of HP Aruba networking products
Connector Type LC Duplex
Module Form Factor SFP+
Max Transmission Distance 10 km
Temperature Range 0 to 70°C (32 to 158°F)
Application LAN, MAN, and WAN applications
Hot Swappable Yes
Digital Optical Monitoring (DOM) Supported
Power Consumption < 1.5W
Compliance Multisource Agreement (MSA) compliant
Security SFP+ form factor provides a secure and reliable connection
Certifications RoHS compliant
Firmware Upgradeable Yes
Operational Mode Transparent
The HPE Networking X130 10G SFP+ LC LR Transceiver SFP Module 10000 Mbit/s SFP+ Supports 10 Gigabit Ethernet at lengths 10km over single-mode fiber JD094B is a sensational customer favorite, and we hope you like it just as much.
