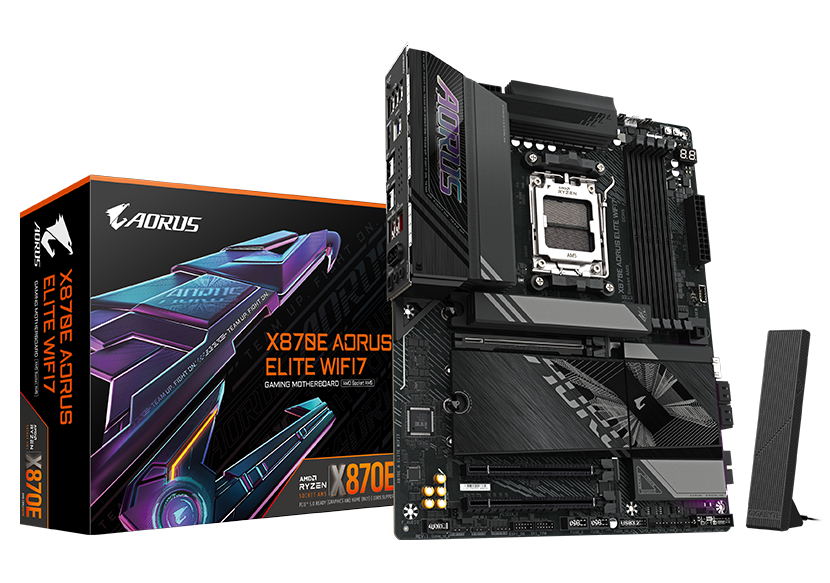

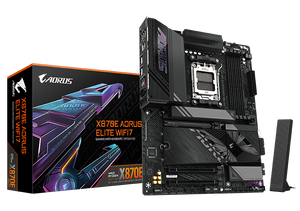

GIGABYTE Aorus AMD X870 Chipset for AMD AM5, 4*DDR5, 4*M2, 2*HDMI(1*Front), 2*USB4 USB Type-C,ATX, Supports AMD Ryzen 9000/8000/7000 Series Processors
GIGABYTE Aorus AMD X870 Chipset for AMD AM5, 4*DDR5, 4*M2, 2*HDMI(1*Front), 2*USB4 USB Type-C,ATX, Supports AMD Ryzen 9000/8000/7000 Series Processors
  • Load image into Gallery viewer, GIGABYTE Aorus AMD X870 Chipset for AMD AM5, 4*DDR5, 4*M2, 2*HDMI(1*Front), 2*USB4 USB Type-C,ATX, Supports AMD Ryzen 9000/8000/7000 Series Processors
  • Load image into Gallery viewer, GIGABYTE Aorus AMD X870 Chipset for AMD AM5, 4*DDR5, 4*M2, 2*HDMI(1*Front), 2*USB4 USB Type-C,ATX, Supports AMD Ryzen 9000/8000/7000 Series Processors

GIGABYTE Aorus AMD X870 Chipset for AMD AM5, 4*DDR5, 4*M2, 2*HDMI(1*Front), 2*USB4 USB Type-C,ATX, Supports AMD Ryzen 9000/8000/7000 Series Processors

R 20,182.50
R 20,182.50
Sold out
Shipping calculated at checkout.

GIGABYTE Aorus AMD X870 Chipset for AMD AM5, 4*DDR5, 4*M2, 2*HDMI(1*Front), 2*USB4 USB Type-C,ATX, Supports AMD Ryzen 9000/8000/7000 Series Processors

Key Features

  • AMD Socket AM5：Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPO Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
  • Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
  • Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
  • PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card

Specifications

X870E AORUS Elite WiFi7

  • CPU
    AMD Socket AM5, support for:
    AMD Ryzen 9000 Series Processors/
    AMD Ryzen 8000 Series Processors/
    AMD Ryzen 7000 Series Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
  • Chipset
    AMD X870E
  • Memory
    Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

  • Onboard Graphics
    Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
    - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

    * Support for DisplayPort 1.4 version and HDR.


    Integrated Graphics Processor with AMD Radeon Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    ** Support native HDMI 2.1 TMDS compatible ports.


    - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

    * Support for HDMI 1.4 version


    (Graphics specifications may vary depending on CPU support.)
    Support for up to quad-display at the same time
  • Audio
    Realtek ALC1220 CODEC

    * The back panel line out jack supports DSD audio.


    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


    Support for S/PDIF Out
  • LAN
    Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.4
    - Support for 11be 160MHz wireless standard

    Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2)
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.4
    - Support for 11be 160MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)

    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

    * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.


    When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
    - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
