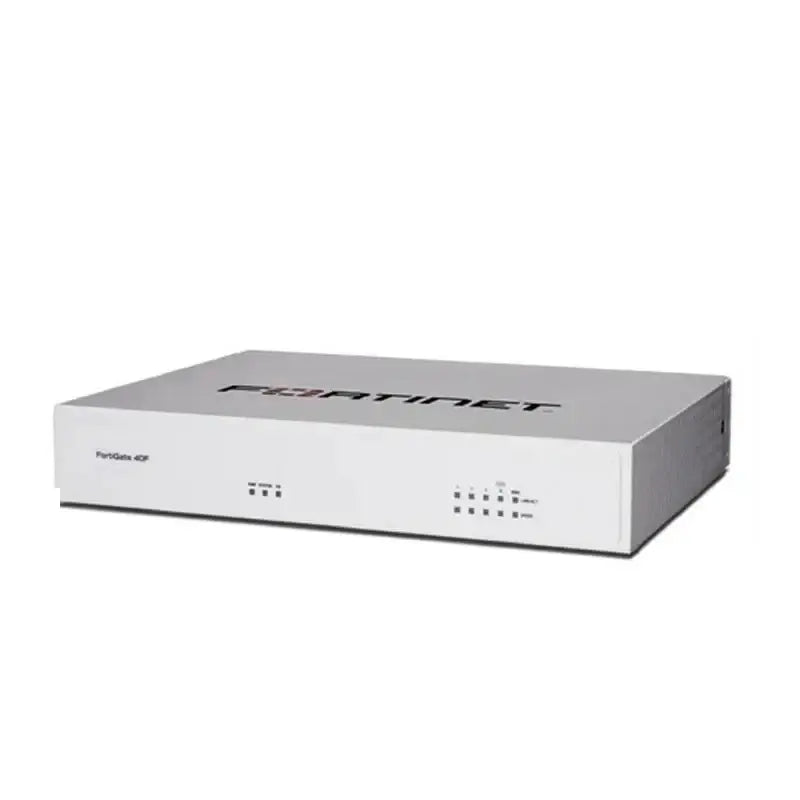

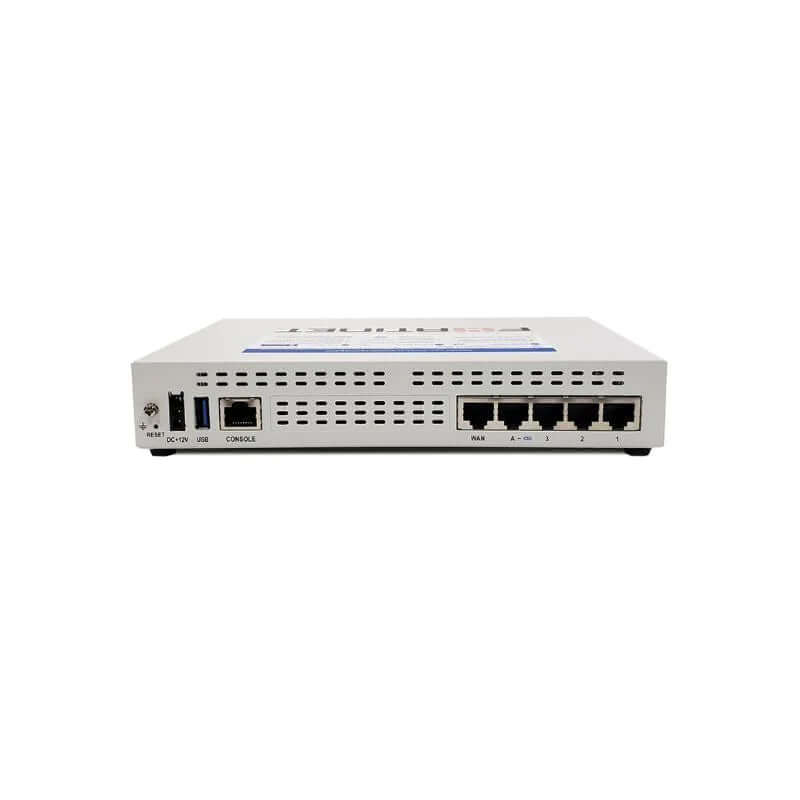

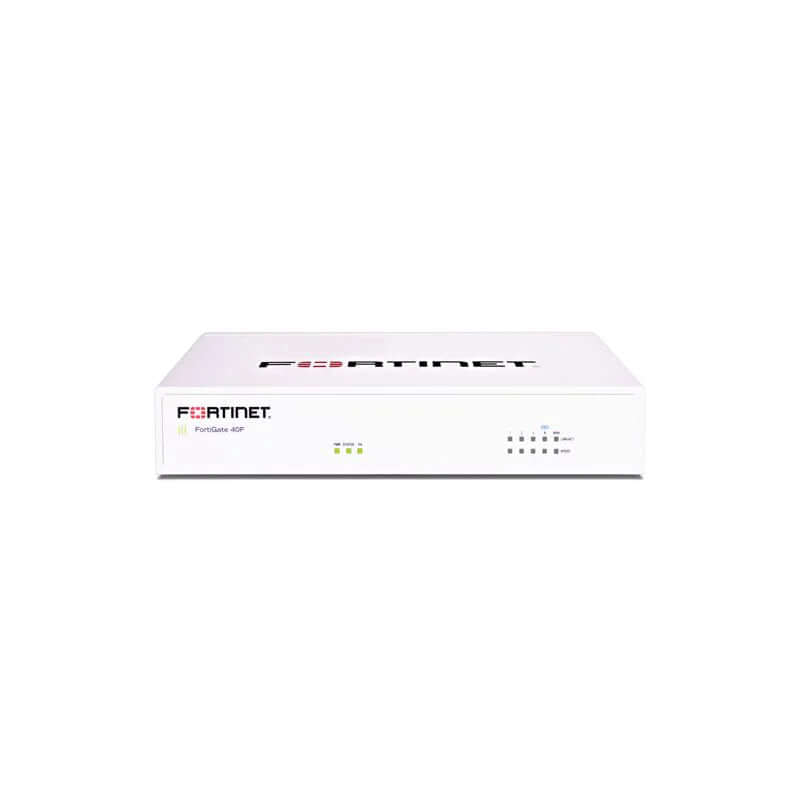

⁸ FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance – Let's Fibre Technologies
FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
  • Load image into Gallery viewer, FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
  • Load image into Gallery viewer, FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
  • Load image into Gallery viewer, FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
  • Load image into Gallery viewer, FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
  • Load image into Gallery viewer, FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F
  • Load image into Gallery viewer, FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F

FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F

R 43,934.70
R 43,934.70
R 61,357.09
Sold out
Shipping calculated at checkout.

FortiGate 40F, featuring 5 GE RJ45 ports (4 internal, 1 WAN), delivers robust performance and protection in a sleek, compact design Firewall & VPN Hardware FG-40F

Description

FG-40F, Fortinet FortiGate Firewall, 5xGE RJ45/4xInternal/1xWAN

Fortinet FG-40F is a compact enterprise firewall designed for secure connectivity at branch offices and SMB sites. With 5 Gbps IPv4 firewall throughput, 1 Gbps IPS throughput, and integrated SSL-VPN, it delivers advanced threat protection without sacrificing performance.

Product Description

Fortinet Firewall FG-40F

The Fortinet Enterprise Firewall Solution
The FortiGate 40F series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with industry-leading secure SD-WAN in a simple,affordable, and easy to deploy solution.

Technical Specifications

FG-40F Specification

Interfaces and Modules

Hardware Accelerated GE RJ45 WAN / DMZ Ports

1

Hardware Accelerated GE RJ45 Internal Ports

3

Hardware Accelerated GE RJ45 FortiLink Ports (Default)

1

Hardware Accelerated GE RJ45 PoE/+ Ports

0

Wireless Interface

0

USB Ports

1

Console Port (RJ45)

1

Onboard Storage

0

Included Transceivers

0

System Performance — Enterprise Traffic Mix

IPS Throughput 2

1 Gbps

NGFW Throughput 2, 4

800 Mbps

Threat Protection Throughput 2, 5

600 Mbps

System Performance and Capacity

IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)

5 / 5 / 5 Gbps



Firewall Latency (64 byte, UDP)

2.97 μs

Firewall Throughput (Packet per Second)

7.5 Mpps

Concurrent Sessions (TCP)

700,000

New Sessions/Second (TCP)

35,000

Firewall Policies

5,000

IPsec VPN Throughput (512 byte) 1

4.4 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

200

Client-to-Gateway IPsec VPN Tunnels

250

SSL-VPN Throughput

490 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

200

SSL Inspection Throughput

(IPS, avg. HTTPS) 3

310 Mbps

SSL Inspection CPS (IPS, avg. HTTPS) 3

320

SSL-VPN Throughput 490 Mbps

SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3

55,000

Application Control Throughput (HTTP 64K) 2

990 Mbps

CAPWAP Throughput (HTTP 64K)

3.5 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

8

Maximum Number of FortiAPs (Total / Tunnel)

16 / 8

Maximum Number of FortiTokens

500

Maximum Number of Registered FortiClients

20,000

High Availability Configurations

Active, Active-Active, Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

1.5 x 8.5 x 6.3

Height x Width x Length (mm)

38.5 x 216 x 160

Weight

2.2 lbs (1 kg)

Form Factor

Desktop

Input Rating

12Vdc, 3A

Power Required

Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz

Power Consumption (Average / Maximum)

13.4 W / 15.4 W

Current (Maximum)

100V AC / 0.2A, 240V AC / 0.1A

Heat Dissipation

52.55 BTU/h

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

Fanless 0 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Radio Specifications

Multiple (MU) MIMO

N/A

Maximum Wi-Fi Speeds

N/A

Maximum Tx Power

N/A

Antenna Gain

N/A
Life is too short to live without the FortiGate 40F 5 GE RJ45 ports (4 internal, 1 WAN), robust performance and protection, sleek, compact, Firewall & Vpn Hardware FG-40F. Be happy. Be Content. Be Satisfied.
