⁸ Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~13 – Let's Fibre Technologies

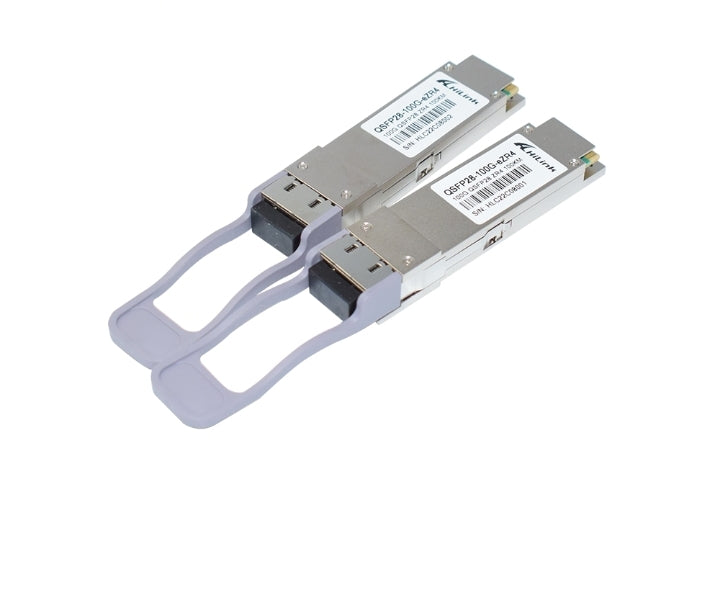

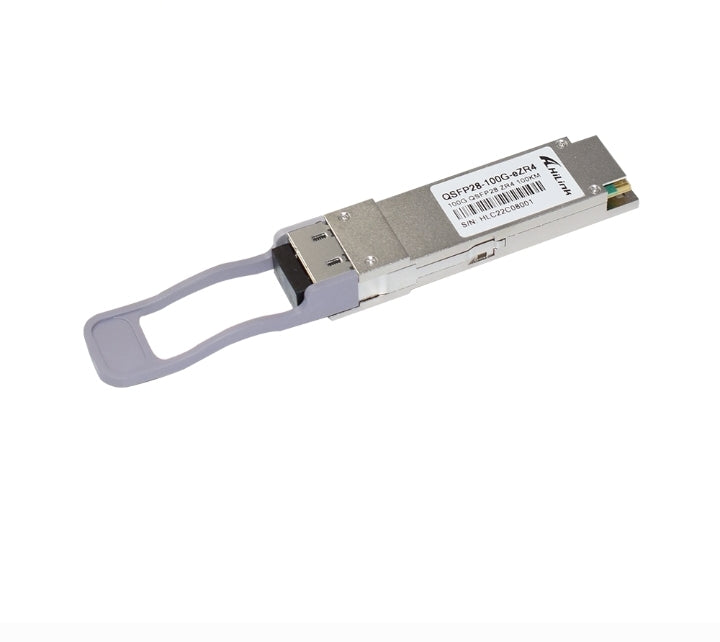

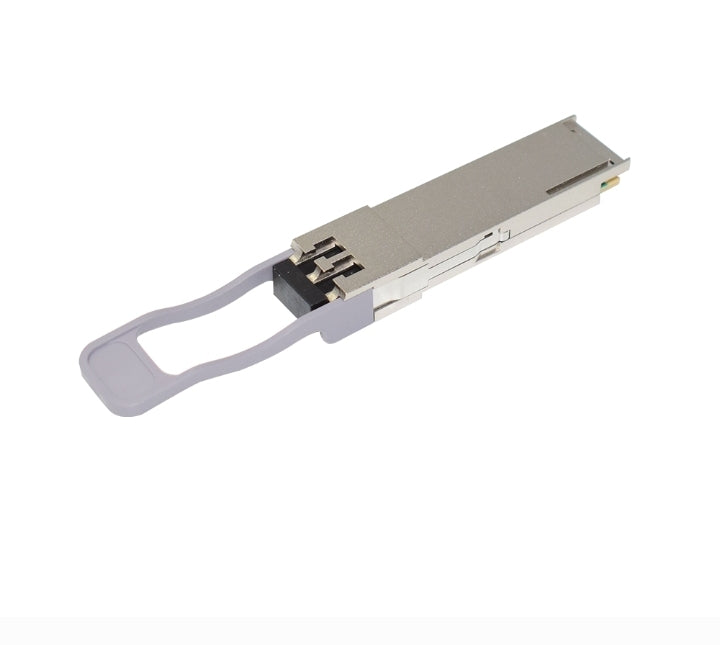

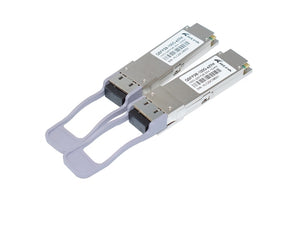

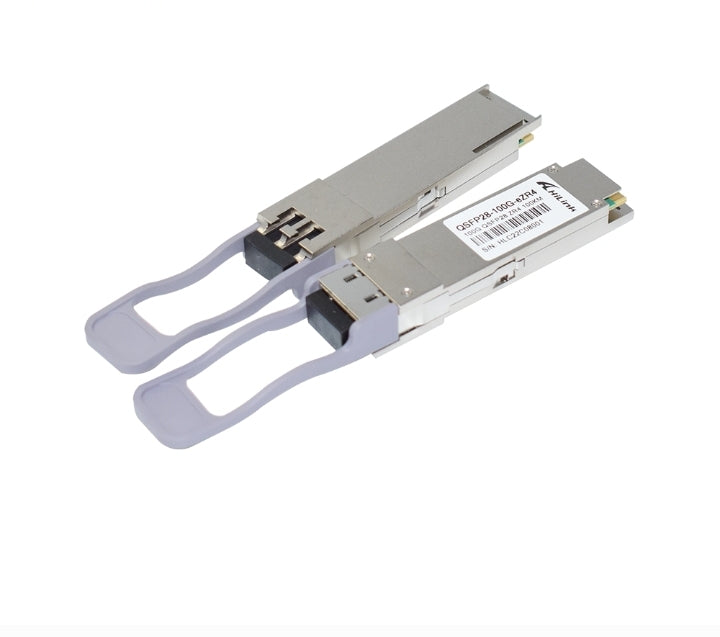

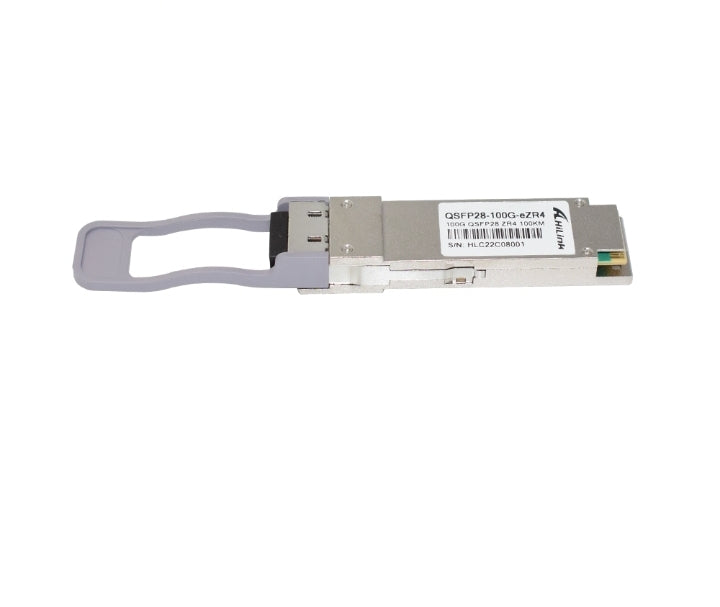

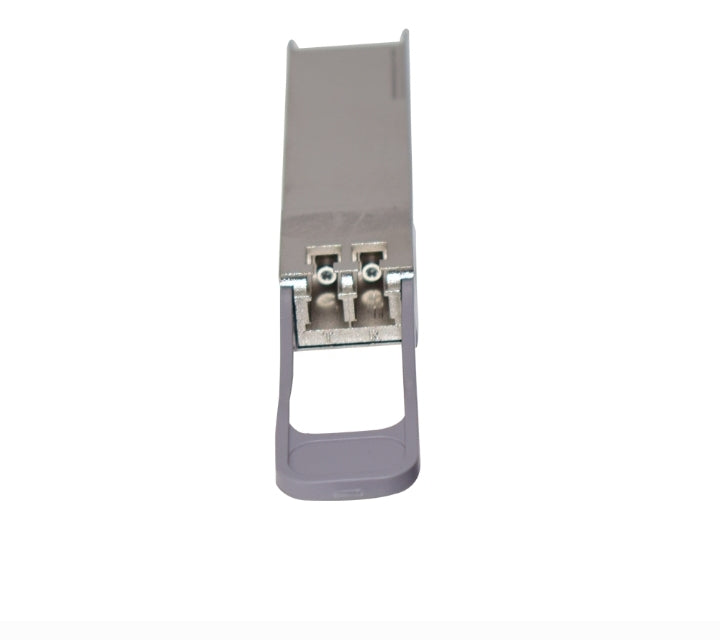

Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
  • Load image into Gallery viewer, Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
  • Load image into Gallery viewer, Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
  • Load image into Gallery viewer, Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
  • Load image into Gallery viewer, Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
  • Load image into Gallery viewer, Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use
  • Load image into Gallery viewer, Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use

Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use

R 53,225.50
R 53,225.50
R 67,232.22
Sold out
Shipping calculated at checkout.

Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use

SPECIFICATIONS

Brand Name: hilinksys,HiLink

CE RoSH: Compliant

Certification: None

Data transfer rate: 100G

Fiber Connector: LC

High-concerned Chemical: None

Logo: Can be customized

Model Number: QSFP28-100G-eZR4

Reach: 100km

Temperature: 0~70

Wavelength: 1295~1304nm

Wireless function: No

product name: QSFP28-100G-ZR4 100KM

Warranty: 3 Years

Description

100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1310nm 80km 100km LC DOM Optical Transceivers

This 100G QSFP28 eZR4 is designed for 100km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure below

Features

- Support line rates from 103.125Gb/s;

- Lane bit rate 25.78 Gb/s 100GE

- Up to 100km transmission withKR4-FEC.

- LAN WDM EML laser and PIN receiver withSOA;

- Support Multi-Pin function with IntL/RxLOSL andLPMode/TxDIS;

- High speed I/O electrical interface(CAUI-4);

- I2C interface with integrated Digital Diagnosticmonitoring;

- QSFP28 MSA package with duplex LCconnector;

- Single +3.3V powersupply;

- Maximum power consumption 6W;

- Operating case temperature: 0 to +70°C;

l Complies with EU Directive2015/863/EU;



Applications

- 100GBASE-ZR4 Ethernet

- 100G Datacom & Telecomconnections

QSFP28-100G-SR4

QSFP28, 100GBASE-SR4, MMF, 850nm, 100M, MPO

QSFP28-100G-LR4 10KM

QSFP28, 100G LR4 LWDM4 10KM

QSFP28-100G-LR4 20KM

QSFP28, 100G LR4 LWDM4 20KM

QSFP28-100G-LR4 25KM

QSFP28, 100G LR4 LWDM4 25KM

QSFP28-100G-ER4 40KM

QSFP28 ER4 1295~1304NM 40KM

QSFP28-100G-ZR4 60KM

QSFP28 ZR4 1295~1304NM 60KM SOA PIN

QSFP28-100G-ZR4 80KM

QSFP28 ZR4 1295~1304NM 80KM SOA PIN

OEM and ODM

OEM/ODM order is available

The Fiber Optics Transceiver 100GBASE-ZR4 Ethernet QSFP28-100G-ZR4 1295~1304nm 80km 100km LC DOM Optical Transceivers, Data Center use is far and away, one of our most popular items. People can't seem to get enough of it.
