Dell PowerEdge R740XD rackmount server Intel Xeon 5118 Up to two Intel Xeon Scalable processors, up to 28 cores per processor

Regular price: R 170,155.95
Sale price: R 170,155.95
Regular price: ~~R 173,491.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Brand Name: Dell

Hign-concerned Chemical: None

Type: Construction Tool Parts

Product status: STOCK

type: Grille

Processor main frequency: 2.9GHz

Processor type: Intel Xeon processor

brand: dell

model: dell poweredge r740xd

CPU type: Intel Xeon processor

Memory type: 3200/2933 ECC DDR4 RDIMM

hard disc: 24X2.5SAS/SATA (HDD/SSD)

raid controller: PERC H730P/H740P/HBA330/H750/HBA350i

source: 750W/1100W/1600W/2000W/2400W

PCIe extension: 8 PCIe 3.0 slots

Shape specification: 2U rack server

size: 86x434x737mm

Product Description

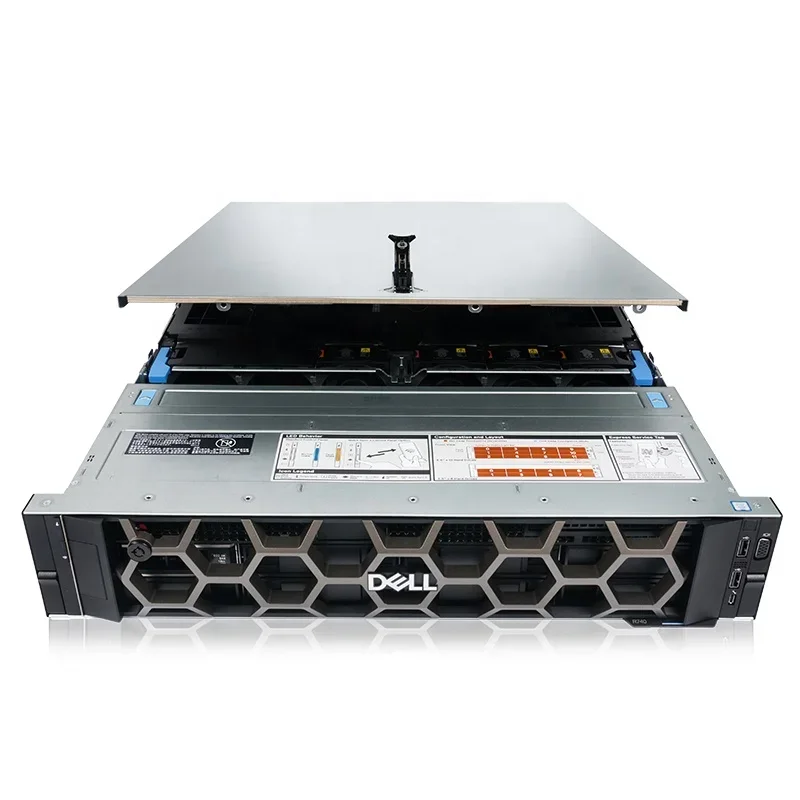

PowerEdge R740xd Rack server

The Dell EMC PowerEdge R740xd2 helps you plan for the future with large internal storage and cost-effective hard drive capacity. It offers dual computing performance with flash memory and fast networking options to meet streaming requirements. Automated management features and maintainable hard drives from the front end simplify the management of large data sets.

The R740xd2 has built-in security to keep your local data safe even as you expand capacity. Ideal workloads: Video surveillance Content Delivery Network (CDN) Microsoft Storage Spaces (S2D) and vSAN Microsoft Exchange Hadoop.

The R740xd2 features a space-saving design with flexible storage and performance resources to meet growing capacity and business demands. Up to 26 3.5" hard drives (364 TB) can be scaled up in this 2U rack server. For vertical expansion, up to 520 3.5" hard drives (7.2 PB) can also be scaled in a 42U rack. Up to two second-generation Intel Xeon scalable processors and 44 cores give you dual-path performance. The combination of 2.5" SSD and 3.5" hard drives in a hybrid configuration enables data layering. Eliminate bottlenecks with fast networking options and memory with up to 16 DIMMs. It can be configured with up to 5 PCIe slots for easy expansion. Simplify management across the data center Reduce the time required to manage medium to large scale environments. Automate and unify the management of servers and internal storage across your PowerEdge infrastructure with OpenManage Enterprise. Quickly deploy configurations on multiple bare metal servers to meet unique workload requirements.

Product Paramenters

model	POWEREDGE R740XD
Form Factor	2U, 2-socket rack server
Processor	Up to two Intel Xeon Scalable processors, up to 28 cores per processor
Memory	•24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max •Up to 12 NVDIMM, 192 GB Max •Supports registered ECC DDR4 DIMMs only
Storage controllers Internal Boot	•Internal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140 •Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB •External PERC (RAID): H840 •12Gbps SAS HBAs (non-RAID): External-12Gbps SAS HBA (non-RAID): Internal- HBA330 (non-RAID)
Drive bays	•Front bays: Up to 24 x 2.5" SAS/SATA (HDD/SSD), NVMe SSD max 153TB or up to 12 x 3.5" SAS/SATA HDD max 144TB •Mid bay: Up to 4 x 2.5", max 25TB SAS/SATA (HDD/SSD), NVMe SSD max 25TB or up to 4 x 3.5", max 48TB •Rear bays: Up to 4 x 2.5", max 25TB SAS/SATA (HDD/SSD), NVMe SSD or up to 2 x 3.5" max 24TB SAS/SATA HDD
Power supplies	Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy
Fans	Up to 6 hot plugs fans with full redundancy
Dimensions	Max depth: 715.5 mm
Embedded management	•IPMI 2.0 compliant •iDRAC9 with Lifecycle Controller (Express, Enterprise) •Quick Sync 2 wireless module optional
Bezel	•Optional LCD or security bezel
OpenManage™ Software	•OpenManage Enterprise •OpenManage Essentials •OpenManage Mobile •OpenManage Power Center
Integrations and connections	Integrations: •Microsoft® System Center, •VMware® vCenter™, BMC Software •Connections: Nagios & Nagios XI, OracleEnterprise Manager,	HP Operations Manager, •IBM Tivoli Netcool/OMNIbus, •IBM Tivoli® Network Manager, •CA Network and Systems Management
Security	•System Lockdown •Secure erase
I/O & Ports	Network daughter card options •4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE •Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB •Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port •Video card: VGA •Riser options with p to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
Accelerator options	GPU and FPGA options are available only on 24 x 2.5" drive chassis. Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100 or Intel Arria 10 GX
Supported operating systems	Canonical Ubuntu Server LTS Citrix XenServer Microsoft Windows Server LTSC with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi For specifications and interoperability details,
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

Products Description

On the fence about this Dell PowerEdge R740XD rackmount server Intel Xeon 5118 Up to two Intel Xeon Scalable processors, up to 28 cores per processor? Don't be. Let our satisfaction guarantee address your concerns.
