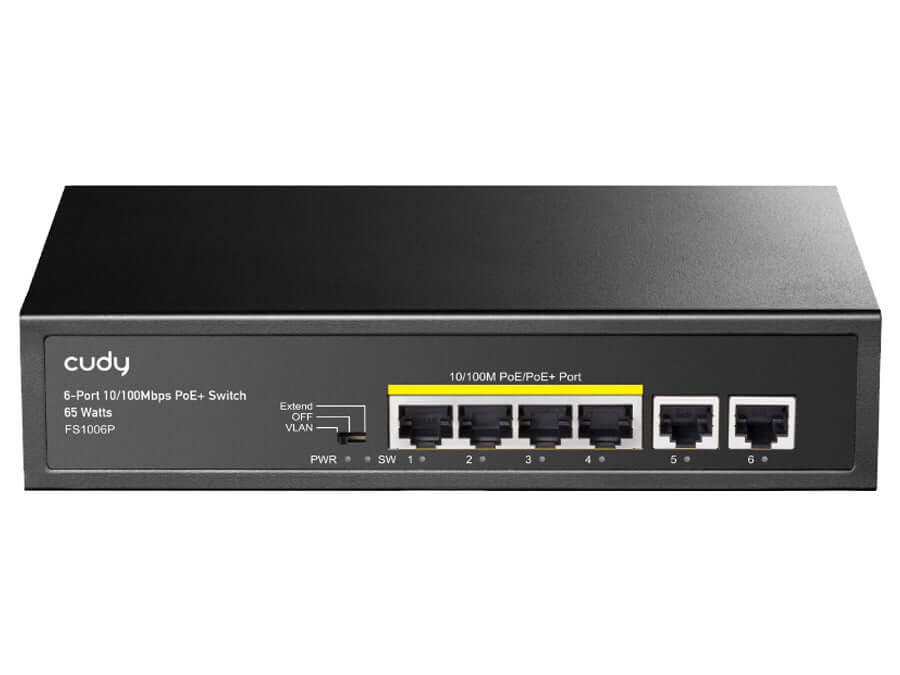

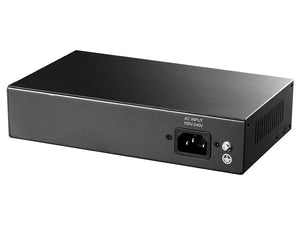

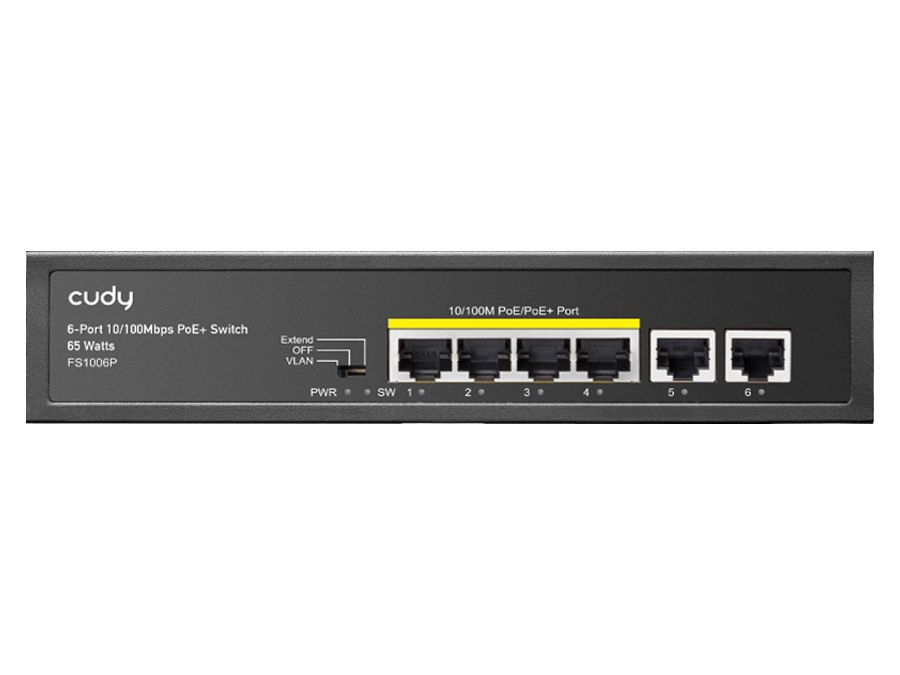

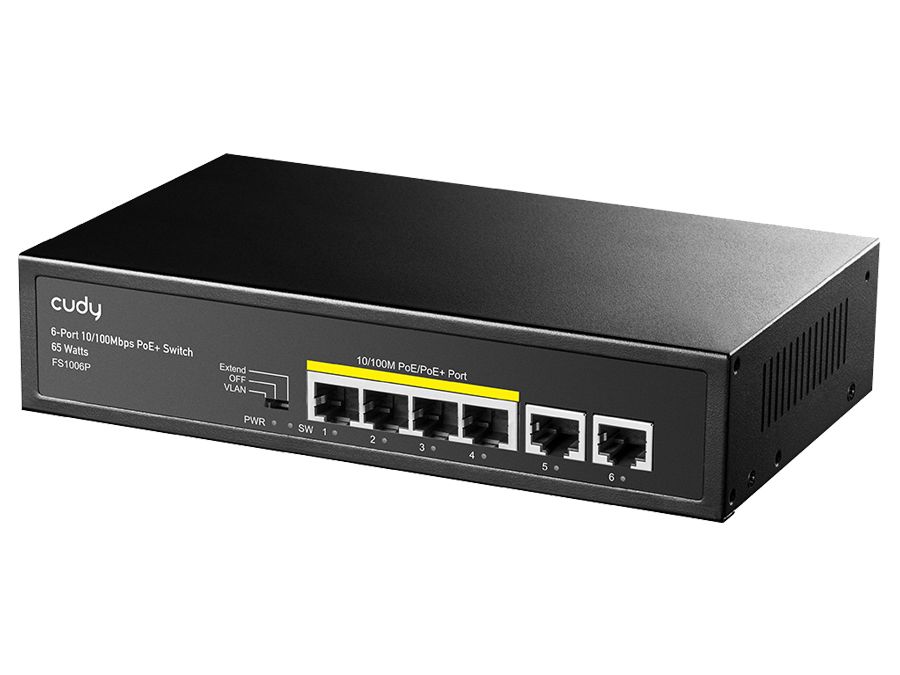

Cudy 6 Port with 4 Port PoE 60W PoE Switch | FS1006P
Description
Cudy's CD-FS1006P is a 5 Port Fast Ethernet switch with 4x 802.3af/at PoE ports and 2x Fast Ethernet Uplink ports. The switch offers a 60W PoE budget, up to 32W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-4 while Extender mode increases the transmission distance on ports 1-4 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.
Features
Ethernet Ports: 6x 10/100
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: -20°C to 50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~4

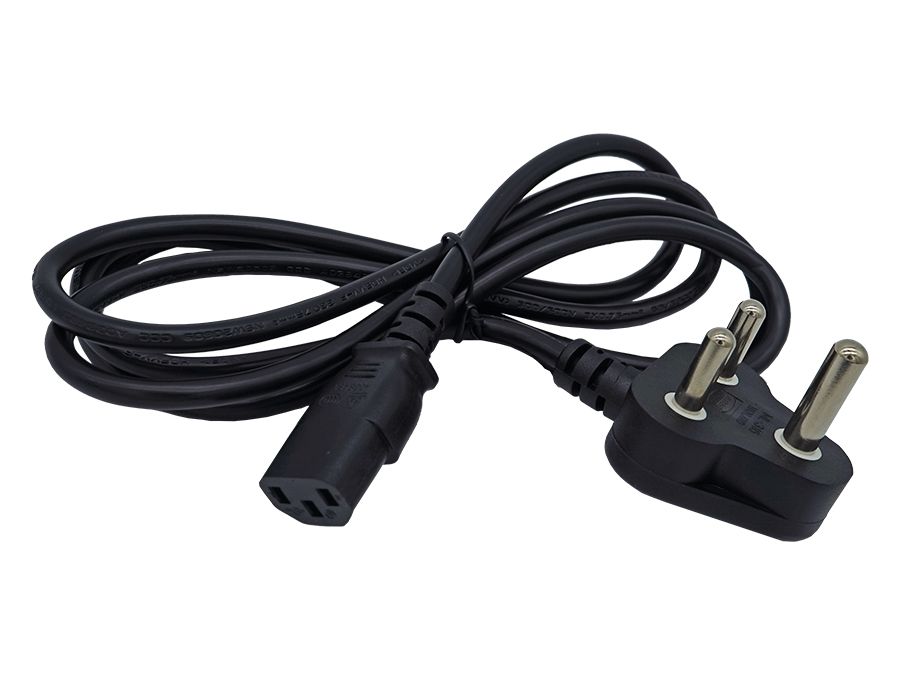

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100-240V
Dimensions: 200 x 120 x 50mm
Weight: 600g
