COMFAST WA900 1750Mbps Gigabit Wireless Outdoor AP Router Dual Band Wifi Access Point 802.11AC 6*8dBi Antenna WiFi Cover Base Station

COMFAST WA900 1750Mbps Gigabit Wireless Outdoor AP Router Dual Band Wifi Access Point 802.11AC 6*8dBi Antenna WiFi Cover Base Station

SPECIFICATIONS

Brand Name: COMFAST

With Modem Function: No

Type: WireLess

WAN Ports: 1 x10/100/1000Mbps

Wi-Fi Supported Frequency: 2.4G & 5G

5G Wi-Fi Transmission Rate: 1300Mbps

2.4G Wi-Fi Transmission Rate: 450 Mbps

Function: Firewall

Certification: CE

Max. LAN Data Rate: 1750Mbps

Standards And Protocols: Wi-Fi 802.11g

Standards And Protocols: Wi-Fi 802.11b

Standards And Protocols: Wi-Fi 802.11n

Standards And Protocols: Wi-Fi 802.11ac

Wi-Fi Transmission Standard: 802.11ac

Package: Yes

Application: outdoor

Chipset: Qualcomm QCA9558+QCA9880+AR8035

Hardware: Built in Watchdog Chipset

Action: AP, Router, WDS, Qos

Support Privacy: WPA(TKIP), WPA-PSK, WPA2(AES)

Antenna: 2.4G 3*8dbi Omnidirectional Antenna

Antennas: 5.8G 3*8dbi Omnidirectional Antenna

Power supply: 48V 0.5A POE Adapter

Physical Ports: 1*10/100/1000Mbps RJ45 WAN port

IP Index: 4KV lightning protection; IP67 rating

Wireless speed: 2.4G: 450Mbps; 5.8GHz: 1300Mbps

Type: Outdoor Wireless AP

Power Consumption: <24W

Output Power: 500mW (27dBm)

Size: 310*255*100mm

Length of Antenna: 528mm

Type: Outdoor Omnidirectional Coverage AP

Feature: 1750Mbps High Power Access Point

Application: Park, Playground, Port, Driving School, etc

WA900 1750Mbps Gigabit Wireless Outdoor AP Router Dual Band Wifi Access Point AP 802.11AC 6*8dBi Antenna WiFi Cover Base Station

Features:

1. CF-WA900 is an upgraded high-power outdoor AP with high configuration version, adopting Qualcomm triple-core CPU

2. Support 2.4GHz & 5.8GHz dual band, transmission rate up to 1750Mbps, maximum support 200+ users. Suitable for outdoor wireless deployment in parks, shopping malls, amusement parks, etc.

3. Equiped with 6*8dBi omnidirectional antennas, high gain, strong signal, suitable for large-scale, long-distance coverage

4. Support IP67, 4KV lightning protection, effectively prevent the interference of the equipment from inclement weather such as lightning, wind, frost, rain and snow.

Technical Specifications:

1. 1750Mbps 11AC Dual Band Outdoor AP

2. 6*8dBi high-gain omnidirectional antennas, 360-degree omnidirectional coverage

3. Support 200+ Users, 2.4GHz(64users), 5.8GHz(134 users)

4. Gigabit Ethernet port to meet higher demands

5. 500mW power, suitable for large area coverage in the wild

6. Support wireless roaming, adjustable roaming period and roaming detection threshold

7. Support PoE power supply, AP can be flexibly deployed to facilitate engineering

8. IP67 outdoor protection grade standard, waterproof, dustproof, antifreeze, antirust

9. 4KV lightning protection, safe operation

1750Mbps HighiPower Wireless Outdoor AP

360 Degree WiFi CoverUpgraded Configuration

High Configuration

1750Mbps Gigabit Dual Band

High Power

High Concurrency

Gigabit Ethernet port

3Qualcomm Chipset

Wide Coverage

Outdoor StandardAnti-high Temperature

Anti-Oxygen

Anti-Extrusion

Waterproof

Anti-Thunder

Anti-Freeze

Anti-Rust4KV Lightning Protection

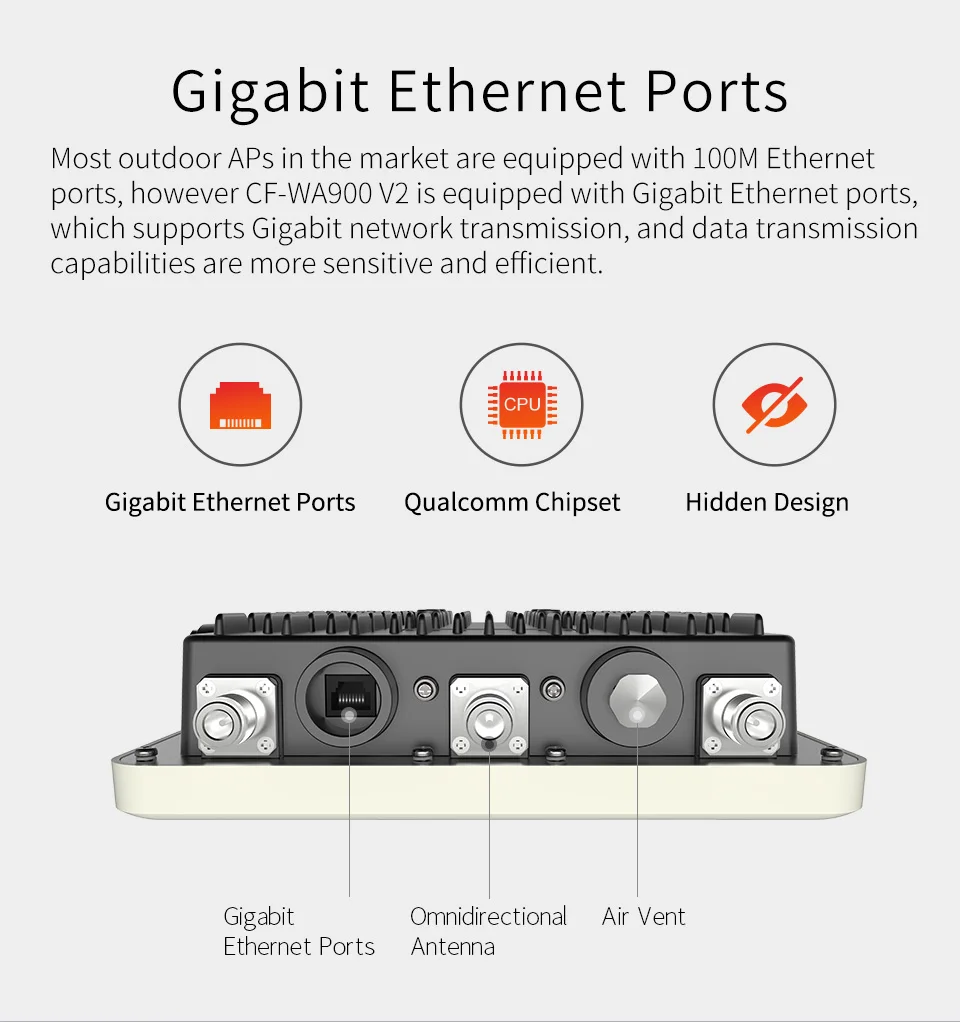

4KV lightning protection is built in the network port to preventequipment from being damaged due to lightning strike.Gigabit Ethernet Ports

Most outdoor APs in the market are equipped with 100M Ethernet ports, however CF-WA900V2 is equipped with Gigabit Ethernet ports, which supports Gigabit network transmission, and data transmission capabilities are more sensitive and efficient.

Gigabit Ethernet Ports/ Qualcomm Chipset/ Hidden DesignQualcomm Chipset

CF-WA900V2 adopts Qualcomm chipset from USA,which ensure stable performance. Every part of item are from the best famous brand suppliers in the world.1750Mbps Dual Band (5.8GHz 1300Mbps + 2.4GHz 450Mbps)

Web Surfing/ E-MALL Sending/ File Downloading/ Movie Watching/ Music Listening/ File DownloadingHigh Power & Stable Performance

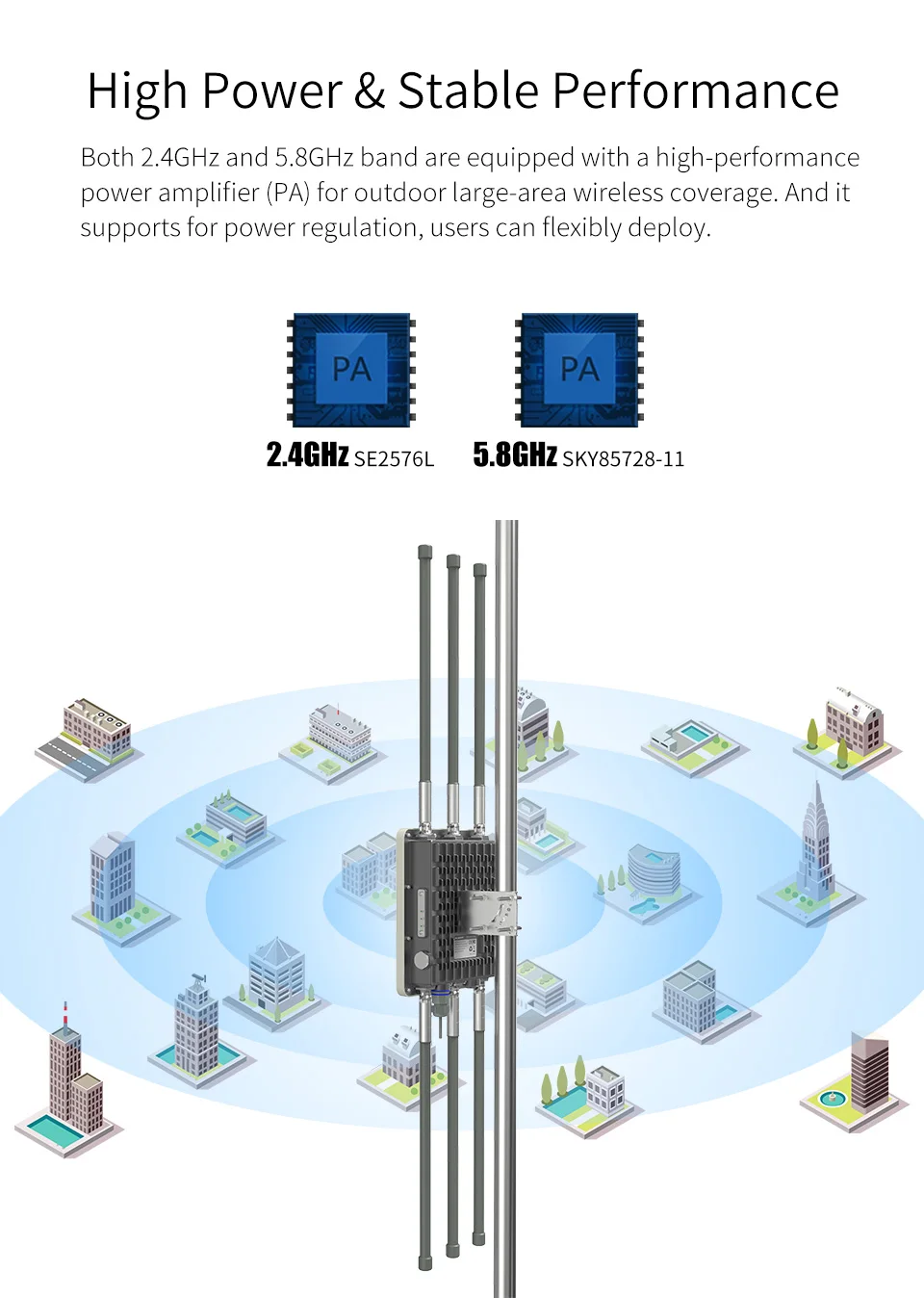

Both 2.4GHz and 5.8GHz band are equipped with a high-performancepower amplifier (PA) for outdoor large-area wireless coverage. And itsupports for power regulation, users can flexibly deploy.

2.4GHz SE2576L; 5.8GHz SKY85728-11High Concurrent UsersAutomatic Repair

CF-WA900V2 supports regular restart, automatic repair, which can guarantee WiFi signal stability.AC Management & Plug and Play

In large project, CF-WA900V2 can do unified management to save maintenance cost.

Connection diagram

①WiFi Coverage and Marketing Solution for Community

②WiFi Coverage and Marketing Solution for Street & Village

③WiFi Coverage and Marketing Solution for large public placesApplication Environment

Provide WiFi coverage and marketing solution for varieties environment

Scenery Spot
/ Community
/ Park
/ School
/ Driving School
/ Factory
/ Commercial Street
/ VillagePacking List

WA900V2 AP; Brackets; POE Power Adapter; Network CableWarranty Card; Installation Guide
