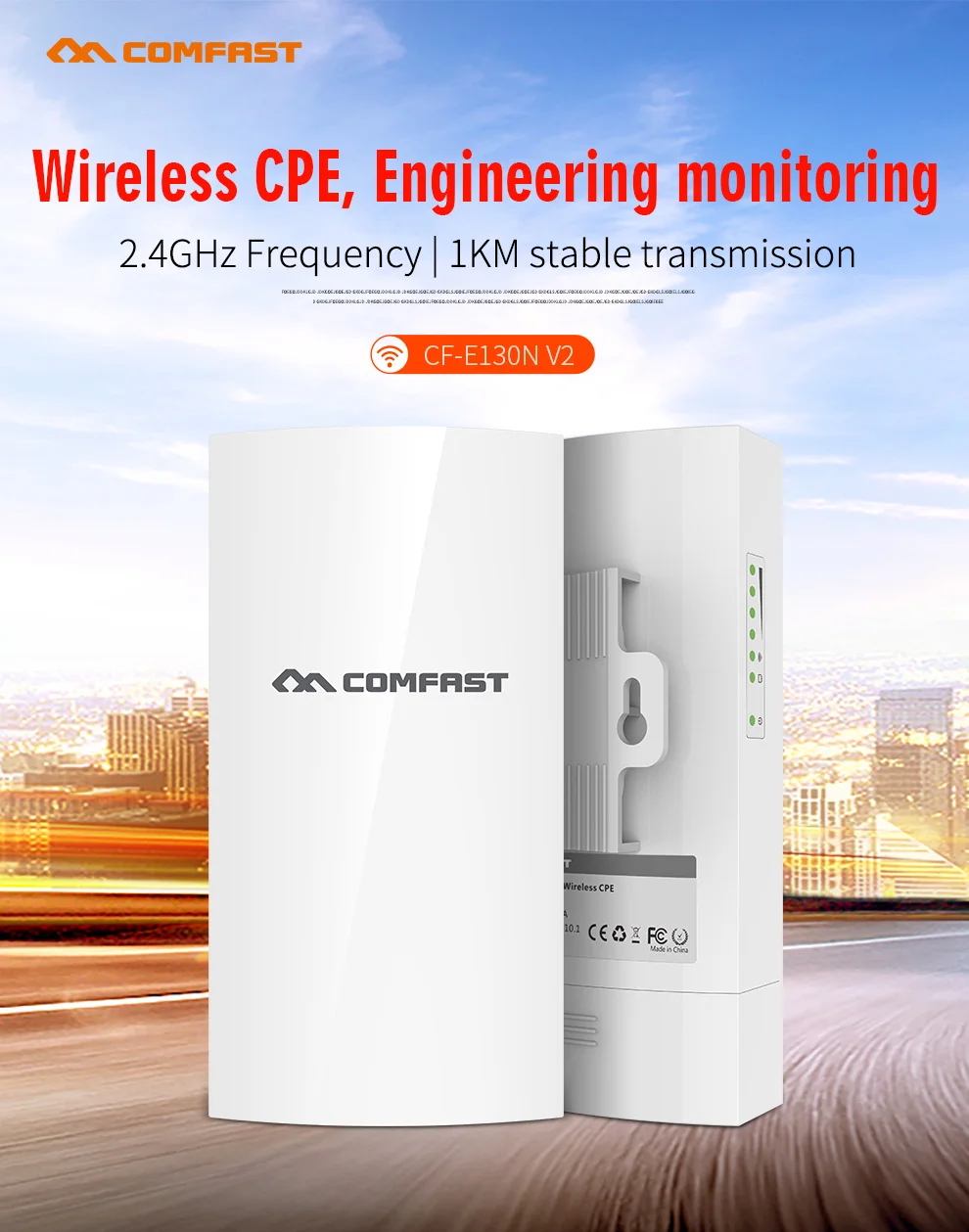

COMFAST Outdoor AP 300Mbps 1km Long Range CPE 2.4G Wireless Wifi Bridge 9dBi Antenna Nanostation Router

Regular price: R 2,800.95
Sale price: R 2,800.95
Regular price: ~~R 2,826.95~~
Unit price: per

Shipping calculated at checkout.

Color

Ships From

Bundle

Quantity must be 1 or more

COMFAST Outdoor Access Point 300Mbps 1km Long Range CPE 2.4GHz Wireless Wifi Bridge 9dBi Antenna Nanostation Router

SPECIFICATIONS

Brand Name: COMFAST

With Modem Function: No

Hign-concerned Chemical: none

Type: WireLess

WAN Ports: 1 x10/100Mbps

Wi-Fi Supported Frequency: 2.4G

5G Wi-Fi Transmission Rate: None

2.4G Wi-Fi Transmission Rate: 300 Mbps

Certification: CE

Certification: FCC

Number of USB Interfaces: None

Max. LAN Data Rate: 300Mbps

Standards And Protocols: Wi-Fi 802.11b

Standards And Protocols: Wi-Fi 802.11n

Standards And Protocols: Wi-Fi 802.11g

Wi-Fi Transmission Standard: 802.11n

Wired Transfer Rate: 10/100Mbps

Package: Yes

Supports WDS: Yes

LAN Ports: 1

Supports WPS: Yes

Application: outdoor

color: white

is_customized: Yes

Max. LAN Data Rate: 300Mbs

1km wifi bridge Antenna: 9dBi Directional antenna

Outdoor wifi access point: AP / Client/Bridge/Router

Wifi bridge 1km: 1*10/100Mbps LAN RJ45 Ethernet port

Outdoor wifi antenna: 15V Poe Adapter

long distance outdoor wifi antenna: 300Mbps 2.4Ghz Antenna

wifi extender outdoor: QCA9533

outdoor router 1km: outdoor access point 1km

access point wifi 1km: access point outdoor 1km

1km wi-fi bridge: access point outdoor

outdoor wifi extender 1km: wifi outdoor 1km

wifi repeater outdoor: wireless bridge

Long Range antenna outdoor: Long range wifi antenna

cpe long range: wifi extender 1 km

wifi bridge 1km: Outdoor Wi-Fi repeater 1km

outdoor wifi repeater 1km: wifi bridge for 1 km

wifi amplifier outdoor 1km: wifi amplifier outdoor

Choice: yes

semi_Choice: yes

Comfast Outdoor Access Point 300Mbps 1KM Long Range CPE 2.4GHz Wireless Wifi Bridge 9dBi Antenna Transmission Nanostation Router

Description:

CF-E130N V2 2.4GHz 300Mbps wireless network bridge. It has the characteristics of flexible and convenient engineering installation, simple settings, and stable transmission. Suitable for the transmission of wireless signals in security monitoring projects.

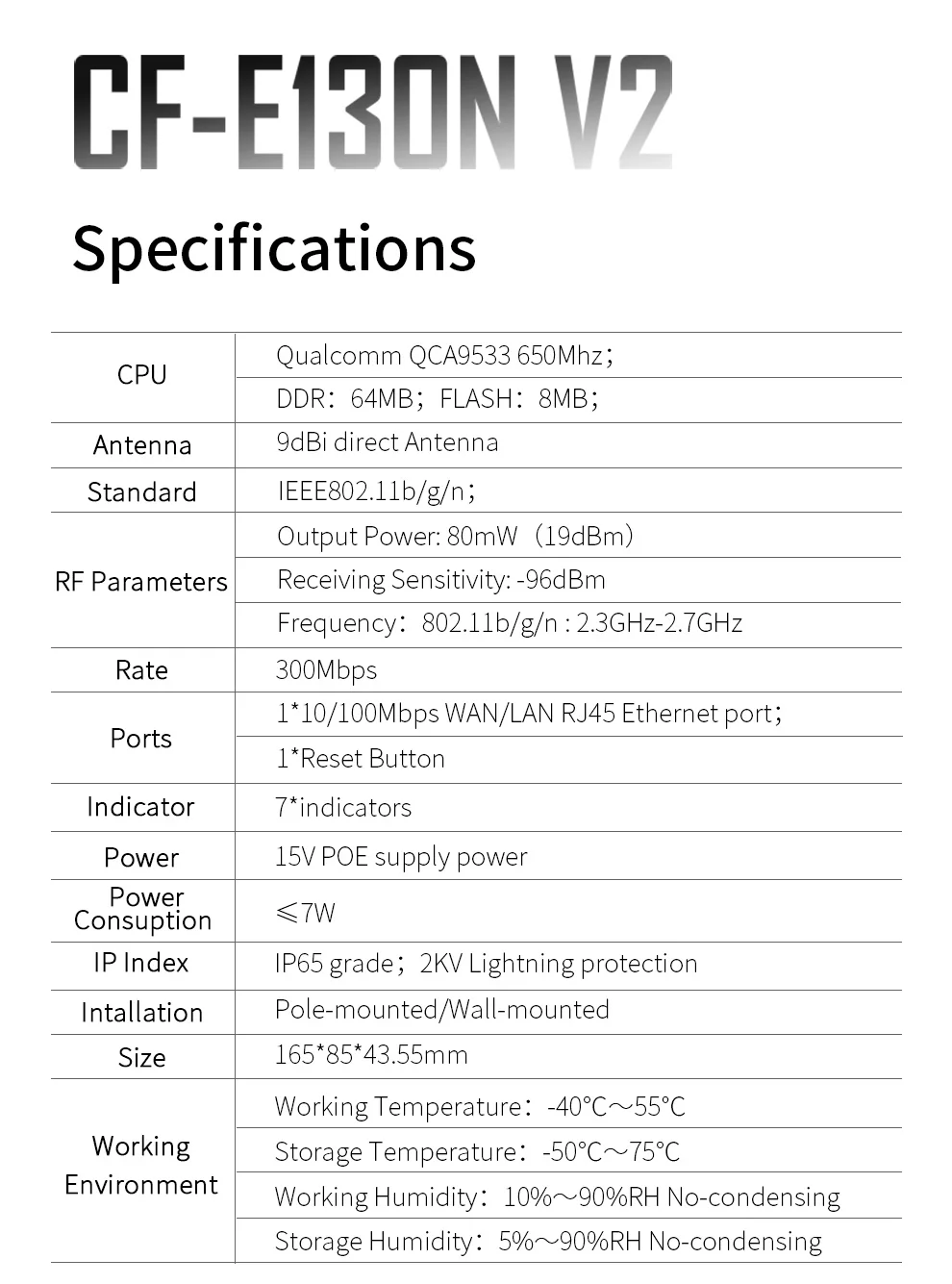

Specification:

1.Model: CF-E130N V2

2.Color: White

3.Operating mode：AP / Client/Bridge/Router

4.Chipset:Qualcomm QCA9533 CPU, RAM: 64MB Flash: 8MB ;

5.Wireless Standard: EEE802.11b/g/n standard Antenna: 9dBi Directional antenna;

6.RF Parameters:Transmit Power: 80mW(19dBm)

7.Acceptance Sensitivity: -96dBm

8.Working Frequency: 802. 11b/g/n: 2.3GHz-2.7GHz

9.Transmission Rate: 2.4GHz: 300Mbps

10.Physical interface: 1*10/100Mbps LAN RJ45 Ethernet port, 1*10/100Mbps WANRJ45 Ethernet port;

11.1*RESET Button, 1*POE Toggle Switches；

12.Pole installation, wall installation, bracket installation

13.Product Size: 165*85*43.5mm

14.Case: ABS engineering plastic + aluminum antenna

Note:

The distance "1KM" means 2pcs CPE based on point-to-point bridge mode. There are many factors that affect distance, such as obstacles(trees, walls, buildings, trucks, etc.), original network signals, etc.

Optional: To get good signal, 2pcs are recommended

Package included:

1 or 2* CF-E130NV2 CPE

1 or 2* POE Adapter

1 or 2* Quick Install Guide

2 or 4* Stainless Steel Rings

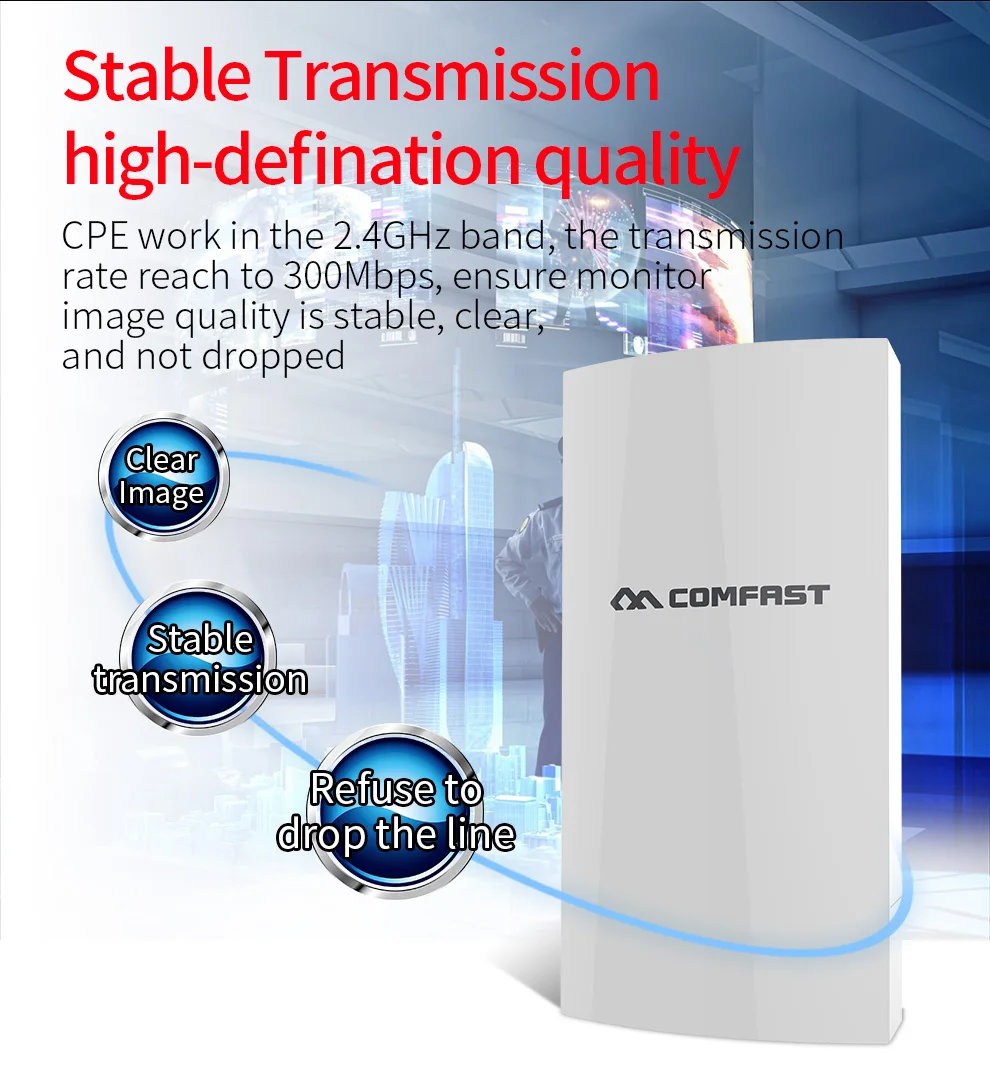

Stable transmission High-definition quality

CPE work in the 2.4GHz band, the transmission rate reach to 300Mbps,ensure Monitor image quality is stable, clear, and not dropped

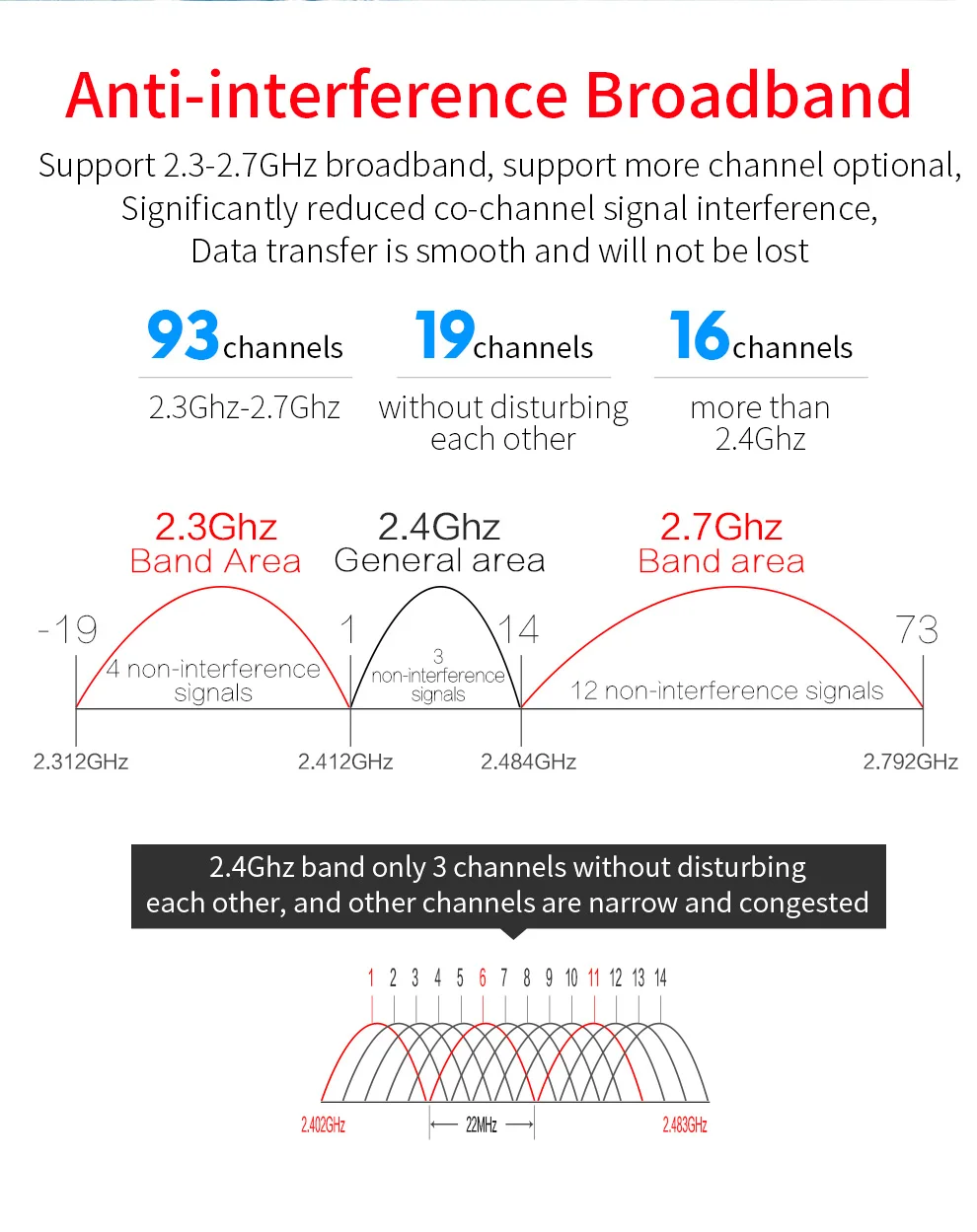

Anti-interference Broadband

Support 2.3-2.7GHZ broadband,support more channel optional, Significantly reduced co-channel signal interference, data transfer is smooth and will not be lost.

Qualcomm chipset, Quality Assurance

Adopt Qualcomm QCA9531 650MHz high frequency chipset, which improve the CPU performance and reduce power consumption,(Stability has been tested by engineering users)

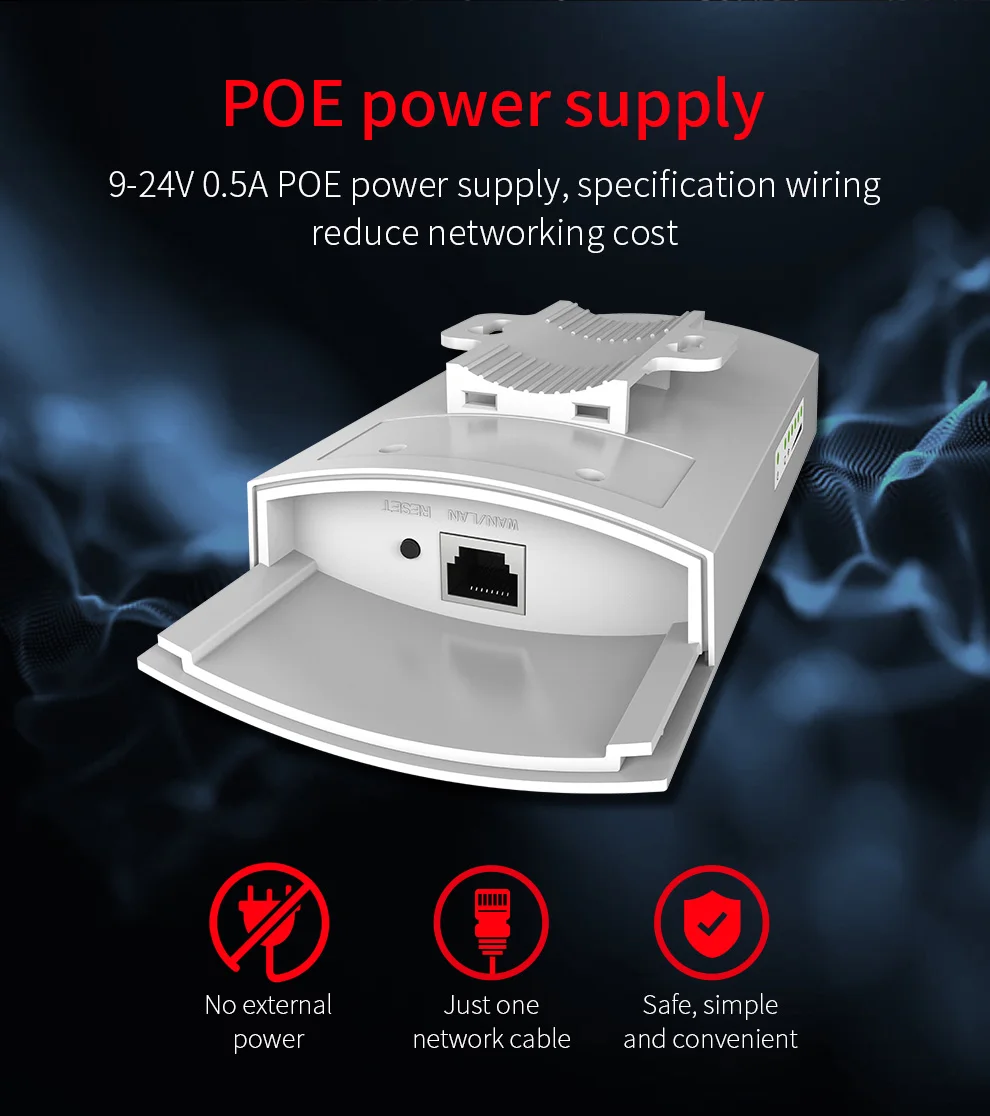

PoE power supply

9-24V 0.5A POE power supply, specification wiring,reduce networking cost

Hide SSID Refuse other people to get free WiFi

COMF AST wireless CPE support SSID broadcast hide, can easy solve the troubles of network security and ensure the engineering stability.

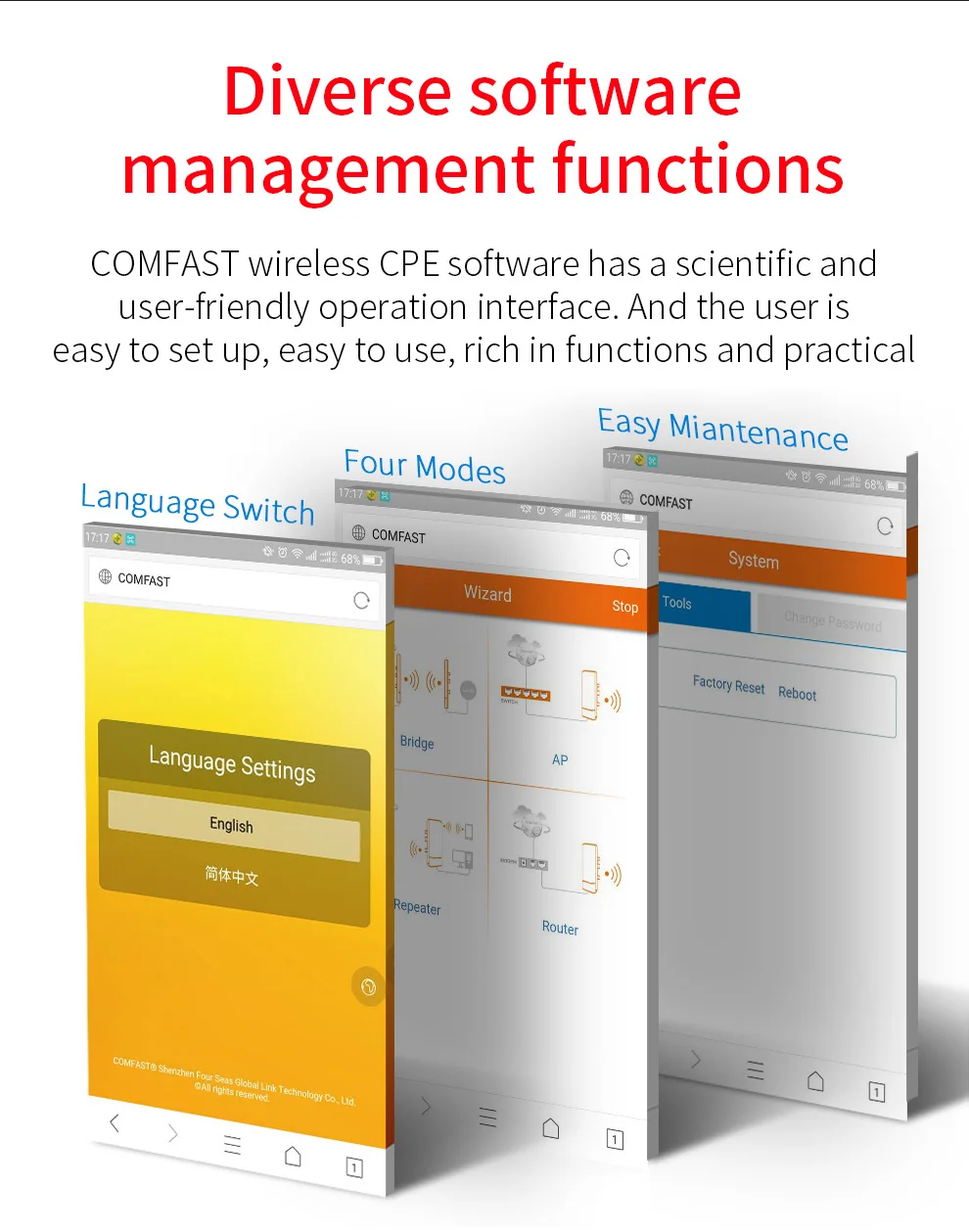

Diverse software management functions

COMFAST wireless CPE software has a scientific and user-friendly operation interface, and the user is easy to set up, easy to use, rich in functions and practical.

Wireless Monitor Connected Diagram

Point to Point Connection Diagram

Multiple cameras connection way 1: Connection the cameras to the switch, then connect with the COMFAST CPE.It will transmit the data through two CPE.

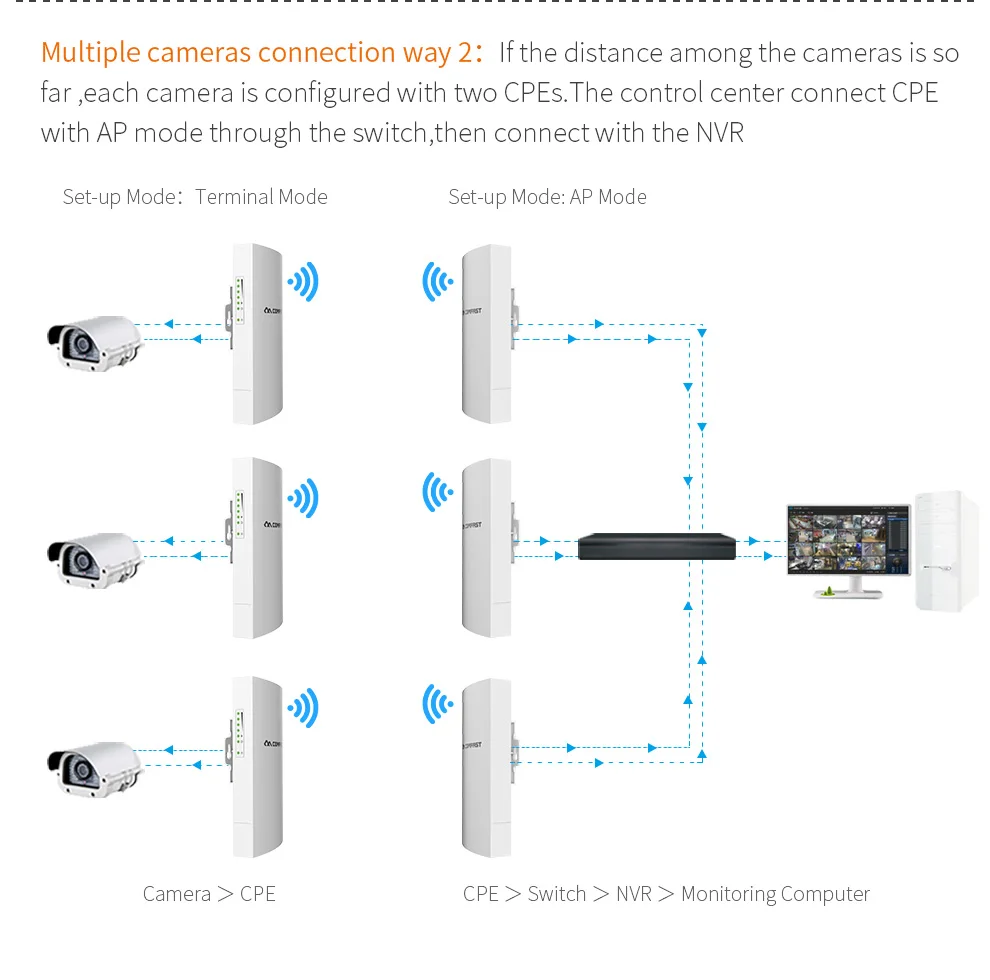

Multiple cameras connection way 2: If the distance among the cameras is so far ,each camera is configured with two CPEs.The control center connect CPE with AP mode through the switch,then connect with the NVR

Point to Muti-point Connection Diagram

If the angle of camera and monitor center is less than 60degree,there can consider one point to multi point connection.It can reduce CPEs with the transmitting mode,which can save project cost a lot.Pls pay attention that it has to meet the angle and Broadband requiement.

In wireless monitoring transmission,we suggest you to use above way to do connection.Pls pay attention the transmission angle for the device is 60degree.

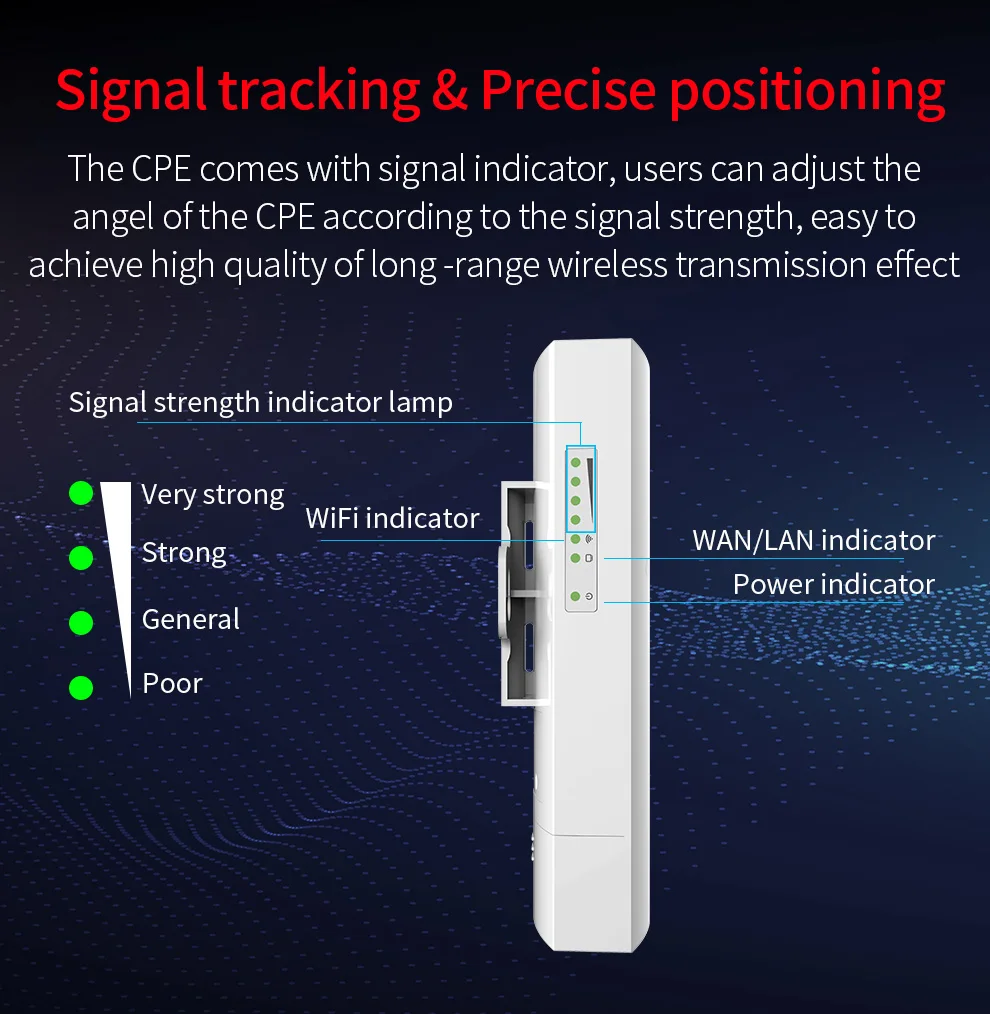

Signal Tracking & Precise Positioning

The CPE comes with signal indicator ,users can adjust the angel of the CPE according to the signal strength,easy to achieve high quality of long-range wireless transmission effect.

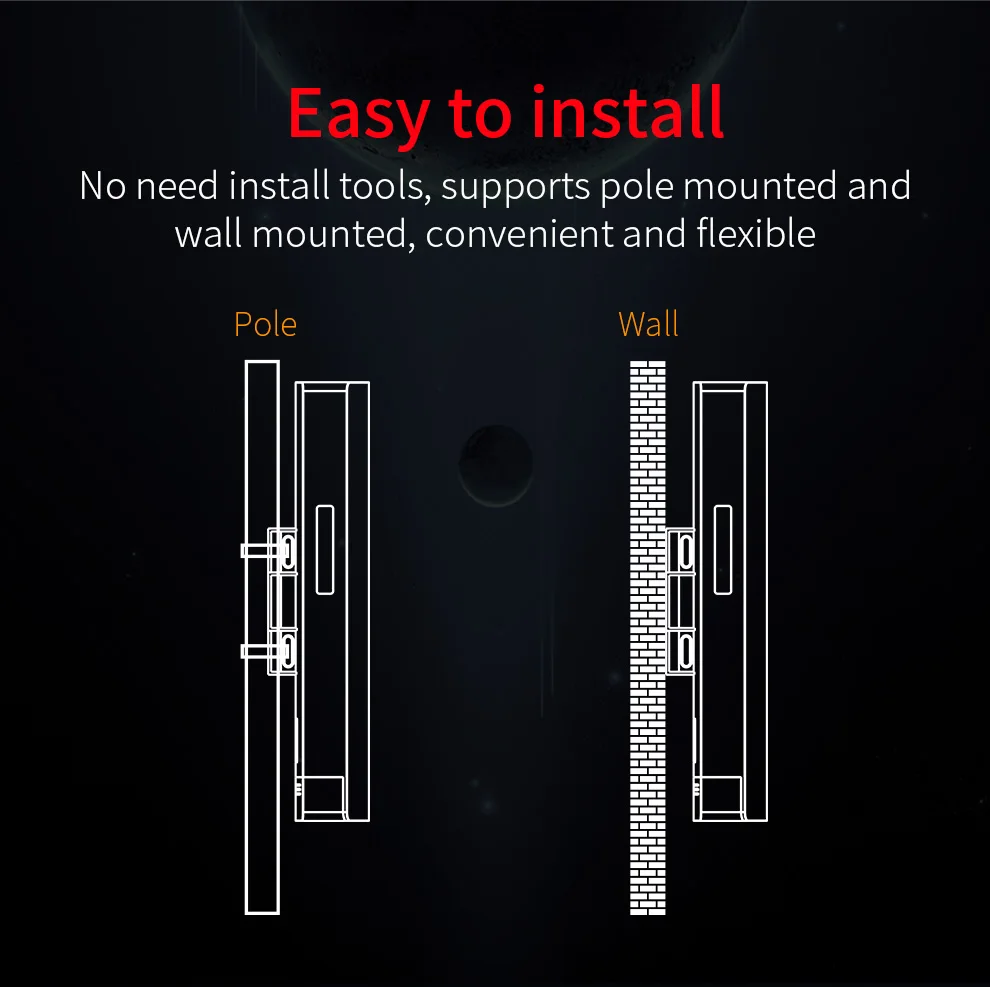

Easy to install

No need install tools, supports pole mounted and wall mounted, convenient and flexible
