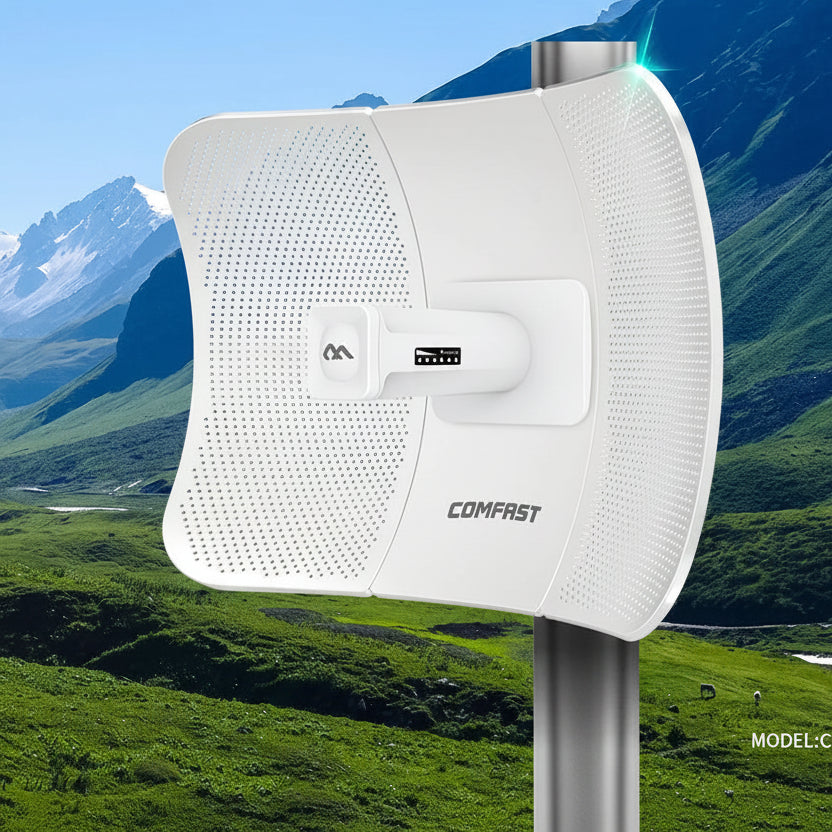

COMFAST Outdoor Access Point 900Mbps Long Range CPE 5GHz Wireless Bridge 23dBi Transmission 11-25km AP Repeater Signal Extender

SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: None

25KM Outdoor Antenna: High Power WiFi Nanostation

5.8G Outdoor CPE: 5.8G wifi antenna

900mbps 26dbi antenna: wifi antenna long range 25km

Antenna: 26dBi High-Gain Directional Antenna

Antenna Type: Internal

Application: Outdoor

Brand Name: COMFAST

CF-E319A: Wireless Amplificador Comfast CPE

Certification: CE

FLASH: 16MB

Frequency: 5 GHz

Frequency Band Class: Single-Band

Function: Firewall

High-concerned chemical: None

Installation: Pole/Wall -Mounted

Long Range Wireless Transmission CPE: Point to Point MAX. 11KM

Max. LAN Data Rate: 900Mbs

Number of USB Interfaces

Outdoor wifi antenna: antena wifi exterior

POE: 24V Poe Power supply

Package: Yes

Port: 1*10/100Mbps LAN/WAN RJ45 Ethernet

Protection Level: 2KV Lightning Protection; IP 65 Level

RAM: 128MB

Range: 25km (without obstacles)

Recommended Uses: Home

Standards And Protocols: Wi-Fi 802.11g

Support Mesh: Support

Supports WDS: Yes

Supports WPS: No

Transmit power: 1000mW(30dBm)

Type: WireLess,Outdoor long range extender

WAN Ports: 1 x10/100/1000Mbps

Wi-Fi Supported Frequency: 5G

Wired Transfer Rate: 10/100/1000Mbps

Wireless Communication Standard: 802.11.g

Wireless Protocol: 802.11a/an

Wireless transmission rate: 900M

With Modem Function: No

Working Frequency: 5.180-5.825GHz

Features

CF-E319A 900Mbps outdoor long-distance transmission CPE, equipped with 26dBi high-gain directional antenna and 30dBm RF power, supports point to point 11KM-25KM transmission distance(no obstacles). Suitable for security monitoring project like scenic spots, ports, oil fields, construction sites, etc.

Specifications

Chipset: Qualcomm three chip

Antenna: 26dBi high-gain directional butterfly shape antenna

Wireless Standard: IEEE802.11a/an

Output Power: 1000mW(30dBm)

Receiving Sensitivity: -96dBm

Frequency: 802.11a/n: 5.180GHz-5.825GHz

Working Modes: AP/ Repeater/ Router/ Client Mode

Physical Ports: 1*10/100/1000Mbps LAN/WAN RJ45 Port

Package included:

1* CF-E319A

1* Poe Adapter

1* Quick install guide

1* Power Cable

2* Stainless Steel Ring

Note: 11KM-25KM means 2pcs CPE Set-up in Point to Point as WiFi bridge (With No obstacles), 1pc can not achieve this distance. It is recommended to order 2pcs if you want a stable transmission.

11KM Long Distance Transmission

Excellent performance, 9 Advantages

11Km Long Distance Transmission

26dBi Antenna

30 dBm Transmit Power

IP65 Protection Level

PoE Flexible Power supply

5.8GHz Anti-interference

Hide SSID

Qualcomm Chip

High Power PA

Engineering Settings, Easy Installation

The measured transmission distance of COMFAST reaches up to 11KM.

900Mbps HD Transmission

Outdoor IP65 Rating Provides The Ability to Handle Different Kinds Of Rugged surroundings

Butterfly Shape High Power Antenna

5.8GHz Effective Anti-interference

There are too many devices in the 2.4GHz band and cause serious interference, CF-E319A work at 5.8GHz, the interference is less and works more stableIndustrial design

Function 1: Wind resistance antenna reflector

Function 2: Led indicator is easy to adjust

Equipped with signal status indicator, which is convenient for users to adjust the angle of the device, and the signal status is clear at a glance

Function 3: The level design

The level design can help users quickly judge whether theinstallation angle is accurate, and it is clear at a glanceFunction 4: Installation clip, flexible rotation

The innovative design of the installation clip, the bridge can berotated and adjusted at any angle, which greatly enhances theflexible application ofthe projectPOE Power Supply

CF-E319A support POE power supply, It can support 100-meter long network cable for power supply and data transmission at the same time. Hide SSID, Refuse to Backup The Network

Monitoring Applicable Scenarios

Farming monitoring/ Forest monitoring/ Driving school monitoring/ Road monitoring/ Scenic spot monitoring/ Site monitoring

Network Application Scenarios

Cell network transmission/ Scenic network transmission/ Network transmission in remote areasSchematic Diagram of Wireless Bridge Connection

Scene 1: Point to point connection

Scene 2: Multi point to Multi point connection

Scene 3: Point to Multi point connection

Scene 4: Build a local area network

Scene 5: Wireless Repeater (Note: point C requires 2pcs CPE)

lnstallation Steps

Package Content

PS: Measured manually with slight deviation
