COMFAST High Power Outdoor WiFi AP 750Mbps Router Amplifier 2.4/5.8GHz 6dBi Wi-Fi Antenna Long Rang Signal Extender Repeater CF-WA860

COMFAST High Power Outdoor WiFi AP 750Mbps Router Amplifier 2.4/5.8GHz 6dBi Wi-Fi Antenna Long Rang Signal Extender Repeater CF-WA860

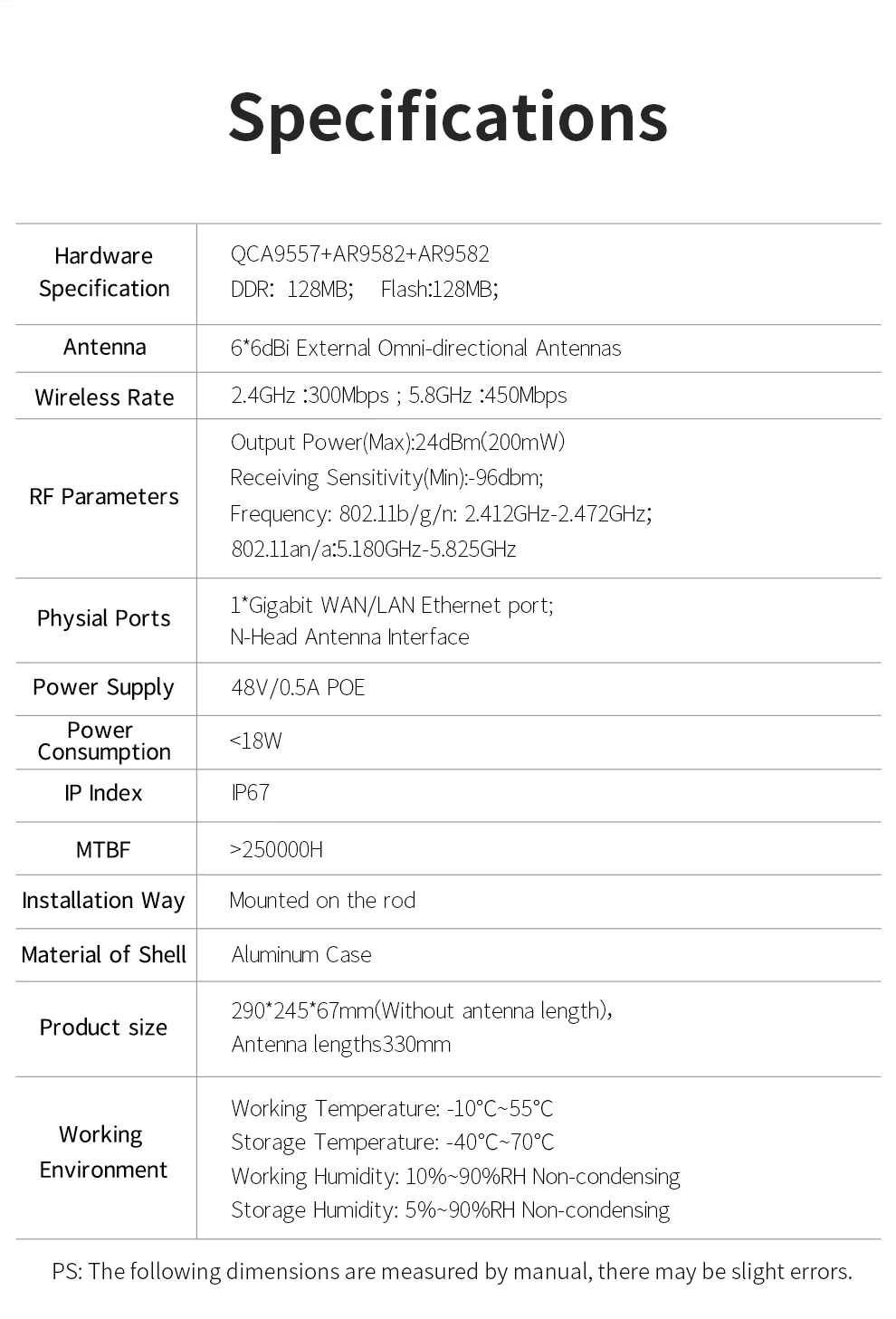

SPECIFICATIONS

Brand Name: COMFAST

With Modem Function: No

Hign-concerned Chemical: none

Type: WireLess

WAN Ports: 1 x10/100Mbps

Wi-Fi Supported Frequency: 2.4G & 5G

5G Wi-Fi Transmission Rate: 433Mbps

2.4G Wi-Fi Transmission Rate: 300 Mbps

Certification: CE

Certification: FCC

Number of USB Interfaces: None

Max. LAN Data Rate: 750Mbps

Standards And Protocols: Wi-Fi 802.11g

Standards And Protocols: Wi-Fi 802.11b

Standards And Protocols: Wi-Fi 802.11n

Wired Transfer Rate: None

Package: Yes

Supports WDS: No

LAN Ports: 2

Supports WPS: No

Application: outdoor

Dual-band Outdoor AP: CF-WA860

Chipset: QCA9557+AR9582+AR9582

2.4GHz :300Mbp;5.8GHz:450Mbps: DDR:128MB;Flash:128MB

Antenna: External 6dBi Antennas

Wireless Standard: IEEE802.11a/b/g/n

Output Power(Max):24dBm(200mW): Receiving Sensitivity(Min):-96dbm;

Physical Ports: Gigabit WAN Ethernet port; Gigabit LAN Ethernet port; N-Head Antenna Interface

wifi extender signal booster: Outdoor router

Outdoor 5g router: Outdoor wifi repeater

wifi extender: Outdoor repetidor wifi

access point: Outdoor wifi signal repeater

access point wifi: Wi-Fi signal amplifier

wifi access point: wifi range extender

Wireless ap Antenna: ap outdoor 5ghz

access point wifi outdoor: 5ghz Access Point

Signal Booster: 5ghz outdoor wifi amplifier

Description

750Mbps High Power Outdoor AP Dual-band 2.4&5.8GHz Router Amplifier 6dBi Antenna Long Rang Signal Extender Repeater CF-WA860

CF-WA860 is a high-power outdoor AP with dual-band 750Mbps wireless transmission rate. It is waterproof, lightning-proof, moisture-proof and freeze-proof, and is suitable for use in various harsh outdoor environments.

Its high standard ensures that the equipment can be used as an outdoor WiFi coverage base station and is suitable for large outdoor places such as squares, resorts, and scenic spots.

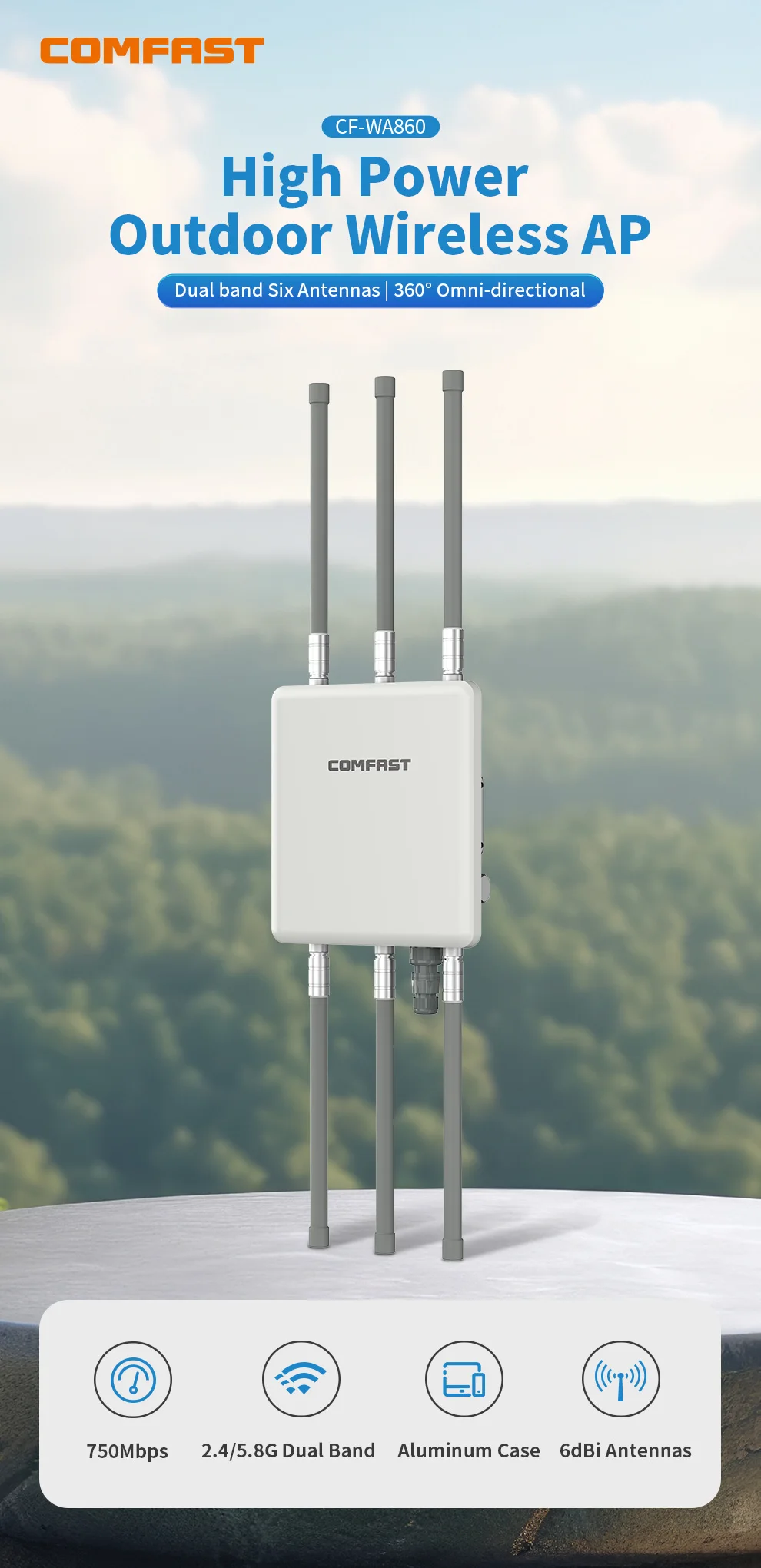

High Power Outdoor Wireless AP

Dual-band Outdoor AP

Model: CF-WA860

Chipset:QCA9557+AR9582+AR9582；DDR:128MB ; Flash:128MB

Antenna:External 6dBi Antennas

Wireless Standard: IEEE802.11a/b/g/n

Wireless Rate:   2.4GHz :300Mbp;5.8GHz:450Mbps

Power consumption:18W

MTBF >250000H,Cast aluminum shell,Size:290mm*245mm*67mm（Without antenna

length）；Antenna lengths：330mm

RF parameters:

Output Power(Max):24dBm（200mW）

Receiving Sensitivity(Min):-96dbm;

Frequency:802.11b/g/n: 2.412GHz-2.472GHz；
802.11an/a：5.180GHz-5.825GHz

Physical Ports

Gigabit WAN Ethernet port;

Gigabit LAN Ethernet port;

N-Head Antenna Interface



Packing List

Noted : Please refer to the actual product you receive for the packaging box !

1*CF-WA860 AP

1*Instructions

1*Network Cable

1*POE Power Adapter

1* Brackets

High configuration High Performance

Strong Tri-core CPU/2.4 / 5.8G Dual Band/6dbi Omni-directional Antennas/Aluminum Case/Unified management of Aps/Support Multi-users

Qualcomm Chipset

CF-WA860 adopts high performance Qualcomm chipset and tri-core CPU , which ensure stable performance and reliability

Prioritize 5G Fast Speed

Dual band and high concurrency design , prioritize connection with better signals ; Support 802.11ac , and its transmission rate is up to 750mbps , fast and stable for outdoor Wifi coverage

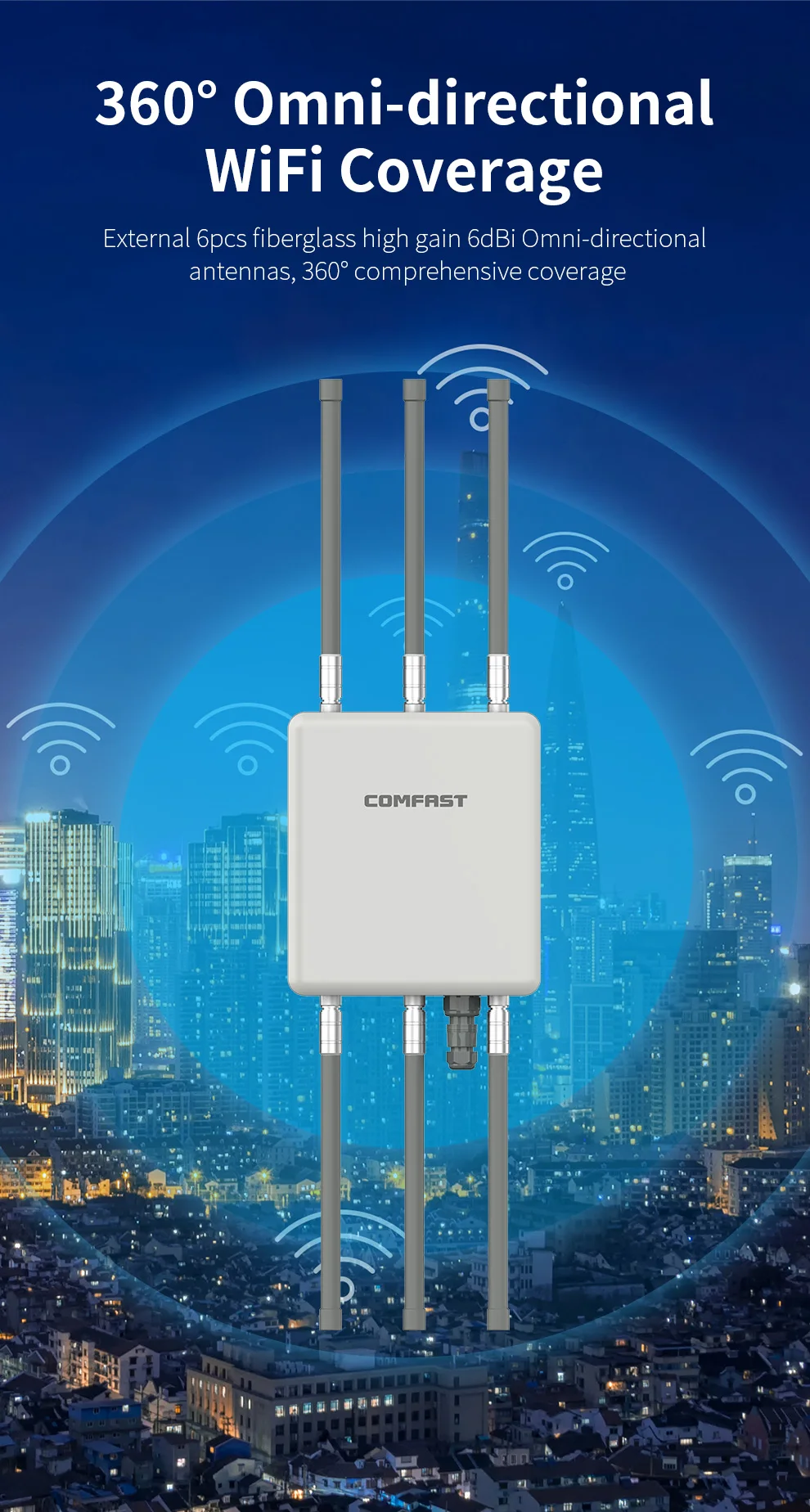

360° Omni-directional WIFI Coverage

External 6pcs fiberglass high gain 6dbi Omni-directional antennas , 360° comprehensive coverage

IP67 waterproof grade

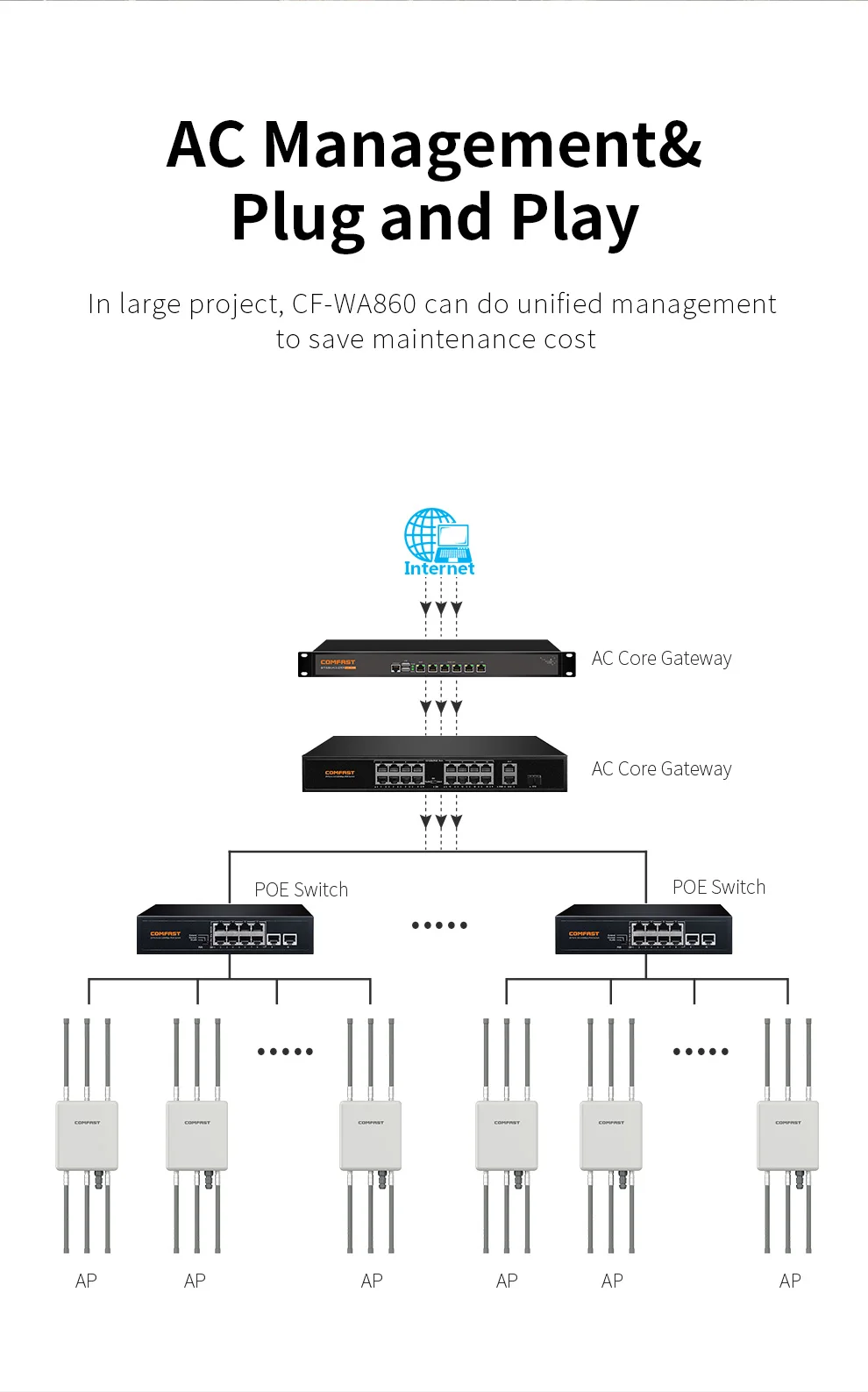

AC Management &Plug and Play

In large project , CF-WA860 can do unified management to save maintenance cost

High Users Capacity Stable Connection

It can be simultaneously connected by multi-users in large place ,and it also can be optimized for the characteristics of different frequency bands simultaneously , stronger Wifi signal and wider Wifi coverage

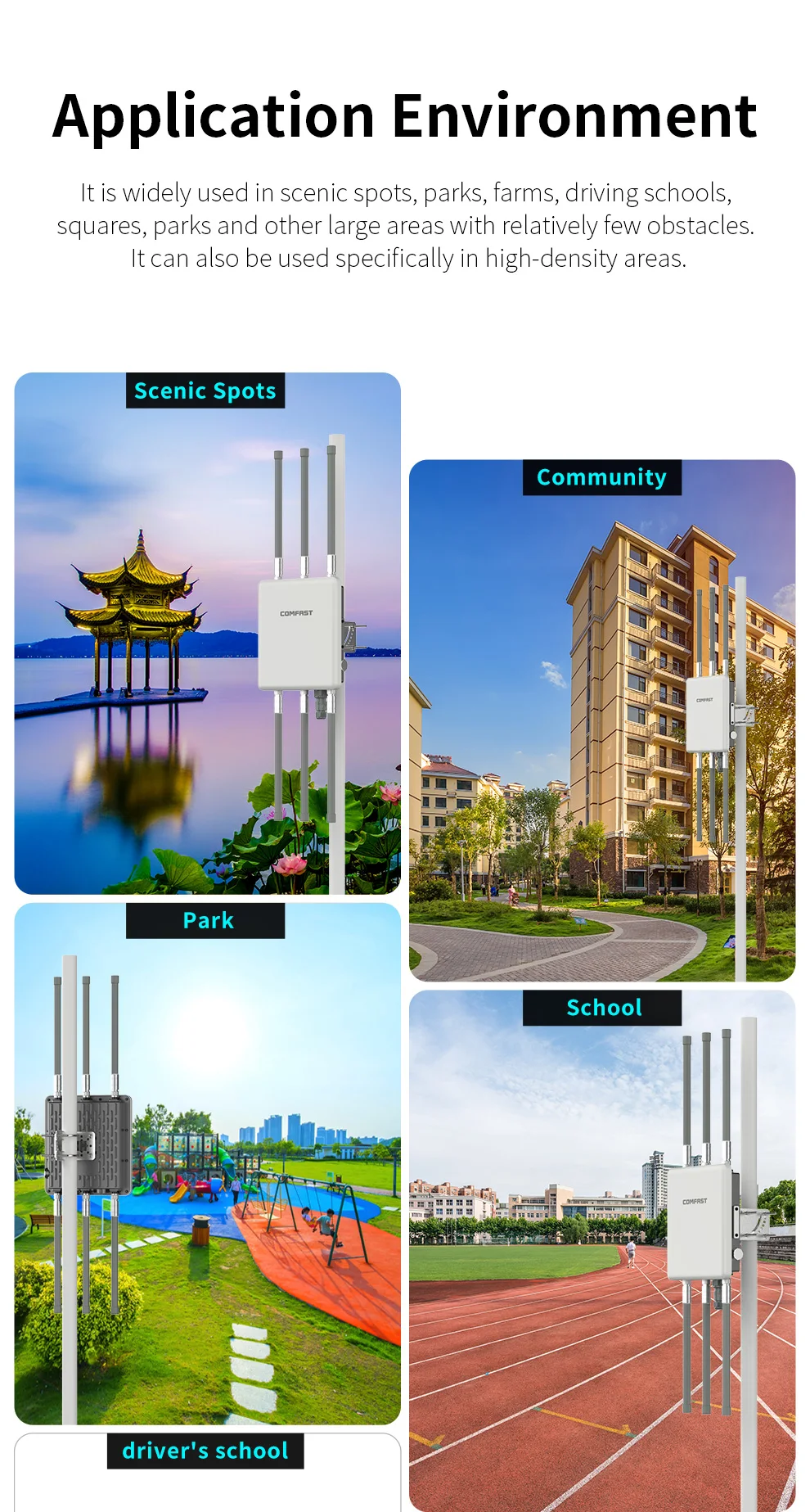

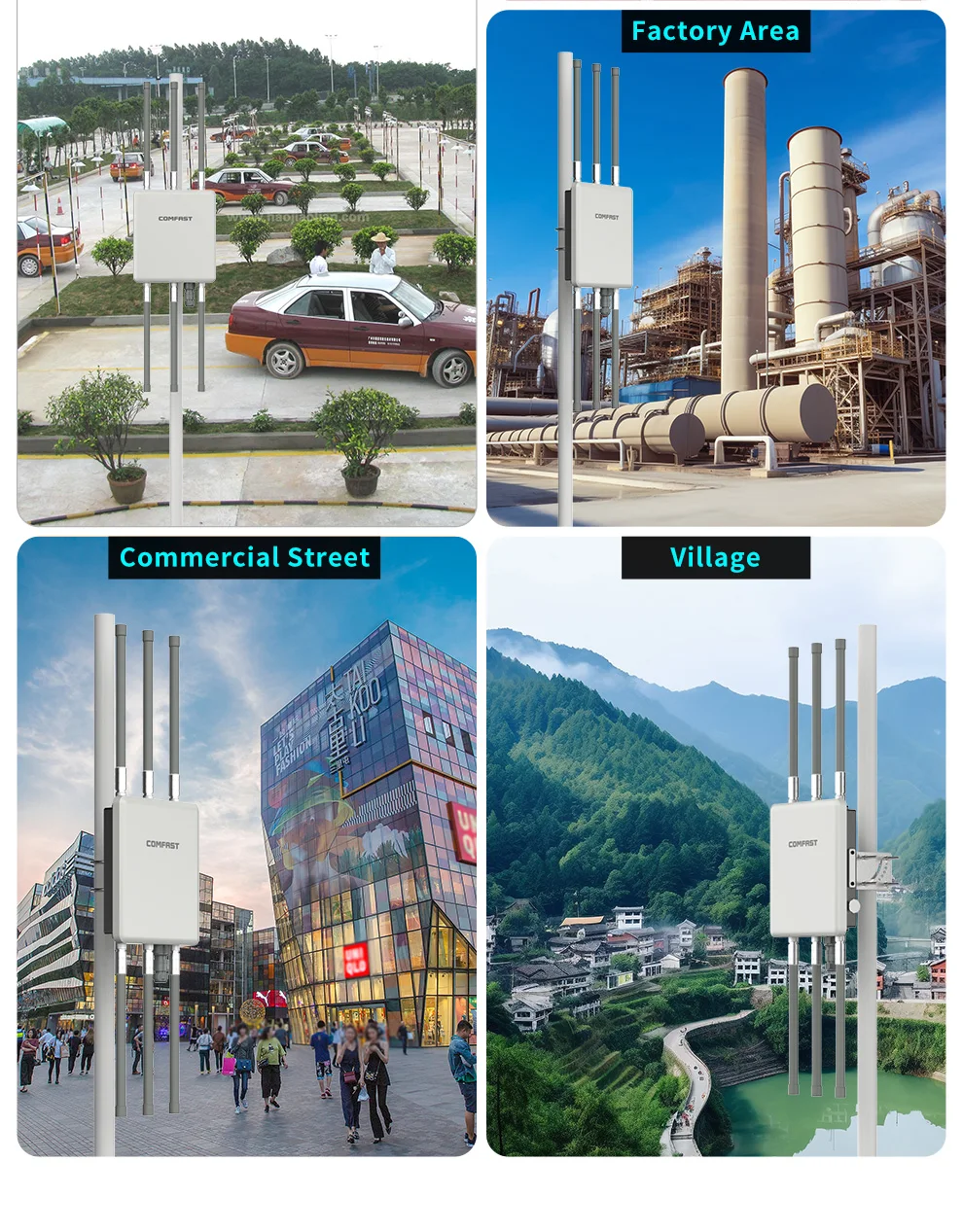

Application Environment

It is widely used in scenic spots , parks , farms , driving schools ,squares , parks and other large areas with relatively few obstacles.It can also be used specifically in high-density areas

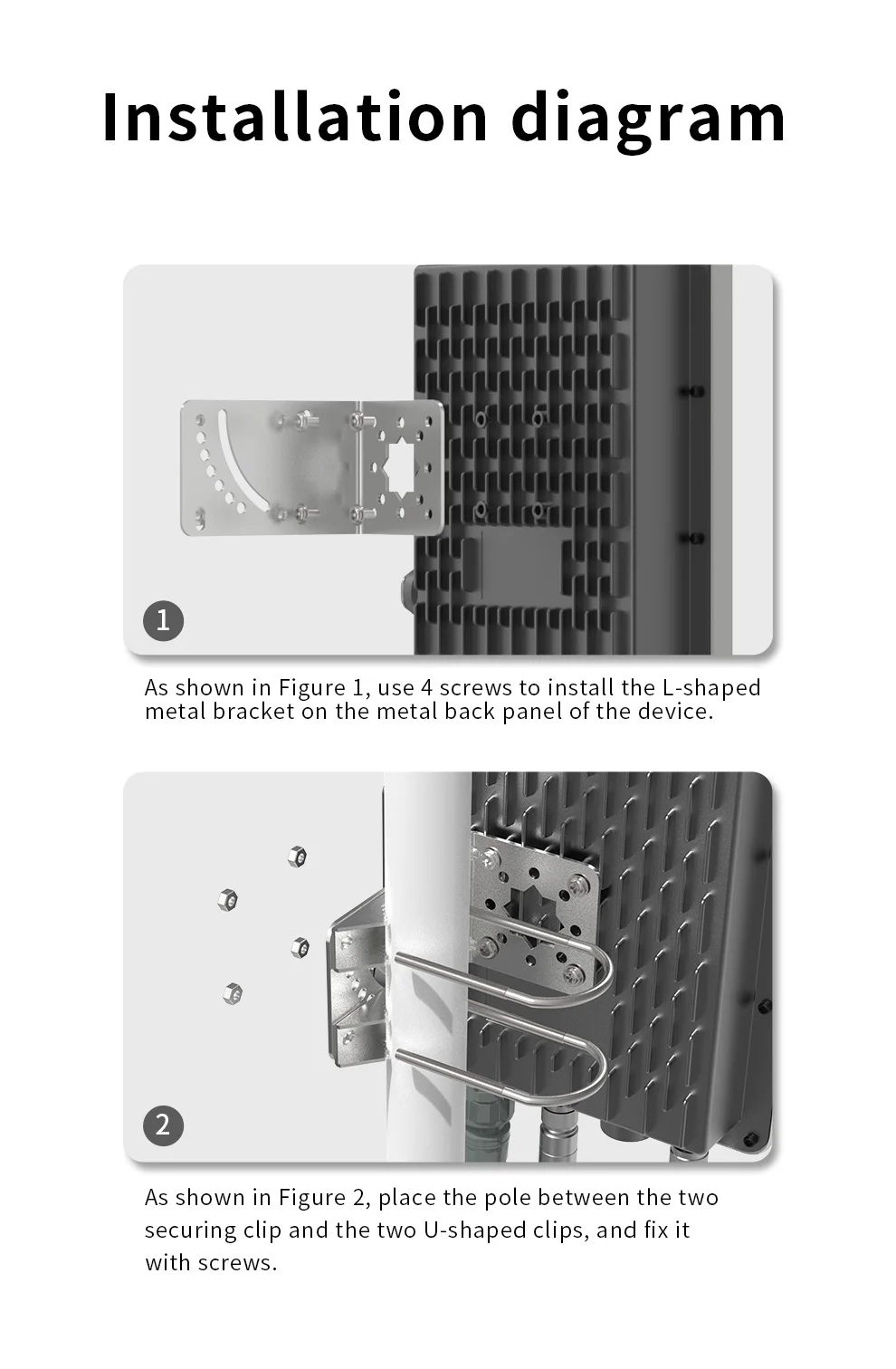

Installation diagram

1.As shown in Figure 1 . use 4 screws to install the L-shaped metal bracket on the metal back panel of the device

2.As shown in Figure 2 , place the pole between the two securing clip and the two U-shaped clips , and fix it with screws

Packing List

Noted : Please refer to the actual product you receive for the packaging box !

1*CF-WA860 AP

1*Instructions

1*Network Cable

1*POE Power Adapter

1* Brackets
