COMFAST Full Gigabit AC Wifi Load Balancing Routing Core Gateway Multi Wan Access Roaming Router Intelligent Flow Controller

COMFAST Full Gigabit AC Wifi Load Balancing Routing Core Gateway Multi Wan Access Roaming Router Intelligent Flow Controller

SPECIFICATIONS

Brand Name: COMFAST

With Modem Function: Yes

Hign-concerned Chemical: none

Type: Wired

WAN Ports: 1 x10/100/1000Mbps

Wi-Fi Supported Frequency: 2.4G & 5G

5G Wi-Fi Transmission Rate: 1000Mbps

2.4G Wi-Fi Transmission Rate: 600Mbps

Function: Firewall

Certification: CE

Certification: FCC

Number of USB Interfaces: 1 x USB 2.0

Max. LAN Data Rate: 1000Mbps

Standards And Protocols: Wi-Fi 802.11b

Standards And Protocols: Wi-Fi 802.11n

Standards And Protocols: Wi-Fi 802.11ac

Standards And Protocols: Wi-Fi 802.11g

Wi-Fi Transmission Standard: 802.11ac

Wired Transfer Rate: 10/100/1000Mbps

Package: Yes

Supports WDS: No

LAN Ports: 4

Supports WPS: No

Application: Network Security

Products Status: Stock

Gigabit AC Router WAN Ports: 1

Wi-Fi Transmission Speed: 10/100/1000Mbps

Load Balancing Routing Max. LAN Data Rate: 1000Mbs

Multi Wan router: Load balanced router

Full Gigabit AC Router: multi wan ac router

Comfast Full Gigabit AC Wifi Load Balancing Routing Core Gateway Multi Wan Access Roaming Router Intelligent Flow Controller

Product features:

1. Iron shell frosted process, sturdy with texture;

2. MTK MT7621 dual-core 880MHz CPU;

3. 5 1000Mbps RJ45 ports;

4. 512MB high-speed memory, 32MB flash memory;

5. Supports up to 100 APs for simultaneous access;

6. Supports up to 500 simultaneous Internet access;

7. Support multi-WAN port access;

8. Support OrangeOS;

9. support Internet behaviour management, effective supervision of the network;

10. can occupy high bandwidth resources for a variety of downloads,

11. online video and other applications to limit the speed control;

12. firewall can ensure the safe operation of the equipment;

13. intelligent flow control, load balancing, seamless roaming

CF-AC100 Specification:

1.Mode:CF-AC100

2.Hardware Specification :MT7621;

3.DDR: 512MB Flash :32MB

4.Physical interface：3*10/100/1000Mbps LAN /WAN Port   1*10/100/1000Mbps WAN Port   1*10/100/1000Mbps LAN Port

1*DC Power Port

5.Button : 1*Reset Button

6.Builting in Power Supply 100-240V ,50/60Hz

7.Power Consumption :10W

8.Support Client： Support 120AP, Device MAX 200+

9.IP Index ;IP 31

10.Installaton Way: Desktop , Wall -Mounted

Package list:

1* Full Gigabit Port AC Router

1* Power Adapter

1* Network Cable

1*User Guide

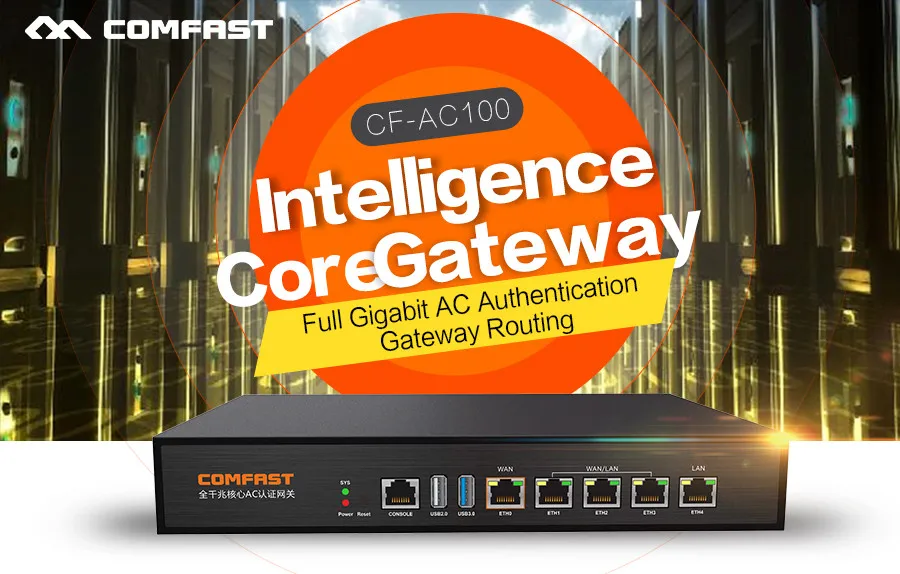

Intelligence CoreGateway

Full Gigabit AC Authentication Gateway Routing

Network Core & Network Hub

A wise WiFi project manager always has his own way to do unified management.Choosing CF-AC100 is to make project manager clear in mind.

Multi-WAN Access

Multiple wide area network at the same time; Automatically enable alternate routes;Intelligent line distribution; Can access different operators at the same time

Intelligent Traffic Control

No need any configuration. It can intelligently monitor broadbandspeed and choose the best broadband.

Wireless Roaming

It can support to connect wifi automatically when there is lots of APin different area. Solve the headache of dropped or re-log in.

Safety Protection Wall

ARP Fraud Protection & Attach Defense & MAC filter

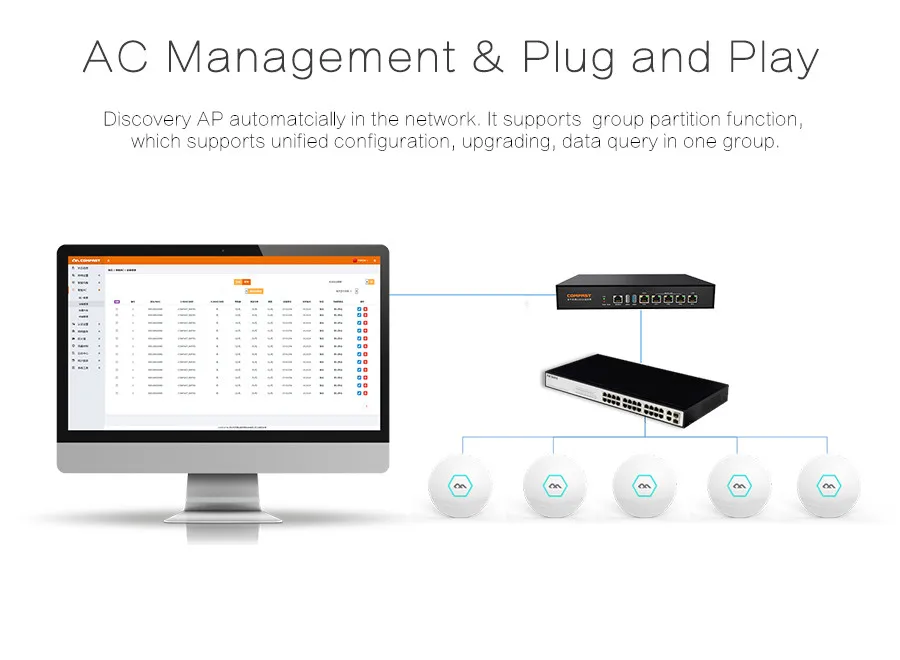

AC Management & Plug and Play

Discovery AP automatcially in the network. It supports group partition function,which supports unified configuration, upgrading, data query in one group.
