COMFAST CF-EW72 1200Mps 2.4G & 5G Outdoor 802.11.n Wireless Repeater & CPE Bridge & Access Point Extender

COMFAST CF-EW72 1200Mps 2.4G & 5G Outdoor 802.11.n Wireless Repeater & CPE Bridge & Access Point Extender

SPECIFICATIONS

Bluetooth Protocol: No support

Brand Name: comfast

Certification: CE

Frequency: 5 GHz

Frequency Band Class: Dual-Band

Heat dissipation: No support

High-concerned chemical: none

Kind: External

Model Name: COMFAST

Package: Yes

Transmission Rate: 1000Mbps

Type: WireLess

Wi-Fi Supported Frequency: 2.4G & 5G

Wired Interfaces: none

Wired socket: USB 3.0

Wired transmission rate: 1000m

Wireless Communication Standard: 802.11.n

Wireless Protocol: 802.11n

Wireless socket: USB 3.0

Wireless transmission rate: 1200M

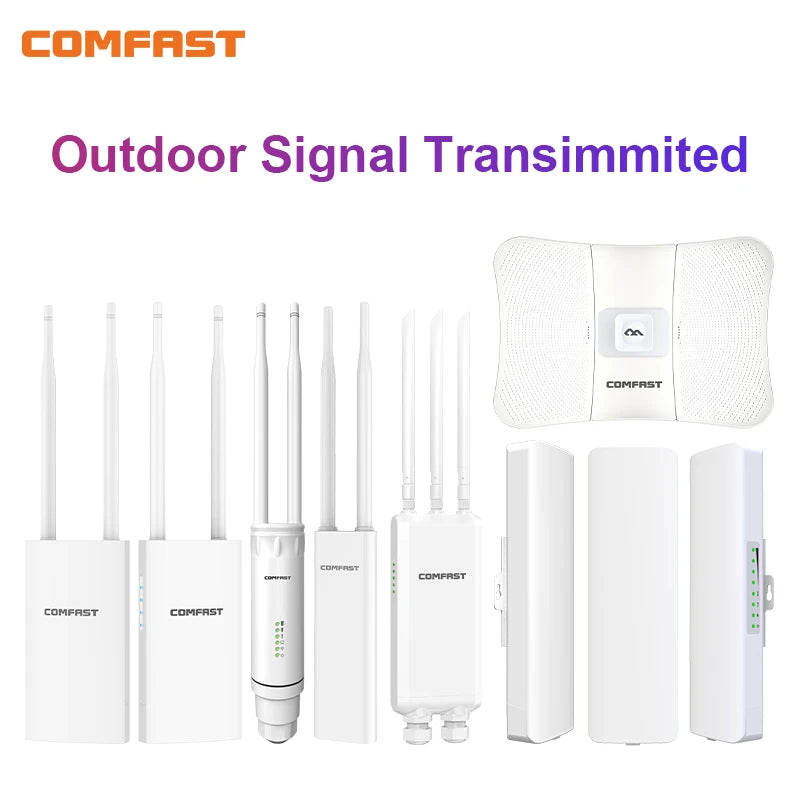

Comfast Relay & CPE Bridge Long Range AP & Wireless Access Point AP CPE Bridge Long Range AP

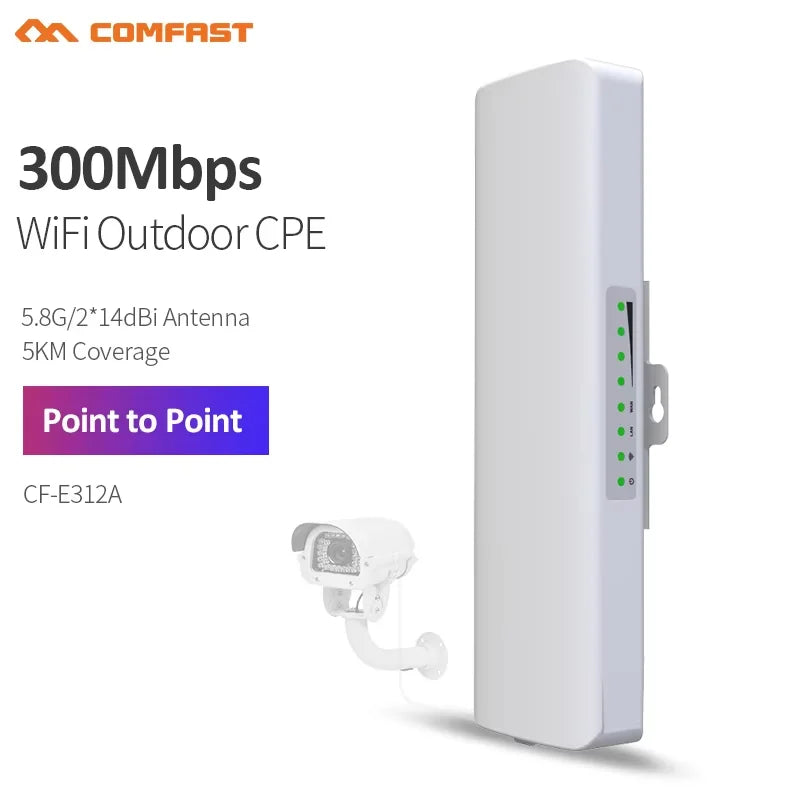

CF-E312AV2 Specifications:

 1. Adopts Qualcomm Chipset, 560MHz Industrial Grade CPU, built-in Power Amplifier

2. Support 802.11a/an Wireless Standard,5.180GHz-5.825GHz frequency band.

3. Repeater/ AP/ WISP Client/ WDS/ AP+WDS/ Router Modes

4. Advanced Software Technology, Point To Point/ Point To Multi-Point connection

5. 48V POE Power Supply, supports up to 50meter deployment

6. Built-in 2*14dBi 5.8GHz intelligent polarization antennas to build long distance wireless transmission

7. Equipped 8 indicator, show operation mode, channel, signal strength

8. IP63 & 2KV Outdoor protection design

9. 1*10/100Mbps LAN RJ45 Ethernet port & 1*10/100Mbps WAN RJ45 Ethernet port



Package included:

1* CF-E312AV2

1* Poe Adapter

1* Quick install guide

1* Power cable

2* Stainless Steel Ring



Note: This product requires 2 pieces to be set as a wireless bridge for 5-10km transmission. One piece can not cover this distance, if you want a stable transmission, it is recommended to order 2pcs.

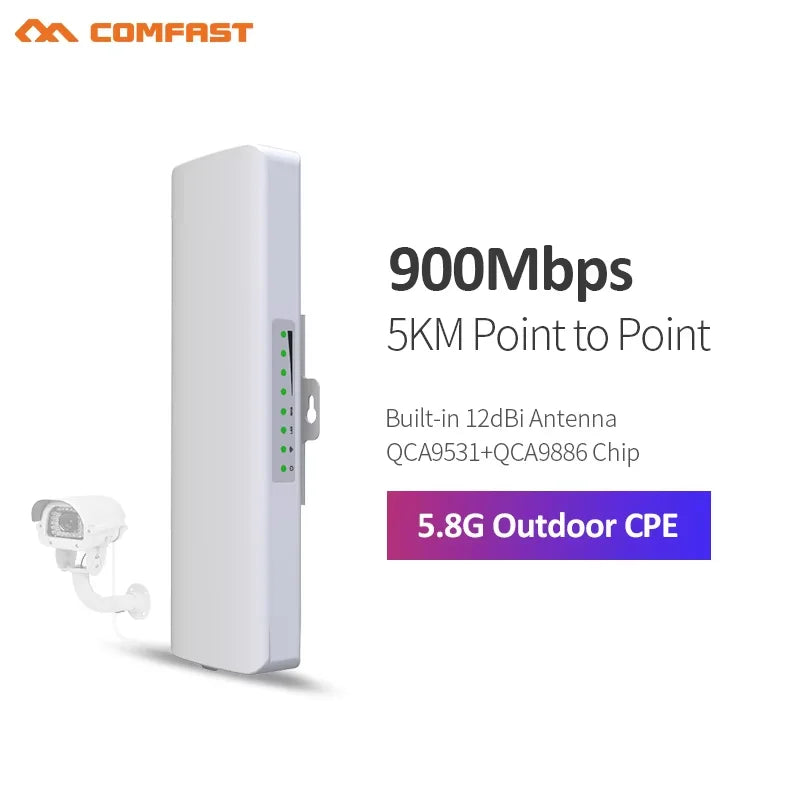

CF-E313AC Specifications:

1. QCA9531+QCA9886 Chipset, 802.11a/an/ac Support

2. Built-in 12dBi dual-polarized directional MIMO antenna

3. Adjustable transmission power from 0 to 23dBm/200mw

4. AP/ Wireless Client/ Repeater operation modes

5. Outdoor stabilized enclosure with IP65 waterproof

6. High Quality 48V Poe Adapter

7. Extend the reach of your existing company network to another building

Package included:

1* CF-E313A CPE
1* Poe Adapter
1* Quick install guide
1* Power cable
2* Stainless Steel Ring

Note: 5KM means set point to point as wifi bridge (no obstacles), 1pc CPE cannot reference this distance.

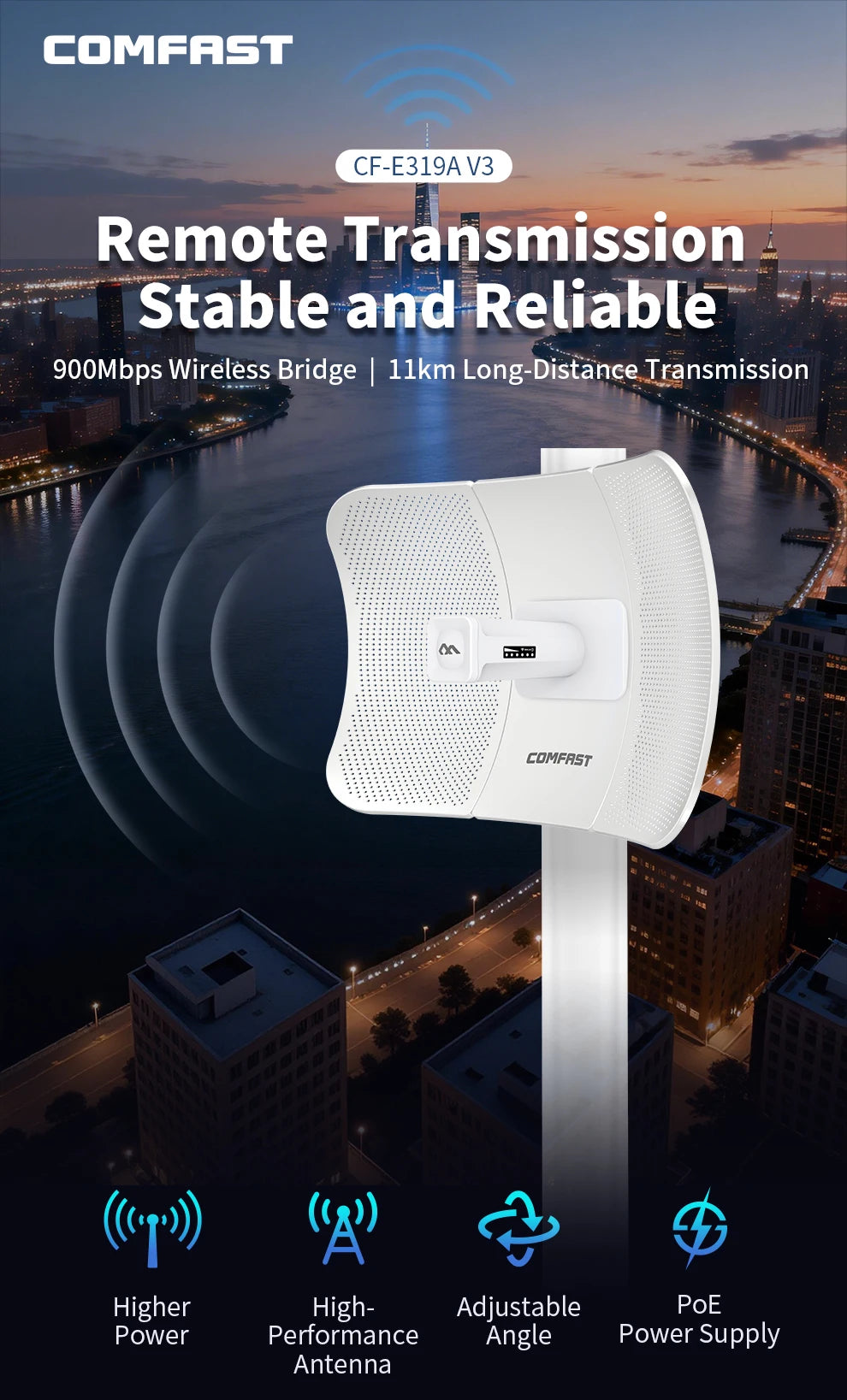

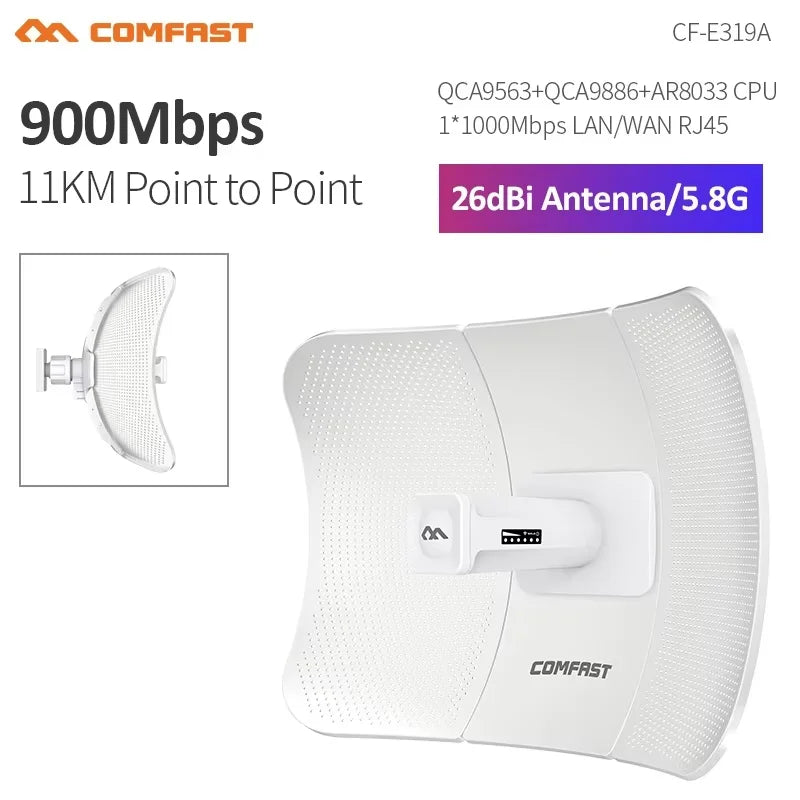

CF-E319A Specifications:

Antenna: 26dBi high-gain directional butterfly shape antenna

Wireless Standard: IEEE802.11a/an

Output Power: 1000mW(30dBm)

Receiving Sensitivity: -96dBm

Frequency: 802.11a/n: 5.180GHz-5.825GHz

Physical Ports: 1*10/100/1000Mbps LAN/WAN RJ45 Ethernet Port



Package includes:

1* CPE

1* Poe Adapter

1* Quick install guide

1* Power cable

2* Stainless Steel Ring



Note: 5-25km means 2 pieces CPE set as point-to-point in Bridge Mode (Without obstacles), 1 piece CPE can not cover this distance. If you want a stable transmission, it is recommended to order 2 pieces.



Comfast Relay:

Differences:

CF-EW71: 300Mbps 2.4GHz Ourdoor AP Support 50+Users with 48V POE

CF-EW74: 1200Mbps 2.4GHz & 5GHz Ourdoor AP Support 64+Users with 100M port 24V POE

CF-EW72: 1200Mbps 2.4GHz & 5GHz Ourdoor AP Support 120+Users with 1000M Gigabit Port 48V POE

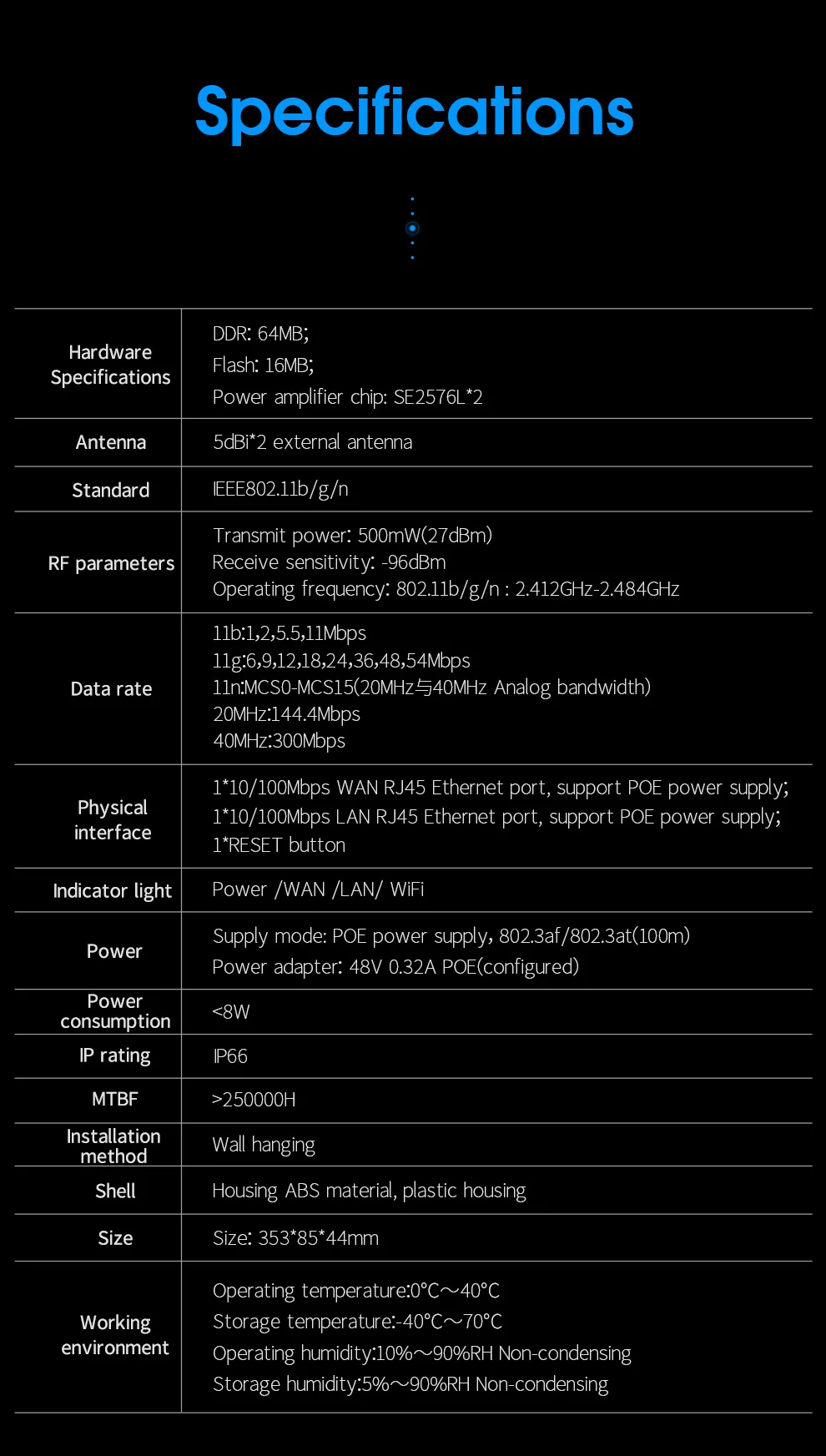

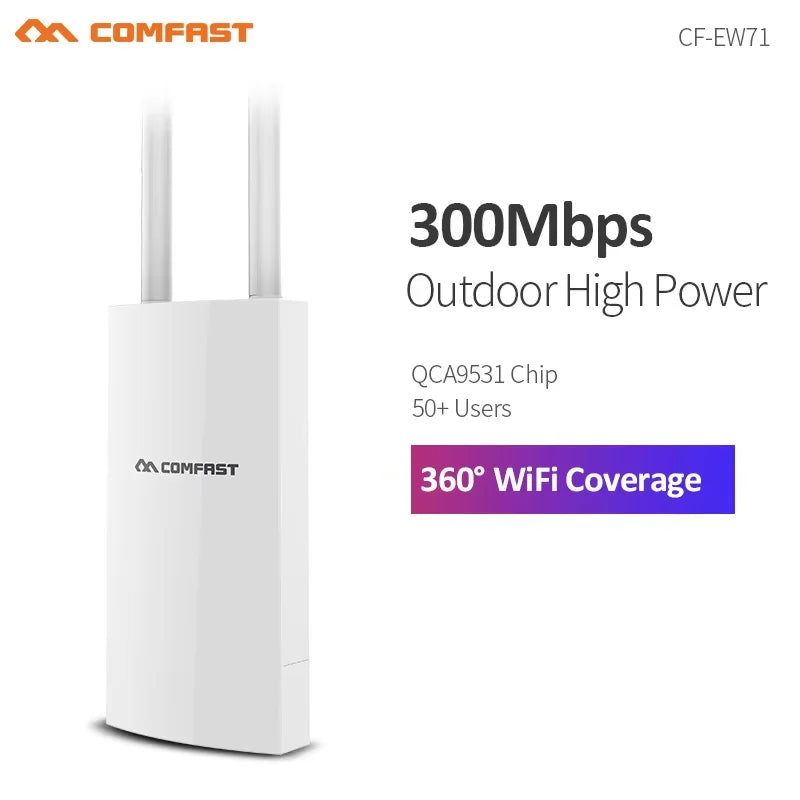

CF-EW71 Specifications:

1. QCA9531 Chipset, 802.11b/g/n Support

2. Outdoor High Power Wi-Fi Coverage AP 360° Omnidirectional Coverage

3. Adjustable transmission power from 0 to 27dBm/500mw

4. AP Mode，Route Mode，WDS Repeater，Universal Repeater

5. Outdoor stabilized enclosure with IP66 waterproof



Packing List:

1* AP main body

1* 48V POE power adapter

2* O type fixing loop

1* User manual

1* Guarantee card

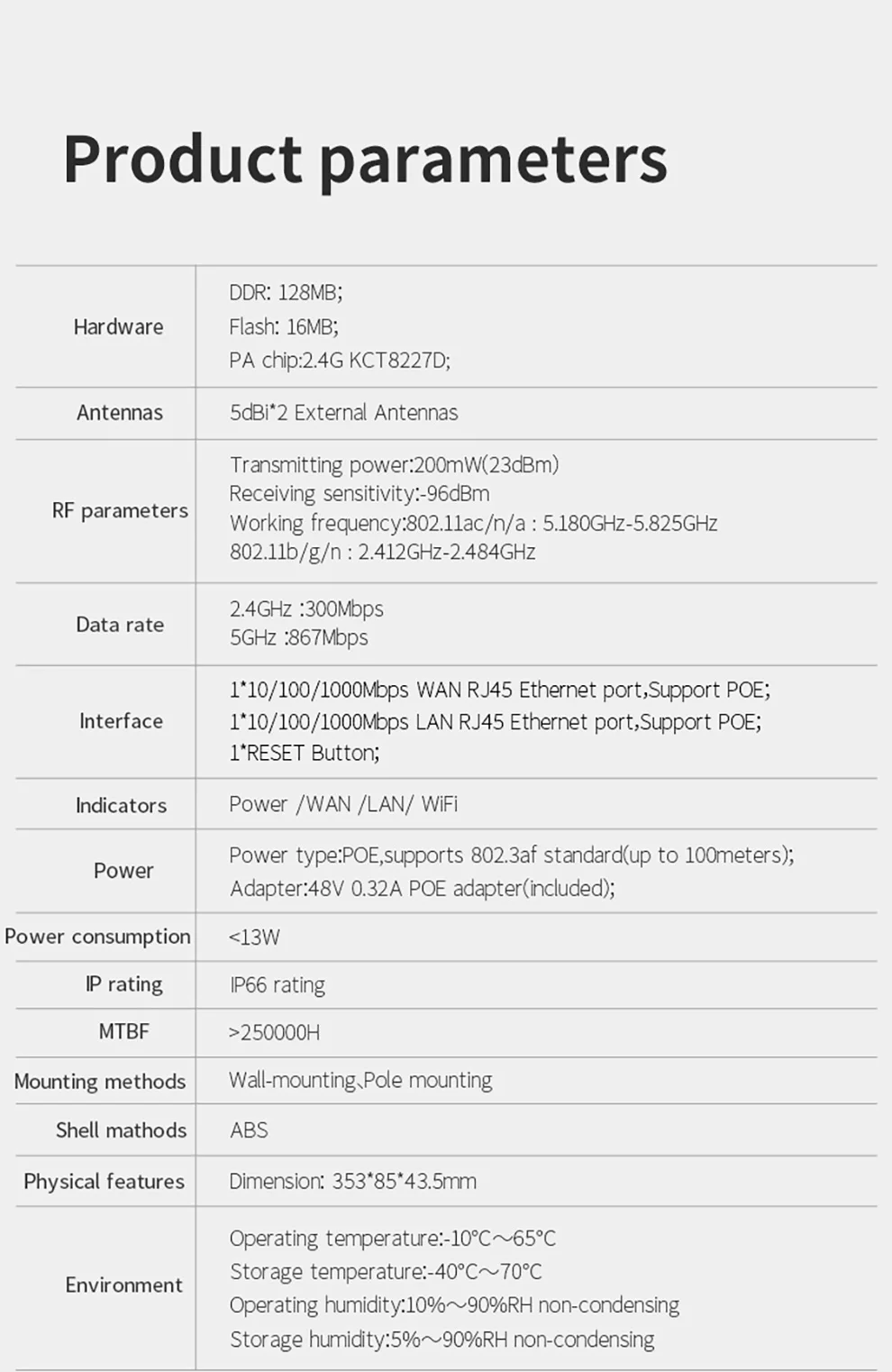

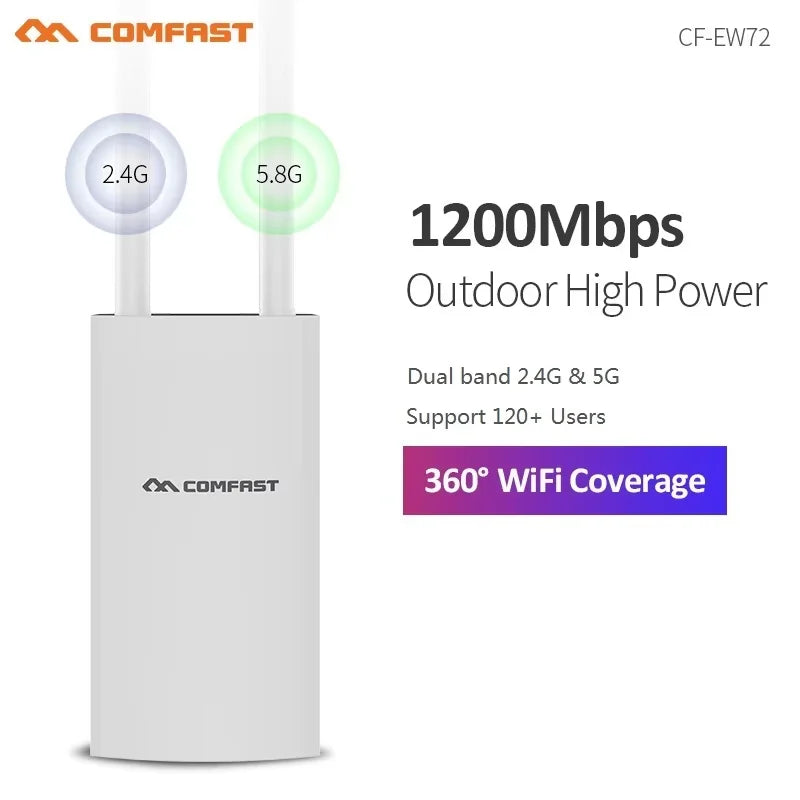

CF-EW72 Specifications:

1. High power and dual polarization delivers long-range coverage(100-200M without obstacles).

2. Passive PoE(power over Ethernet) supports for flexible deployment .

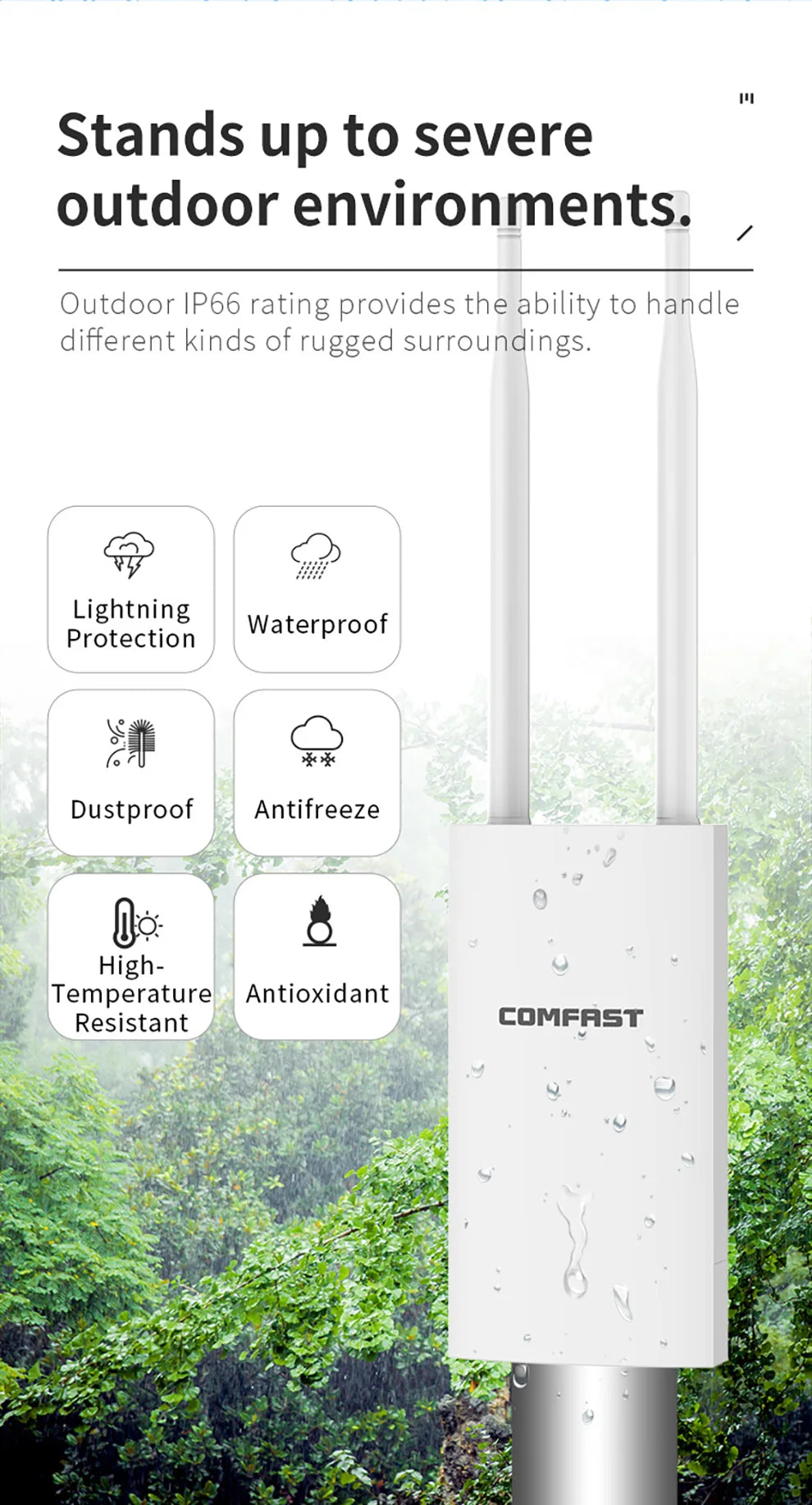

3. Weatherproof IP66-rating housing resists harsh climates.

4. Dual band speed up to 2.4GHz 300Mbps and 5GHz 867Mbps.

5. Supports AP, Router, Repeater, WISP as operation modes.

6. Support WPA (TKIP), WPA-PSK, WPA2, (AES) and other data encryption methods.

7. 1*10/100/1000Mbps WAN RJ45 Ethernet port；1*10/100/1000Mbps LAN RJ45 Ethernet port.

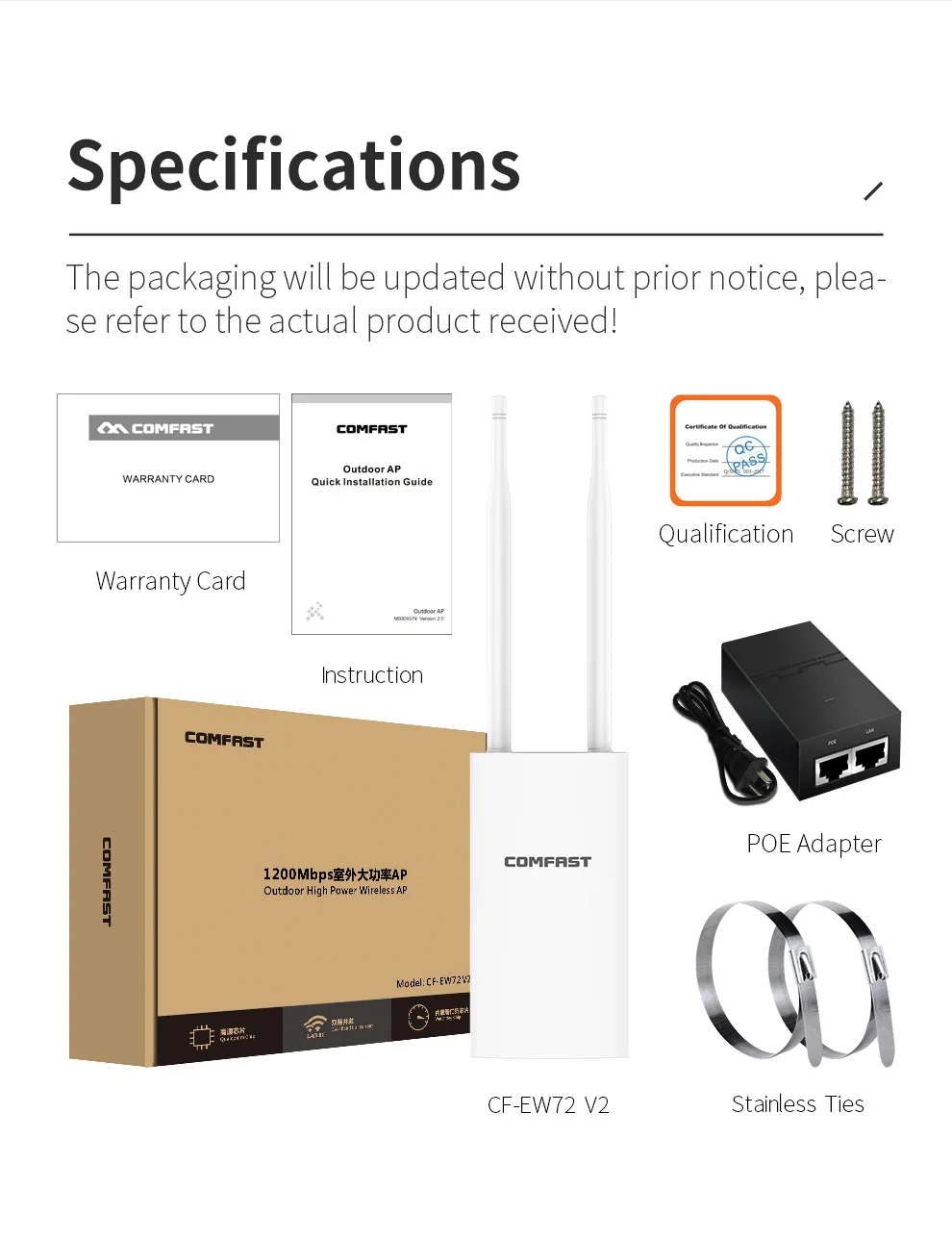

Package content:

1* AP main body

1* 48V POE power adapter

1* 1.5M Network Cable

2* O type fixing loop

1* User manual

1* Guarantee card

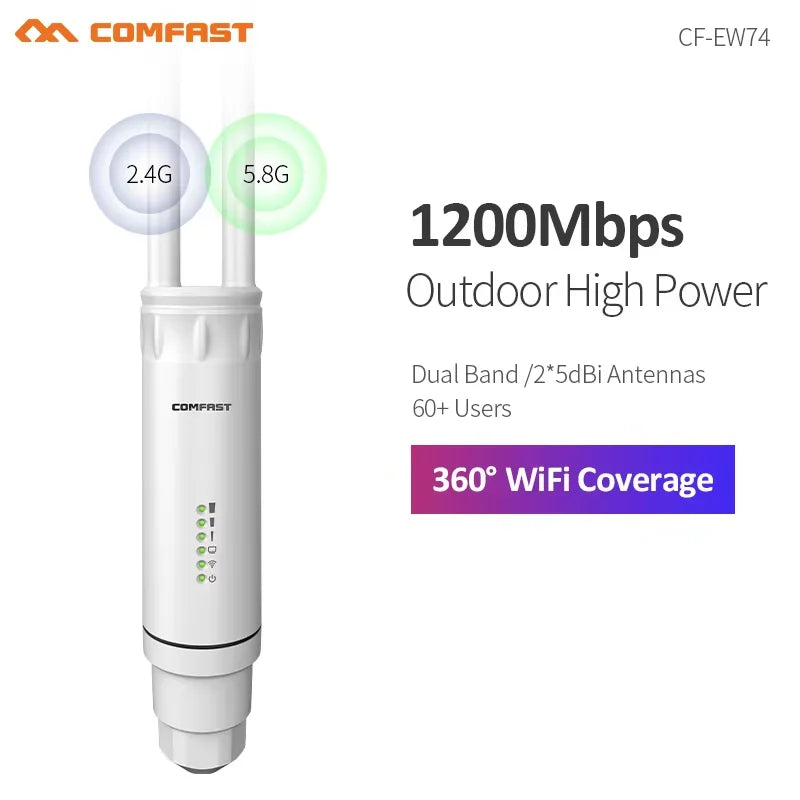

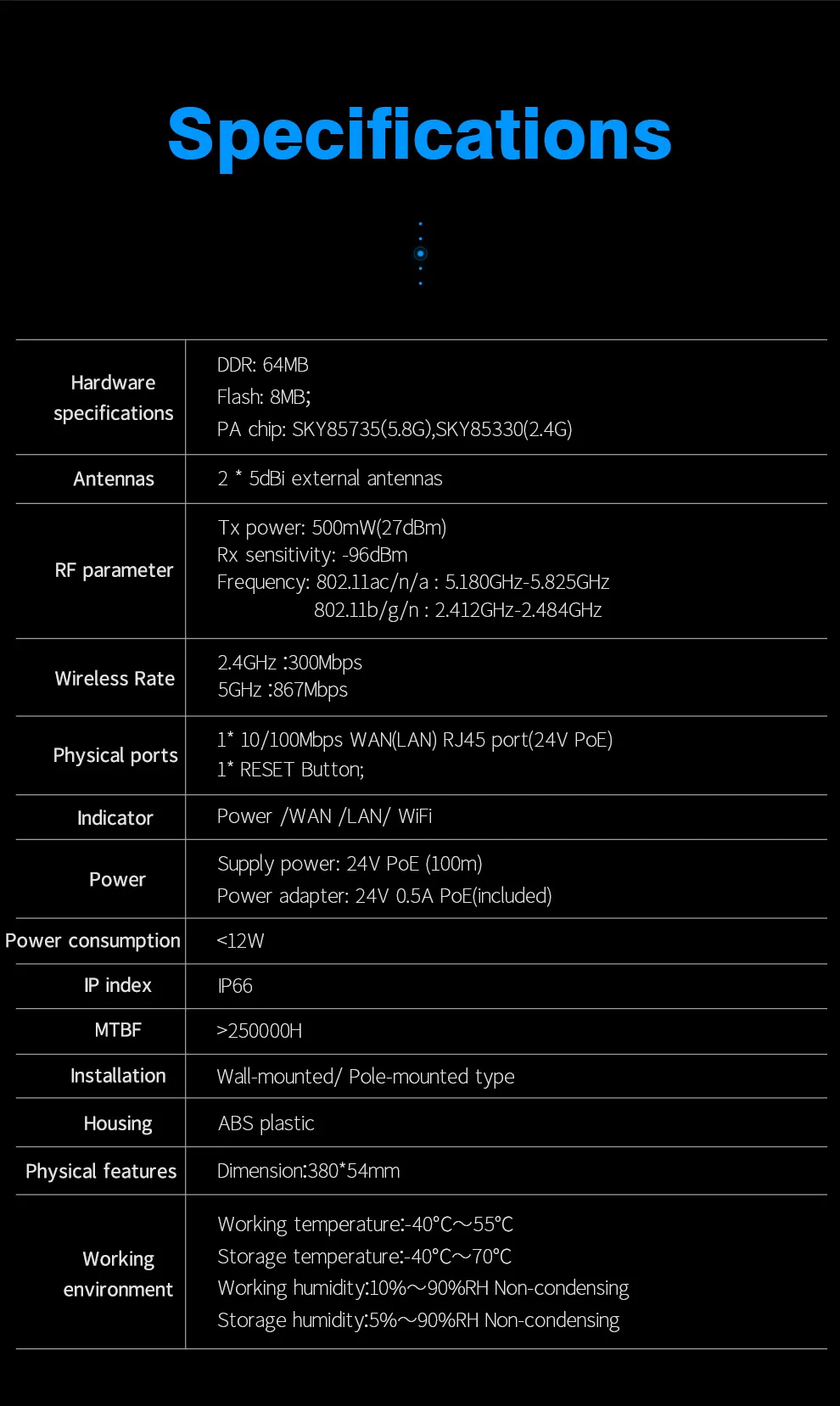

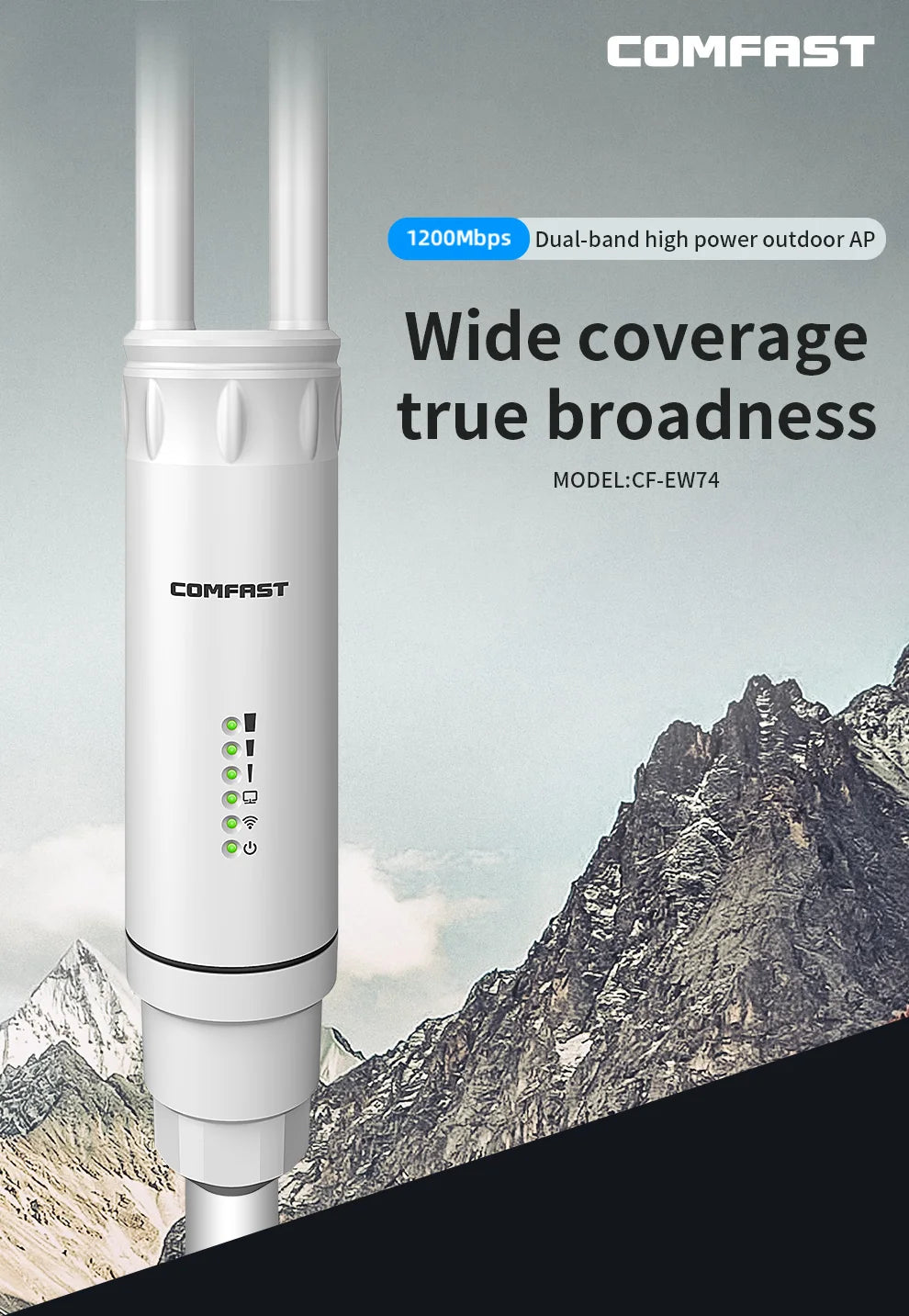

CF-EW74 Specifications:

1. 2.4GHz & 5.8GHz dual band, strong anti-interference (WiFi dual-band in one, intelligent optimization)
2. Support PoE power supply
3. 2*5dBi dual-band Omnidirectional antennas, excellent receiving and sending performance
4. Both 2.4GHz and 5.8GHz band equipped with PA(power amplifier), improve the transport&receive ability

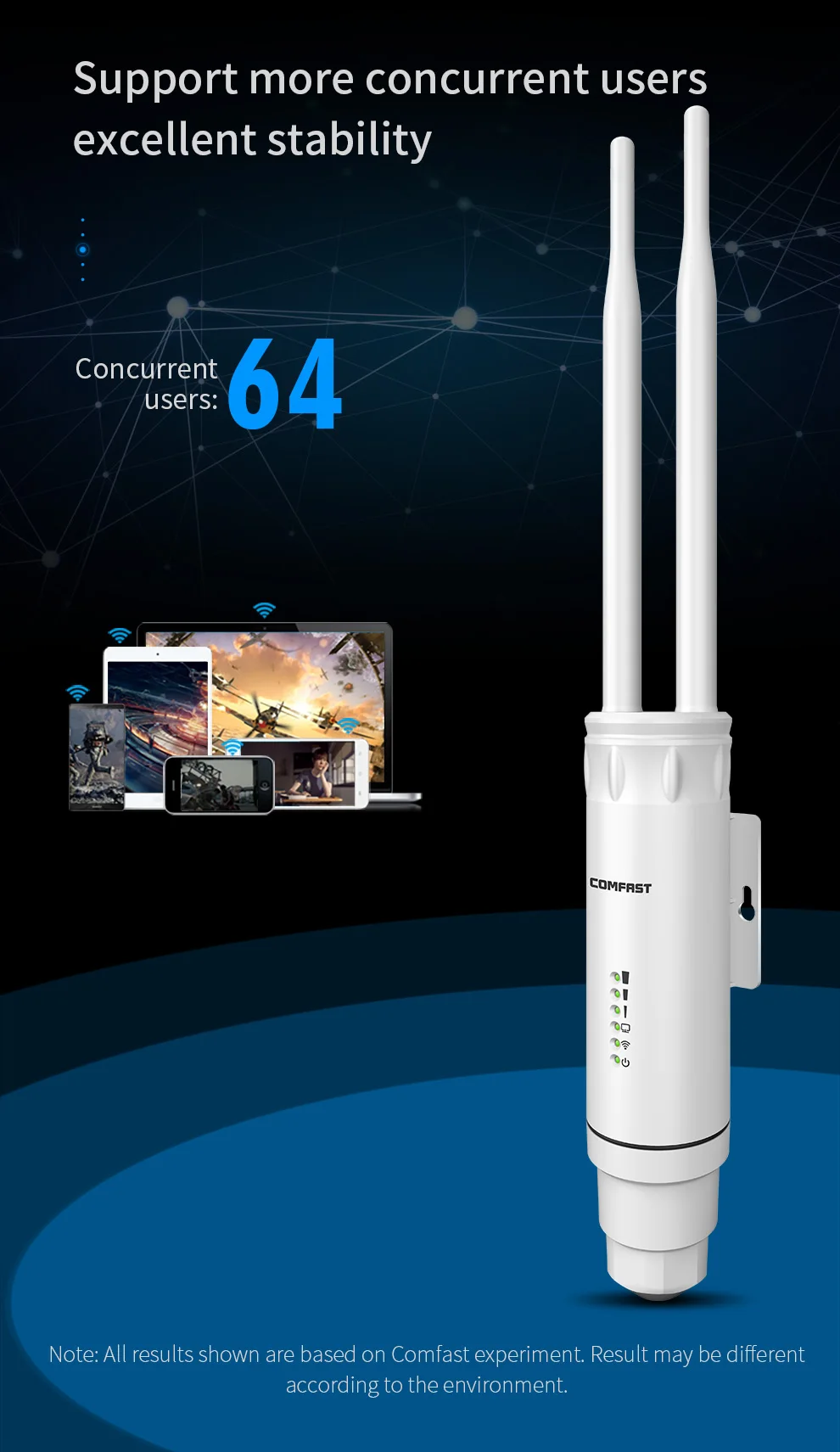

5. Support 64+ users
6. Adjustable power to reduce mutual interference between APs
7. The coverage radius is about 100-200 meters(without obstacles)
8. IP66 Protection Level, Waterproof rubber plug and special waterproof interface.

9. AP/Repeater/ Router/ Dual AP working modes.

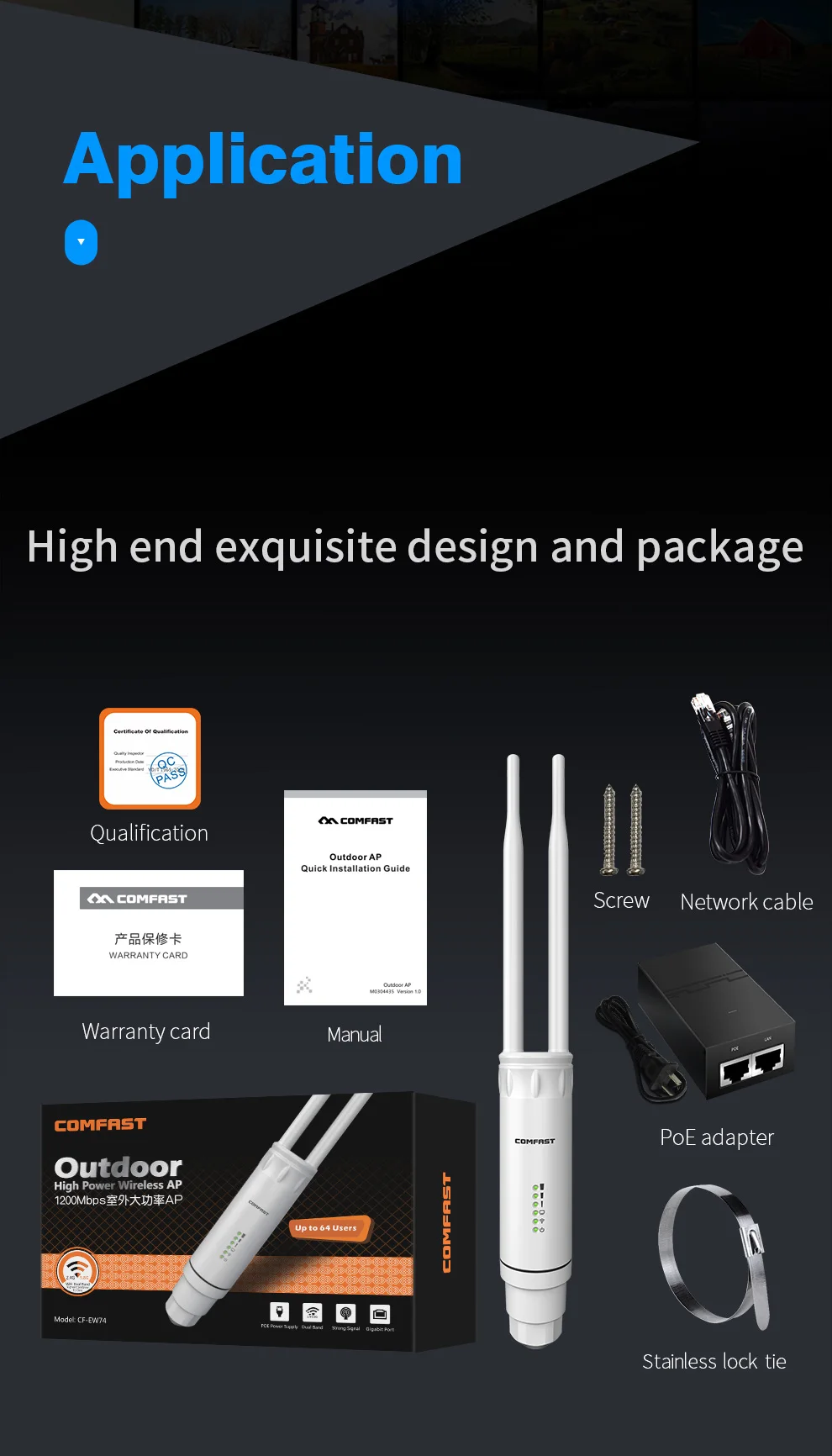

Packing List:

1* Outdoor AP
1* POE Power Adater
1* 1.5M Network Cable
2* Screws
2* Stainless lock tie
1* User manual
1* Warranty Card

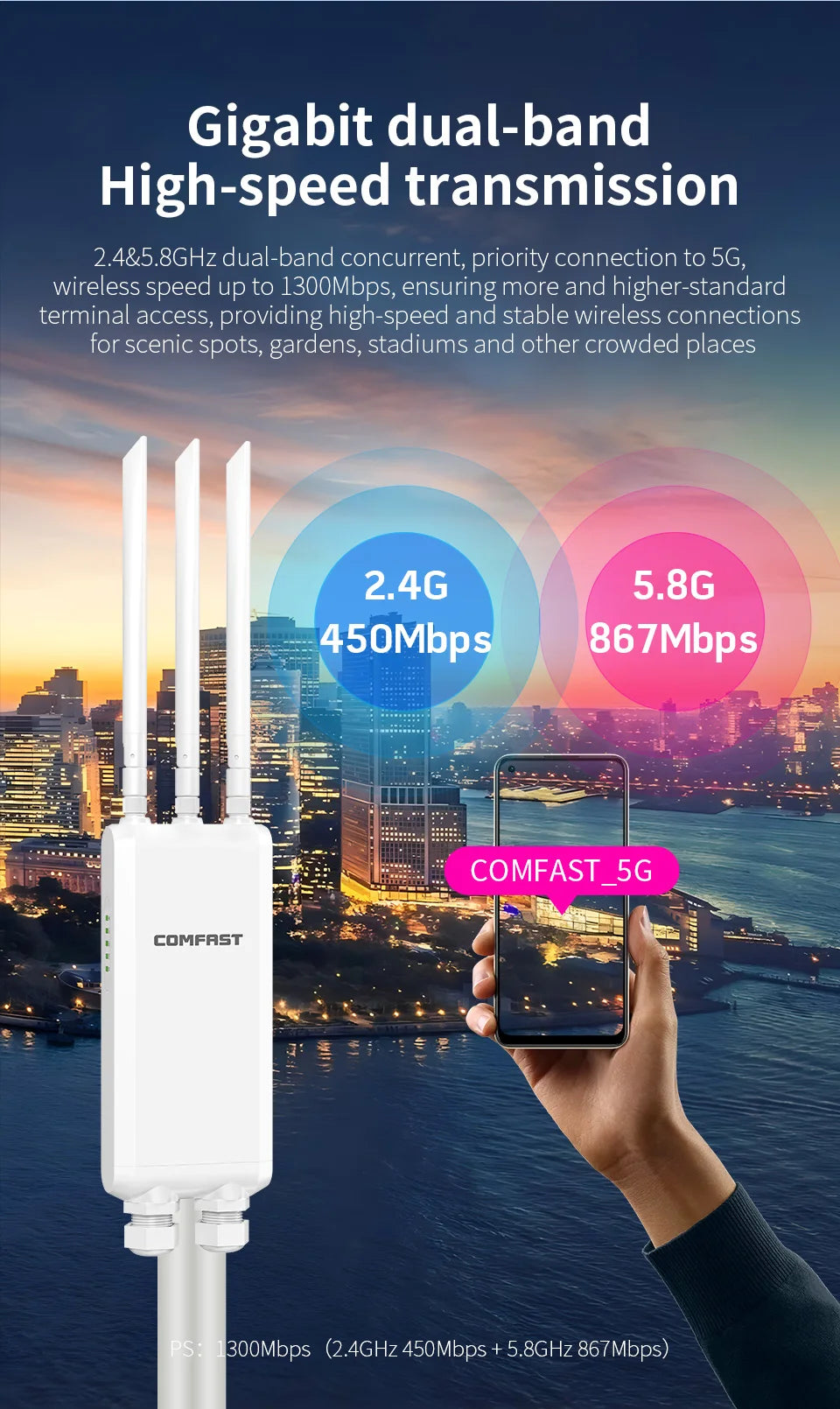

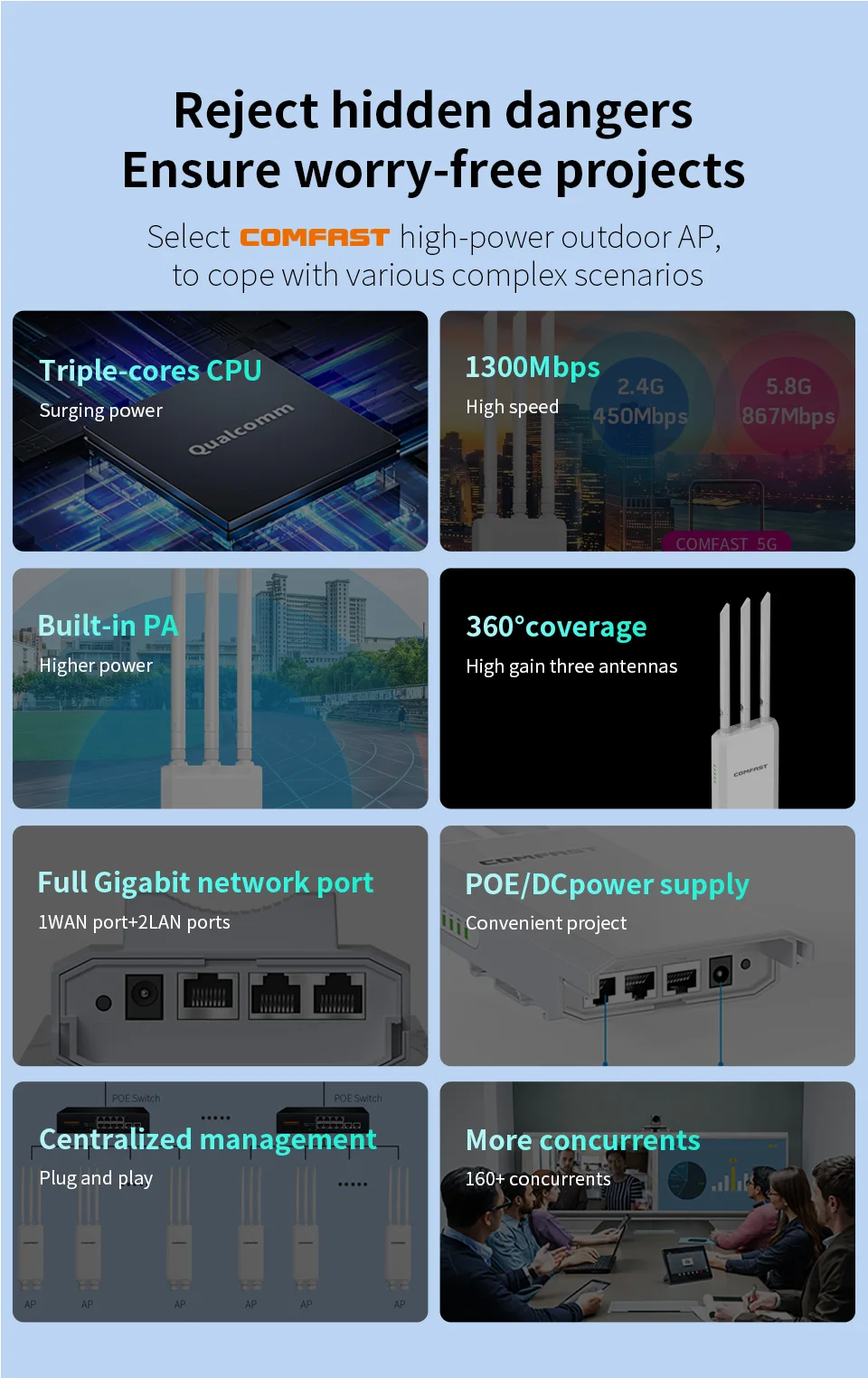

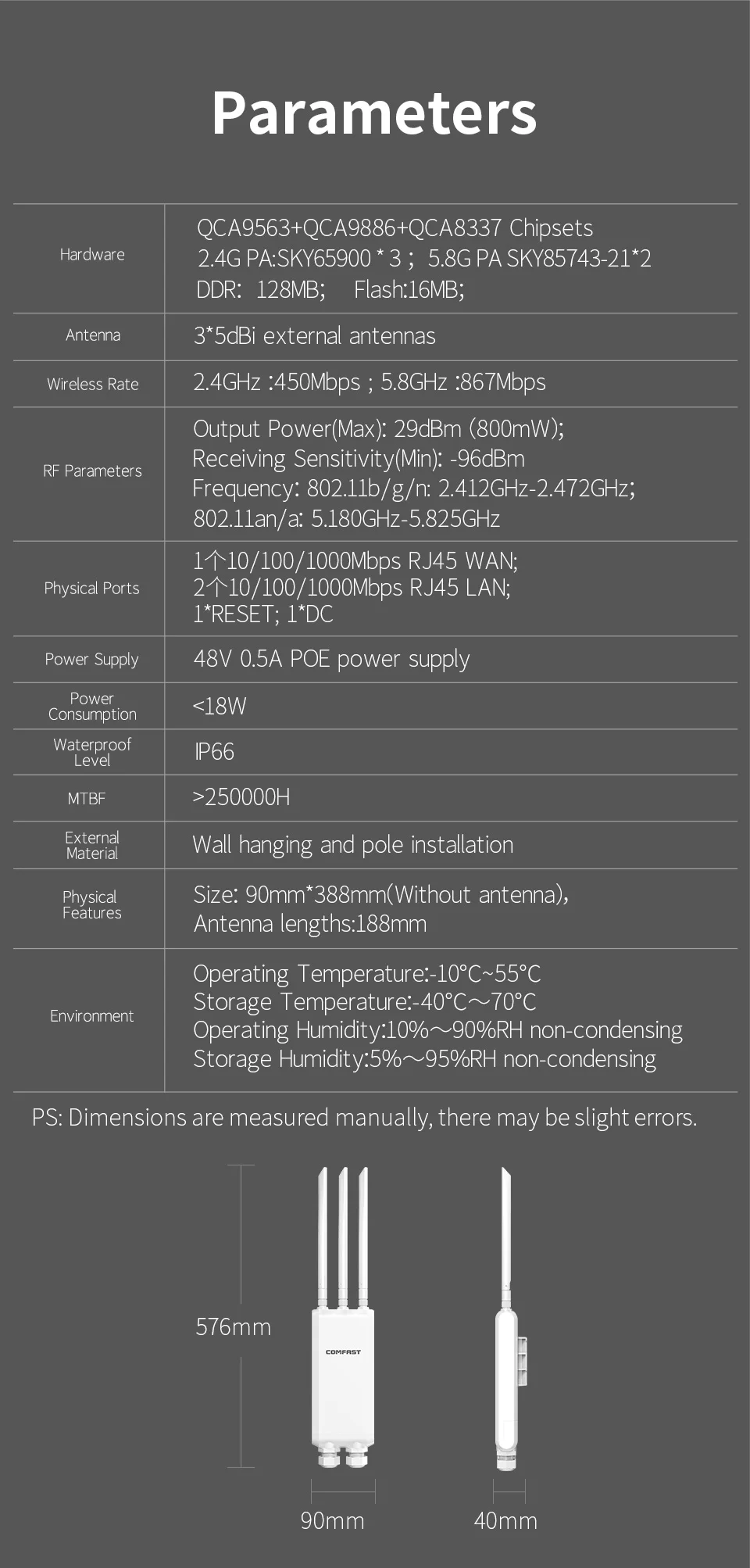

CF-EW85 Specifications:

1. Qualcomm three-chip solution with stable performance. (DDR: 128MB; Flash: 16MB)

2. Supports 2.4GHz&5.8GHz dual band signals for more stable and efficient anti-interference

3. 1300Mbps Wireless transmission rate, better Internet experience(2.4G: 400Mbps + 5.8G: 867Mbps)

4. Support IEEE802.11a/b/g/n/ac Wireless Standard

5. 3*5dBi dual-band Omnidirectional antennas, excellent receiving and sending performance

6. Equipped with 5 independent signal amplifiers, improve the transmit & receive ability

7. The coverage radius is about 100-200 meters(without obstacles)

8. IP66 Protection Level, Waterproof rubber plug and special waterproof interface.

9. AP/Repeater/ Router/ Dual AP working modes.

10. Support 160+ users(MAX)

11. 1* 1000M WAN Port+2* 1000m LAN Ports, Full Gigabit network ports

12. Support both POE/DC Power Supply for flexible deployment



Packing List

1* EW85 AP

1* 48V 1A POE Adapter

1* 1.5M Network Cable

2* O type fixing loop

1* User manual

1* Guarantee card



Wireless Access Point AP

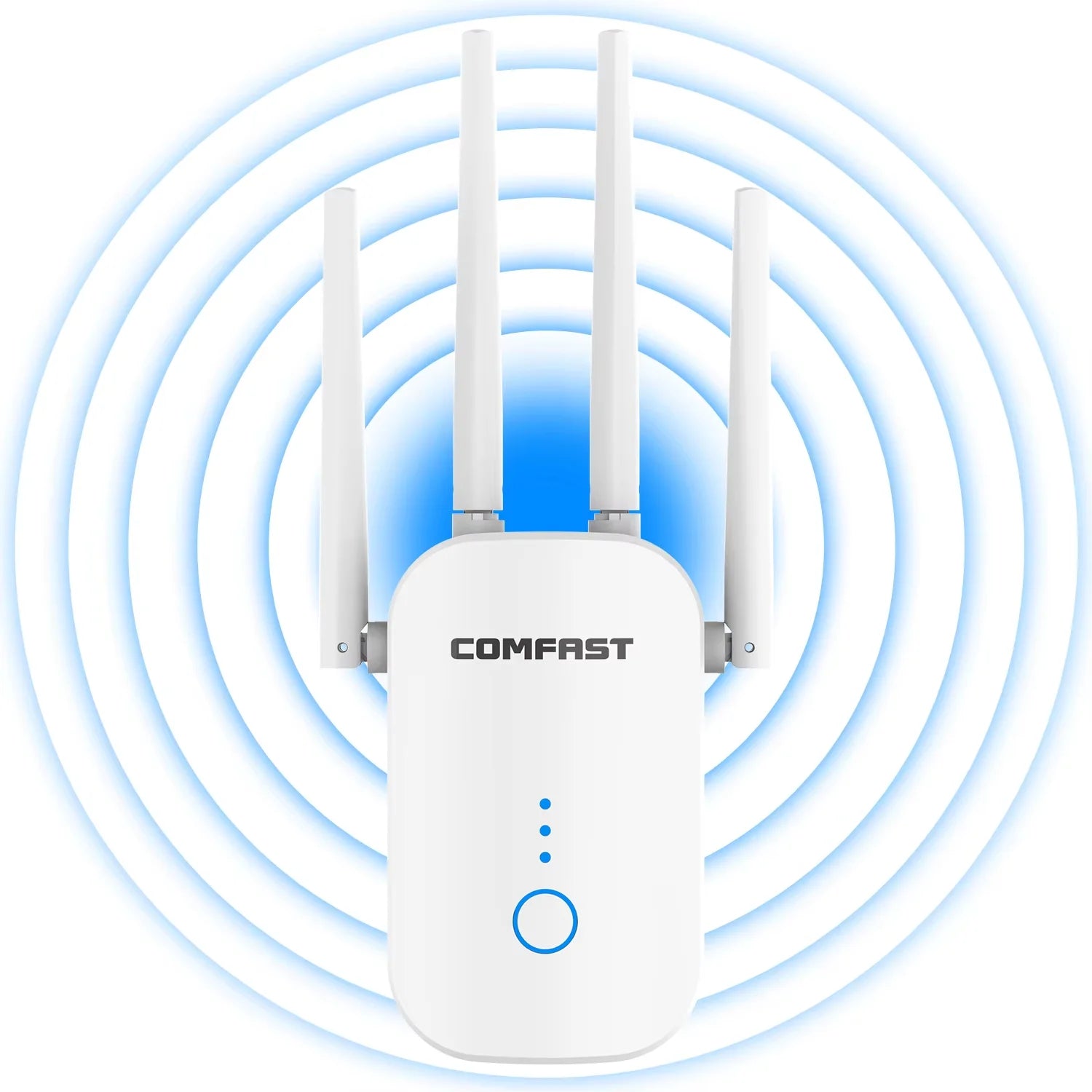

CF-WR758AC Specifications:

1. AC1200 WiFi Extender, stable, wide and fast

2. Support 2.4GHz and 5.8GHz Dual Band (2.4GH: 300Mbps, 5.8GHz: 867Mbps)

3. Strong Signal, WiFi extender blankets your whole home instable, wide and fast Wi-Fi

4. Quick Installation, Extender WPS ready in 1 second

5. LAN Port Design, Support wired to wireless, wireless to wired. High Gain 4*3dBi Antennas

6. Widely Use: Suitable for Garden, Porch, Kitchen, et

7. Fits Most Network Devices, such as WiFi Router, Ring Video Doorbell, PS4 Controller, Security Camera

8. Smart LED lights, work status is clear at a glance

9. Support 4 working modes: Repeater mode/Router mode/AP mode/Client mode


Packing list:

1* Repeater

1* RJ45 network cable

1* Instructions

1* Warranty card



Warm tips:

* The password of the Repeater is same as your Router.

* Poor signal connection may cause slow speeds or dropped connection.

* The password supports a maximum of 32 characters and does not support special characters.

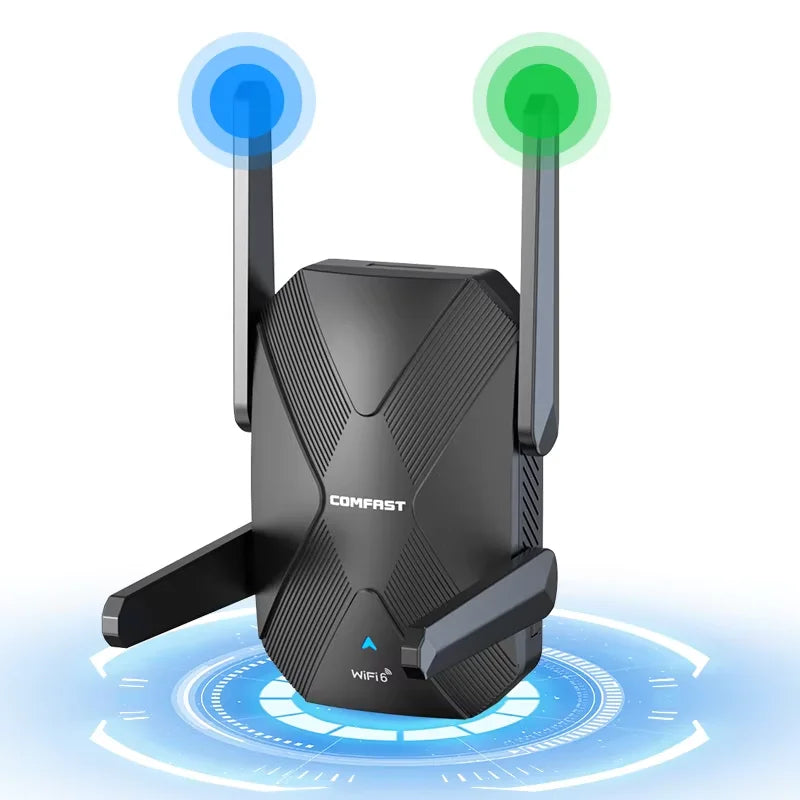

CF-XR181 Specifications:

1. WiFi6 technology, more compatible with WiFi6 router

2. Support 802.11ax/ac/a/b/g/n Wireless standard

3. 1500Mbps high speed wireless transmission rate, 2.4G(300Mbps)+5.8GHz(1200Mbps)

4. Support both 2.4GHz&5.8GHz dual band

5. High-gain 4*3dBi antennas design, the signal transmission and reception is stronger through the wall

6. Support multiple Working Modes: AP/ Repeater/ Router/ Client Mode

6. The antenna can be rotated flexibly, and the user can adjust the angle of the antenna to adjust the situation of signal transmission and reception

7. Support WiFi to wired, can be connected to TV, computer, etc. to connect to wired stable work

8. Scientific heat dissipation design, the equipment supports 24h stable work without dropping the line, avoiding overheating and aging of components



Packing List:

1* WiFi Repeater

1* Network cable

1* Quick installation Guide

1* Warranty Card



Note: This repeater only has standard US Plug, EU/UK/AU are add convert adapter verson
