COMFAST CF-E538AC V2 1200Mbps Dual Band Indoor Wall WiFi Access Point 2.4GHz 300Mbps, 5.8GHz 867Mbps, 802.11n Wireless

COMFAST CF-E538AC V2 1200Mbps Dual Band Indoor Wall WiFi Access Point 2.4GHz 300Mbps, 5.8GHz 867Mbps, 802.11n Wireless

SPECIFICATIONS

Brand Name: COMFAST

Transmission Rate: 867Mbps

Type: WireLess

Kind: External

Wi-Fi Supported Frequency: 2.4G & 5G

Wireless Protocol: 802.11n

Adapter Socket: RJ45

Application: Laptop

Package: Yes

Certification: CE

Transmission Speed: 1200 Mbps

Model Number: CF-E538AC

Memory: 128MB

Flash: 16MB

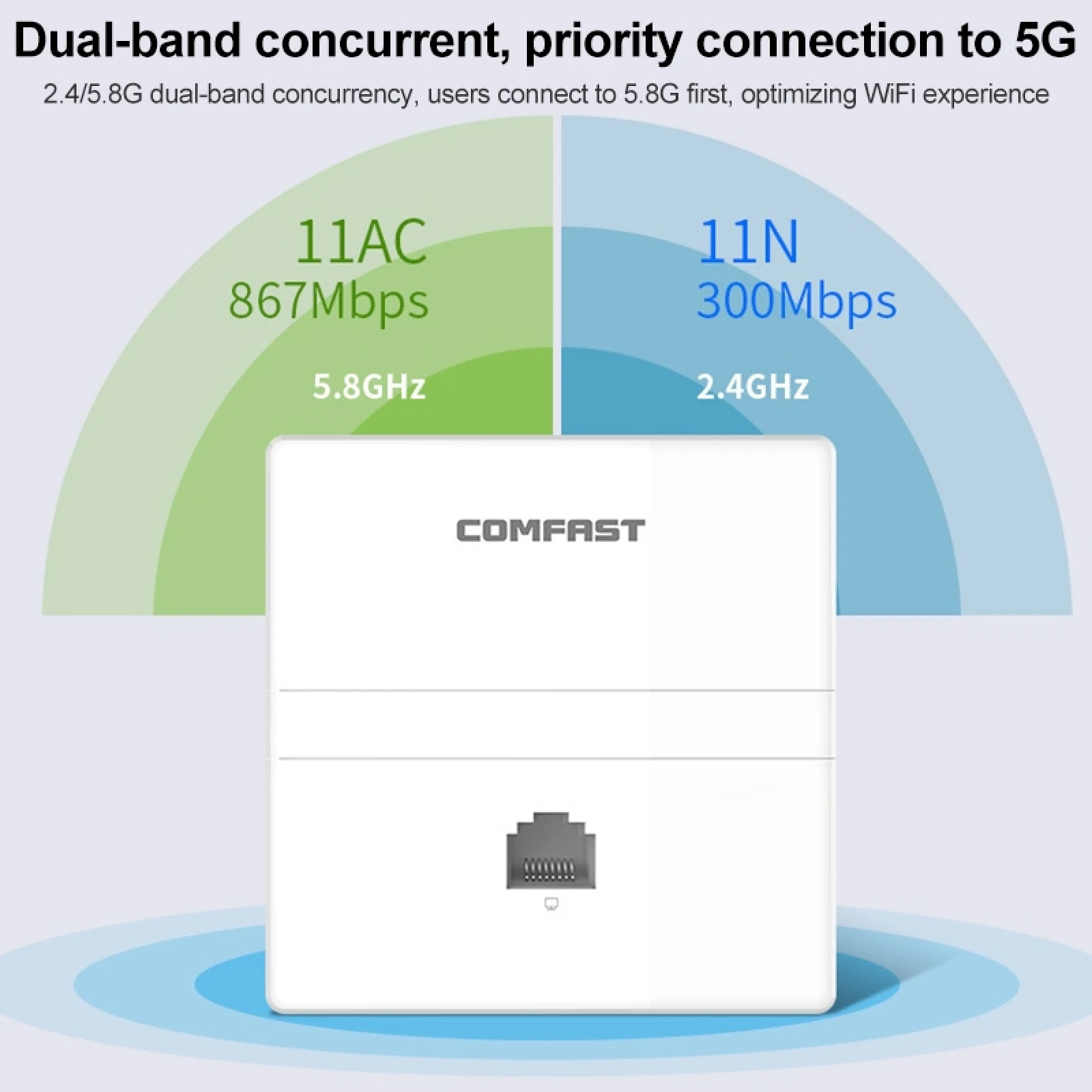

Wireless speed: 2.4GHz: 300Mbps/5.8GHz: 867Mbps

Operating frequency: 2.412GHz-2.472GHz, 5.180GHz-5.825GHz

Power supply mode: POE power supply, support 802.3af/802.3at standard

Power consumption: less than 12W

MTBF: greater than 250000H

Dimensions: 86 x 86 x 33mm

Features
1. MTK three chips, stable performance
2. 1200Mbps dual-band, Gigabit Ethernet port
3. RJ45 network port output wired network connection
4. 48V standard POE power supply, remote power supply
5. Memory 128M, flash memory 16M
6. Transmit power 200mW (23dBm) max

Specifications
1. Hardware Specifications:
Chip: MT7621DAT+MT7613B+MT7603E
Memory: 128MB
Flash: 16MB
2. Antenna specifications: built-in antenna, 2.4Gx2, 5.8Gx2, antenna standard: support IEEE802.11b/g/n
3. Wireless speed: 2.4GHz: 300Mbps/5.8GHz: 867Mbps
4. RF parameters:
Transmit power: 80mW (19dBm)
Receive sensitivity: -96dBm
Operating frequency: 2.412GHz-2.472GHz, 5.180GHz-5.825GHz
5. Physical interface:
1 10/100/1000Mbps WAN RJ45 port, support 48V POE power supply
1 10/100/1000Mbps LAN RJ45 port, support POE power supply, can connect to the Internet
6. Power supply:
Power supply mode: POE power supply, support 802.3af/802.3at standard
7. Power consumption: less than 12W
8. Shell material: ABS
9. MTBF: greater than 250000H
10. Dimensions: 86 x 86 x 33mm
