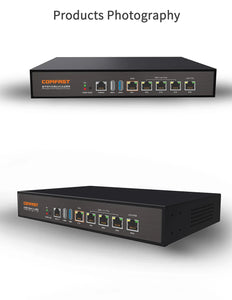

Comfast CF-AC101 Full Gigabit AC Core Authentication Gateway Routing MT7621 880MHz CPU Wireless Roaming 10W WiFi Project Manager Router

Comfast CF-AC101 Full Gigabit AC Core Authentication Gateway Routing MT7621 880MHz CPU Wireless Roaming 10W WiFi Project Manager Router

SPECIFICATIONS

Brand Name: COMFAST

With Modem Function: No

Type: Wired

WAN Ports: 3

Certification: CE

Certification: FCC

Number of USB Interfaces: 1 x USB 3.0

Standards And Protocols: Wi-Fi 802.11g

Package: No

Supports WDS: No

LAN Ports: 1

Supports WPS: No

Application: ENTERPRISE

CF-AC101 Gigabit Wifi AC Router Enterprise Gateway Seamless Roaming/ Multi WAN /4 Port Poe Port Load Balance PPPoE Router


Specifications:

1. MT7621 880MH CPU (DDR: 512MB Flash: 32MB)

2. 3*10/100/1000Mbps LAN/ WAN Port; 1*10/100/1000Mbps WAN Port; 1*10/100/1000Mbps LAN Port; 1*DC Power Port; 1* USB2.0 Port; 1* USB3.0 Port; 1* Console Port; 1* Power Port

3. Builting in Power Supply 100-240V, 50/60Hz

4. Power Consumption: 54W

5. Support Client: Support 100+ AP, Device MAX 500+

6. IP31 protection rating

Features:
1. PoE power supply function

CF-AC101 has built-in AC (wireless controller) and standard PoE (Power over Ethernet) functions, which can manage and supply power to AP devices in a unified manner, without additional AC and PoE devices, which is convenient for networking and management, and saves users cost.

2. Gigabit RJ45 port

CF-AC101 is equipped with 5 1000Mbps RJ45 ports, supporting Gigabit network. Among them, ETHO.2~ETHO.5 have POE output function and support 48V standard PoE power supply. The 3 WAN/L.AN ports can support multi-WAN port access according to actual needs.

3. Powerful software application functions

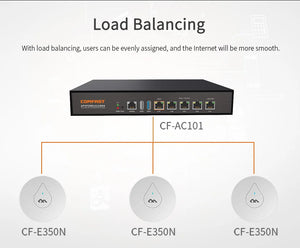

CF-AC101 supports OrangeOS, and supports practical functions such as AC system management, intelligent flow control, load balancing, seamless roaming, and network security management.

4. Rich application scenarios

CF-AC101 full gigabit core gateway is suitable for wired equipment network engineering coverage and provides PoE output function. It is often used in small and micro enterprises, offices, villas and other environments.

Packing list:
1* AC101 Gigabit AC Gateway Routing

1* User Manal

1* Warranty Card
