Cambium cnPilot R190W WiFi 4 Desktop Router, featuring 802.11n 2x2 5dBi Omnidirection - 4x LAN and 1x WAN, (Wi-Fi only) - 23dBm
Cambium cnPilot R190W WiFi 4 Desktop Router, featuring 802.11n 2x2 5dBi Omnidirection - 4x LAN and 1x WAN, (Wi-Fi only) - 23dBm
Cambium cnPilot R190W WiFi 4 Desktop Router, featuring 802.11n 2x2 5dBi Omnidirection - 4x LAN and 1x WAN, (Wi-Fi only) - 23dBm
  • Load image into Gallery viewer, Cambium cnPilot R190W WiFi 4 Desktop Router, featuring 802.11n 2x2 5dBi Omnidirection - 4x LAN and 1x WAN, (Wi-Fi only) - 23dBm
  • Load image into Gallery viewer, Cambium cnPilot R190W WiFi 4 Desktop Router, featuring 802.11n 2x2 5dBi Omnidirection - 4x LAN and 1x WAN, (Wi-Fi only) - 23dBm
  • Load image into Gallery viewer, Cambium cnPilot R190W WiFi 4 Desktop Router, featuring 802.11n 2x2 5dBi Omnidirection - 4x LAN and 1x WAN, (Wi-Fi only) - 23dBm

Cambium cnPilot R190W WiFi 4 Desktop Router, featuring 802.11n 2x2 5dBi Omnidirection - 4x LAN and 1x WAN, (Wi-Fi only) - 23dBm

R 1,259.90
R 1,259.90
Sold out
Shipping calculated at checkout.

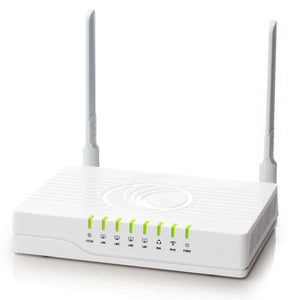

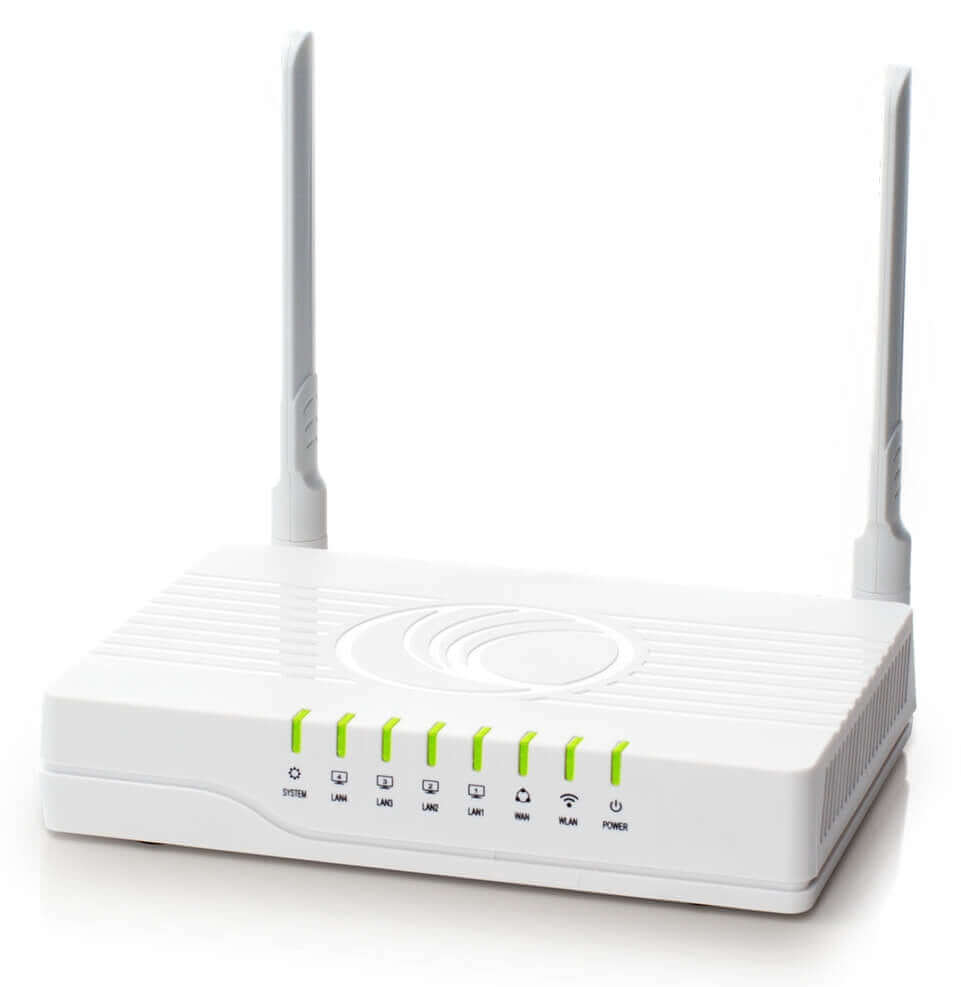

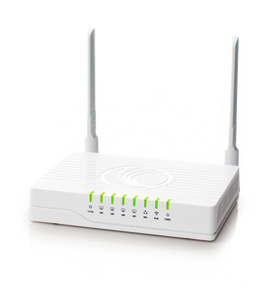

Cambium cnPilot R190W Wi-Fi 4 Desktop Router

Description

Cambium cnPilot R190W Wi-Fi 4 Desktop Router

SKU#: CB-CNP-R190W_BIN_15
Categories:
Wi-Fi, Cambium Networks, Indoor Wi-Fi

Key Features

802.11n 2x2 5dBi Omni. 4 x LAN. 1 x WAN, Wi-Fi only. 23dBm

Full Product Details

cnPilot r190 Series Home Router

The IPV6 capable R190W is ideal for cost-conscious service providers seeking a standard, entry level home router with cutting edge cloud management and robust features.

CNPILOT R190 SERIES HOME ROUTER

Specifications

VoIP SoC
MIPS Single-core 580MHz

Flash
16MBytes Flash

RAM and CPU
• 64MBytes DDR3 RAM • MT7628N

Power Supply
• AC/DC Adapter • AC Input: 100~240V, 50~60Hz • DC Output: 12V, 1.0A

I/O Interfaces
• 1 RJ-45 for WAN port (Ethernet 100 Base-T) • 4 RJ-45 for LAN port (Ethernet 100 Base-T)

Environmental
• Operation Temperature: -5~45 Degree C • Storage Temperature: -25~ 85 Degree C • Relative Humidity: 10%~90% No Condensing

Key Feature
• 100Mbps NAT/NAPT speed • 2T2R 2.4GHz IEEE 802.11 b/g/n(300 Mbps)

Protocols
• DHCP/PPPoE • HTTP Server for Web Management • TFTP/HTTP for Auto Provisioning • DHCP Option Codes for SIP (RFC3361) • DNS/DNS SRV (RFC1706 and RFC 2782) • IEEE802.1Q VLAN/802.1p and IP DSCP • SNTP

Wireless
• 4 SSID • Static WEP(64/128bit) • Dynamic WEP(64/128bit) • AES/TKIP • MAC certification • WEP certification • WPA/WPA2 • AP Isolation and MBSSID AP Isolation • WMM • WDS • WPS • MAC Filter(different from wired MAC Filter)

Applications
• Support NAT mode and Bridge mode • Support DDNS • MAC address cloning • Built-in Wired speed NAT Router • DHCP Server and Client • IP conflict detection • Port Forwarding, DMZ, SuperDMZ • 802.1Q VLAN/802.1p, DSCP, Rate Limiting • VPN (PPTP,L2TP, IPSec) Passthrough • SNTP • IGMPv2 • Firewall (SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)

Management
• Firmware Upgrade • Web Management Interface • Local and Remote Syslog (RFC3164) • Auto Provisioning • SNTP Time Synchronization • Multi User Level • SNMP v2 • Telnet • TR069 • System Log: local log and remote log
