⁸ Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Po – Let's Fibre Technologies
Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch
Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch
Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch
Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch
  • Load image into Gallery viewer, Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch
  • Load image into Gallery viewer, Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch
  • Load image into Gallery viewer, Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch
  • Load image into Gallery viewer, Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch

Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch

R 13,873.95
R 13,873.95
Sold out
Shipping calculated at checkout.

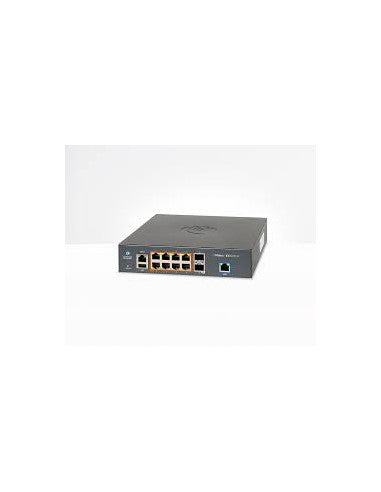

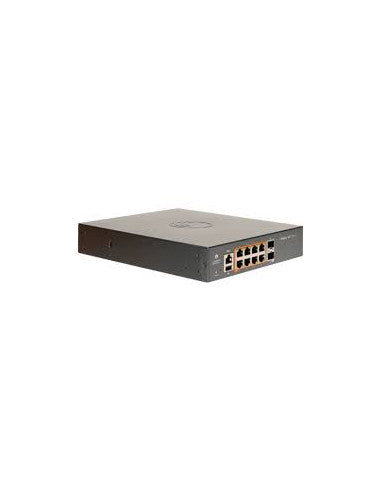

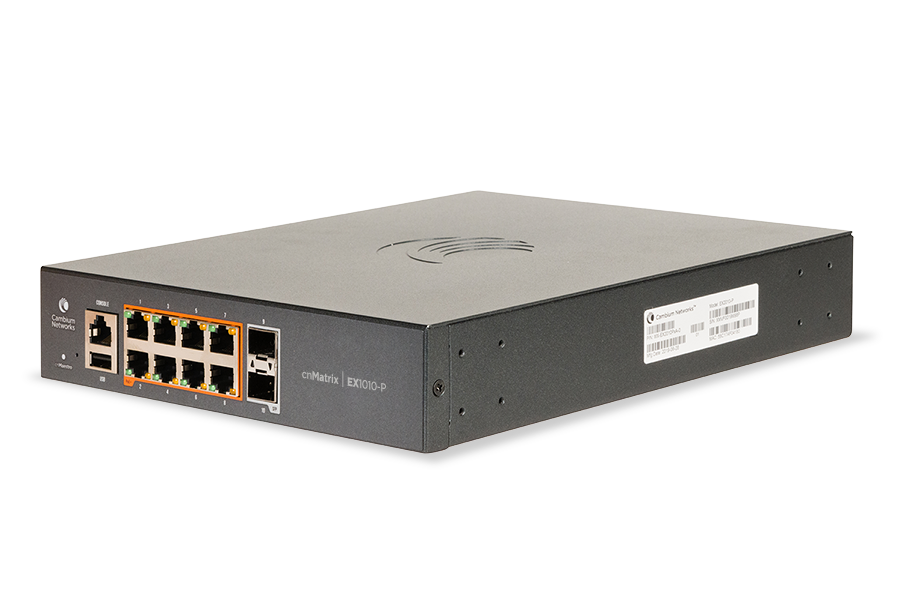

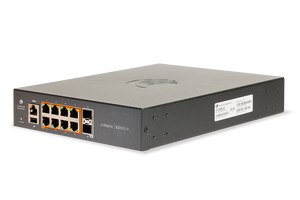

Cambium cnMatrix 1k series 10P PoE+ Switch

Description

Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch

Cambium cnMatrix 1k series 10P PoE+ Switch, cnMatrix EX1010-P Switch with 20 Gbps throughput, 8 PoE enabled ports, 8 10/100/1000 ports, and 2 SFP Uplink ports

 CB-CNM-EX1010-P
 5 Year
 MX-EX1010PxA-E

Key Features

8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed

Full Product Details

The cnMatrix platform of switches provides:

Full Line Rate, non-blocking architecture

Easy and simple, free cloud (or on premise) management with cnMaestro

Zero-touch deployment of switches makes installation easy

Policy Based Automation eliminates manual and time consuming configuration

Enhanced Security with automated device profiling and segmentation

Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices

Unified Wired-Wireless access solution

The cnMatrix series of fully managed switches delivers full Layer 2 capabilities with enhanced access security. These switches come with a 5-Year Limited Lifetime Warranty.

Specifications

General Specifications

Throughput
20 Gbps

Forwarding Rate in Mpps (64 Byte Packets)
120

PoE+ Enabled Ports (802.3af/at)
8

10/100/1000 Ports
8

Uplink ports
2 SFP

Internal fans
Fanless

Policy Based Automation
Yes
Power Supply
100-240 VAC

Max Switch Power (WITH TRAFFIC)
10.54 W

MTBF (Hours)
338,917

Weight
1.99 kg (4.375 lb)

Dimensions
21 x 4.4 x 25 cm (8.26 x 1.75 x 9.85 in)

CPU Speed
800 MHz

LEDs Per Port
Link/Activity, PoE

PoE+ Power Budget
75 W

PoE+ Voltage
54 V

PoE Max Power Per Port
30 W

Rack Mountable
Yes 1U

Temperature Ranges
0°C to 50°C (32°F to 122°F)

Operating Humidity
55° at 95% RH

Storage Temperature
-40°C to 70°C (-40°F to 158°F)
t cnMaestro (cloud management)

Industry standard Command Line Interface (CLI)

DHCP Client

Embedded web management (HTTP/HTTPS)

Embedded DHCP server

USB file management and storage

SSH / SSH v2

SNMP v1/v2/v3

DHCP relay

Policy Based Automation
Authentication, Authorization, and Accounting (AAA)

Broadcast/Multicast/Unknown unicast storm recovery

DHCP Snooping

IGMP Snooping Querier

Independent VLAN Learning (IVL) support

Jumbo Ethernet frame support

Port MAC locking

Port mirroring

Protected ports

Static MAC filtering
Inter-VLAN Routing

Static ARP

Static Routes

RFC 2131 – DHCP Relay
ACL mapping and marking of ToS/DSCP (COS)

ACL mapping to priority queue

Honoring DSCP and 802.1p(CoS)

Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP
nt ACL-based inbound rate limiting policies

Broadcast, multicast and unknown unicast rate limiting

Inbound rate limiting per port

Outbound rate limiting per port/queue
Permit/deny actions for inbound IP and Layer-2 traffic classification based on:
Time-Based ACL

Source/Destination IP address

TCP/UDP Source/Destination port

IP Protocol Type

Type of Service (ToS) or differentiated services (DSCP) field

Source/Destination MAC address

EtherType

IEEE 802.1p user priority (outer and/or inner VLAN tag)

VLAN ID (outer and/or inner VLAN tag)

RFC 1858—Security Considerations for IP Fragment Filtering
The Cambium cnMatrix 1k series 10P PoE+ Switch, with 8 x 1G and 2 x SFP Ports, 75W Power Budget, 20 Gbps Switching Capacity, Cloud Managed Switch is evocative, to say the least, but that's why you're drawn to it in the first place.
