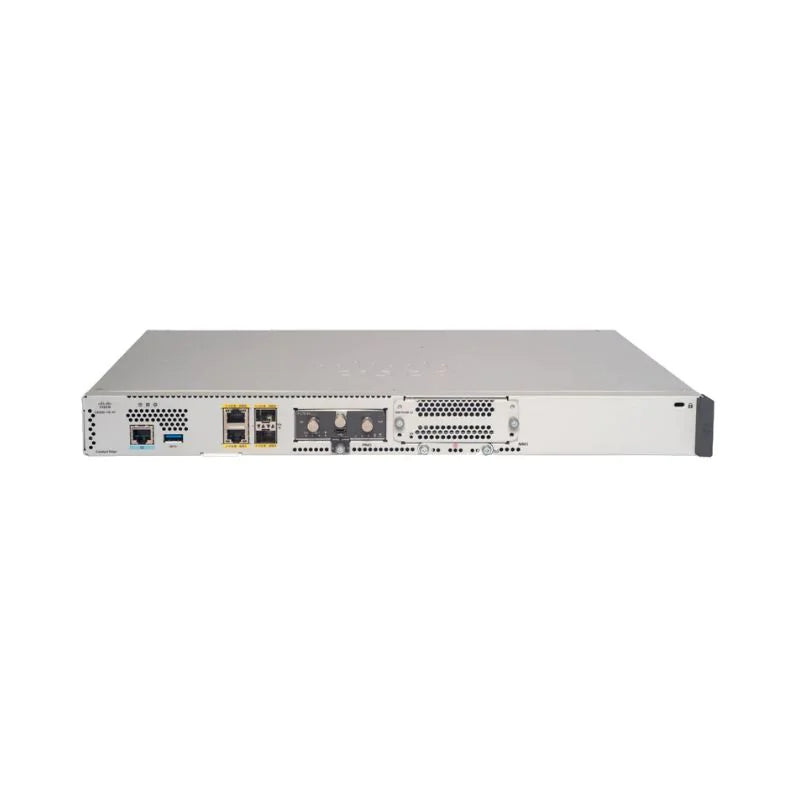

C8200-1N-4T - Cisco Catalyst 8200 Series Edge Platforms & uCPE, C8200 1RU w/ 1 NIM slot and 4 x 1-Gigabit Ethernet WAN ports

* Price negotiable on Bulk Orders, Tender/Procurement Orders, Projects

Description for C8200-1N-4T

The Cisco C8200-1N-4T is a high-performing, rack-mounted router designed for robust network connectivity. Featuring one Network Interface Module (NIM) slot and four 1-Gigabit Ethernet WAN ports, it’s ideal for medium to large enterprises. Its versatility makes it suitable for various deployment scenarios, ensuring efficient and reliable network operations.

C8200-1N-4T Product Highlights

  • 1 RU form factor
  • 4 x 1-Gigabit Ethernet WAN ports
  • 1 NIM slot
  • High performance routing
  • Enterprise-grade security
  • C8200 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports
  • Intel x86 CPU with 8 GB memory default
  • up to 1 Gbps IPsec traffic
  • DRAM 8GB
  • ● SD-WAN overlay tunnels scale 2500
  • up to1Gbps IPsec throughput (1400 bytes, clear text)
  • Number of IPsec static virtual tunnel interface (SVTI) tunnels 2500

C8200-1N-4T Product Application Scenarios

  • Enterprise branch connectivity
  • Data center edge
  • Campus network deployments

Specifications for C8200-1N-4T

C8200-1N-4T

Part number

C8200-1N-4T and C8200L-1N-4T

Dimensions (H x W x D)

1.73 x 17.25 x 11.8 in. (4.39 x 43.81 x 29.97 cm)

Rack Units (RU)

1RU

Chassis weight

10 lb (4.54 kg)

Input voltage

AC: 90 to 264 VAC

Operating temperature

32° to 104°F

(0° to 40°C)

Storage temperature

-40° to 150°F

(-40° to 70°C)

Acoustics, both models:

Sound pressure
(Typical/maximum)

54 dBA/69 dBA

Acoustics, both models:

Sound power
(Typical/maximum)

68 dBA/80 dBA



Description for N9K-C93180YC-FX3

Cisco Nexus 9000 Switches

Nexus 9300 with 48p 1/10G/25G SFP28 ports and 6p 40G/100G QSFP28 ports

The N9K-C93180YC-FX3 offers several remarkable features that set it apart from other switches. These include its composition, function, and structural characteristics:

  • ● 48 ports of 1/10/25G, 6 ports of 40/100G
  • ● Supports MACsec for enhanced network security
  • ● Includes SyncE to ensure network synchronization
  • ● High-performance and low-latency switching
  • ● Scalable and flexible architecture
  • ● Efficient power management for reduced energy consumption

Specifications for N9K-C93180YC-FX3

N9K-C93180YC-FX3

Feature

Cisco Nexus 93180YC-FX3

Ports

Downlinks: 48 x 1/10/25G SFP28 ports

Uplinks: 6 x 40/100G QSFP28 ports

CPU

4 cores

System memory

Default: 16GB

Expandable: 16GB

SSD drive

128 GB

System buffer

40 MB

Management ports

1 port: 1 RJ-45

USB ports

1

1PPS

GPS 1PPS input or output

10MhZ

GPS 10Mhz input or output.

Time of Day (ToD)

1 RJ-45

ANT

Antenna for GNSS

RS-232 serial ports

1

Power supplies
(up to 2)

650W AC port-side intake and port-side exhaust

930W DC port-side intake and port-side exhaust

1200W HVAC/HVDC dual direction

Typical power (AC/DC)

325W

Maximum power (AC/DC)

600W

Input voltage (AC)

100 to 240V

Input voltage
(High-Voltage AC [HVAC])

200 to 277V

Input voltage (DC)

–48 to –60V

Input voltage
(High-Voltage DC [HVDC])

–240 to –380V

POE Ports

NA

POE Modes

NA

Frequency (AC)

50 to 60 Hz

Fans

4

Airflow

Port-side intake and exhaust

Physical dimensions (H x W x D)

1.72 x 17.3 x 19.6 in.

(4.4 x 43.9 x 49.6 cm)

Acoustics

Port-side exhaust:

Fan speed at 50%:63.4 dBA

Fan speed at 70%:74.3 dBA

Fan speed at 100%: 83.4 dBA

Port-side intake:

Fan speed at 50%:64.6 dBA

Fan speed at 70%:76.1 dBA

Fan speed at 100%: 85.4 dBA

RoHS compliance

Yes

MTBF

288,760 Hours

Minimum ACI release

ACI-15.1.3

Minimum NX-OS release

NXOS-9.3.7



Description for C9800-40-K9

C9800-40-K9 - Cisco WLAN Controller

C9800-40-K9 is the Cisco Catalyst 9800-40 Wireless Controller. Built from the ground-up for the Intent-based networking and Cisco DNA, Cisco Catalyst 9800 Series Wireless Controllers are Cisco IOS XE based and integrate the RF excellence of Cisco Aironet access points creating the best-in-class wireless experience for your evolving and growing organization.

Specifications for C9800-40-K9

Quick Spec

Model

 C9800-40-K9

Maximum number of access points

Up to 2000

Maximum number of clients

32,000

Maximum throughput

Up to 40 Gbps

Maximum WLANs

4096

Maximum VLANs

4096

Interfaces

4x 10 GE/1 GE SFP+/SFP

Form factor

1RU

License

Smart License enabled

Operating system

Cisco IOS XE

Access points

Aironet 802.11ac Wave 1 and Wave 2 access points

Dimension (W × D × H)

17.3 inches × 19.5 inches × 1.72 inches

(43.94 cm × 49.53 cm × 4.37 cm)

Weight

22.8 lb (10.34 kg)
Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the C8200-1N-4T Cisco Catalyst 8200 Series Edge Platforms, C9800-40-K9 Cisco WLAN Controller, N9K-C93180YC-FX3 Cisco Nexus 9000.
