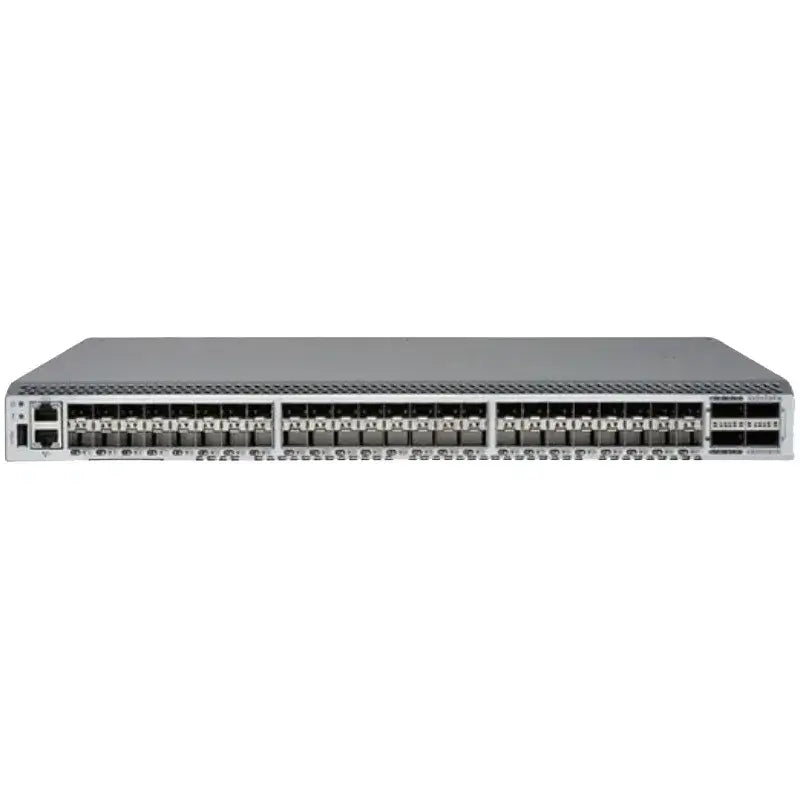

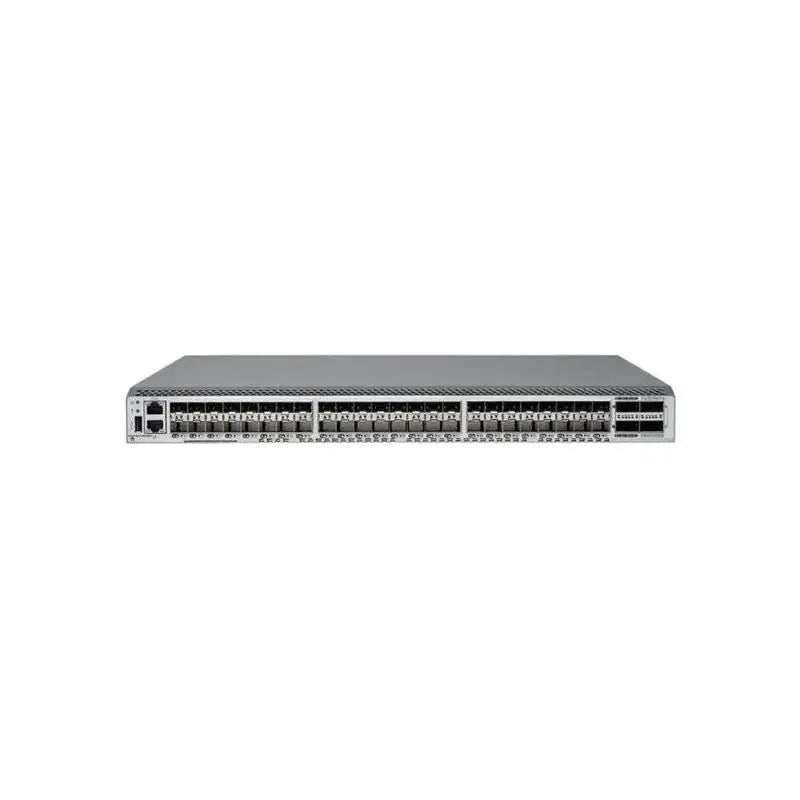

Brocade G620 64 port switch, 24 port activation, 24 Brocade 16Gb/s shortwave multi-mode modules, port side exhaus BR-G620-24-16G-R
Brocade G620 64 port switch, 24 port activation, 24 Brocade 16Gb/s shortwave multi-mode modules, port side exhaus BR-G620-24-16G-R
Brocade G620 64 port switch, 24 port activation, 24 Brocade 16Gb/s shortwave multi-mode modules, port side exhaus BR-G620-24-16G-R
  • Load image into Gallery viewer, Brocade G620 64 port switch, 24 port activation, 24 Brocade 16Gb/s shortwave multi-mode modules, port side exhaus BR-G620-24-16G-R
  • Load image into Gallery viewer, Brocade G620 64 port switch, 24 port activation, 24 Brocade 16Gb/s shortwave multi-mode modules, port side exhaus BR-G620-24-16G-R
  • Load image into Gallery viewer, Brocade G620 64 port switch, 24 port activation, 24 Brocade 16Gb/s shortwave multi-mode modules, port side exhaus BR-G620-24-16G-R

Brocade G620 64 port switch, 24 port activation, 24 Brocade 16Gb/s shortwave multi-mode modules, port side exhaus BR-G620-24-16G-R

R 646,633.95
R 646,633.95
R 843,434.95
Sold out
Shipping calculated at checkout.

Brocade G620 series 64 port switch, 24 port activation, including 24 Brocade 16Gb/s shortwave multi-mode modules, port side exhaus BR-G620-24-16G-R

Description

The Brocade G620 series 64 port switch, featuring 24 port activation and 24 Brocade 16Gb/s shortwave multi-mode modules, is ideal for high-performance data centers. With port-side exhaust, it offers exceptional reliability and efficiency for engineers and procurement personnel seeking advanced networking solutions.

BR-G620-24-16G-R Product Highlights

  • Breakthrough performance: Get the performance you need to support critical business applications and the most from your investment in solid state storage technology.
  • Increased scalability: Reduce operating costs and management complexity by simplifying scale-out architectures—all in a 1U form factor.
  • Operational stability: Reduce risk with the industry’s first built-in metrics. Achieve greater control and operational insights to quickly identify issues and easily meet or crush SLAs.

Product Features Comparison

Feature Brocade BR-G620-24-16G-R Cisco MDS 9148T QLogic 5800V HPE SN3600B Dell EMC Connectrix DS-6610B
Ports 64 48 20 24 32
Activated Ports 24 24 16 12 24
Data Rate 16Gb/s 32Gb/s 8Gb/s 32Gb/s 16Gb/s
Cooling Port-side exhaust Front-to-back Rear-to-front Front-to-back Port-side exhaust
Module Type Multi-mode Multi-mode Single-mode Multi-mode Multi-mode

BR-G620-24-16G-R Product Application Scenarios

  • Enterprise data centers
  • High-performance computing environments
  • Advanced network infrastructures

Optional Add-ons

Accessory Model Description
SFP+ Transceiver BR-16G-SW 16Gb/s shortwave SFP+ module
License Upgrade BR-LIC-UPG-24-48 Upgrade license for 24 to 48 ports
Power Supply BR-PS-250W 250W power supply unit

Product Details

Technical Specifications

BR-G620-24-16G-R Specification
Fibre Channel ports Switch mode (default): Minimum of 24 ports and maximum of 64 ports configuration. Port numbers above minimum are enabled through 12-port SFP+ increments via Ports on Demand (PoD) licenses and through one 4-port QSFP PoD, providing 16-port increments through a Q-Flex license; E_Ports, F_Ports, M_Port, D_Ports, EX_Ports.
Brocade Access Gateway default port mapping: 40 SFP+ F_Ports, 8 SFP+ N_Ports
Scalability Full-fabric architecture with a maximum of 239 switches
Certified maximum 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
Performance Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds. 10G optionally programmable to fixed port speed. Auto-sensing of 4×32/4×16/4×8/4×4 Gb/s speeds on the QSFP ports with Brocade FOS v8.2.0.
ISL trunking Frame-based trunking with up to eight 64G SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk; up to two (4 x 32G) QSFP ports per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS.
Aggregate bandwidth 2Tb/s
Maximum fabric latency Latency for locally switched ports is <780 ns (including FEC); compression is 1 μs per node.
Maximum frame size 2,112-byte payload
Frame buffers 15,360 dynamically allocated
Classes of service Class 2, Class 3, Class F (inter-switch frames)
Port types F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports
Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types Fabric switches supporting unicast
Size Width: 440.00 mm (17.32 in.)
Height: 43.90 mm (1.73 in.)
Depth: 355.60 mm (14.00 in.)
System weight 7.07 kg (15.59 lb) with two power supplies, fans, without transceivers
8.41 kg (18.54 lb) with two power supplies, fans, fully populated with transceivers
Operating environment Temperature: 0°C to 40°C/32°F to 104°F
Humidity: 10% to 85% (non-condensing)
Non-operating environment Temperature: –25°C to 70°C/–13°F to 158°F
Humidity: 10% to 90% (non-condensing)
Operating altitude Up to 3,000 m (9,843 ft)
Storage altitude Up to 12 km (39,370 ft)
Power supply Base switch includes a single, hot-swappable power supply with integrated system cooling fans. Optional dual redundant hot-swappable power supply.
AC input 90V to 264V, maximum input current: 3.5A
Input line frequency 47 Hz to 63 Hz
Power consumption Maximum 205W with all 64 ports populated with 48×32G SFP+ SWL optics and 4× (4×32G) QSFP SWL optics.
85W for empty chassis with no optics
The Brocade G620 64 port switch, 24 port activation, 24 Brocade 16Gb/s shortwave multi-mode modules, port side exhaus BR-G620-24-16G-R is the product you didn't think you need, but once you have it, something you won't want to live without.
