ARUBA Networks AP-635 / IAP-635 (RW) APIN0635 Indoor Access Point 802.11ax Wi-Fi 6E OFDMA 2x2:2 MIMO 7.8 Gbps 6 GHz band WPA3
Description

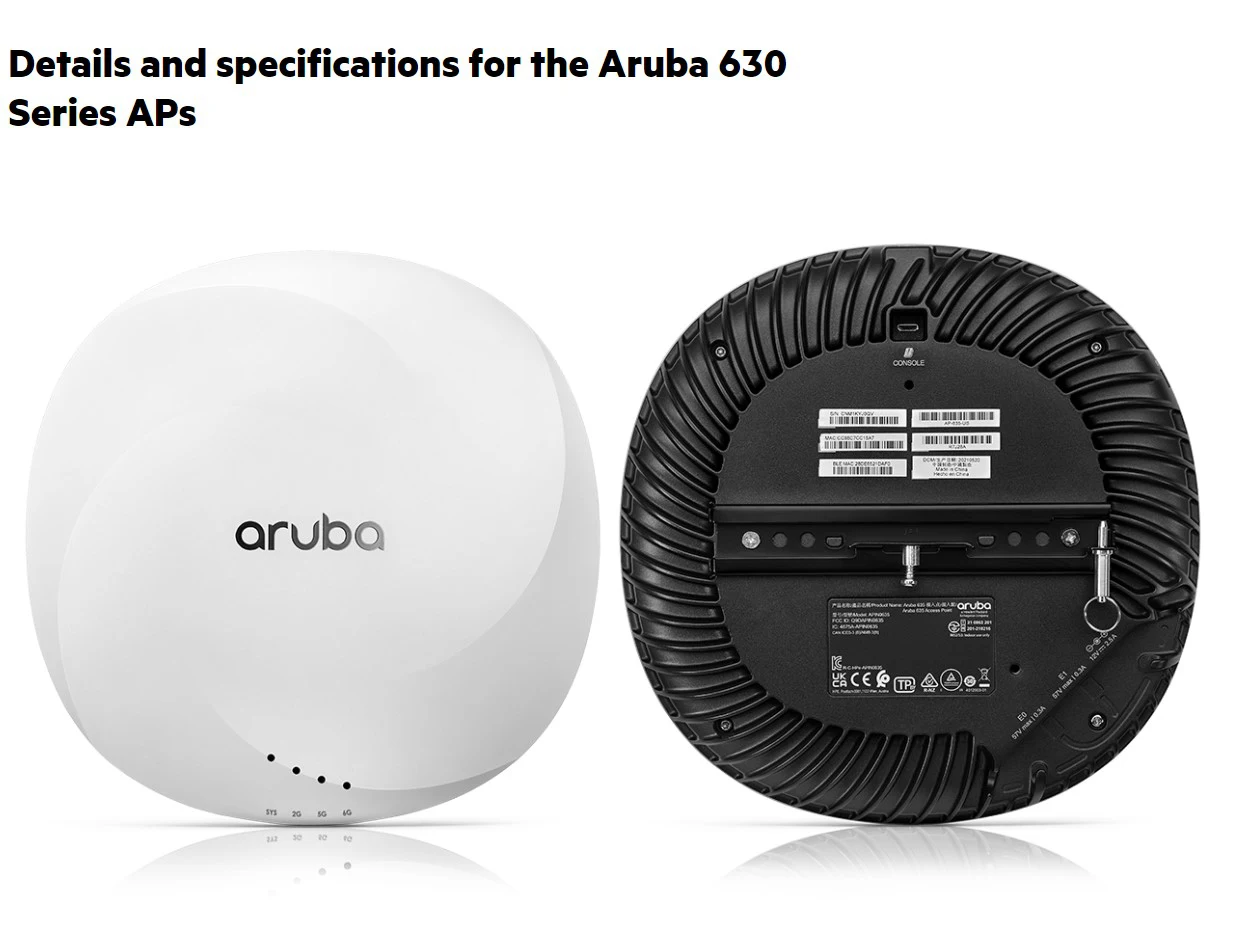

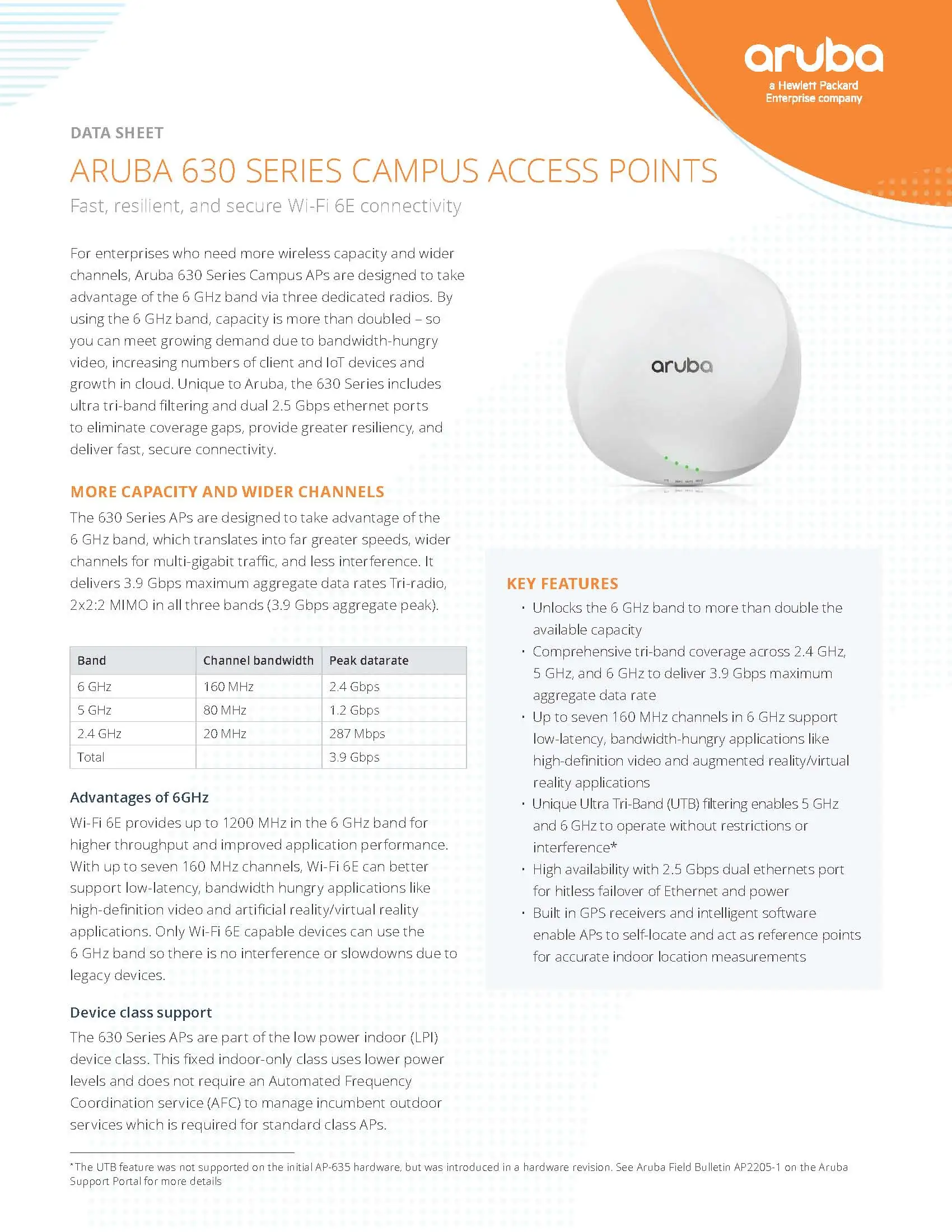

Aruba 630 Series Wi-Fi 6E APs
Unlock the 6GHz band to provide fast, resilient, and secure Wi-Fi 6E connectivity.

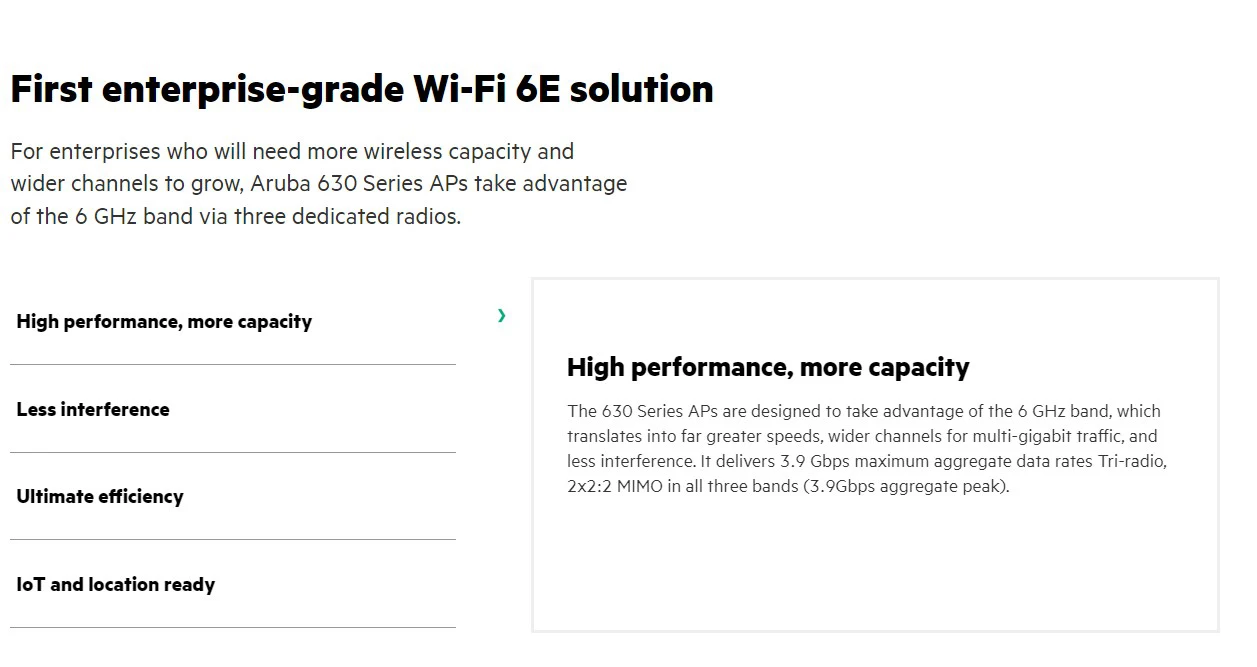

First enterprise-grade Wi-Fi 6E solution
For enterprises who will need more wireless capacity and wider channels to grow, Aruba 630 Series APs take advantage of the 6 GHz band via three dedicated radios.
High performance, more capacity
The 630 Series APs are designed to take advantage of the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 3.9 Gbps maximum aggregate data rates Tri-radio, 2x2:2 MIMO in all three bands (3.9Gbps aggregate peak).

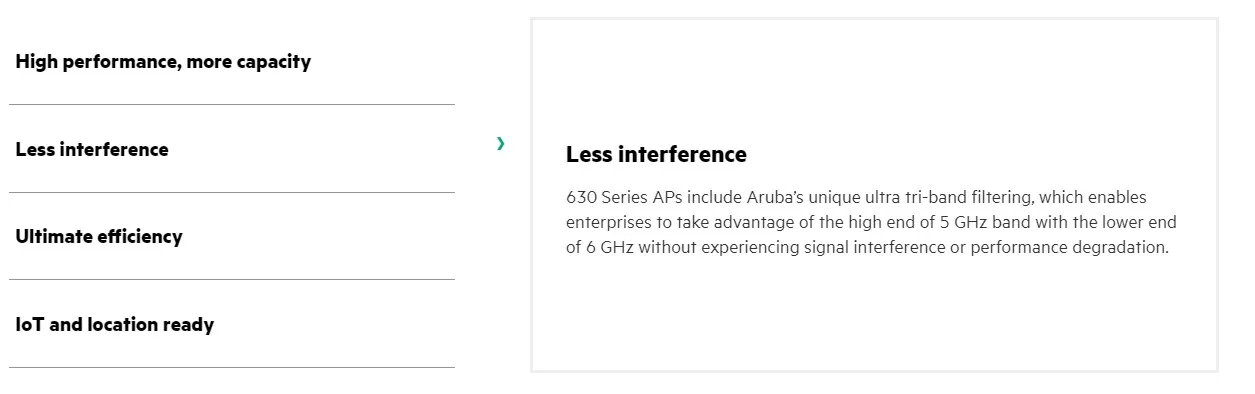

More wireless capacity with ultra tri-band filtering
Aruba 630 Series APs take advantage of the 6 GHz band and include ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps and deliver fast, secure connectivity.
Business continuity
Ensures high availability with two 2.5 Gbps HPE Smart Rate ethernet ports for hitless failover for both data and power.
Built-in security
Includes Wi-Fi 6E standards such as WPA3 and Enhanced Open and WPA2-MPSK for stronger encryption and authentication.
Role-based access
Improves security and ease of management by allowing IT to centrally configure and automatically enforce role-based policies across wired and wireless networks.
Client steering
Steers traffic from the noisy 2.4 GHz band to the preferred 5 GHz or 6 GHz band based on device capabilities and dynamically steers traffic to load balance APs.

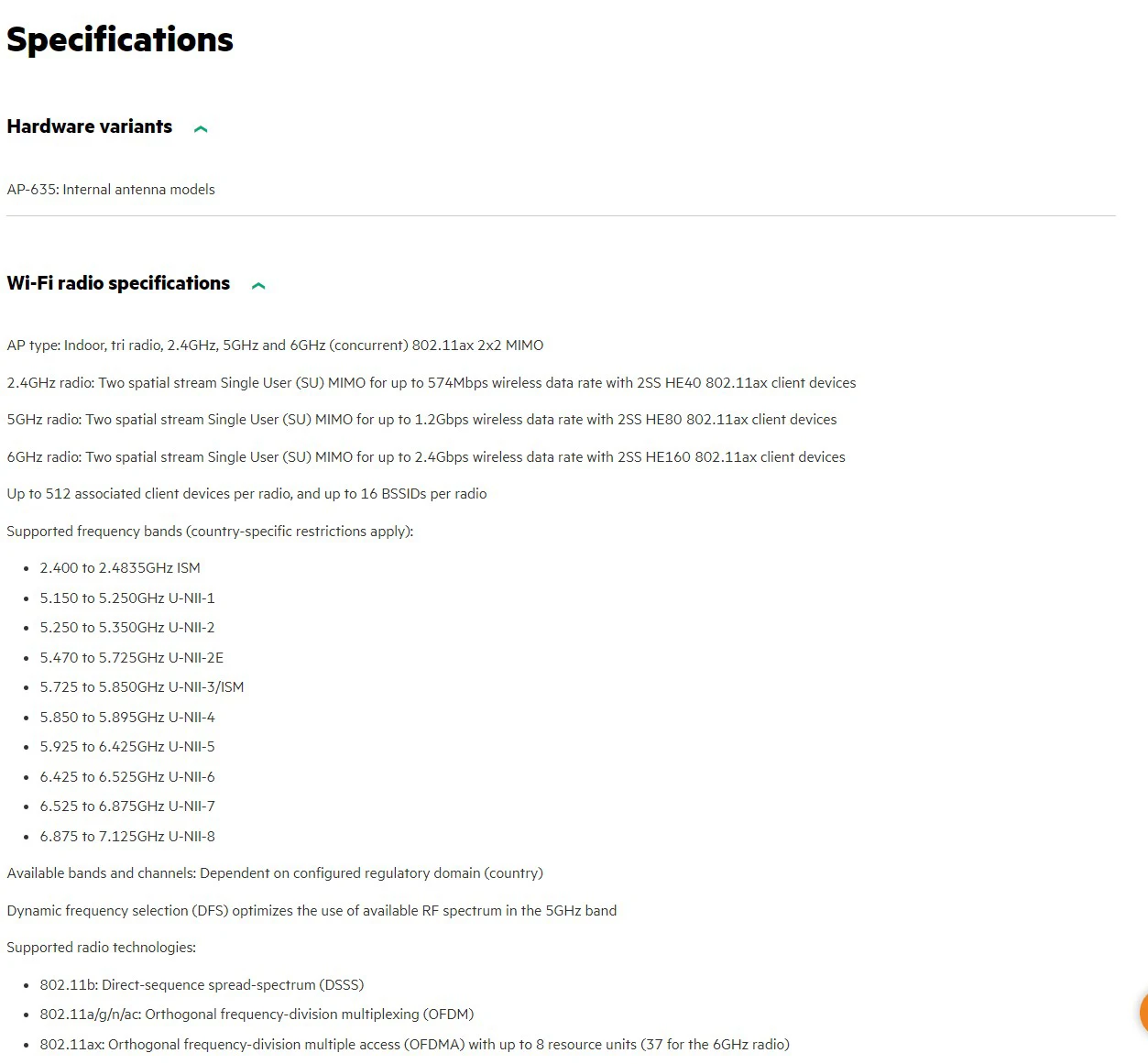

Wi-Fi radio specifications |
---|
|

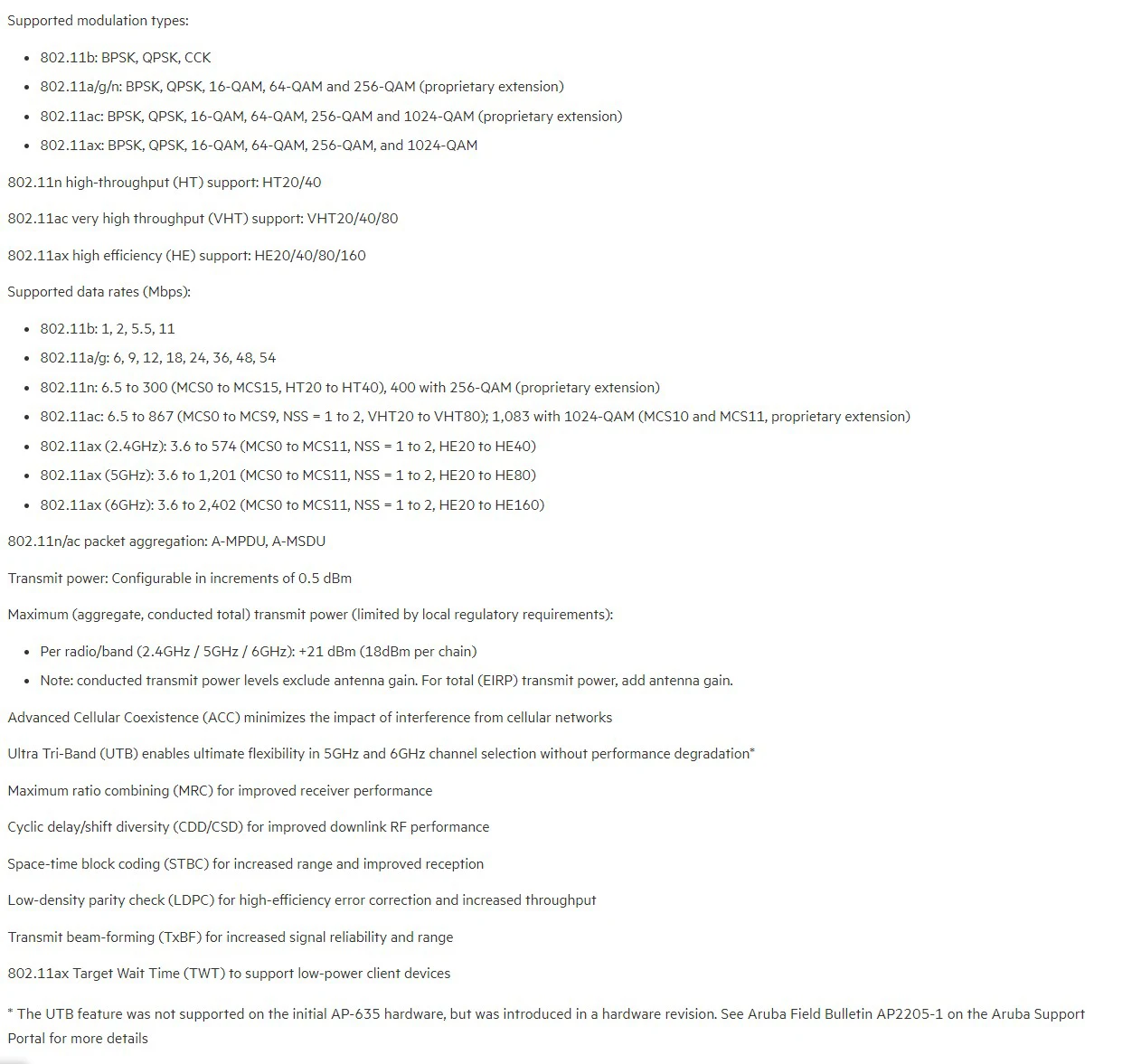

- Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM
- 802.11n high-throughput (HT) support: HT20/40
- 802.11ac very high throughput (VHT) support: VHT20/40/80
- 802.11ax high efficiency (HE) support: HE20/40/80/160
- Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension)
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
- 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
- 802.11ax (6GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
- 802.11n/ac packet aggregation: A-MPDU, A-MSDU
- Transmit power: Configurable in increments of 0.5 dBm
- Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
- Per radio/band (2.4GHz / 5GHz / 6GHz): +21 dBm (18dBm per chain)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
- Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
- Ultra Tri-Band (UTB) enables ultimate flexibility in 5GHz and 6GHz channel selection without performance degradation*
- Maximum ratio combining (MRC) for improved receiver performance
- Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
- Space-time block coding (STBC) for increased range and improved reception
- Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
- Transmit beam-forming (TxBF) for increased signal reliability and range
- 802.11ax Target Wait Time (TWT) to support low-power client devices
* The UTB feature was not supported on the initial AP-635 hardware, but was introduced in a hardware revision. See Aruba Field Bulletin AP2205-1 on the Aruba Support Portal for more details

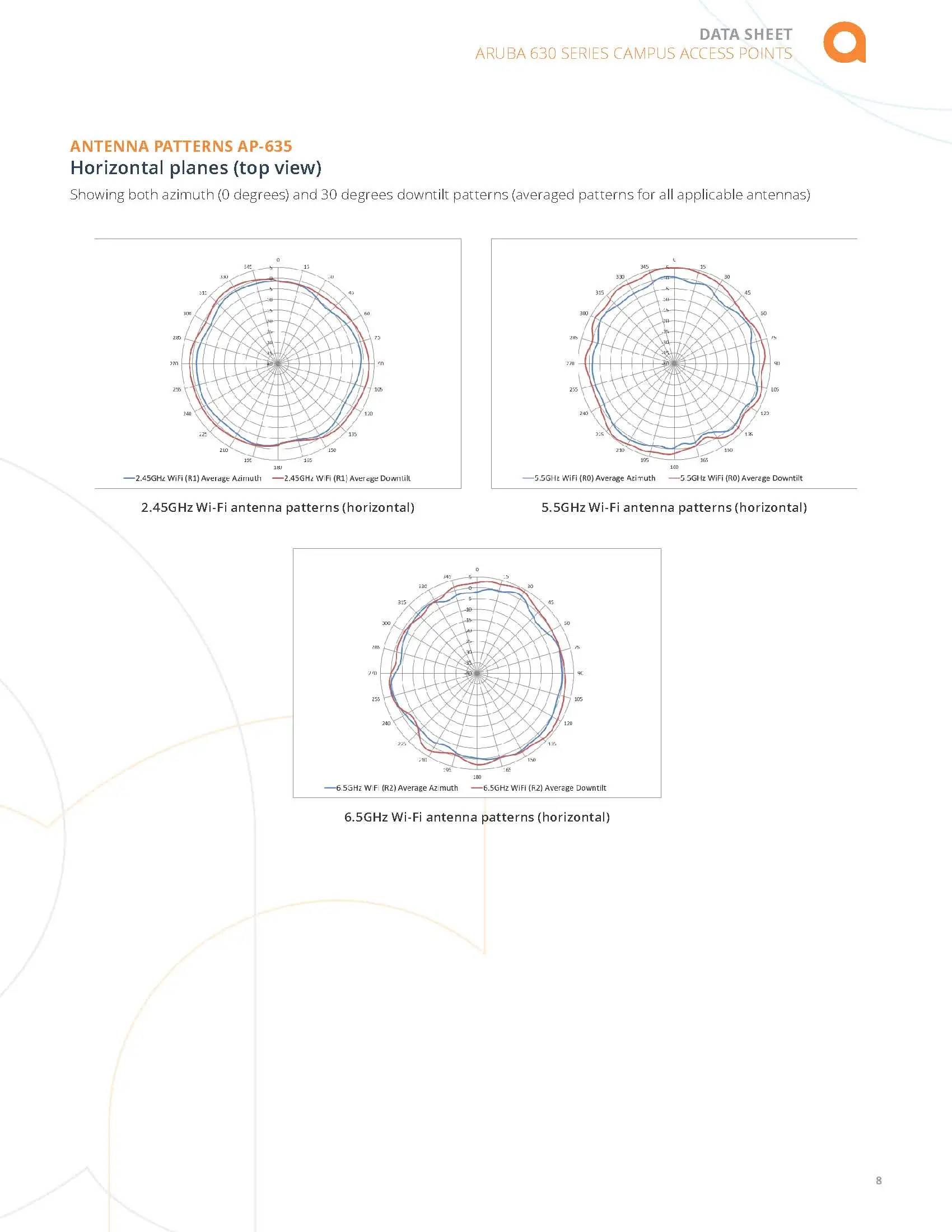

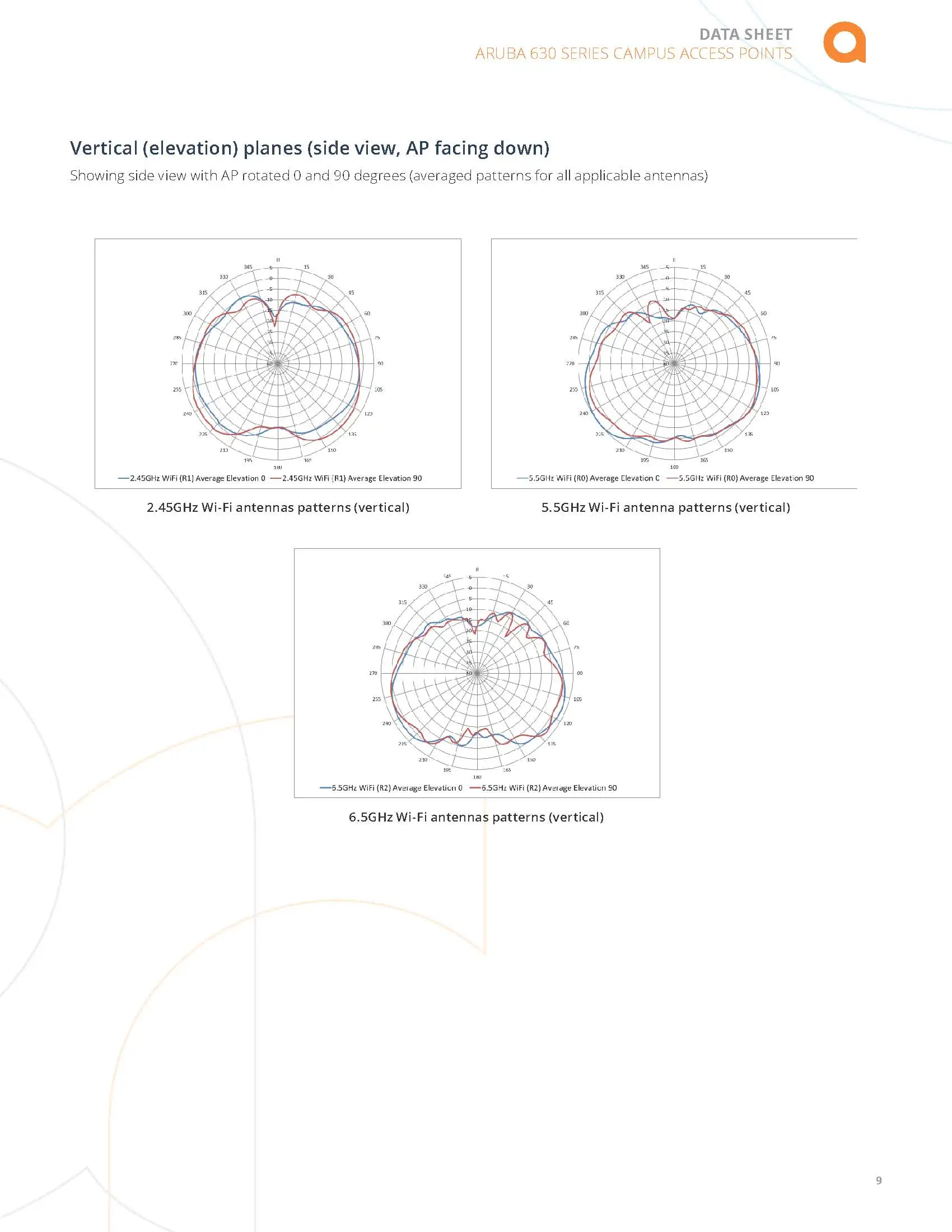

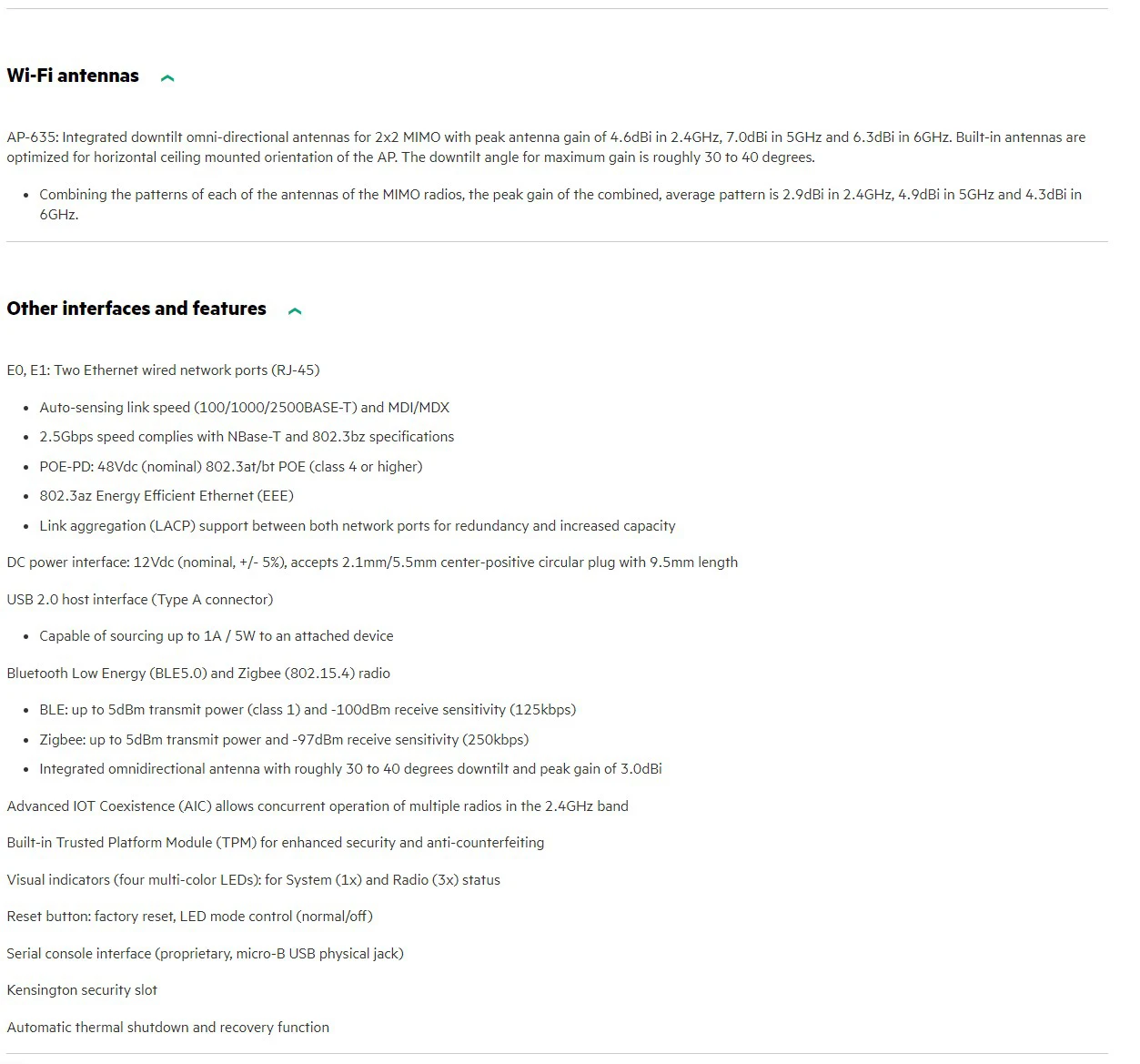

Wi-Fi antennas |
---|
|
Other interfaces and features |
---|
|
SPECIFICATIONS
Brand Name: Aruba
Certification: CE
Certification: EAC
Certification: FCC
Package: Yes
Model Number: APIN0635
Brand Name: ARUBA NETWORKS
Products Details:
Brand: ARUBA NETWORKS
Model: APIN0635
ARUBA PN: AP-635 / IAP-635(RW)
Inventory Last Updated: Dec 09, 2024
