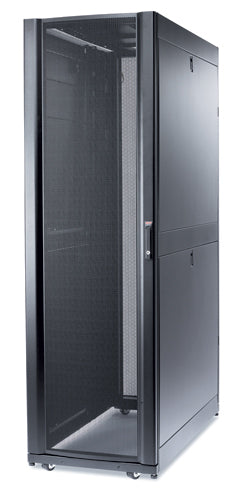

Apc Netshelter SX 42U 600mm Wide x 1200mm Deep Rack Enclosure with Sides AR3300
Description
NetShelter SX 42U 600mm wide x 1200mm deep enclosure AR3300
An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management. It provides plenty of clearance at the back for Rack PDUs and cable managers not to interfere with IT device hot swappable components.
Features
>>Deep Universal IT Enclosure for low to medium density server and networking applications
>>Compact width to optimize data center space
>>42U height to easily roll through doorways
>>Plenty of room for vertically mounting Rack PDUs and cable management
>>Ideal for high density server applications
Specifications
| Lead time | Usually in Stock |
|---|
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 42U |
| Provided equipment | Baying hardware Key(s) Keyed-alike doors and side panels Leveling feet Mounting hardware Pre-installed casters Side panels |
| Height | 1991 mm |
|---|---|
| Width | 600 mm |
| Depth | 1200 mm |
| Net weight | 134.09 kg |
| Colour | Black |
| Mounting preference | No preference |
|---|---|
| Mounting mode | Not rack-mountable |
| Maximum mounting depth | 1048 mm |
| Minimum mounting depth | 190.5 mm |
| Rack width | 19" |
| Marking | 14 gauge EIA mounting rail 16 gauge front door 16 gauge post 18 gauge rear door 18 gauge roof 18 gauge side panels |
| Permanent permissible load | 1020.6 kg dynamic 1701.0 kg static |
| Standards | UL 2416 UL 60950-1 EIA-310E |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 211.8 cm |
| Package 1 Width | 75.2 cm |
| Package 1 Length | 133.4 cm |
| Package 1 Weight | 149.09 kg |
| Warranty (in months) | 60 |
|---|
