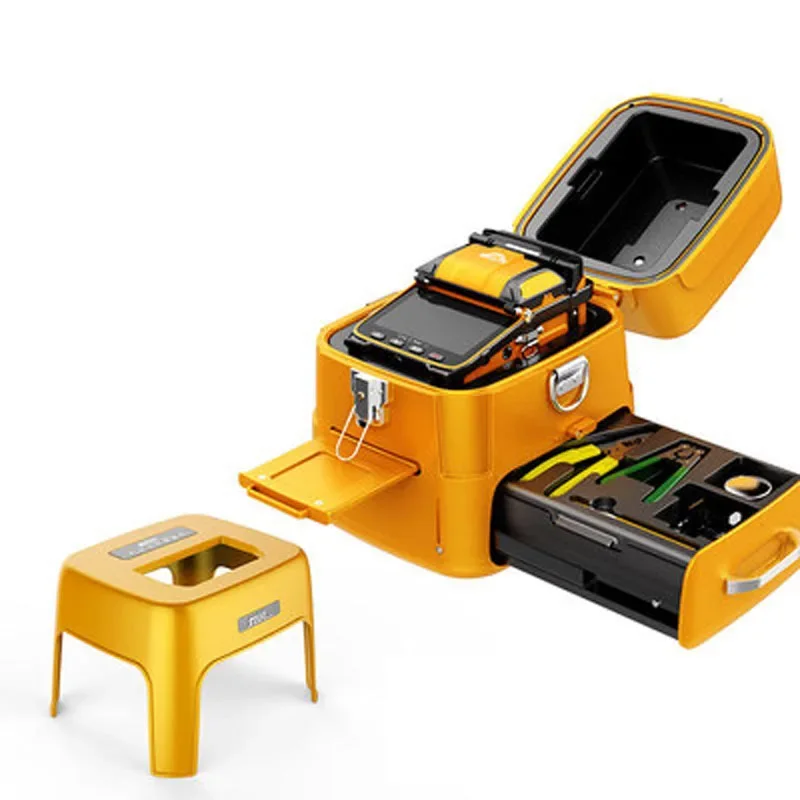

AI-9 Signal Fire Multi-language Optical Fiber Fusion Splicer FTTH Fiber Splicing Machine With Optical Power Meter VFL Function

AI-9 Signal Fire Multi-language Optical Fiber Fusion Splicer FTTH Fiber Splicing Machine With Optical Power Meter VFL Function

SPECIFICATIONS

Brand Name: Signal Fire

Cutting length: coating layer below 250μm: 8-16mm, coating layer 250-1000um: 16mm

Display: 5 inch TFT color display

Fiber diameter: cladding diameter: 80-150μm, coating diameter: 100-1000um

Heat shrinkable tubing: 60mm, 50mm, 40mm, 25mm

High-concerned Chemical: None

Power meter wavelength: 850nm; 1300nm, 1310nm, 1490nm, 1550nm, 1625nm

Red light source power: 15mW, 2Hz blinking and constant light mode.

Tension test: Standard 2N

Type: Other

Working altitude: 0~5000m, can resist the maximum wind speed: ≤15m/s

Description

AI-9 Signal Fire Multi-language Optical Fiber Fusion Splicer FTTH Fiber Splicing Machine With Optical Power Meter VFL Function.

Features

Fiber diameter: cladding diameter: 80-150μm, coating diameter: 100-1000um
Cutting length: coating layer below 250μm: 8-16mm, coating layer 250-1000um: 16mm
Heat shrinkable tubing: 60mm, 50mm, 40mm, 25mm
Product protection. Waterproof, dustproof, and drop-proof
Tension test: Standard 2N
Optical fiber clamp: multi-functional disassembly-free clamp, suitable for single-mode/multi-mode, multi-core, optical cable/bare fiber, pigtail, patch cord, leather cable
Magnification: 300 times (X-axis or Y-axis) 150 times (X-axis and Y-axis synchronization)
Display. 5 inch TFT color display
Software upgrade: APP Internet update, turn on Bluetooth to synchronize to the machine
Splicing mode: conventional / high-precision welding
Data storage: unlimited, 1000 sets of machine storage, the excess part is automatically stored on the server, and data can be exported.
Built-in battery: 7800 mAh large-capacity lithium battery, when the charging time is ≤3.5, it can be continuously welded and heated for about 240 times
Power supply: input AC100-240V 50/60HZ, output DC13.5V/4A, the current power mode can be identified, and the current battery power can be monitored in real time
Working environment temperature: -15~+50°C, temperature: <95%RH (non-condensing),
Working altitude: 0~5000m, can resist the maximum wind speed: ≤15m/s
LED lighting: convenient for night construction lighting
Boot time: 1 second
Red light source power: 15mW, 2Hz blinking and constant light mode.
Power meter wavelength: 850nm; 1300nm, 1310nm, 1490nm, 1550nm, 1625nm

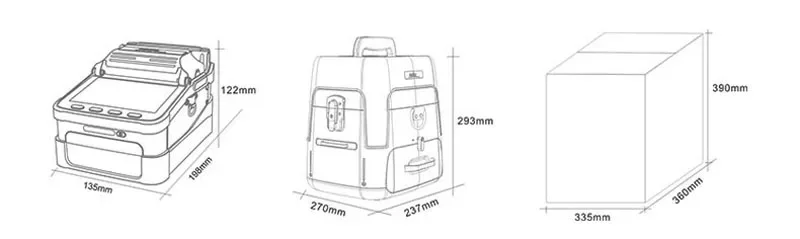

Product Details
