AC1200 Outdoor Weatherproof WiFi Extender AP 2.4G 5G Long Rang 360 Omnidirectional High Gain Antenna

COMFAST AC1200 Outdoor Weatherproof Wifi Extender AP 2.4G 5G Long Rang 360 Omnidirectional High Gain Wi Fi Antenna Access Point

Features:

CF-EW75V2: 1200Mbps 2.4+5.8Ghz, 2*5 External Antenna, 24V POE, Supports 100+Users, Supports 1000Mbps Port

CF-EW74V2: 1200Mbps, 2.4+5.8Ghz, 2*5 External Antenna, 24V POE, Supports 60+Users, Supports 100Mbps Port

CF-EW75V2 is a dual-band high speed outdoor wireless AP, wireless transmission rate up to 1200Mbps, the network experience of high-speed and smooth, can access more terminals, transmission distance farther, wider coverage

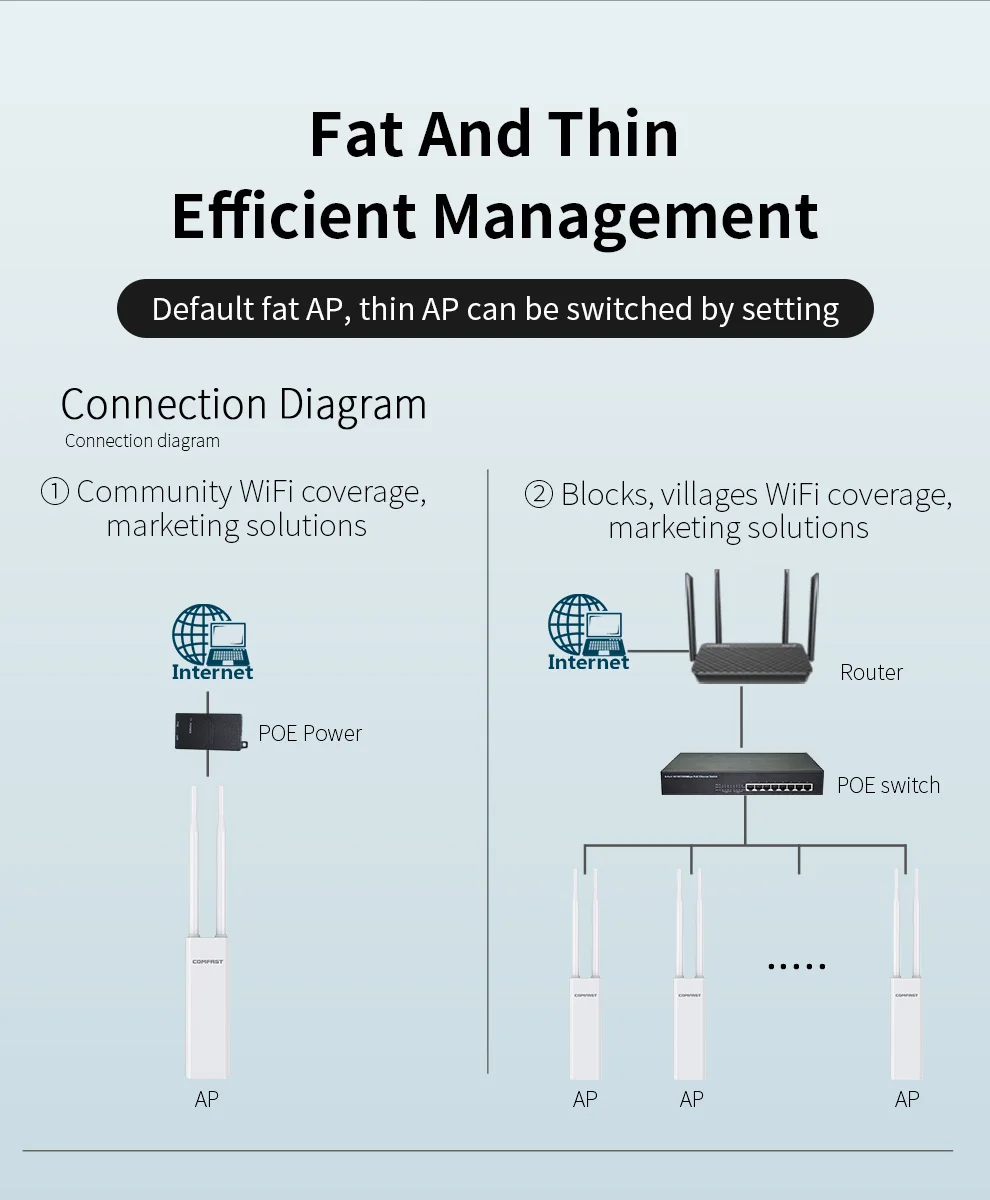

CF-EW75V2 can be switched to thin AP mode through the page settings, thin AP mode for AC controller + AP networking, recommended with the core gateway developed by Four Seas Union use, AC gateway can be unified management and configuration of the AP.

CF-EW75V2 is suitable for directional long-distance coverage, supporting multiple terminal devices to access at the same time, excellent performance to fully meet the outdoor square, stadiums, scenic spots, parks, playgrounds, communities, factories,cell outdoor, supermarket square, playground outdoor and other environments of long-distance wireless coverage needs.

The 2.4GHz band is highly compatible, with a longer transmission distance and wider coverage;

The 5GHz band has less interference and low latency, making high-bandwidth applications smoother.

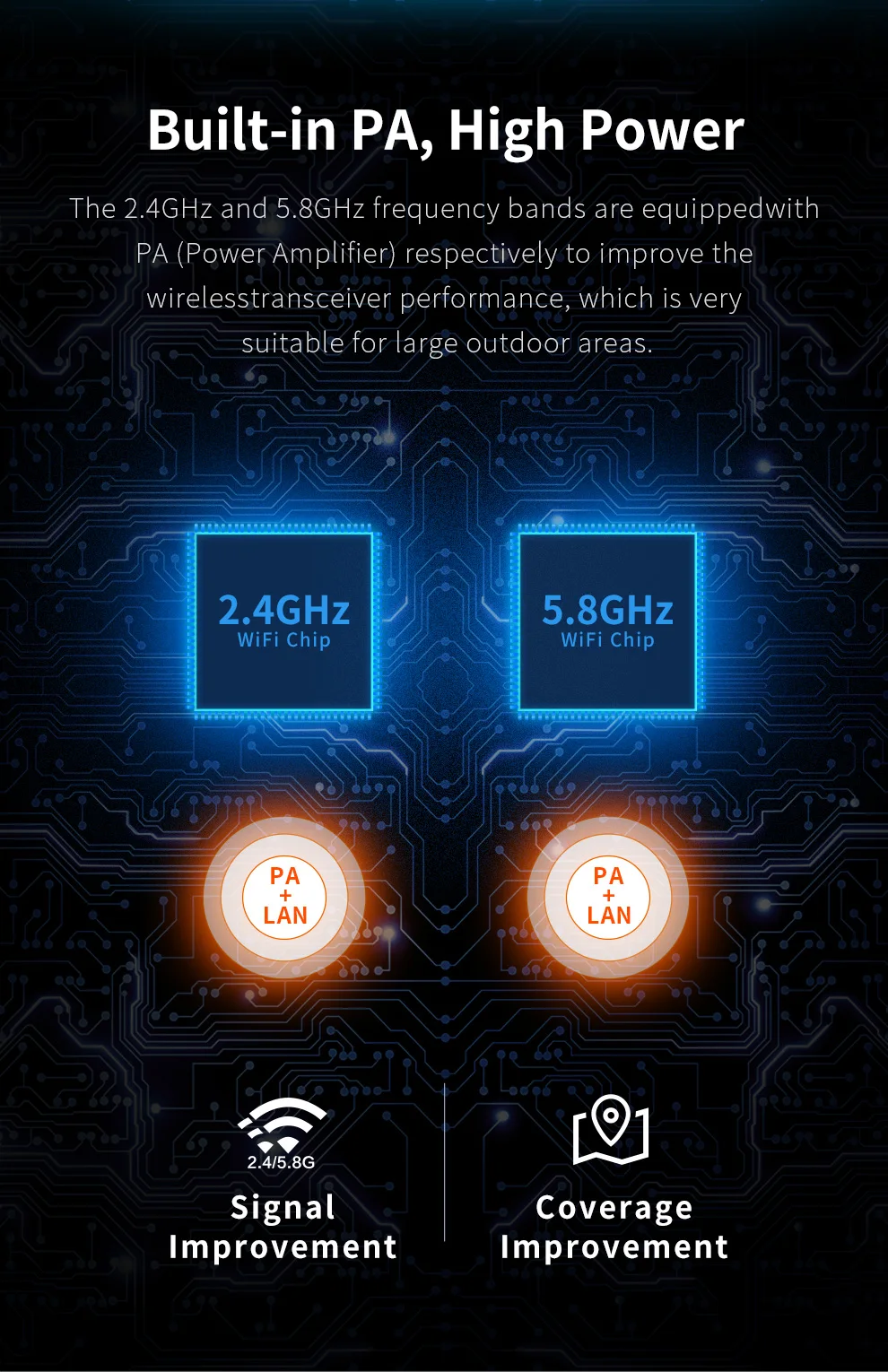

The CF-EW75V2 is equipped with high-performance independent power amplifier (PA) circuits in the 2.4GHz/5.8GHz bands to improve the performance of wireless transceiver and enhance the signal.

The CF-EW75V2 supports IP66 protection level, with waterproof rubber plugs at the antenna and a curved waterproof body to effectively protect the device from adverse weather conditions such as wind, frost, rain, snow, ensuring safe and stable operation even in bad weather.

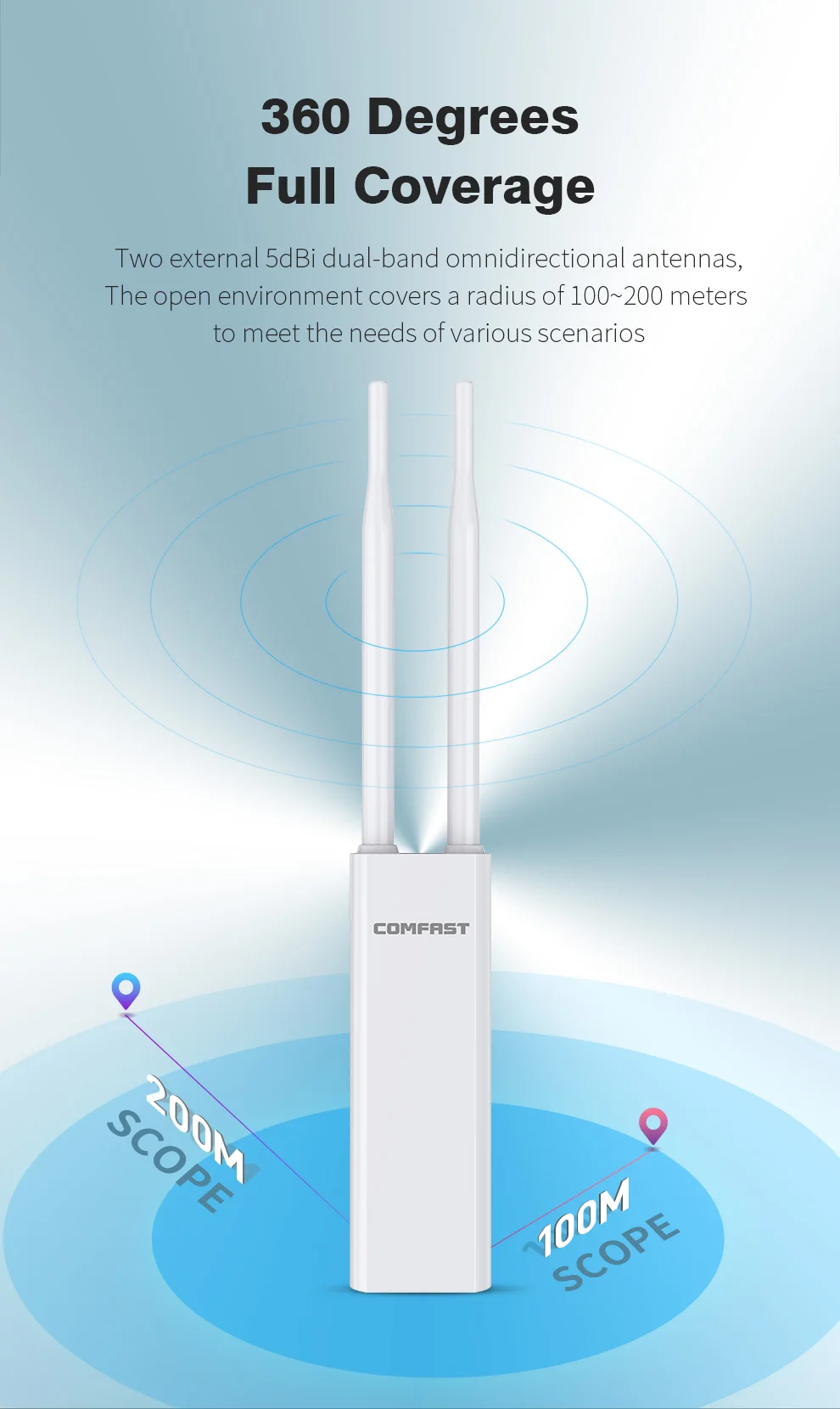

The CF-EW75V2 is equipped with 2*5dBi dual-band omni-directional antennas, supporting a maximum coverage radius of 200m in open environments, fully satisfying the long-distance wireless coverage needs of outdoor squares, stadiums, scenic spots, parks, playgrounds etc.

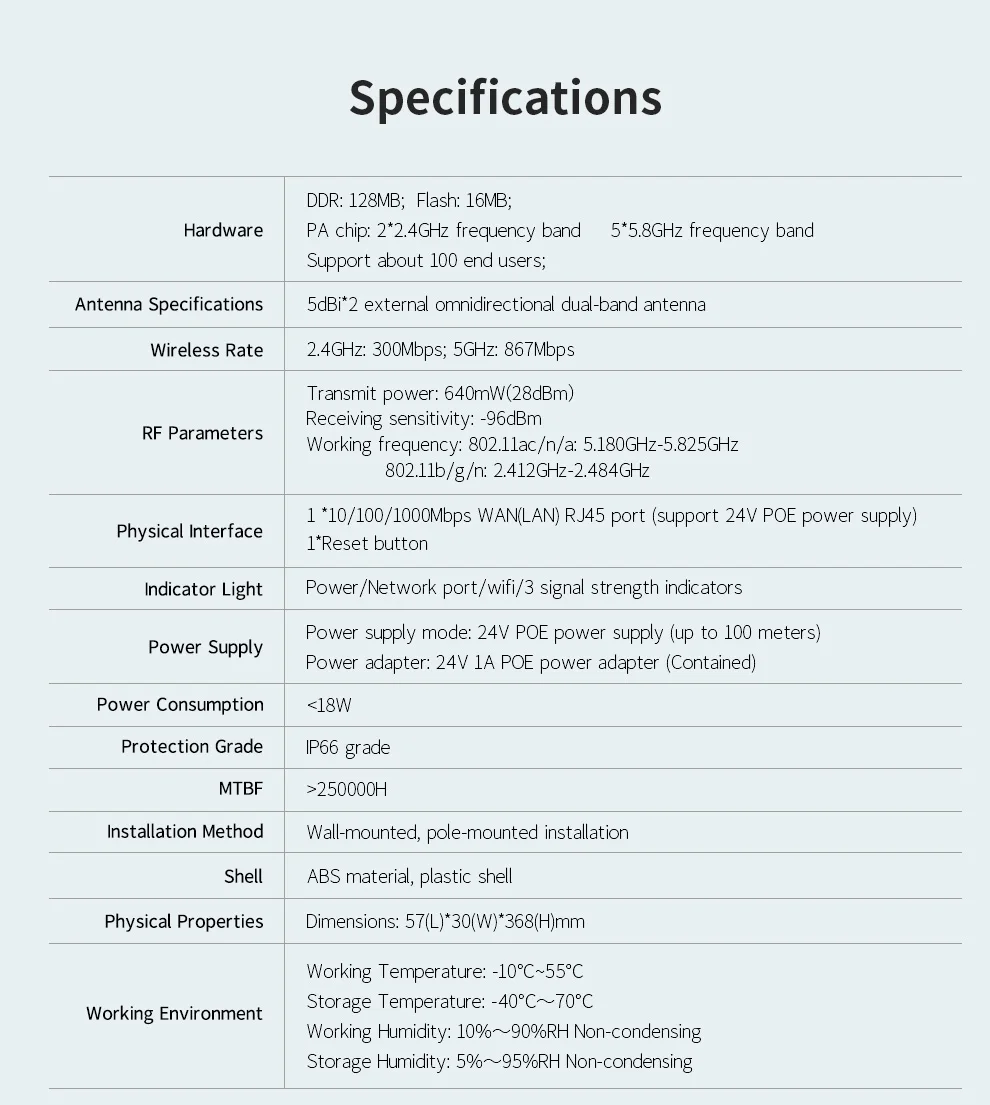

Specifications

- Wireless transmission rate up to 1200Mbps.

- Gigabit Port 1*10/100/1000Mbps WAN(LAN)RJ45 Port (Support 24V Poe Power Supply)

- Supports a maximum number of end users: 100(for reference).

- Support SSID hiding.

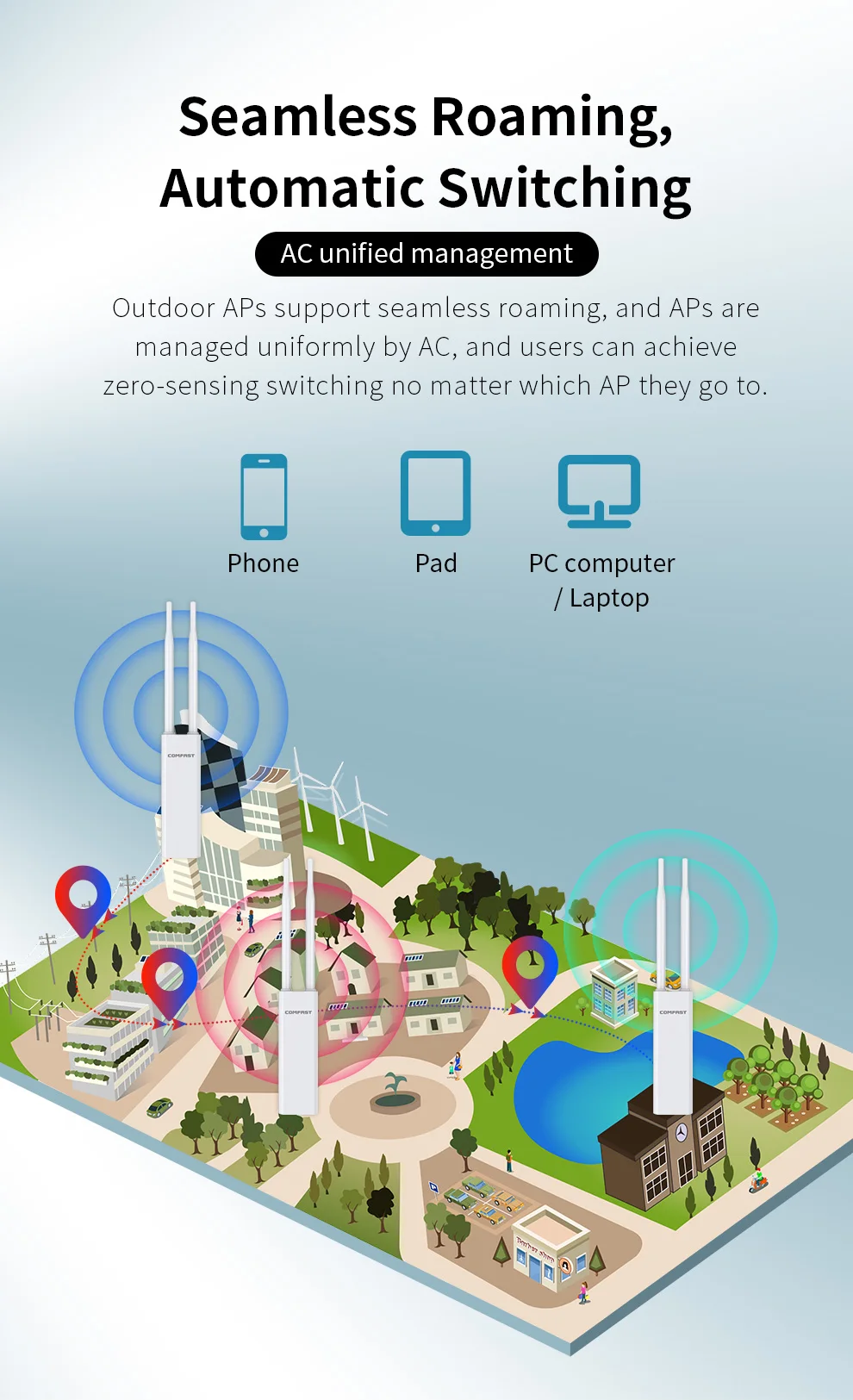

- Supports seamless roaming.

- Wide Range 2* High gain omni-antennas 360°Omnidirectional Coverage

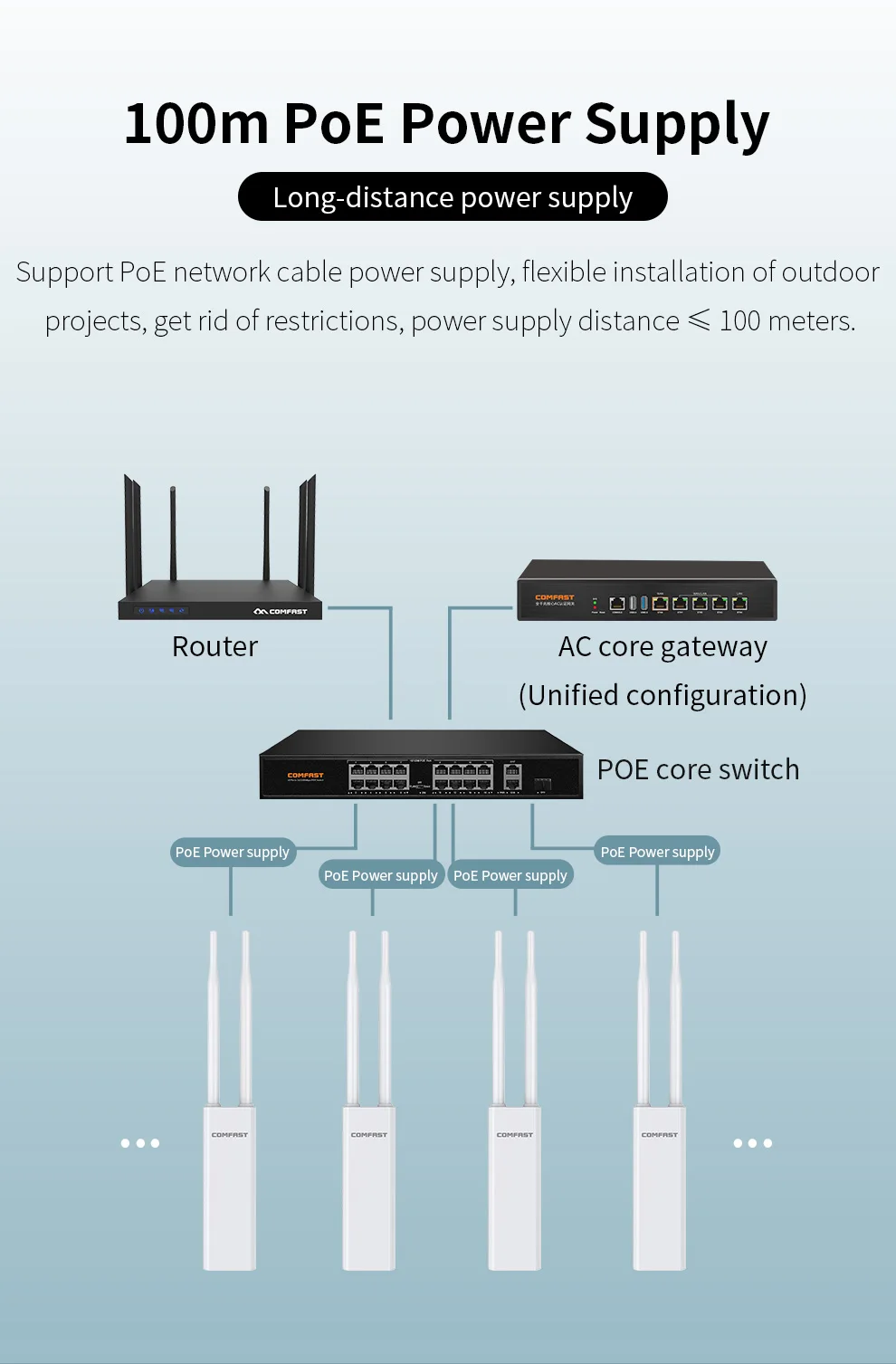

- Support 24V 1A POE network cable power supply, flexible deployment.

- 2*5dBi dual-band omnidirectional antenna to enhance signal transmission and reception performance.

- Dual-band with PA amplifier chip for increased power and stronger signal than ordinary APs.

- Adjustable power to reduce mutual interference between APs.

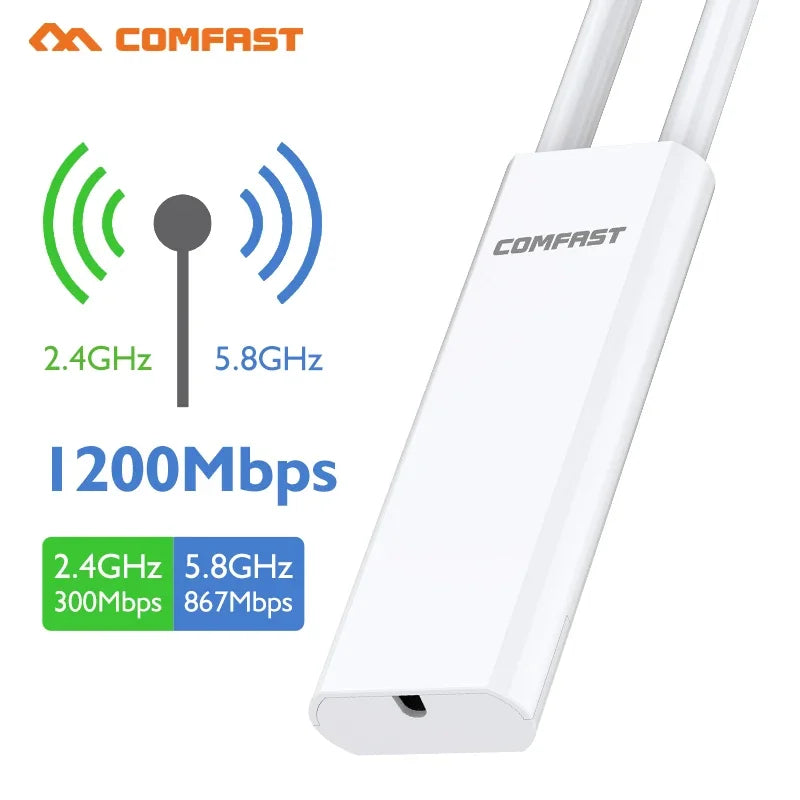

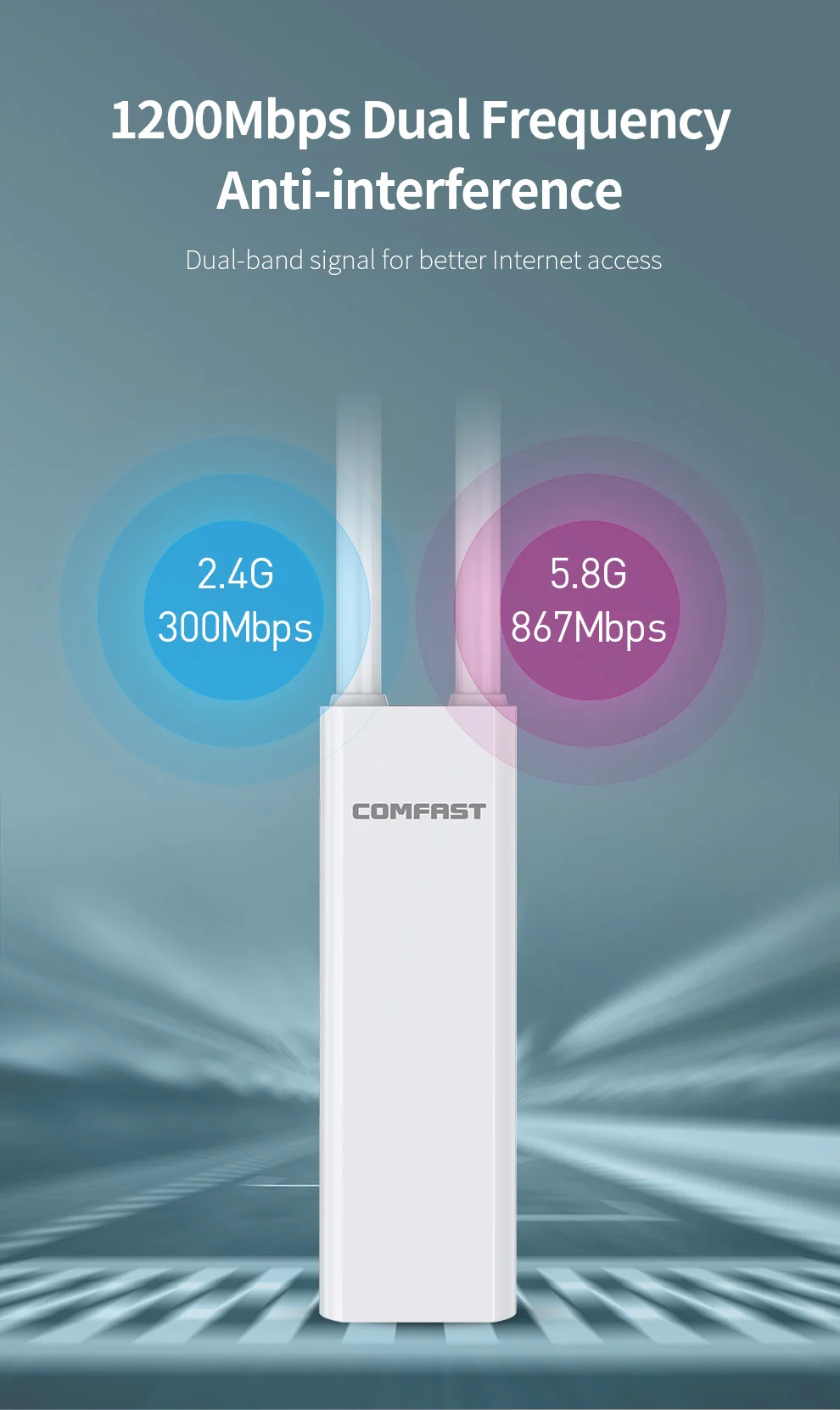

- 2.4GHz and 5.8GHz dual-band, strong anti-interference. 2.4GHz@300Mbps; 5GHz@867Mbps.

- Coverage radius of about 200m in open environment.

- External waterproof antenna design.

- CF-EW75V2 supports routing, AP and bridging modes.

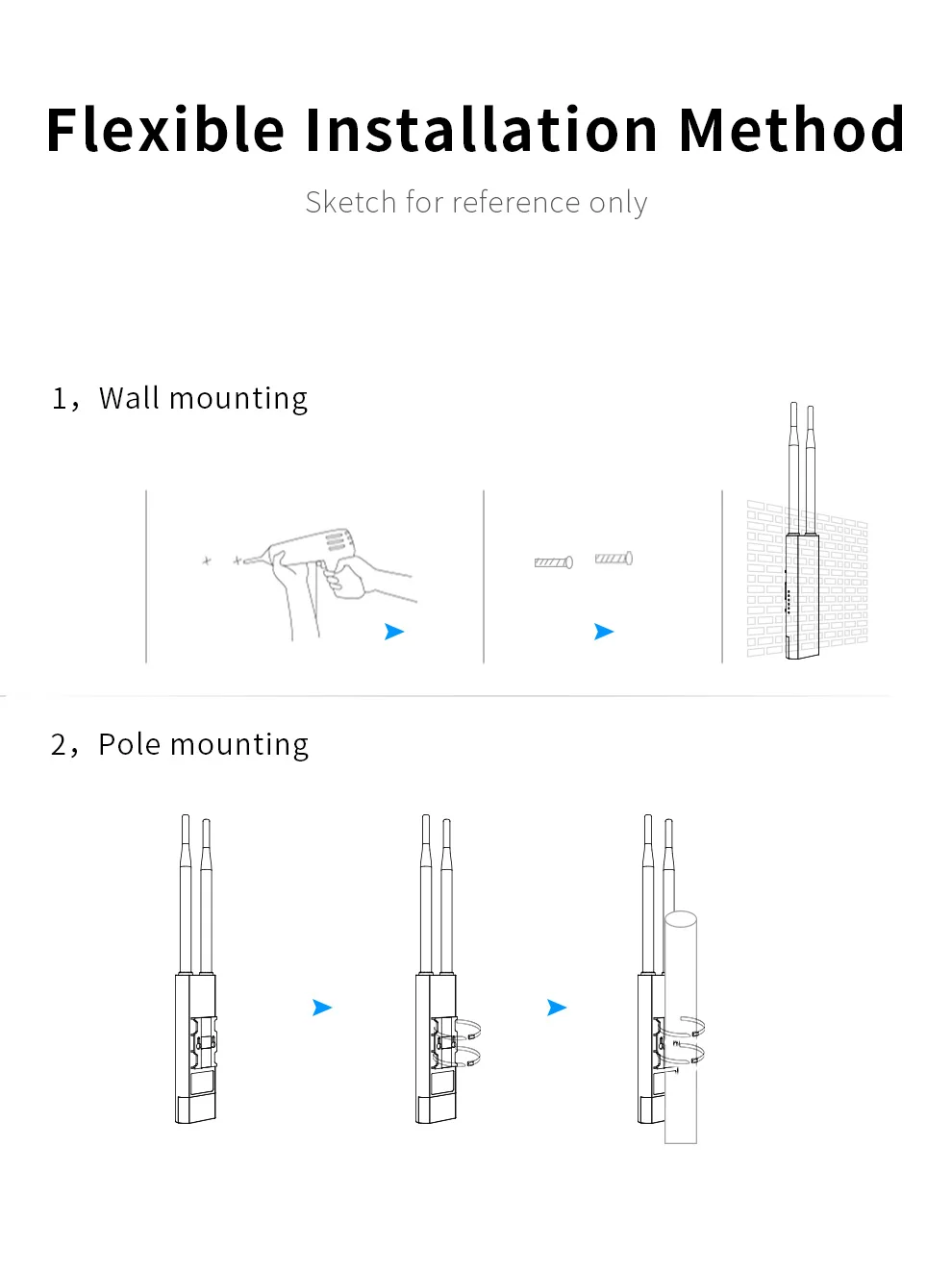

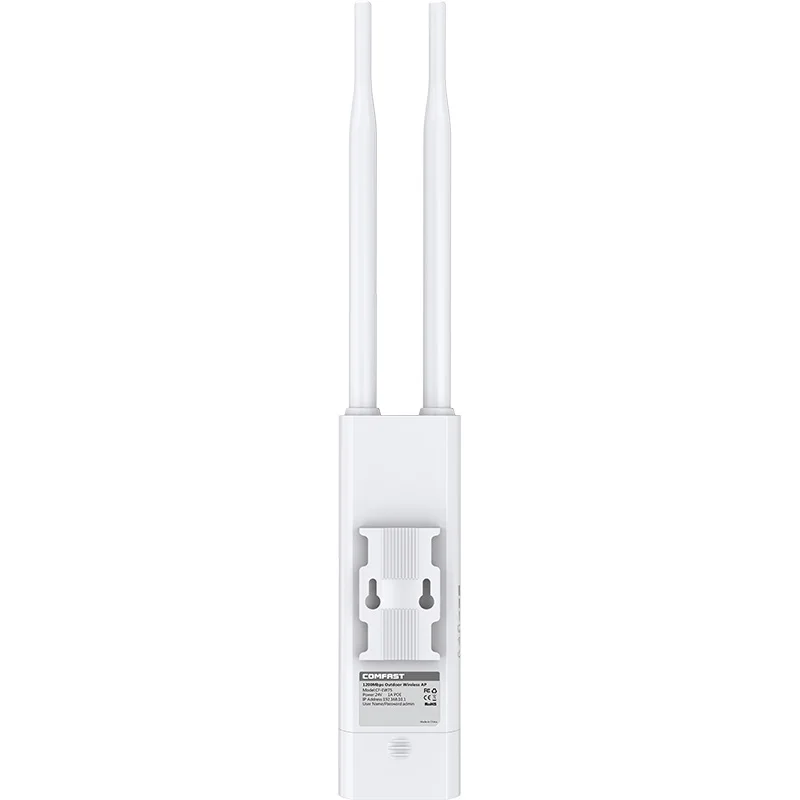

- Support wall-mounting and pole-mounting mode.

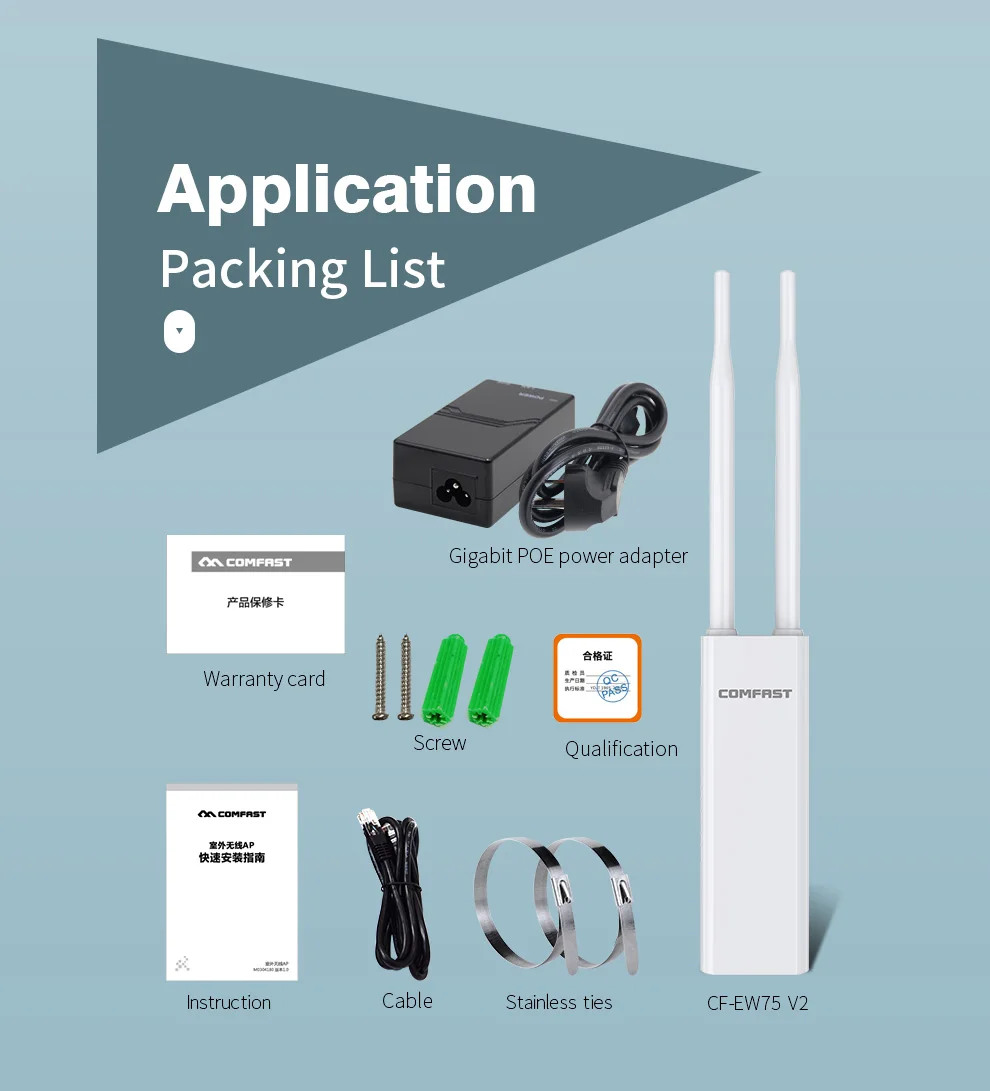

Packing List

1*CF-EW75 V2

1*Gigabit POE power adapter

1*Cable

2*Stainless ties

2*Screw

1*instruction

1*Warranty card

1*Qualification
