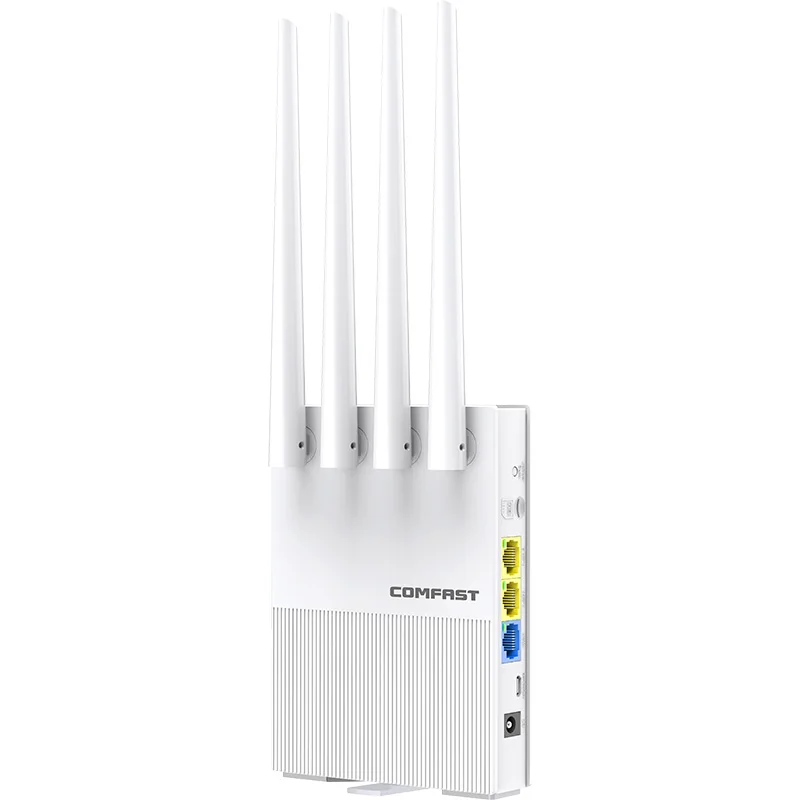

COMFAST 4G LTE Modem 150M with SIM Card 2.4G&5.8G 750Mbps Outdoor Portable Internet wireless Router 4 Antennas 32 Users Plug&Play

COMFAST 4G LTE Modem 150M with SIM Card 2.4G&5.8G 750Mbps Outdoor Portable Internet wireless Router 4 Antennas 32 Users Plug&Play

SPECIFICATIONS

wifi router DDR: 128MB

Router with sim card 4g Flash: 16MB

4g wifi router Wireless Standard: IEEE802.11a/b/g/n/ac

4g lte router Output Power (Max): 82mW(about 19dBm)

4g sim wifi router Receiver Sensitivity (Min): -96dBm

4g lte antenna 802.11b/g/n Frequency: 2.412GHz-2.472GHz

4g router with sim card slot 802.11ac/n/a Frequency: 5.180GHz_5.825GHz

Wi fi router Physical Port: 1*10/100Mbps WAN RJ45; 2*10/100Mbps LAN RJ45

wi-fi router 2.4GHz Speed: 300Mbps

Outdoor 4G WiFi Router 5.8GHz Speed: 450Mbps

4G SIM Card Router Modem Antenna: 2*5dBi Dual Band omnidirectional Antennas; 2*5dBi 4GHz Antennas

waterproof outdoor 4g cpe router Power: DC12V,1.5A

4g outdoor router waterproof Power Consumption: ≤18W

4g wifi router lte outdoor Installation Way: Desktop

outdoor 4g modem IP Index: Ip31 Level

router outdoor sim card: outdoor router lte sim

waterproof outdoor 4g cpe router: 4g outdoor router waterproof

Application: outdoor

Brand Name: COMFAST

Package: Yes

Wi-Fi Transmission Standard: 802.11ac

Max. LAN Data Rate: 300Mbps

2.4G Wi-Fi Transmission Rate: 300 Mbps

Wi-Fi Supported Frequency: 2.4G

With Modem Function: No

Wired Transfer Rate: 10/100Mbps

Certification: CE

Type: WireLess

Standards And Protocols: Wi-Fi 802.11g

Standards And Protocols: Wi-Fi 802.11b

Standards And Protocols: Wi-Fi 802.11n

Standards And Protocols: Wi-Fi 802.11ac

Supports WPS: Yes

Number of USB Interfaces: 1 x USB

LAN Ports: 2

WAN Ports: 2 x10/100Mbps

5G Wi-Fi Transmission Rate: 433Mbps

Choice: yes

semi_Choice: yes

Description

4G Lte Modem 150M with SIM Card 2.4G&5.8G 750Mbps Outdoor Portable Internet wireless Router 4 Antennas 32 Users Plug&Play

CF-E4 is a mobile 4G card router that does not require a broadband connection. You can access the Internet by inserting a SIM card.

It supports 4G three networks, and users can choose the package they want. Freed from the constraints of broadband, users can access the Internet anytime and anywhere.

The E4 router can meet the needs of mobile offices, online classes, shops, short-term rentals, micro-enterprises and other scenarios.

Support Frequency Band: 4G/3G/2G

FDD: B1 2100MHz, B3 1800MHz, B5 850MHz, B8 900MHz

TDD: B34 2015MHz, B38 2600MHz, B39 1900MHz, B40 2300MHz, B41 2500MHz

TD-SCDMA: B34 2100MHz, B39 1900MHz

WCDMA/HSPA+: B1 2100MHz, B8 900MHz

GSM: B5 850MHz, B8 900MHz, B3 1800MHz

Features

1.750mbps wifi router is outdoor 4G CPE router with 4pcs external high gain antenna to achieve LTE signal amplification.

2. 4g router is designed with water-proof and lightning-proof casing helps the unit to be good used at outdoors without Broadband.

3.COMFAST Outdoor Waterproof 4G CPE Router use Qualcomm chip.

4.Outdoor wifi distance :10-200M, supports max 32 users

5.When getting access to internet through ethernet cable; Get access to internet through 4G/3G/2G Get access to internet by inserting SIM card and connecting to device(SIM 4G mode need to confirm the LTE frequency is supported and the APN is correct).

6.Dual antenna high speed - External antenna *4(2pcs for wifi, 2pcs for LTE main antenna), Internal LTE diversity antenna. Wi-Fi Transfer rate：UP to 750Mbps. Support LED indicator.

7.One machine with four uses, you can choose the Internet access method, supporting 4G to wired, 4G to WiFi, broadband to WiFi, broadband to wired.

8.Supports 2.4&5.8GHz dual-band, stronger anti-interference, and faster 5G WiFi.

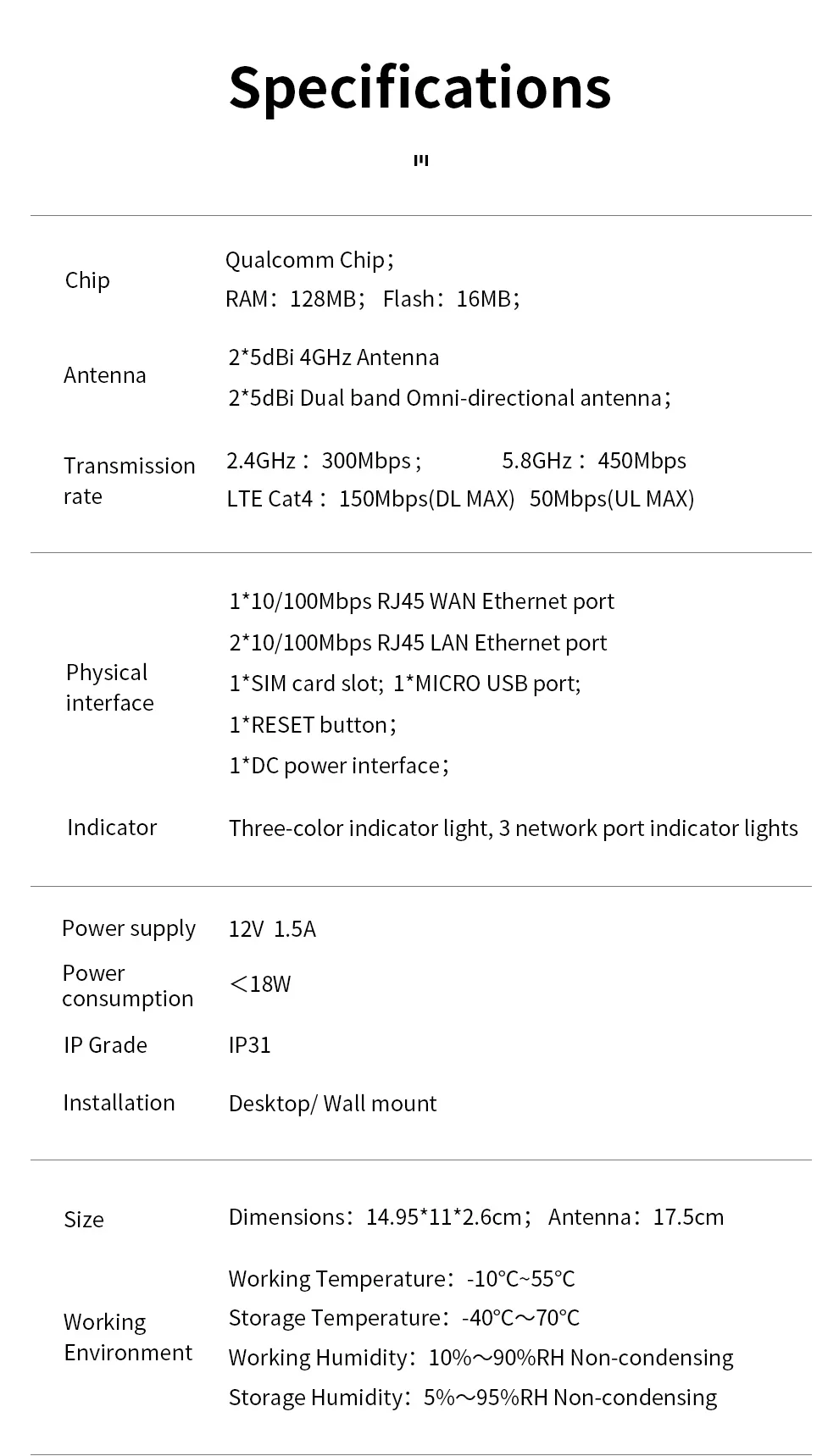

Specifications:

●Qualcomm chip solution + 4G module

●Memory: 128MB; Flash memory: 16MB

●Antenna: 2*5dBi 2.4Ghz+5.8Ghz Dual Band omnidirectional Antennas; 2*5dBi 4GHz Antennas

●Support IEEE802.11a/b/g/n/ac standard

●WiFi speed: 750Mbps

●WiFi Working frequency: 802.11b/g/n: 2.412GHz - 2.472GHz, 300Mbps; 802.11ac/n/a: 5.180GHz - 5.825GHz, 450Mbps

●4G: 150MBps (DL MAX) 50MBps (UL MAX)

●Maximum transmit power: 82mW (≈19dBm)

●Minimum receiving sensitivity: -96dBm

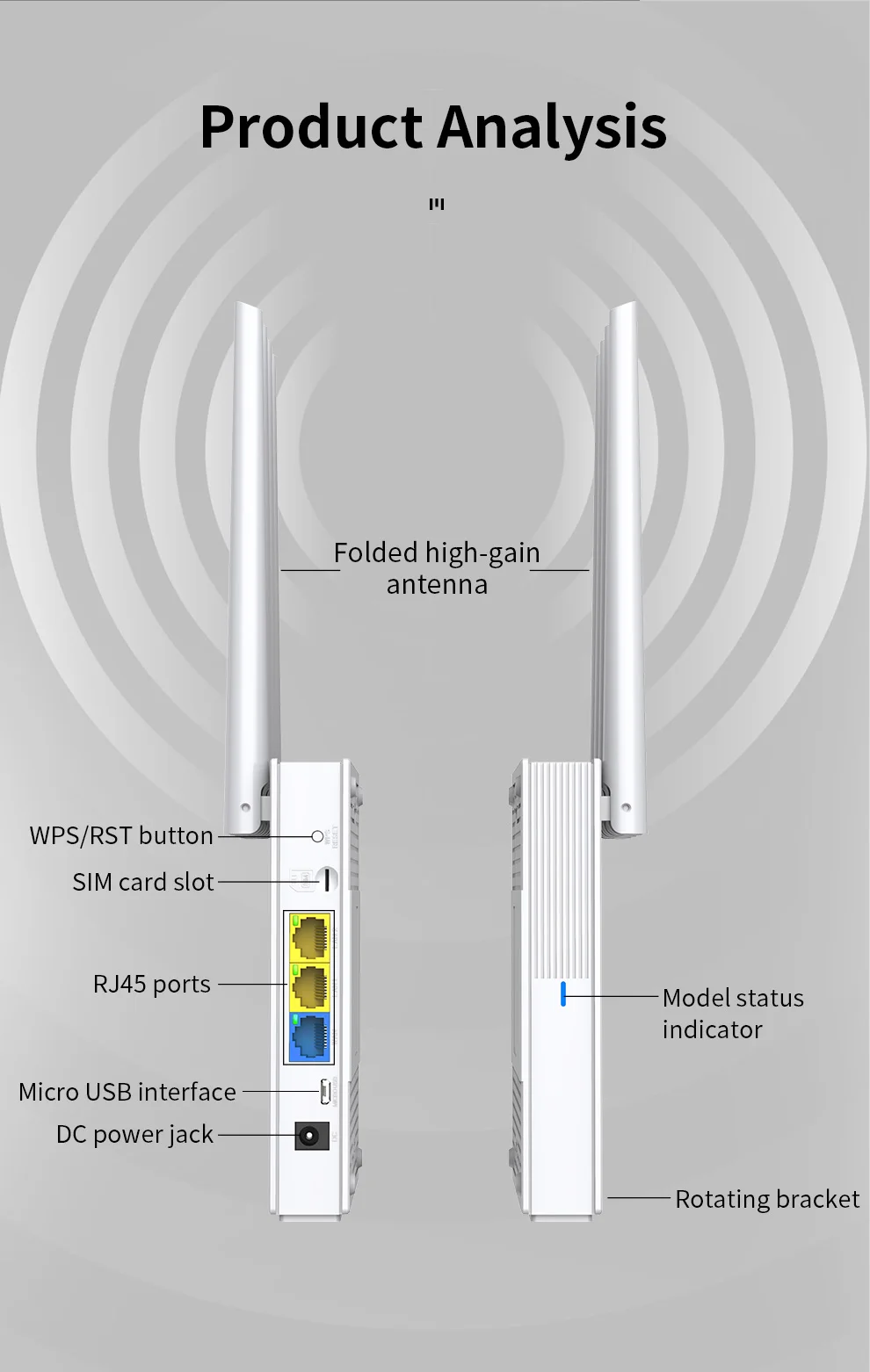

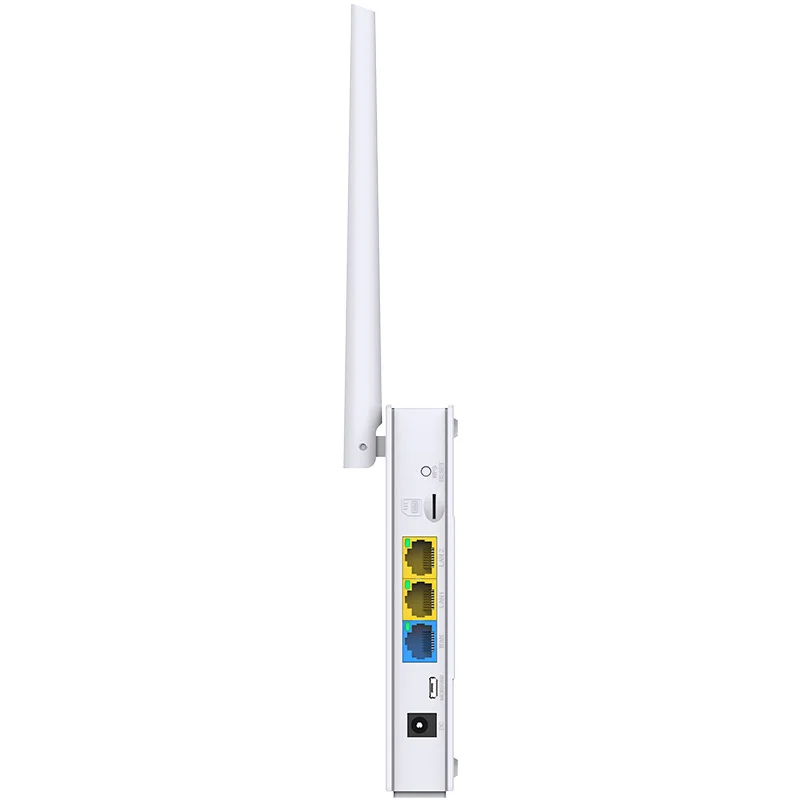

●Physical Interface:

1x 10/100MBps RJ45 WAN Ethernet Port

2x 10/100MBps RJ45 LAN Ethernet Ports

1x SIM Card Slot; 1x MICRO USB Interface

1x RESET/WPS Reset Button

1x DC Power Interface

●Power Supply: DC12V, 1.5A

●Power Consumption: ≤18W

●Protection Level: IP31

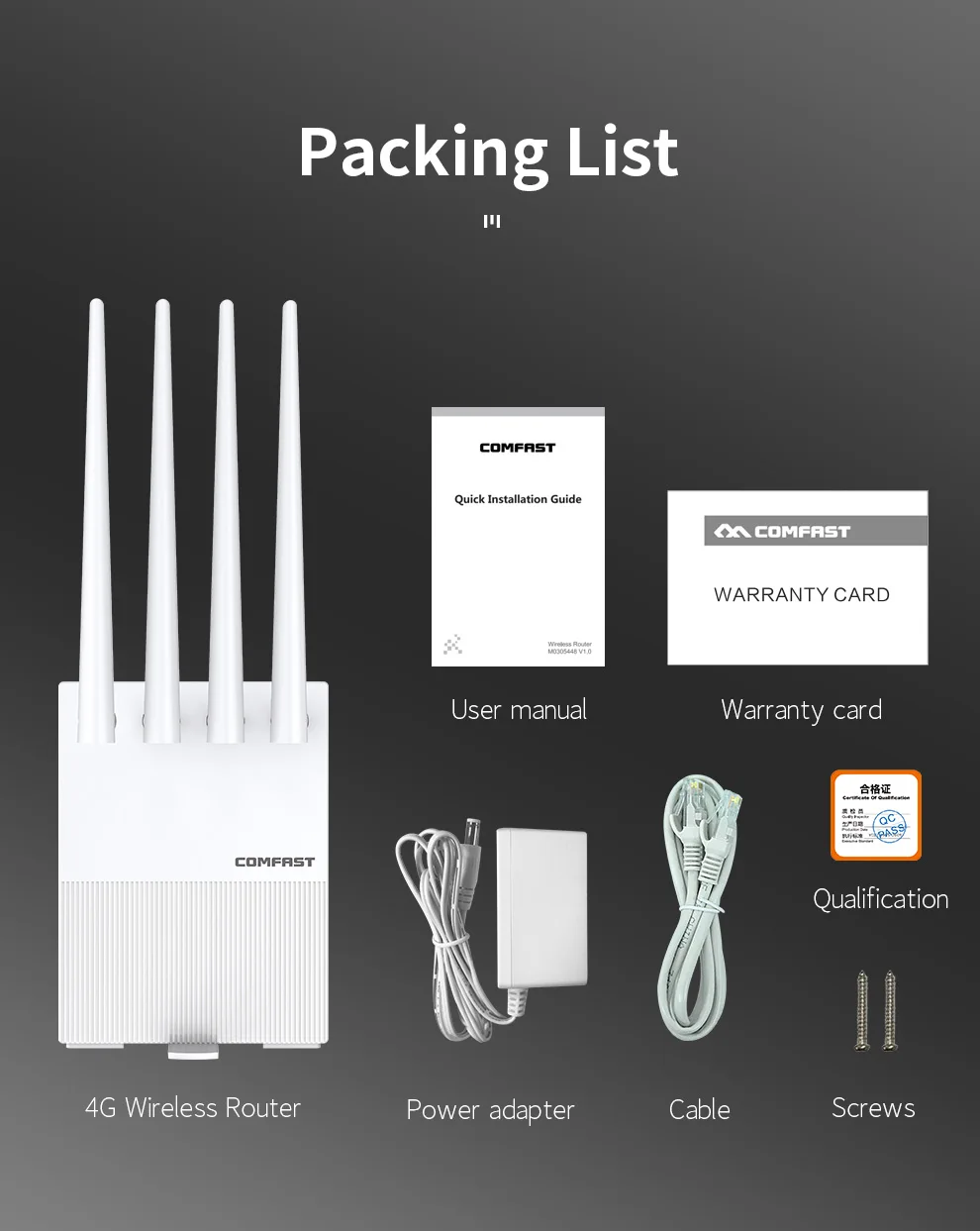

Package content:

1* 4G Router

1* POE Power Adapter

1* Network Cable

1* User Manual

1* Guarantee Card

12 reasons to choose us

Plug and play；One machinewith 4 uses；Support triple4G networks；Cost saving；4G to wired/ WiFi；Dual-band750M WiFi；4 antennas；Flexible display；Plug and play；Stableperformance；Anti-rubbingnet；Smart chip

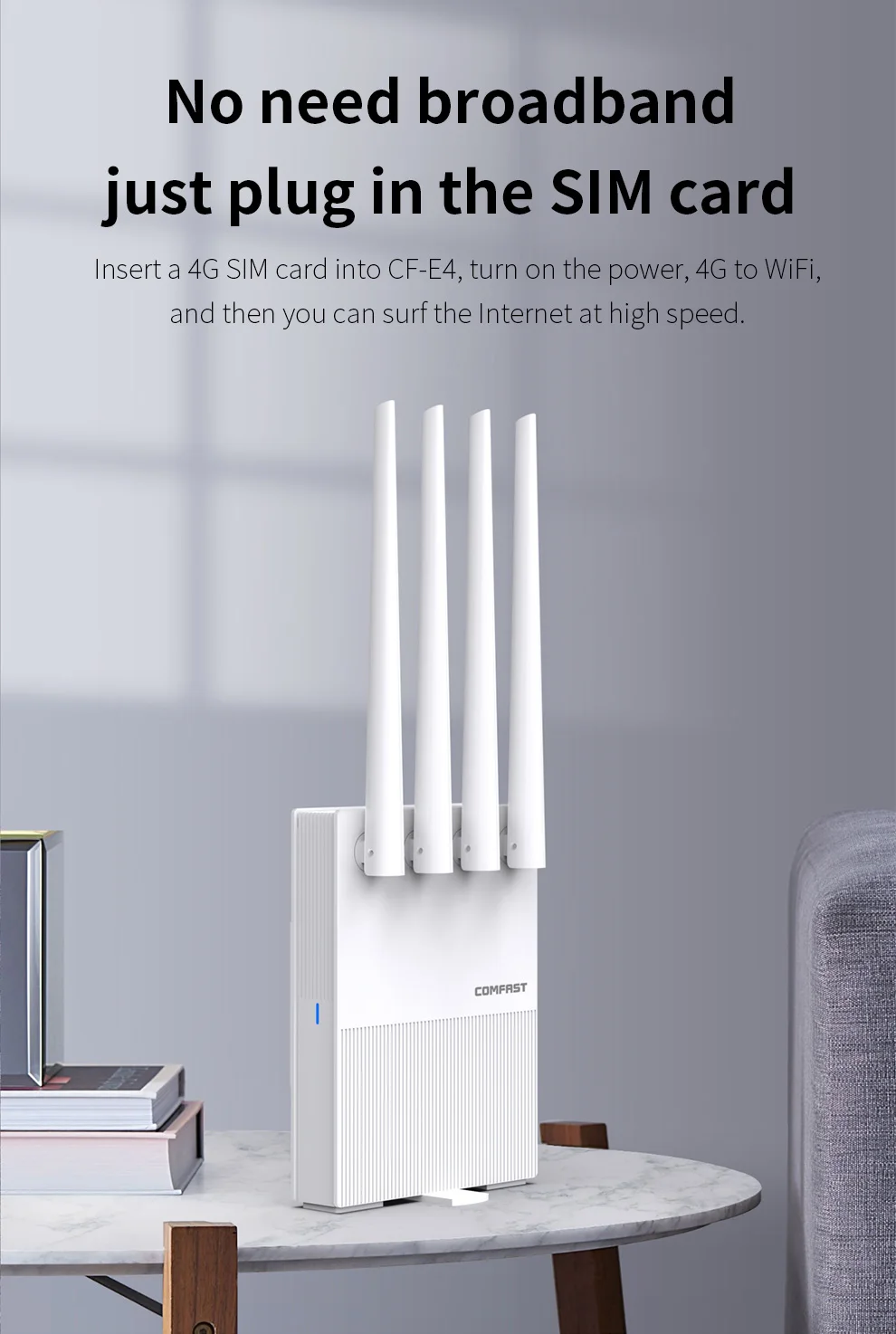

No need broadband,just plug in the SIM card

Insert a 4G SIM card into CF-E4 , turn on the power , 4G to Wifi and then you can surf the Internet at high speed

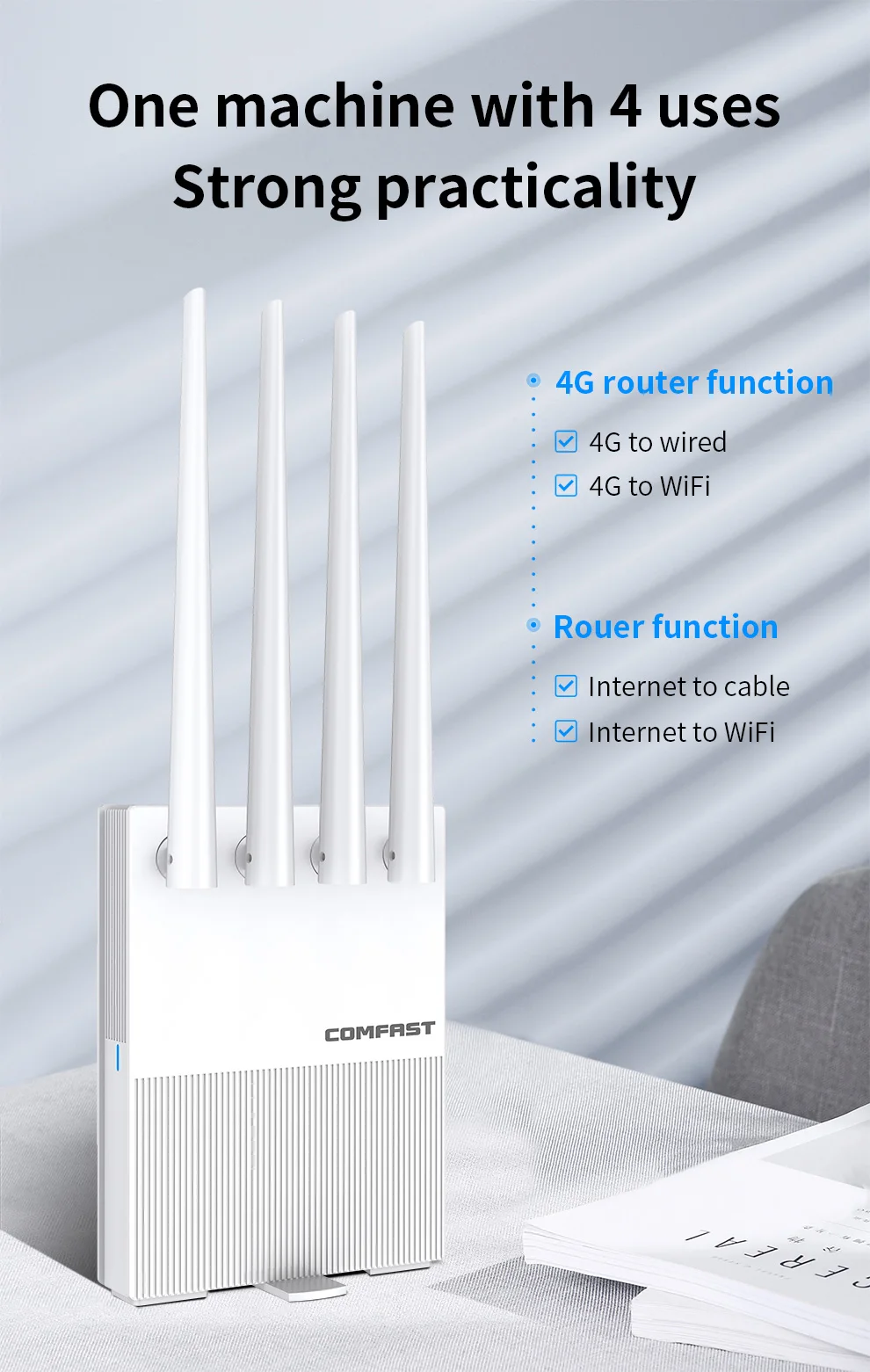

One machine with 4 uses Strong practicality

●4G router function：4G to wired / 4GtoWiFi

●Router function：Internet to cable / Internet to WiFi

Typical application scenarios

Home free broadband；Travel / RV / Travel Friend；Outdoor live broadcast；Cashier monitoring；Remote area / Rural area；Micro business office

It can be used for computer ,mobile phone , tablet ,monitoring etc .

Enhanced 4 antennas . both wired and wireless are stable

The equipment is equipped with two 4G and two dual-band high-gain L omnidirectional antennas , which are more stable regardless of wired or wireless Internet access

750M dual-band WIF+ high-speed 4G

CF-E4 Wifi rate supports 750mbps , 4G download speed is up to 150mbps ,video and audio is faster , game live broadcast is more stable , and the Internet experience is newly upgraded

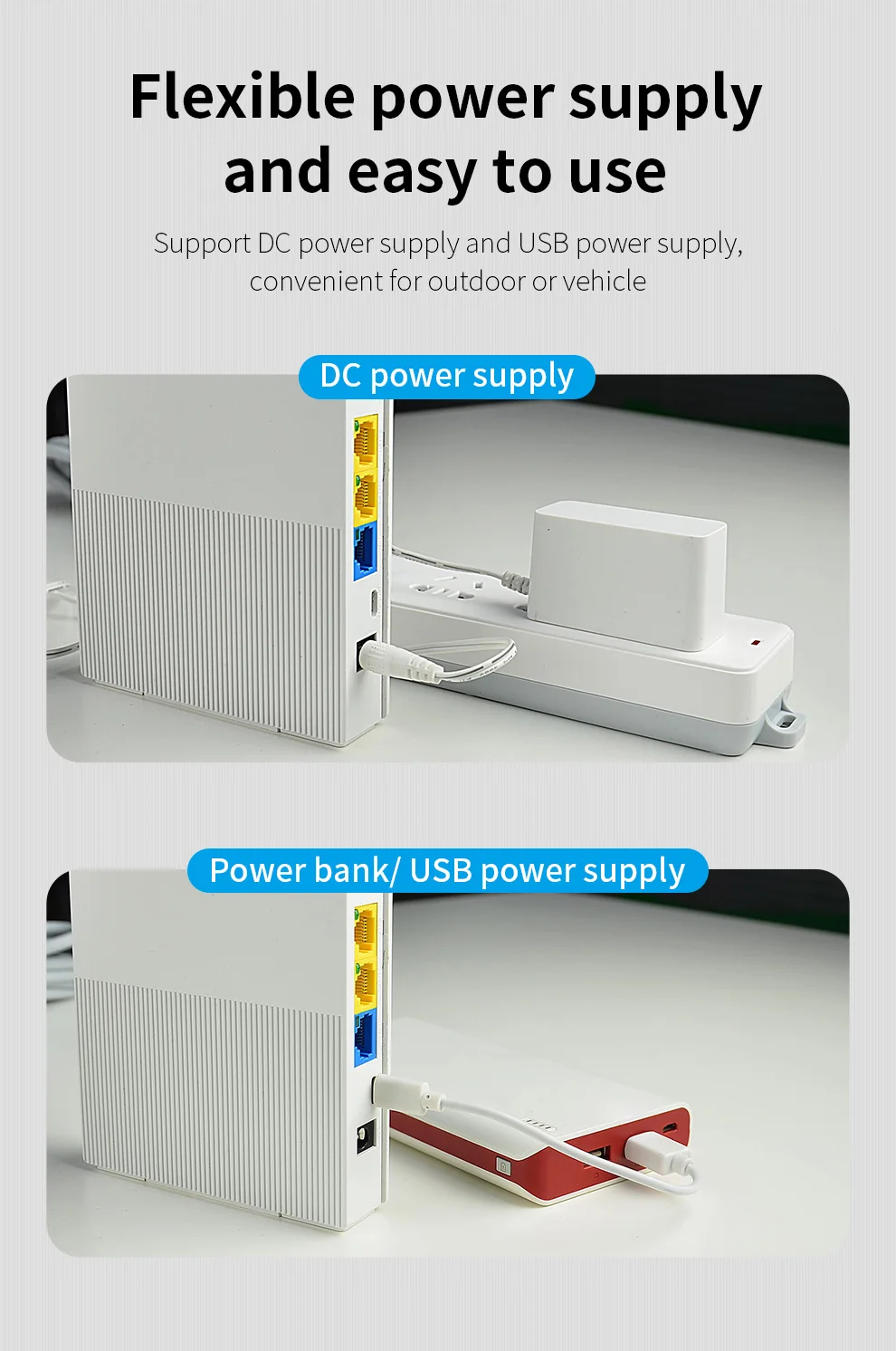

Flexible power supply and easy to use

Support DC power supply and USB power supply ,convenient for outdoor or vehicle

Qualcomm dual core reliable guarantee

Adopt American Qualcomm dual-chip solution + 4G module ,the solution is stable and reliable , and users can surf the Internet freely

Qualcomm dual core reliable guarantee

Adopt American Qualcomm dual-chip solution + 4G module ,the solution is stable and reliable , and users can surf the Internet freely

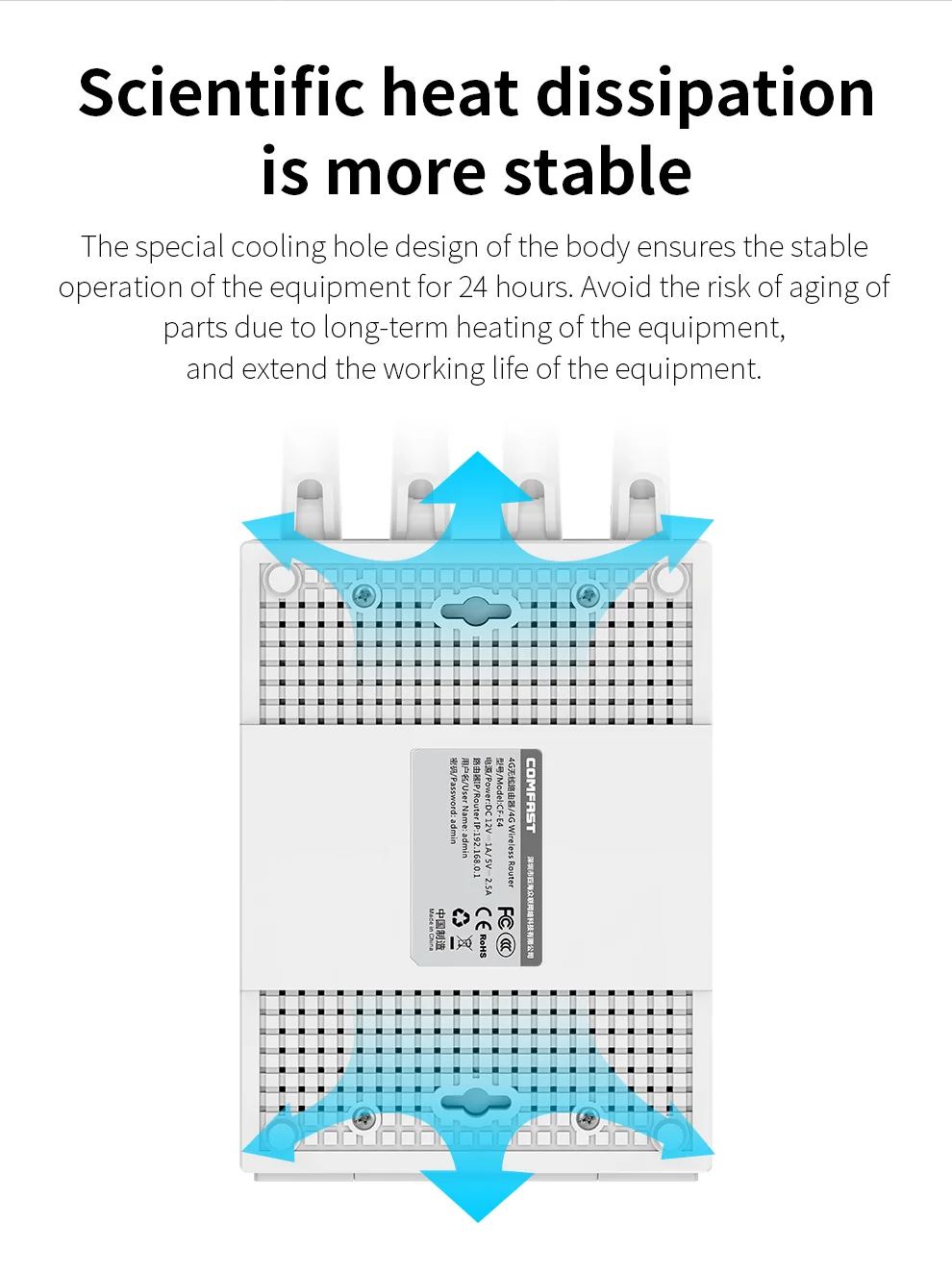

Scientific heat dissipation is more stable

The special cooling hole design of the body ensures the stable operation of the equipment for 24 hours. Avoid the risk of aging of parts due to long-term heating of the equipment,and extend the working life of the equipment.

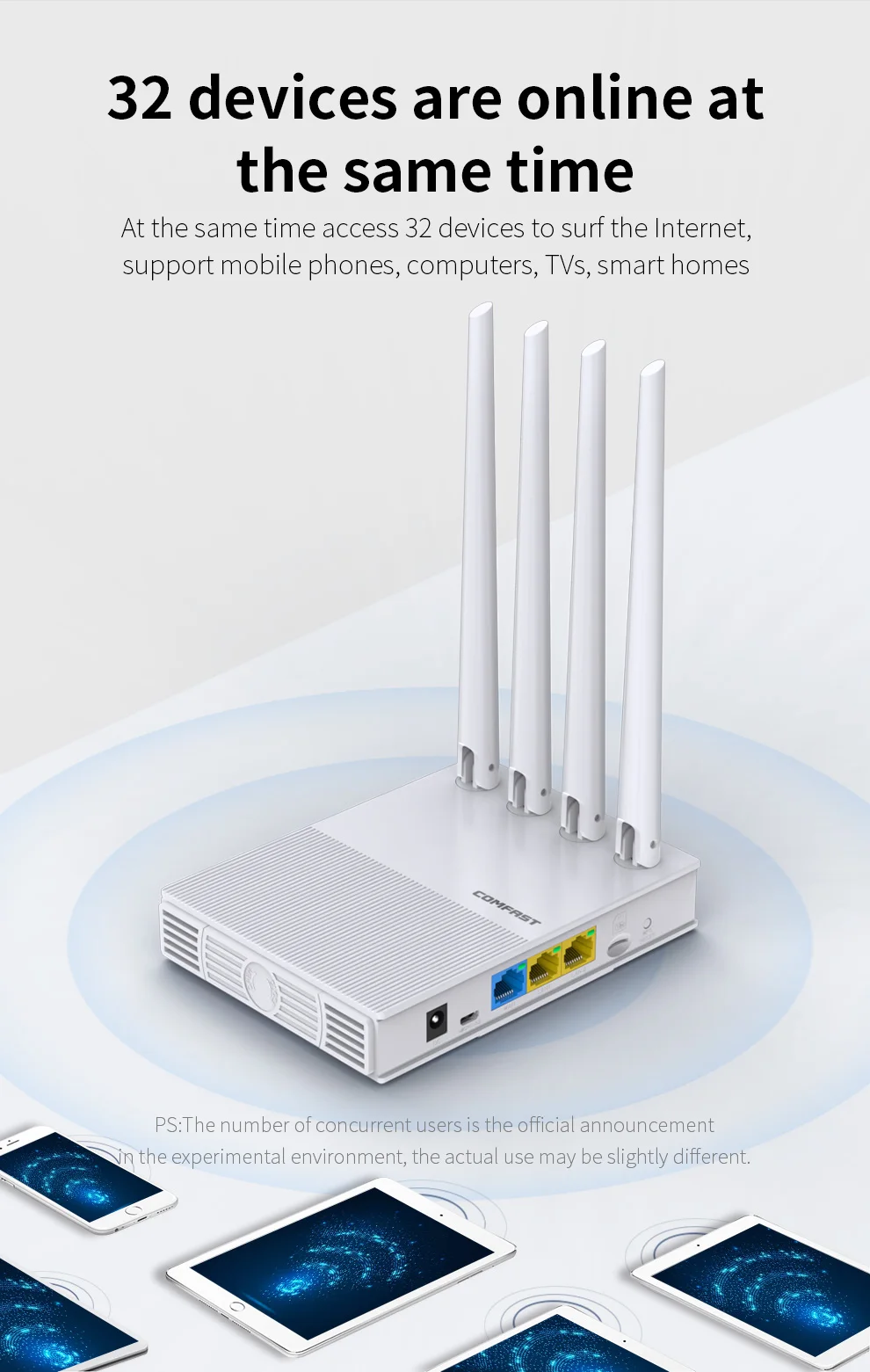

32 devices are online at the same time

At the same time access 32 devices to surf the Internet support mobile phones , computers , TVS , smart homes

PS:The number of concurrent users is the official announcement，in the experimental environment, the actual use may be slightly different.

Plug and play

The SIM card slot of this product supports Nano SIM card( size 12 *9mm ) , please pay attention to the direction when inserting the card
