3-5km 5.8G Outdoor CPE 900Mbps Long Range Extender High Power Signal Amplifier Waterproof Wireless Bridge

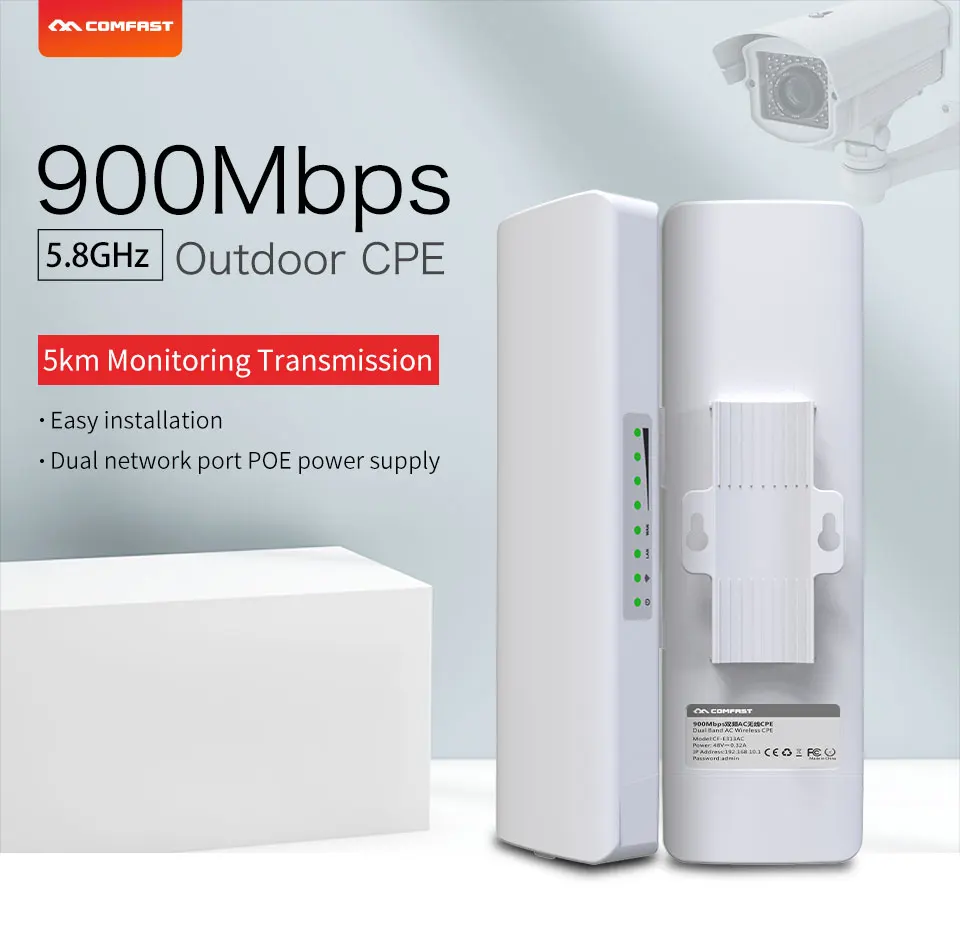

COMFAST 3-5km 5.8G Outdoor WiFi CPE 900Mbps Long Range Extender High Power Signal Amplifier Waterproof Wireless Bridge Repeater

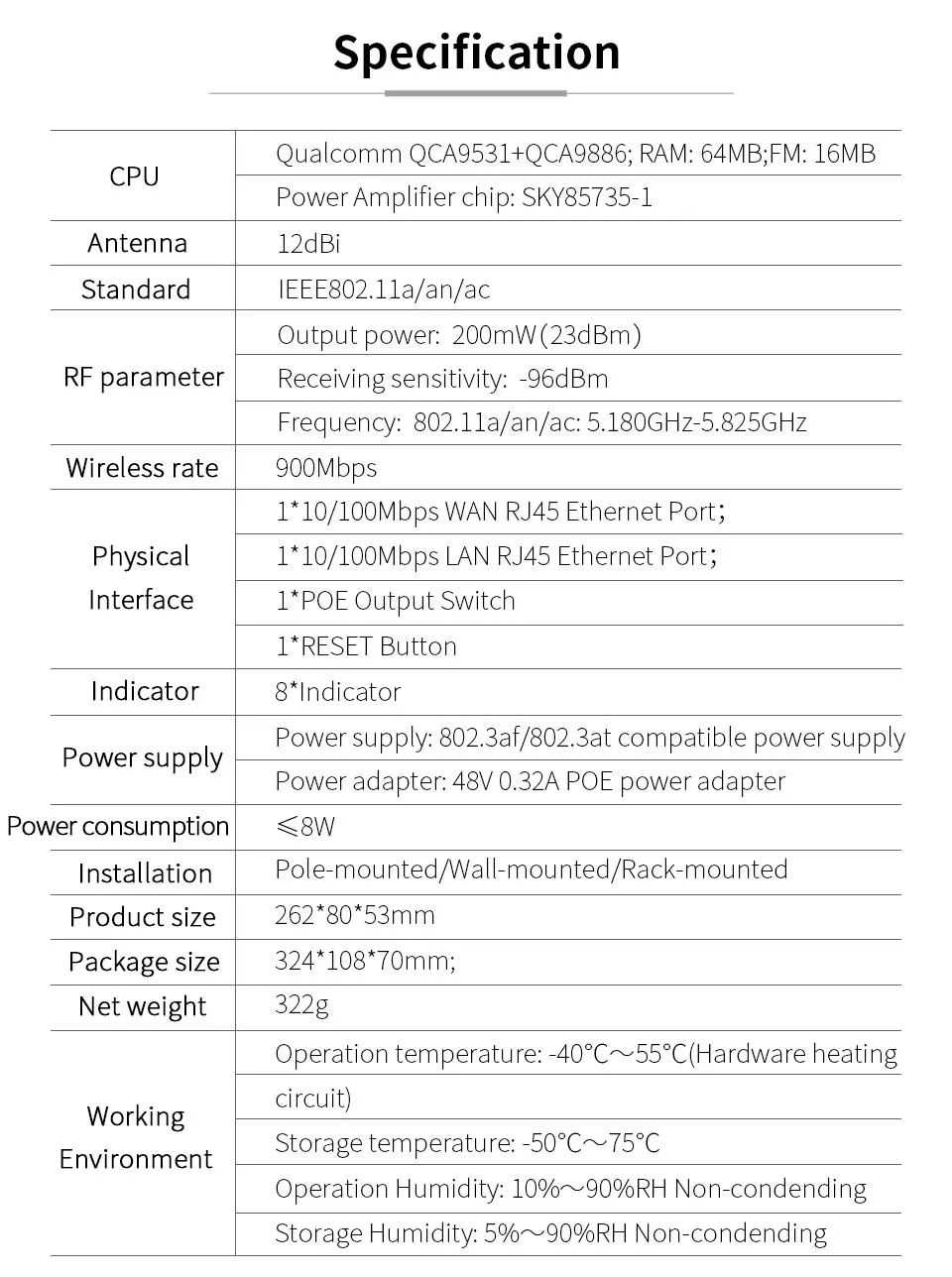

SPECIFICATIONS

Outdoor Router CPE Bridge: 900Mbps HD Outdoor Surveillance Network Bridge

point to point CPE Max distance: 3-5KM

CF-E313AC: 900Mbps

point to point CPE Chipset: QCA9531+QCA9886

Outdoor booster Antenna: 2*14dBi Antennas

Wireless Standard: IEEE802.11a/an/ac

Working Frequency: 5.180GHz-5.825GHz

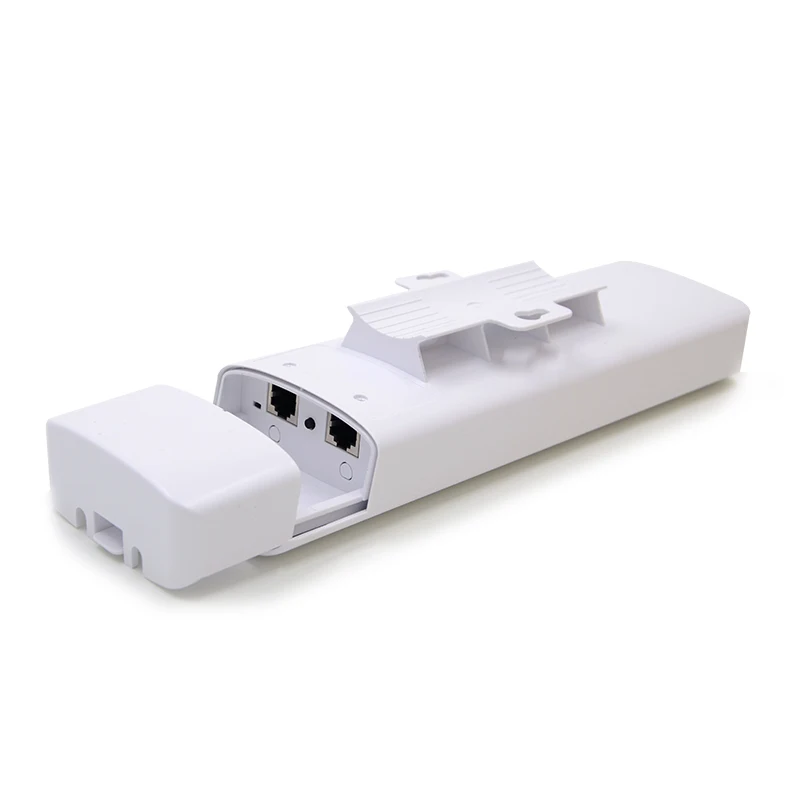

5Ghz point to point Port 1: 1*10/100Mbps WAN RJ45 Ethernet Port

Outdoor Wireless Bridge Port 2: 1*10/100Mbps LAN RJ45 Ethernet Port

5KM Long Range Amplifier Port 3: 1* RESET Button

outdoor wifi Bridge Port 4: 1* POE Switch

Indicator: 8* Indicators:Power, WAN, LAN,WiFi,Signal Strength(1-4)

Power Supply: Support 802.3af

Power Adapter: 48V 0.32A POE

Installation Way: Nail-wall / Bracket-mounted / Pole-mounted

IP Index: 2KV Lightning Protection; IP65

Wifi Signal Extender: Outdoor Wireless Bridge

5Ghz point to point: 5KM Long Range Amplifier

Wifi Signal Extender: 5Ghz Outdoor Amplifier

900Mbps outdoor Repeater CPE: outdoor wifi Bridge

Outdoor booster: water proof wifi Bridge

point to point wireless bridge: wifi bridge booster

outdoor signal Extender: access point outdoor

wireless bridge router: wifi street access point

Application: outdoor

Brand Name: COMFAST

Package: Yes

Wi-Fi Transmission Standard: 802.11ac

Max. LAN Data Rate: 867Mbps

2.4G Wi-Fi Transmission Rate: none

Wi-Fi Supported Frequency: 5G

With Modem Function: No

Wired Transfer Rate: 10/100Mbps

Certification: CE

Type: WireLess

Standards And Protocols: Wi-Fi 802.11ac

Function: Firewall

Supports WPS: Yes

Supports WDS: Yes

LAN Ports: 1

WAN Ports: 1 x10/100Mbps

5G Wi-Fi Transmission Rate: 867Mbps

Choice: yes

semi_Choice: yes

Description:

900Mbps Outdoor CPE WIFI Router Extender 3-5KM Long Range High Power Wireless Bridge 5.8G Signal Booster Amplifier CF-E313AC

Notes:

Outdoor Point to point as wifi bridge 5km (*without obstacles)

5.8G cpe more better for the ip cam monotor or elevatior , less interference ,long Range Wifi Transmit

The distance "5KM" means 2pcs CPE based on point-to-point bridge mode.

There are many factors that affect distance, such as obstacles(trees, walls, buildings, trucks), raw network signals, etc

*Optional: To get good signal, 2pcs are recommended

It is suitable for the transmission of wireless signals in security monitoring projects; the transmission of monitoring projects such as scenic spots, ports, oil fields, and construction sites.

Main Features:

1. QCA9531+QCA9886 Chipset, 802.11a/an/ac Support

2. Built-in 12dBi dual-polarized directional MIMO antenna

3. Adjustable transmission power from 0 to 23dBm/200mw

4. AP / Wireless Client / Repeater operation modes

5. Outdoor stabilized enclosure with IP65 waterproof

6. High Quality 48V Poe Adapter

7. Extend the reach of your existing company network to another building

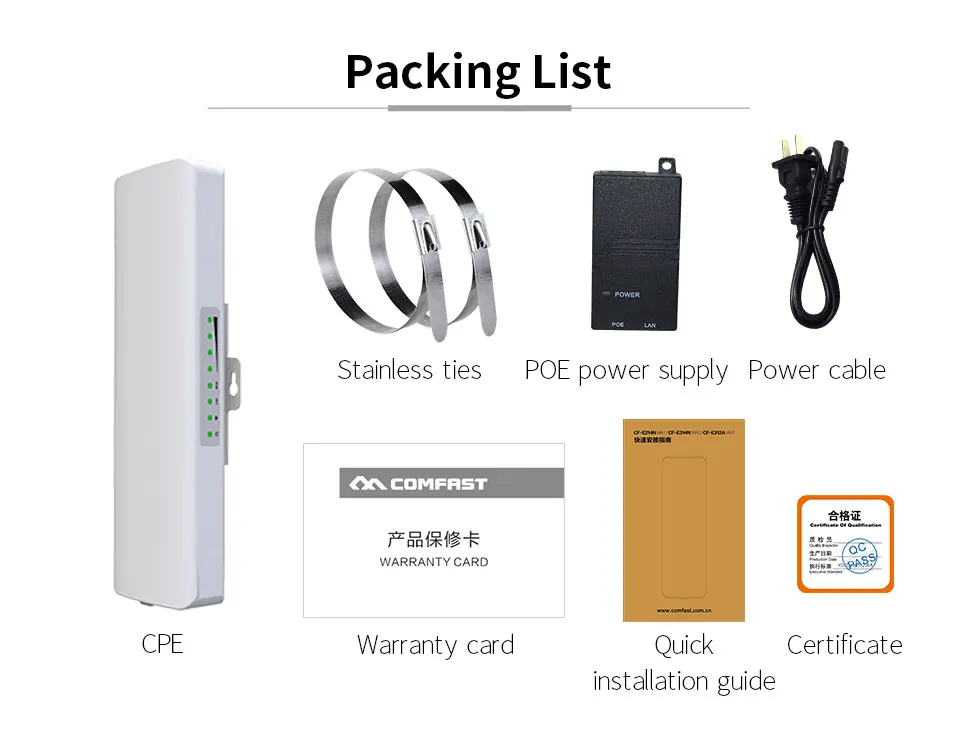

Package includes:

1*CF-E313A CPE
1*Poe Adapter
1*Quick install guide
1*Power cable
2*Stainless Steel Ring

HD CPE Worry-free Monitoring

900mbp/5km Transmission/5.8G Anti-interference

Support 10-20HD cameras/Qualcomm Chip/Dual network port power supply

CF-E313AC use 802.11ac wireless technology,make transmission faster and more fluent with 900mbps

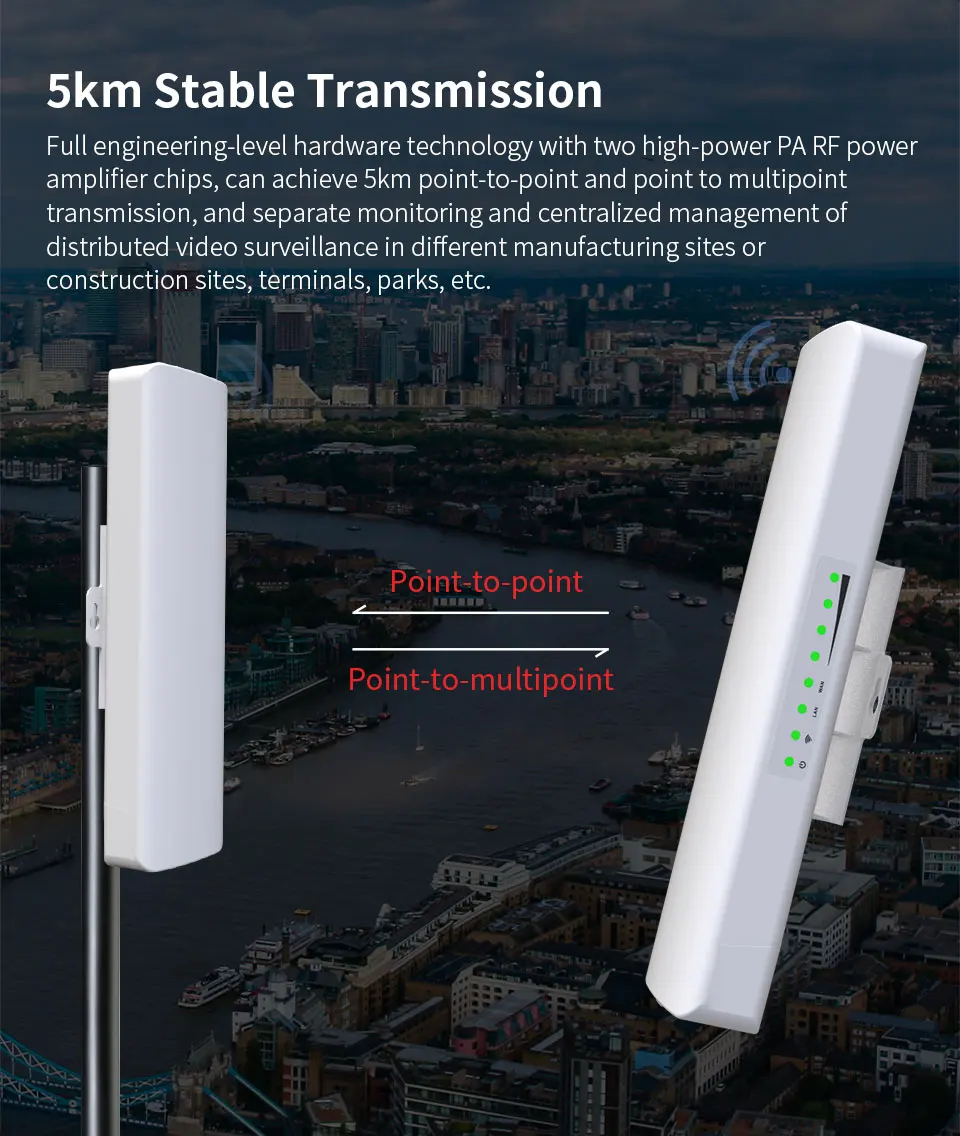

5km stable Transmission

Full engineering-level hardware technology with two high-power PA RF power amplifier chips , can achieve 5km point-to-point and point to multipoint transmission , and separate monitoring and centralized management of distributed video surveillance in different manufacturing sites or construction sites , terminals , parks , etc .

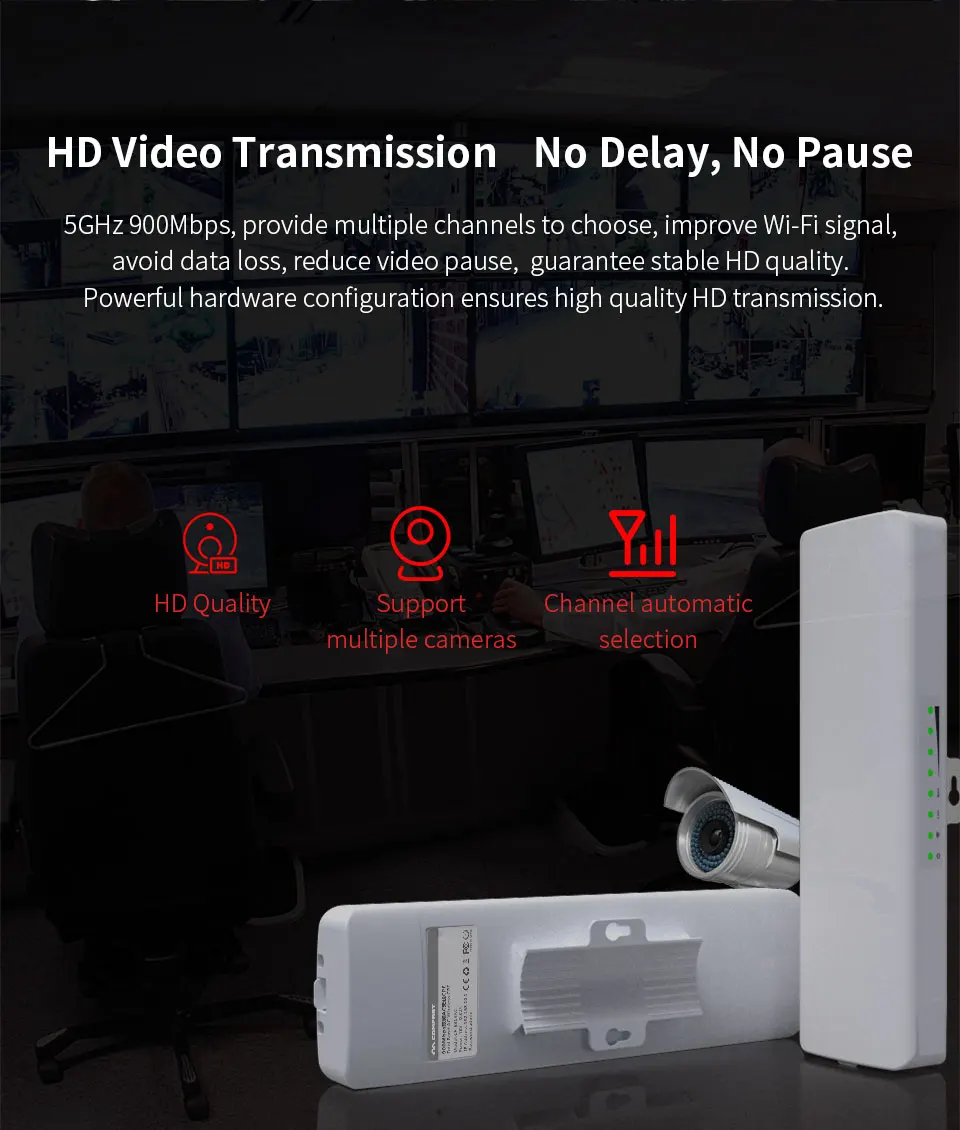

HD Video Transmission No Delay , No Pause

5GHZ 900mbps , provide multiple channels to choose , improve Wi-fi signal ,avoid data loss , reduce video pause , guarantee stable HD quality ,Powerful hardware configuration ensures high quality HD transmission

Qualcomm Chips Guarantee Perfect Performance

Qualcomm chipset has been tested and precipitated over time,and it is trusted and favored by engineering users

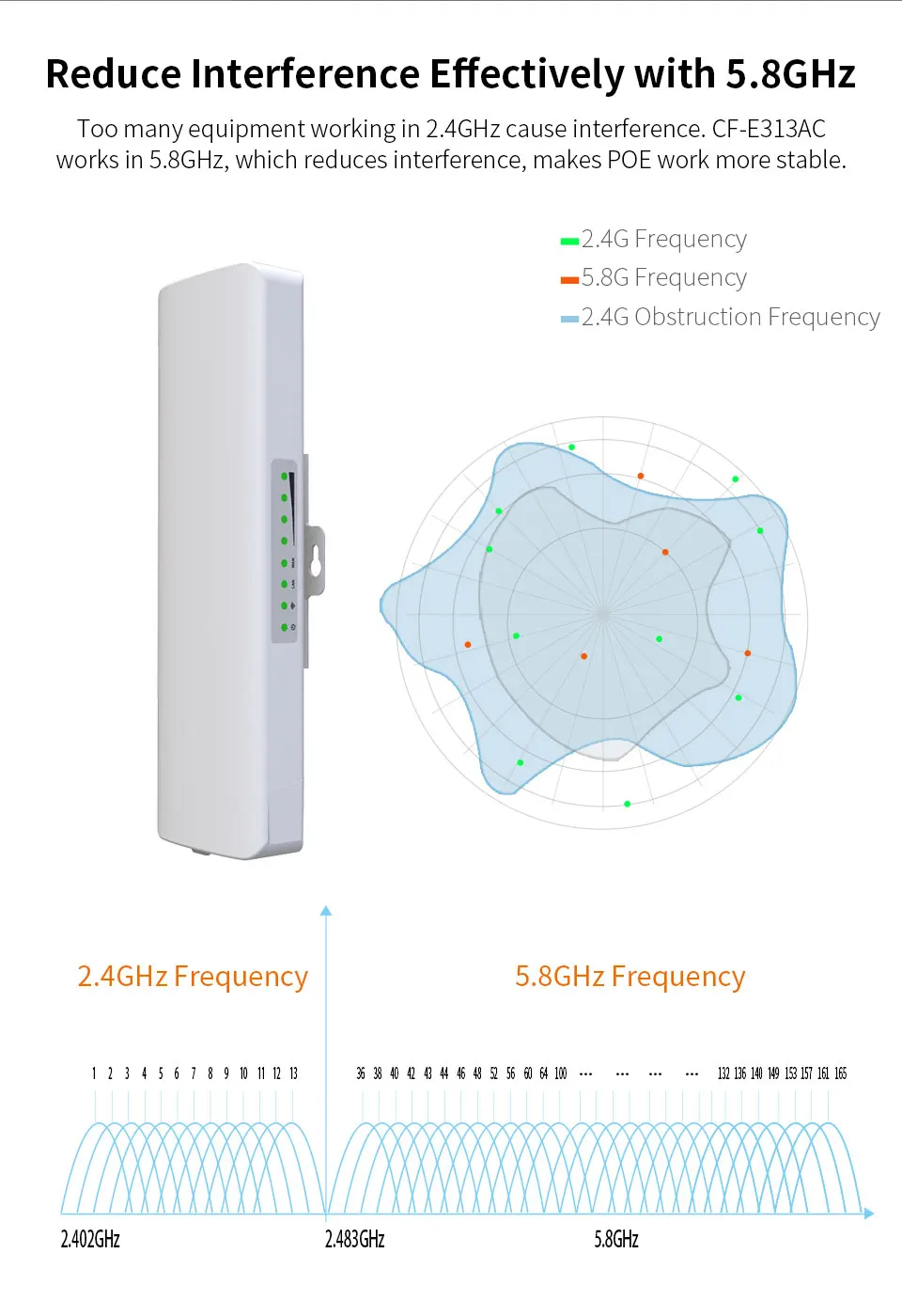

Reduce Interference Effectively with 5.8GHZ

Too many equipment working in 2 . 4GHZ cause interference . CF-E313AC works in 5 . 8GHZ , which reduces interference , makes POE work more stable

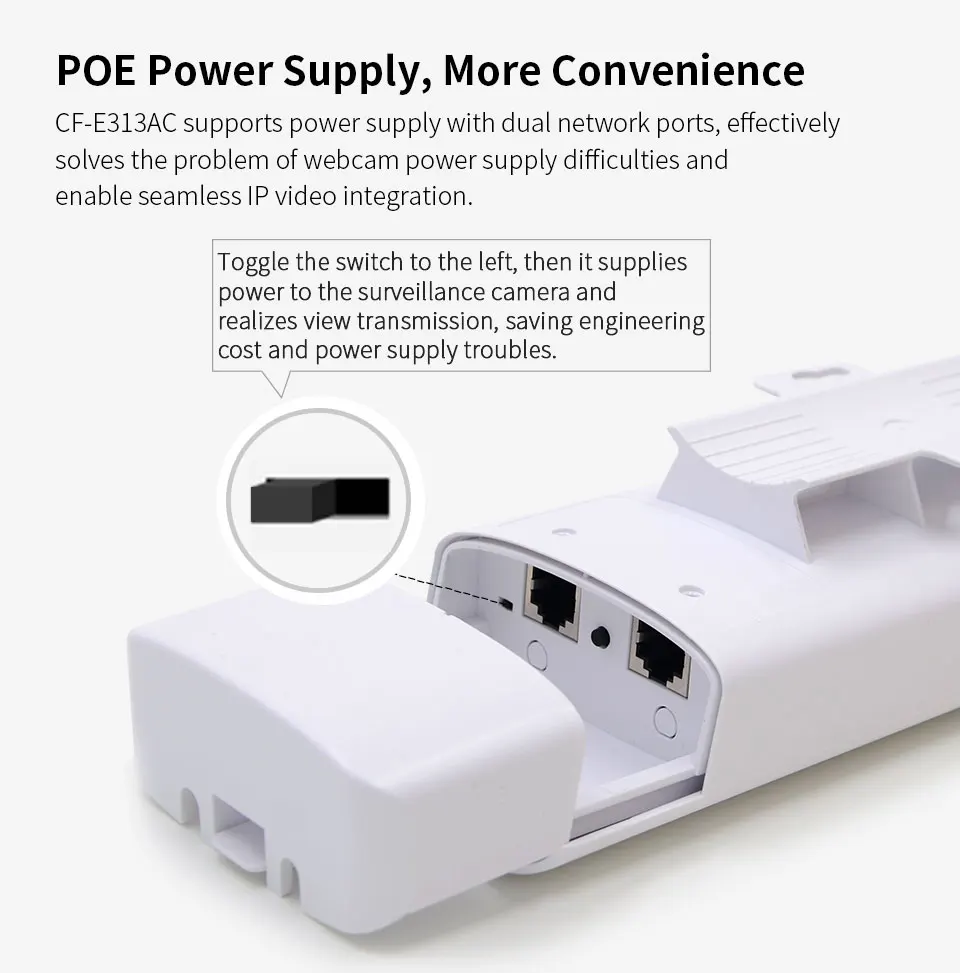

POE Power Supply , More Convenience

CF-E313AC supports power supply with dual network ports , effectively solves the problem of webcam power supply difficulties and enable seamless IP video integration

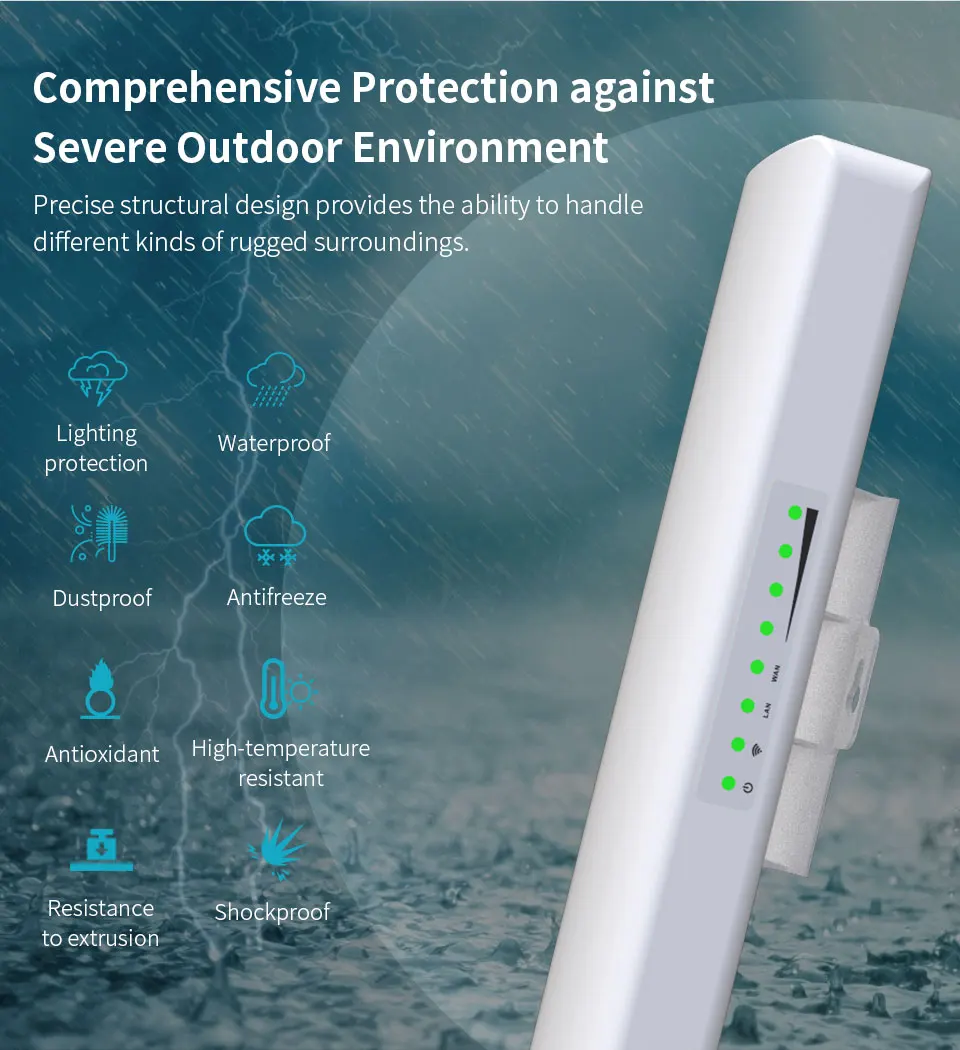

Comprehensive Protection against Severe Outdoor Environment

Precise structural design provides the ability to handle different kinds of rugged surroundings

Low Temperature Protection

It can support work and start up in low temperature

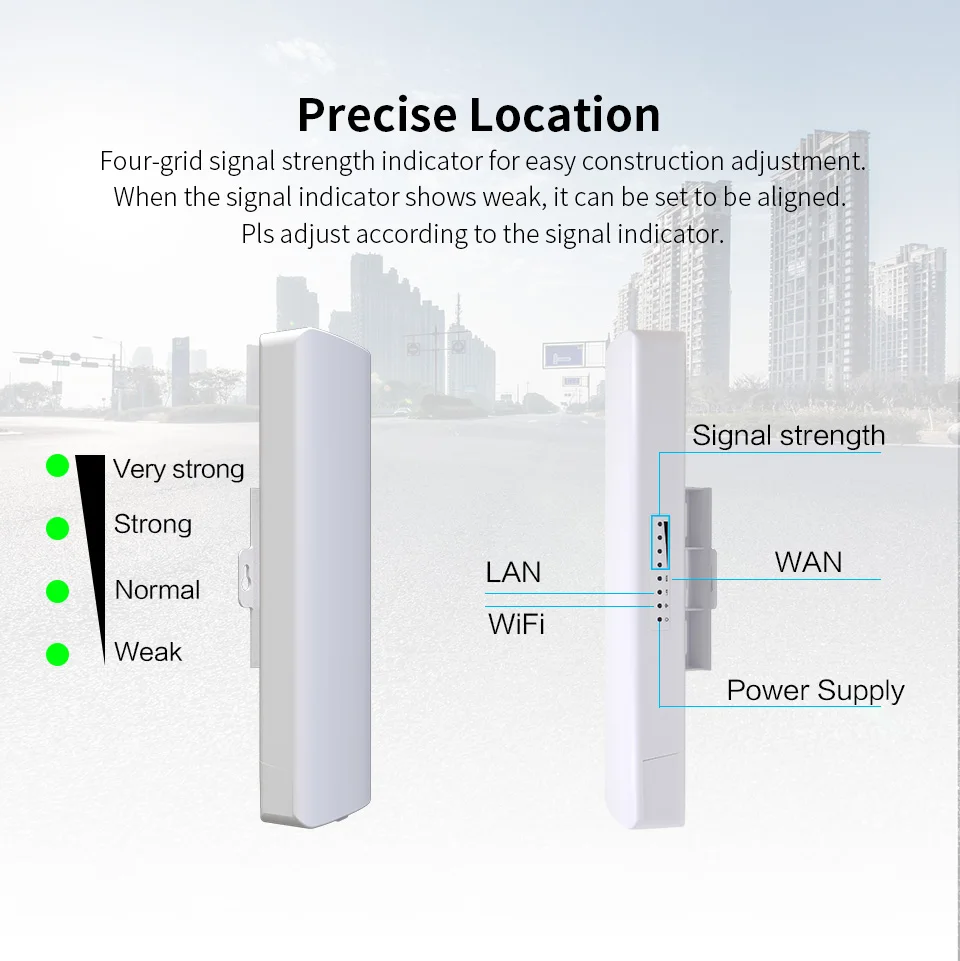

Precise Location

Four-grid signal strength indicator for easy construction adjustment.When the signal indicator shows weak , it can be set to be aligned .Pls adjust according to the signal indicator

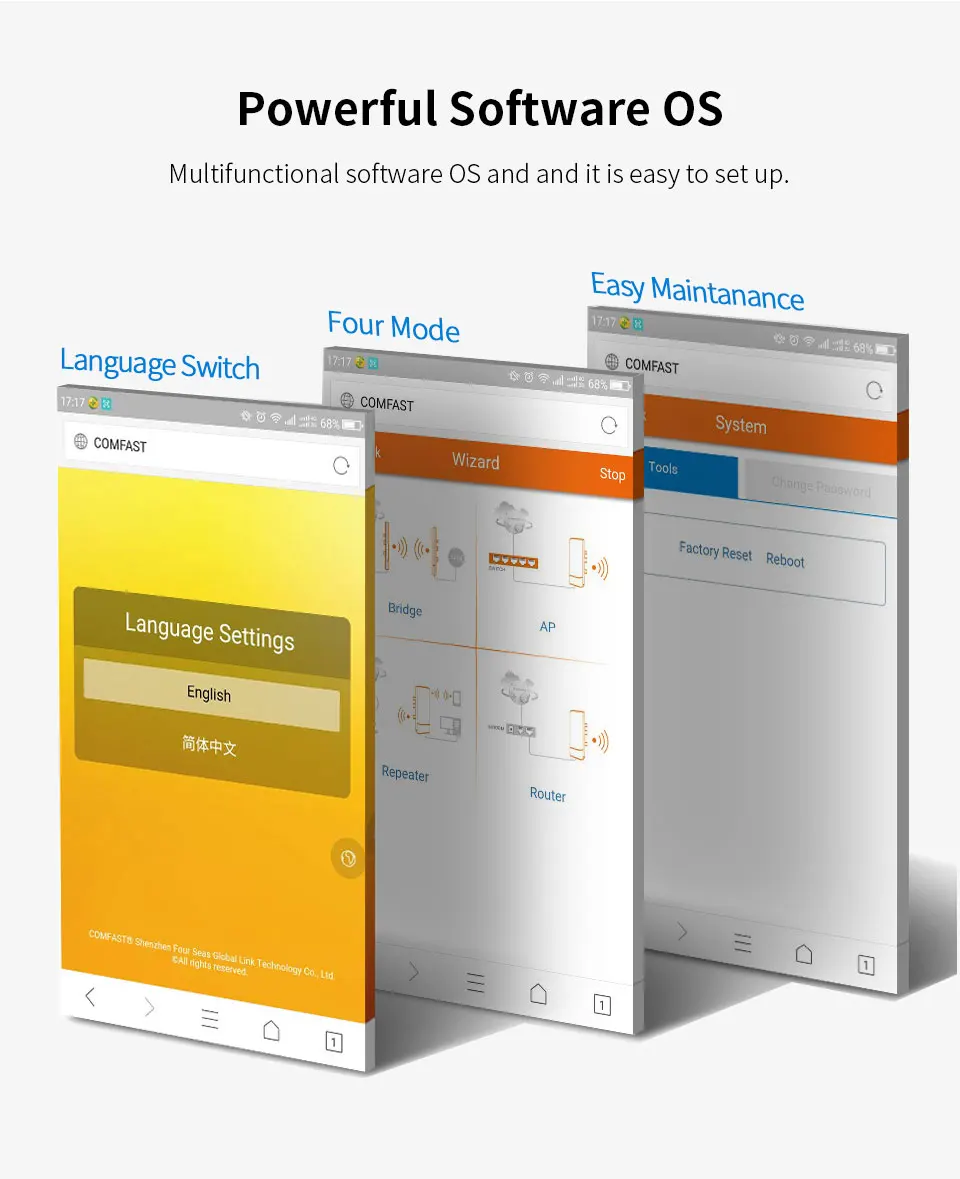

Powerful Software OS

Multifunctional software OS and and it is easy to set up

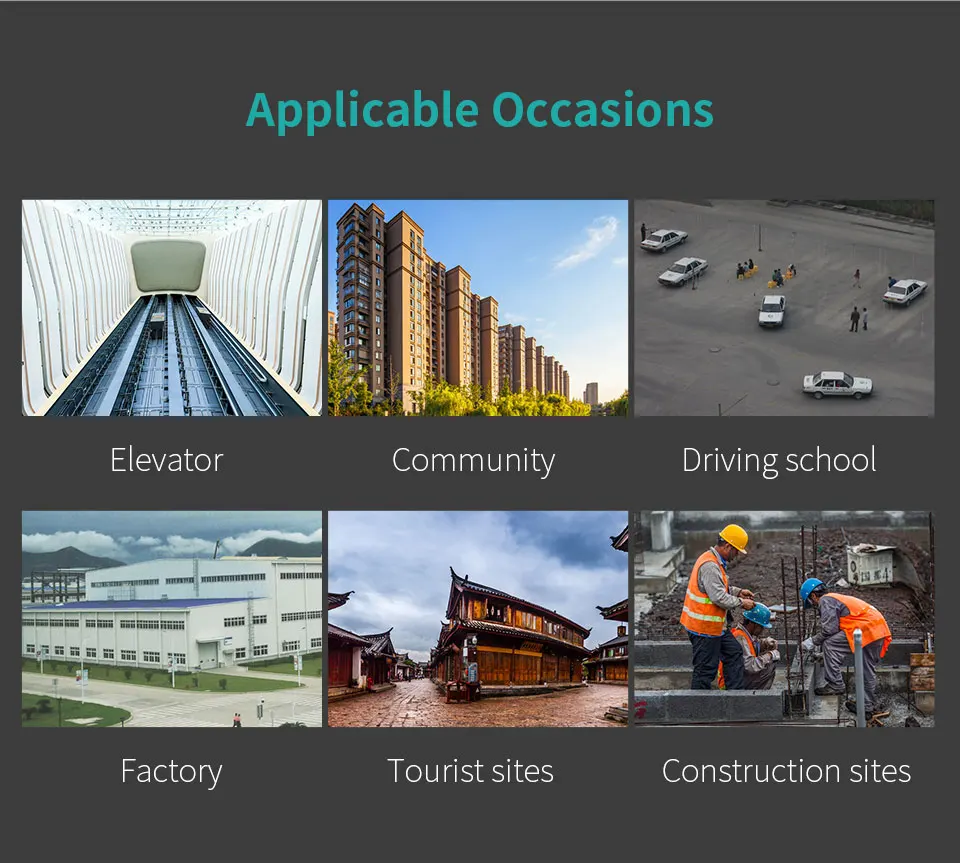

Applicable Occasions

Elevator/Community/Driving school

Factory/Tourist sites/Construction sites

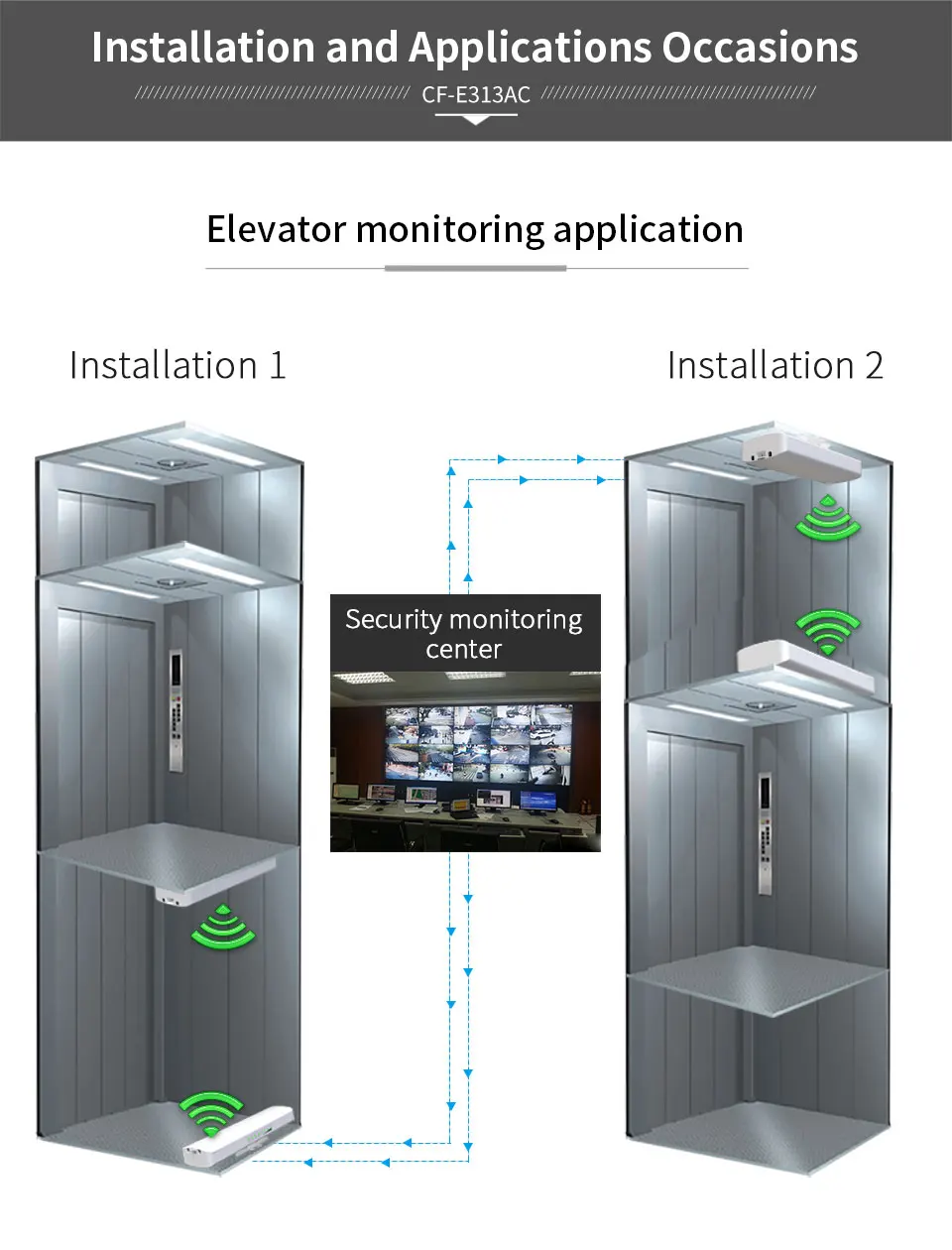

Elevator monitoring application

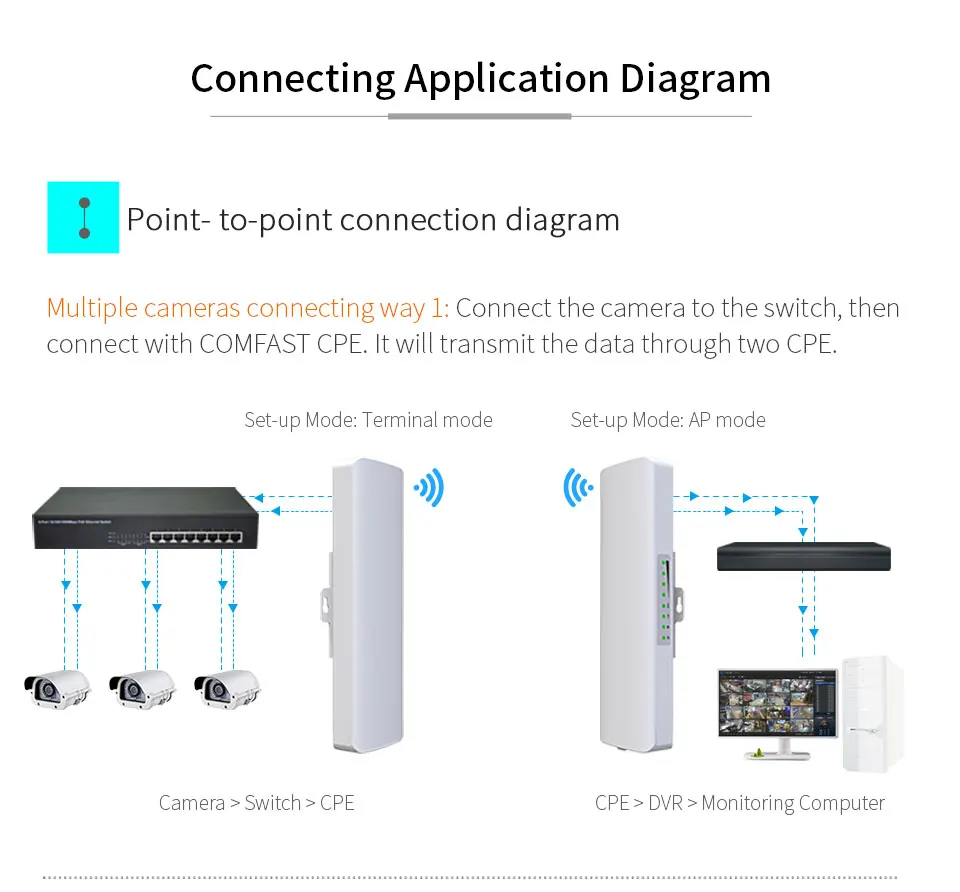

Connecting Application Diagram

01 Point-to-point connection diagram

Multiple cameras connecting way 1 : Connect the camera to the switch , then connect with COMFAST CPE It will transmit the data through two CPE

Multiple cameras connecting way 2 : If cameras are far away from each other ,configure each camera with two CPES . The control center connects CPE with AP mode via switch then connect with DVR

02Point to Muti-point Connection Diagram

If the angle of camera and monitor center is less than 60degree , there can consider one point to multi point connection . It can reduce CPES with the transmitting mode , which can save project cost a lot . Pls pay attention that it has to meet the angle and Broadband requirement
