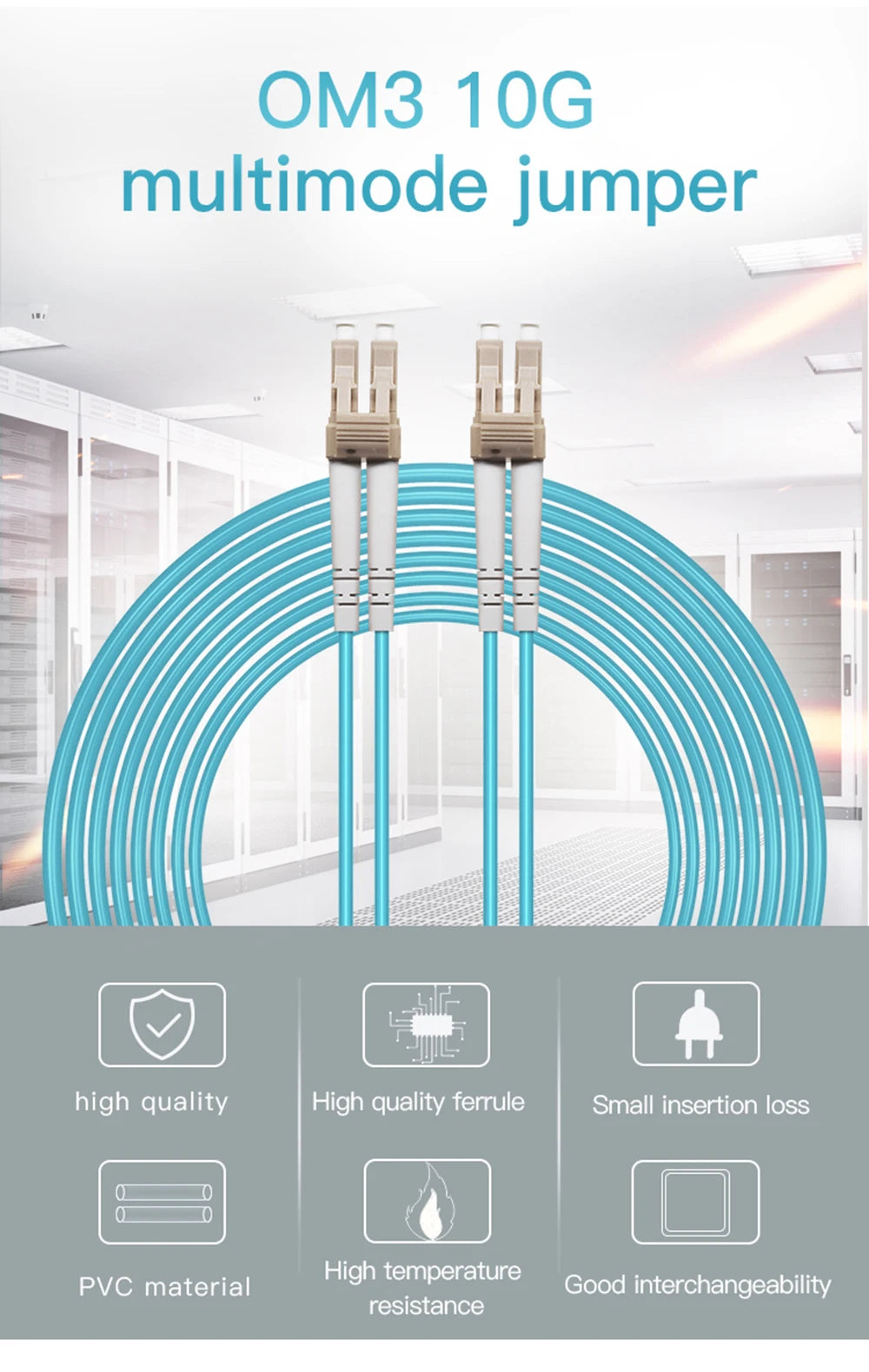

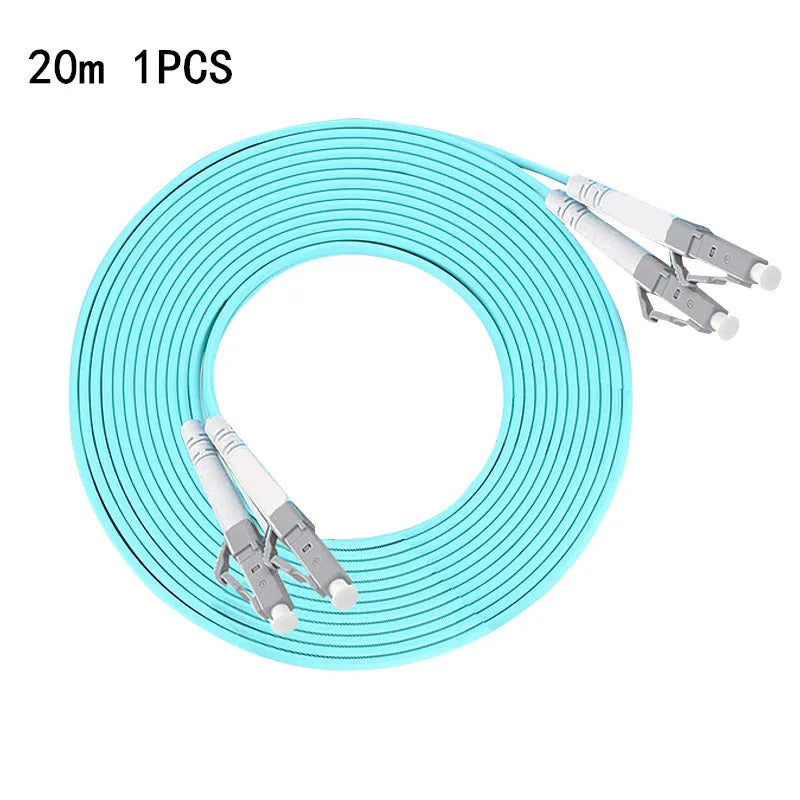

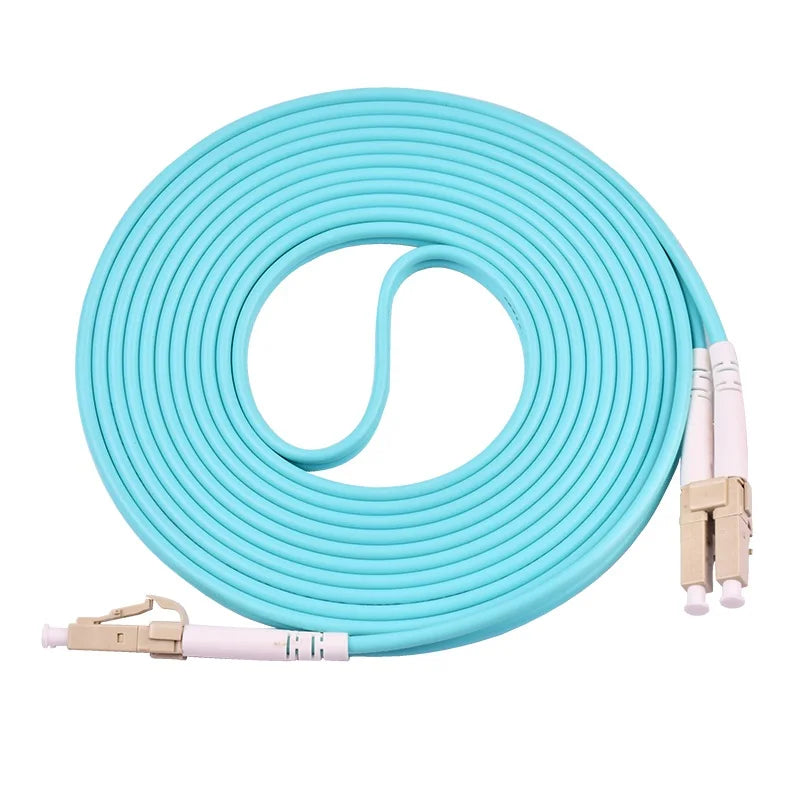

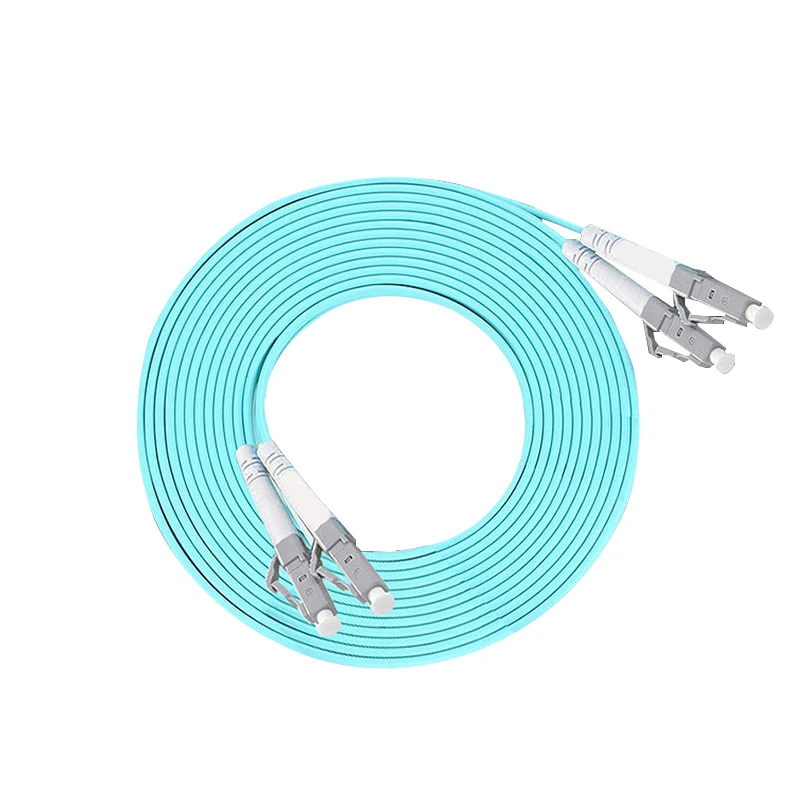

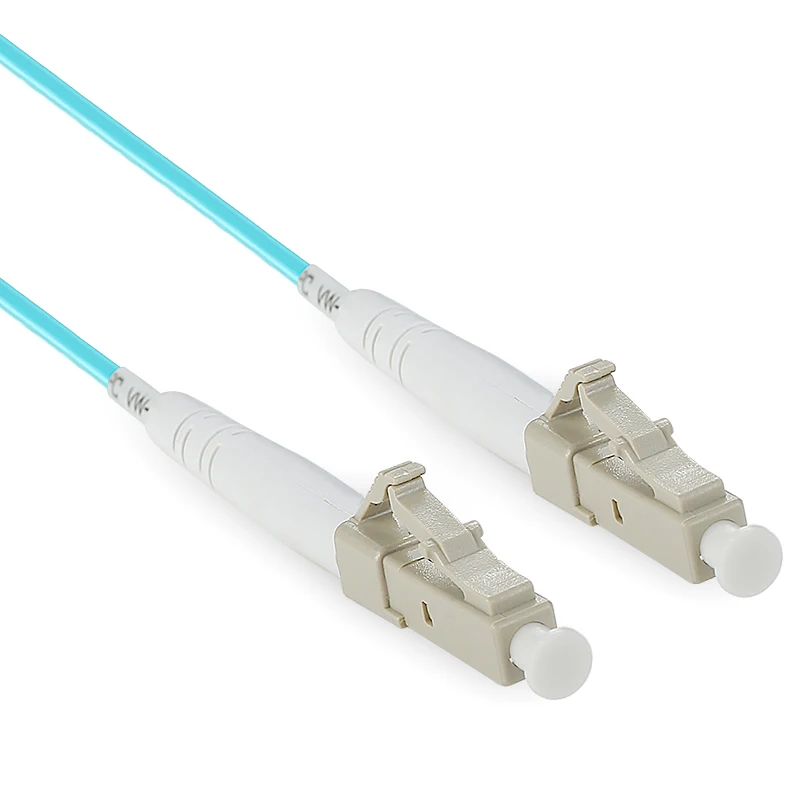

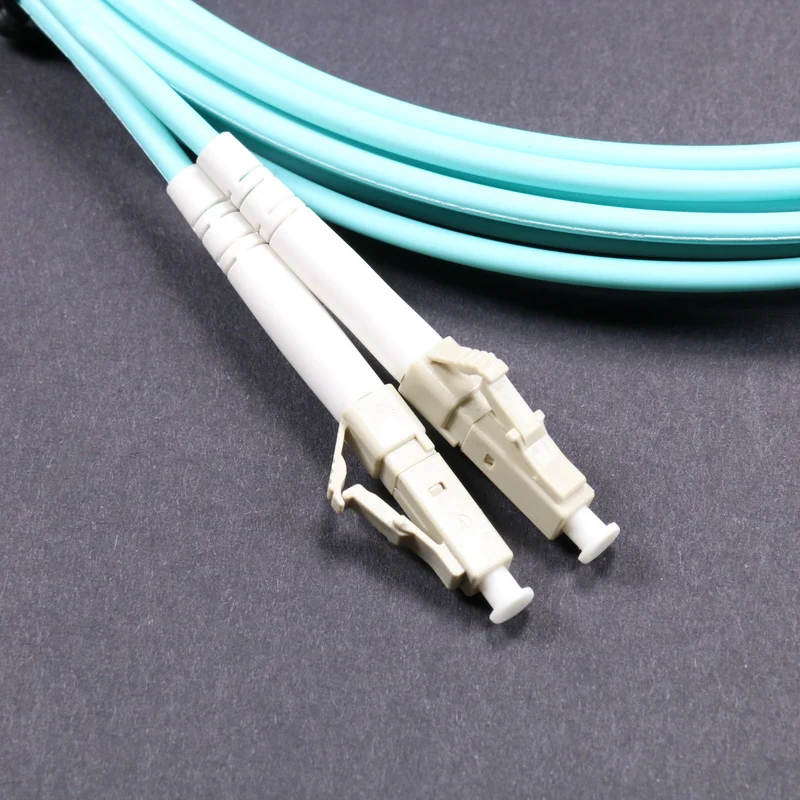

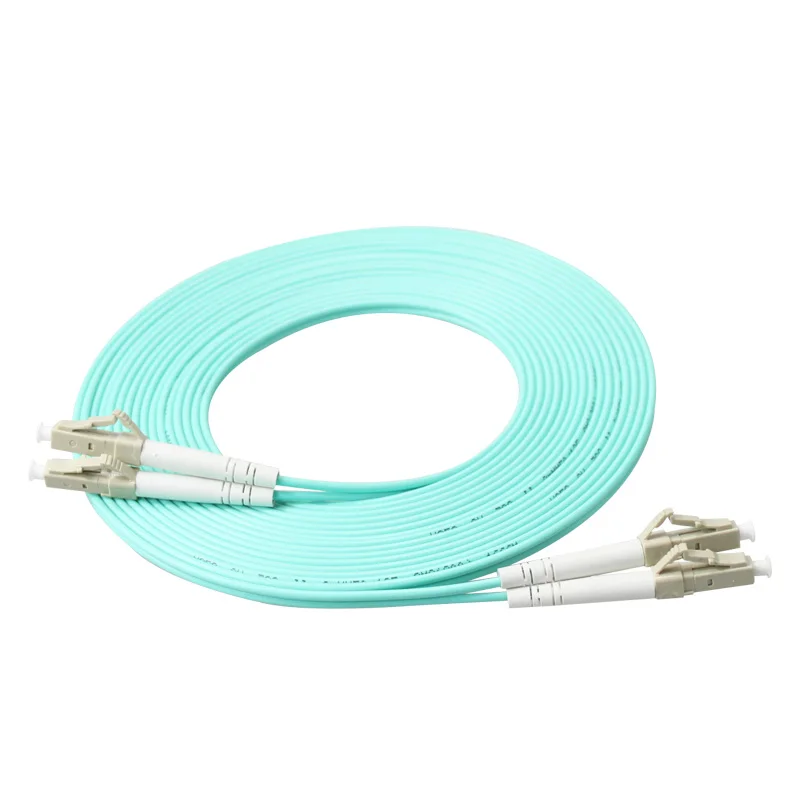

10G OM3 LC UPC-LC UPC 50/125um Multi-mode Duplex 2.0mm Fiber Patch Cable LC Fiber Optic Patch Cord 3/5/10/20/25/50m Patch Cable

Regular price: R 1,355.81
Sale price: R 1,355.81
Regular price: ~~R 1,602.32~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

10G OM3 LC-LC UPC Multimode Duplex 2.0MM Fiber Optic Patch Cord LC-LC fiber optic patch cable Fiber Optic Patch Cable

SPECIFICATIONS

Brand Name: JOINWIT

Fiber Type: OM3 Multimode Duplex

High-concerned chemical: None

Jacket: PVC

Model Number: 30m,LC/PC-LC/PC

Wireless function: No

10G OM3 LC UPC-LC UPC 50/125um Multi-mode Duplex 2.0mm Fiber Patch Cable LC Fiber Optic Patch Cord 3/5/10/20/25/50m Patch Cable

Description

The fiber optic cable is available in both single mode and multimode versions, and is fully intermateable with NTT-SC products. Both single mode and multimode versions LC fiber patch come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.

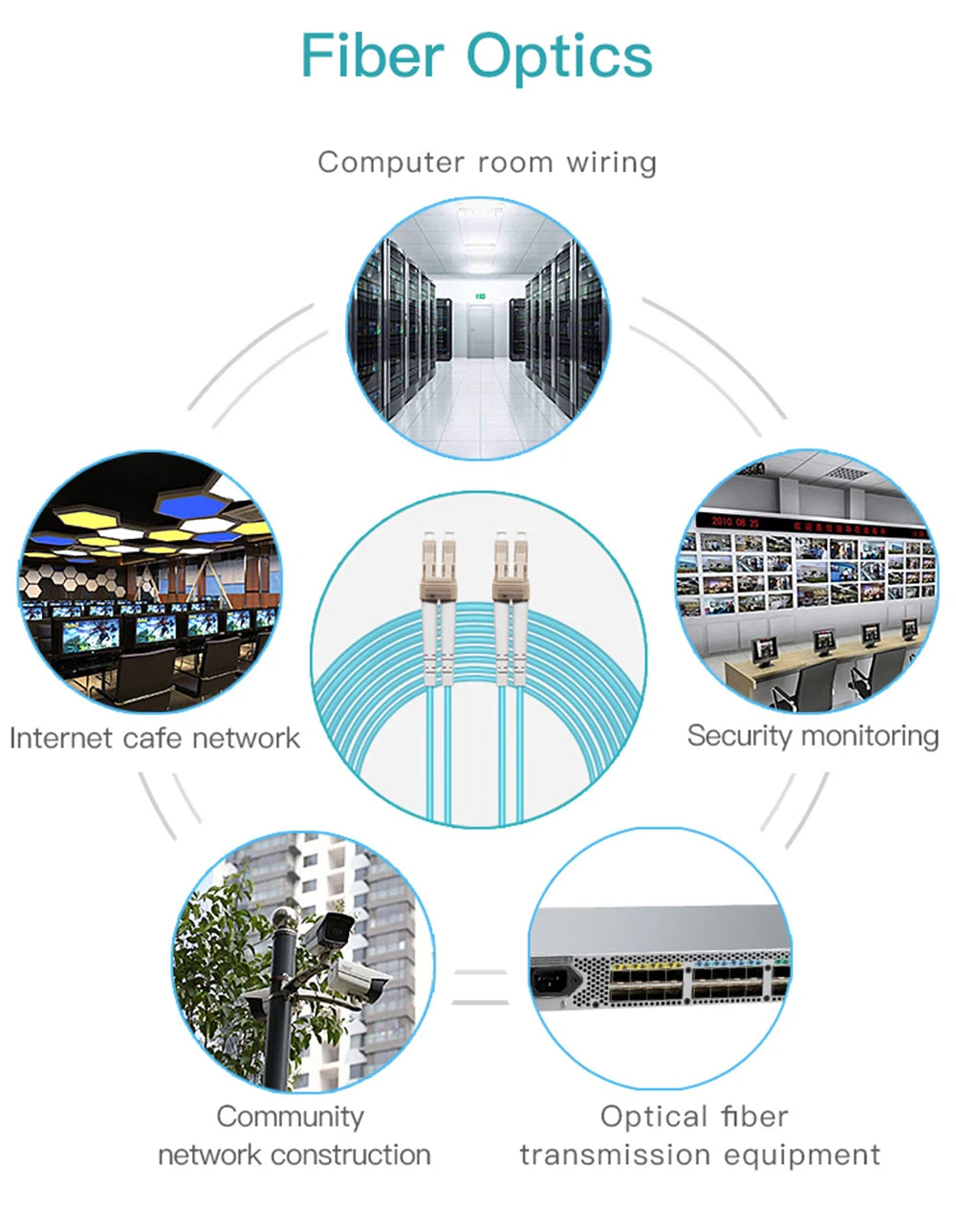

Applications

· FTTH

· LANS,WANS,CATV,CCTV

· Premise installations

· Data processing networks

· Industrial, mechanical and military

· Test equipment and active device termination

Features

· Insert-pull, key-oriented coupling mechanism which allows highly repeatable, low-loss connection

· Simplex,Duplex and Multi-core accessories ,apply in the standard and specific structure

· Single mode

· PC polish

· Comply with Telcordia GR-326-CORE Specification

· The material of plastic plug Comply with the request of UL94V-O and Standard of RO

Specifications

Items	Single mode					Multimode
	PC	UPC		APC		62.5/125	50/125	50/125 10G
Insertion Loss	<0.3dB					<0.3dB
Return Loss	≥45dB		≥50dB		≥60dB	≥35dB
Durability	<0.1dB typical change, 500 matings
Operating Temperature	-40 to +75					-40 to +75
Ferrule Hole Sizes	125.0+1/-0um, Conentricity:≤1um					125um,Conectricity:1≤3um
	125.3+1/-0um, Conentricity:≤1um					127um,Conectricity:1≤3um
	125.5+1/-0um, Conentricity:≤1um					128um,Conectricity:1≤3um

Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the 10G OM3 LC UPC-LC UPC 50/125um Multi-mode Duplex 2.0mm Fiber Patch Cable LC Fiber Optic Patch Cord 3/5/10/20/25/50m Patch Cable.
