Long Range Outdoor WiFi Router 300Mbps 2.4Ghz Wireless AP Bridge Amplifer Antenna Repeater Nanostation

1-5KM Long Range Outdoor WiFi Router 300Mbps 2.4Ghz Wireless AP Bridge Access Point WI-FI Amplifer Antenna Repeater Nanostation

SPECIFICATIONS

wireless bridge Mode: Station/AP/Router /Repeater

With Modem Function: No

Wired Transfer Rate: 10/100Mbps

Wifi cpe Ports: 1*10/100Mbps LAN/WAN RJ45 Ethernet Port

Wi-Fi Transmission Standard: 802.11g

Wi-Fi Supported Frequency: 2.4G

WAN Ports: 1 x10/100Mbps

Type: Wireless

Supports WPS: No

Supports WDS: Yes

Standards And Protocols: Wi-Fi 802.11n

Poe access point: wifi antenna outdoor /outdoor cpe

Package: Yes

Outdoor wireless range extender: 27dbm(500mW)

Outdoor wireless bridge: Outdoor WI-FI Amplifer Antenna

Outdoor wireless booster color: white color

Outdoor wifi repeater 300Mbps poe: 48v Poe Power supply

Outdoor wifi amplifier Antenna: 2*14dBi High-Gain directional butterfly shape antenna

Outdoor wi-fi amplifier Protocol: 802.11b, 802.11g,802.11n

Outdoor router bridge Frequency: Single frequency (2.4GHz)

Max. LAN Data Rate: 300Mbps

LAN Ports: 1

High power wireless router chipset: QCA9533

High power wifi router Max. LAN Data: 300Mbs Outdoor WiFI Repeater

Function: Firewall

Certification: CE

Brand Name: COMFAST

Application: Outdoor

2.4G Wi-Fi Transmission Rate: 300 Mbps

COMFAST 1-5KM long Range Wifi Transmission Outdoor Wireless CPE Bridge 2.4Ghz Comfast  Powerful  Wifi Access Point Repeater Wifi Amplifer Antenna Nanostation

Differences/Features:

CF-E314N:  300Mbps 2.4G 2*14dbi Antenna 500mW 48V Poe Adapter 2*RJ45 Ports

CF-E110N: 300Mbps 2.4G 11dbi Antenna 200mW 9-24V poe Adapter 2*RJ45 Ports

CF-E130N: 300Mbps 2.4G 5dbi Antenna200mW 9-24V poe Adapter 1*RJ45 Port

Notes:

The distance "1-5KM" means 2pcs CPE based on point to point bridge mode.

There are many factors that affect distance, such as obstacles
(trees, walls, buildings, trucks, etc.), raw network signals, etc

Outdoor Point to point as wifi bridge 1-5km or more (with obstacles)

To get good and stable signal, 2pcs are recommended

CF-E314NV2 Main Features

1. AR9341Chipset, 802.11b/g/n Support

2. Built-in 14dBi 2x2 dual-polarized directional MIMO antenna

3. Adjustable transmission power from 0 to 27dBm/500mw

4. AP / Wireless Client / Repeater operation modes

5. Outdoor stabilized enclosure with IP65 waterproof

6. High Quality 48V Poe Adapter

7. Extend the reach of your existing company network to another building

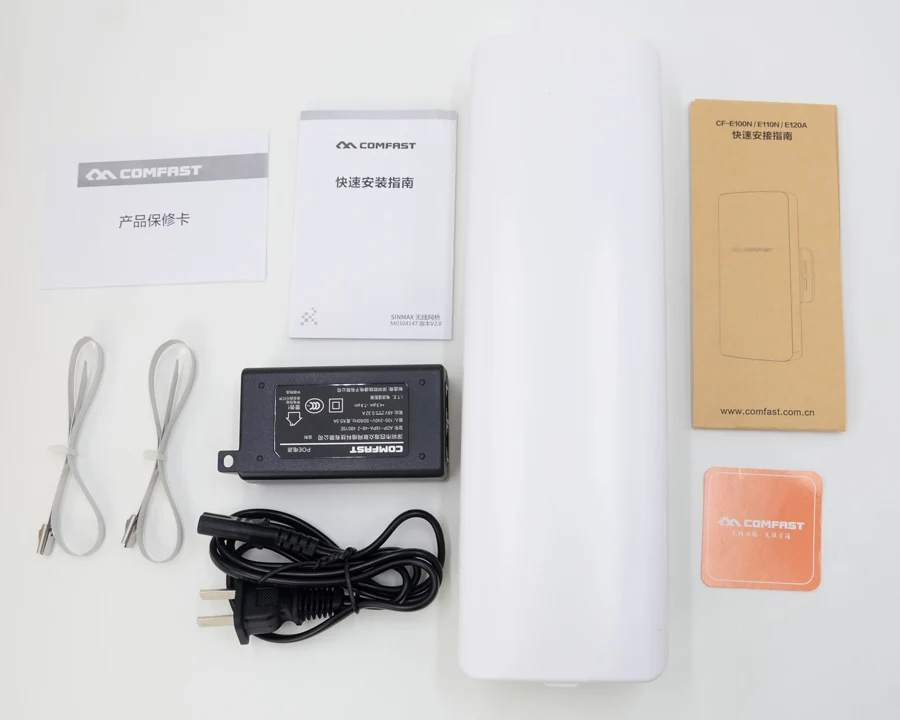

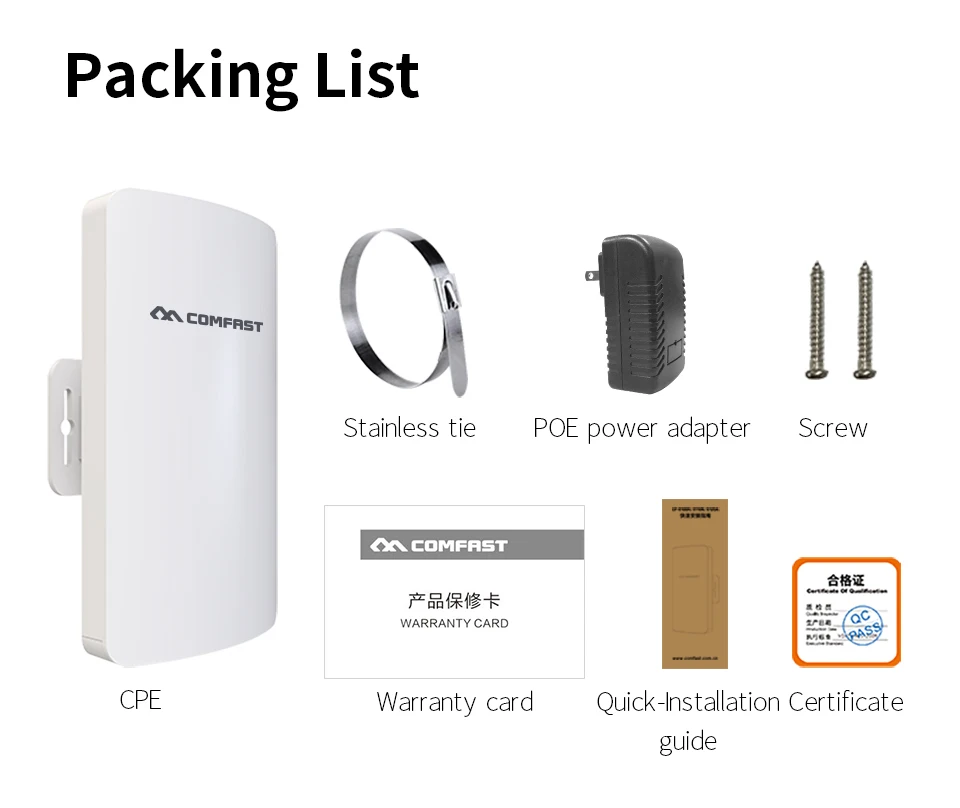

Package includes:

2.4Ghz CPE *1 or 2

PoE Adapter *1 or 2
Quick install guide *1 or 2
Stainless Steel Ring *2 or 4

CF-E314NV2

How to connect

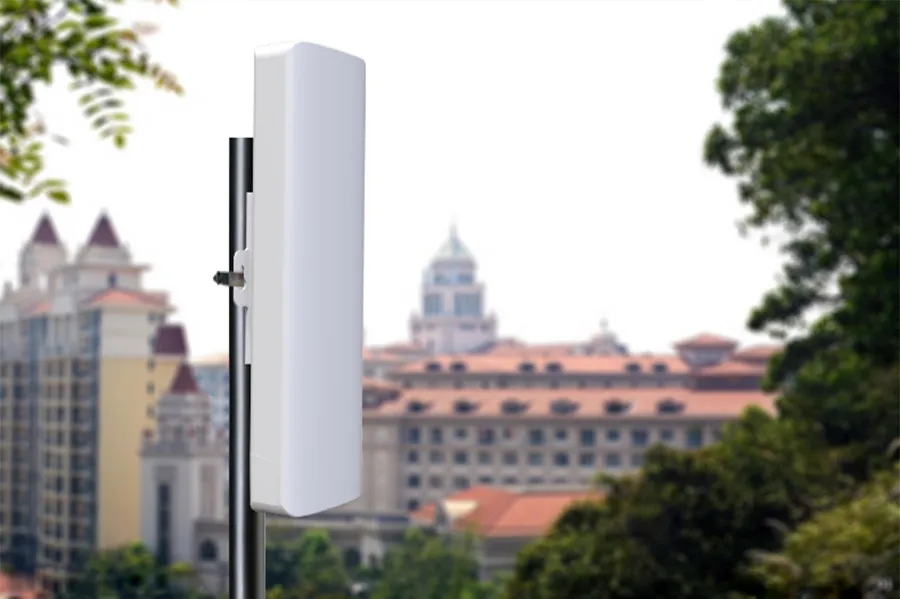

Real picture showed

CF-E110NV2

CF-E130NV2
