Huawei OPS i5-10500 D PC Module for IdeaHub 6190009 Intel Core i5-10500 processor, Support 2 independent 4K2K video output, JAE 80pin supports HDMI2.0

Huawei OPS i5-10500 D PC Module for IdeaHub 6190009 - ICD OPS I5 D

Description

Huawei OPS i5-10500 D PC Module for IdeaHub 6190009 Intel Core i5-10500 processor, Support 2 independent 4K2K video output, JAE 80pin supports HDMI2.0 - ICD OPS I5 D

Main Features

• Intel Core i5-10500 processor
• Intel UHD Graphics 630
• Support 2 independent 4K2K video output
• The JAE 80pin supports HDMI2.0
• Support M.2 SSD storage
• Support DDR4 dual-channel memory

ICD OPS i5 D, using Intel Core i5-10500 processor, conforms to the industry specification of Intel OPS-C. It supports M.2 SSD storage and DDR4 dual-channel memory. In addition, the ICD OPS i5 D utilizes the latest generation of Intel UHD Graphics 630 to provide excellent image processing capabilities and supports two independent 4K2K video outputs. It is suitable for scenarios such as digital signage, education and conference whiteboards.

Technical Specification

CPU Support: Intel Core i5-10500 processor

Chipset: Intel H510 PCH

Graphic: Intel UHD Graphics 630

Memory: 8GB DDR4 (2 x 4 GB)

Storage: 1x 128 GB M.2 2280

Connectivity: Wi-Fi / Bluetooth 2-in-1 module AC3168

Operation System: Windows 10 IoT(EE)

Power Supply: DC 19V 4.74A 90W

Dimension (W x L x H): 195 mm x 180 mm x 30mm

Colour: Black

Net Weight: About 1.5kg

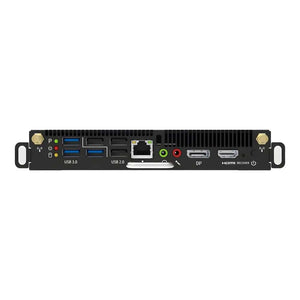

Ports

• 1x Power button
• 1x Recovery button
• 1x RJ45
• 3x USB 3.0
• 3x USB 2.0
• 1x HDMI1.4
• 1x DP1.2
• 1x Audio line out
• 1x MIC IN
