XG-Pon/10GE-Pon Module OPM g-Pon e-Pon b-Pon SC/FC APC UPC Optical Fiber power meter xGPON 1310/1490/1550nm three wavelengths

Regular price: R 26,182.33
Sale price: R 26,182.33
Regular price: ~~R 33,960.03~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

SPECIFICATIONS

Brand Name: Optoelecs

Certification: None

High-concerned Chemical: None

Wireless function: No

Description

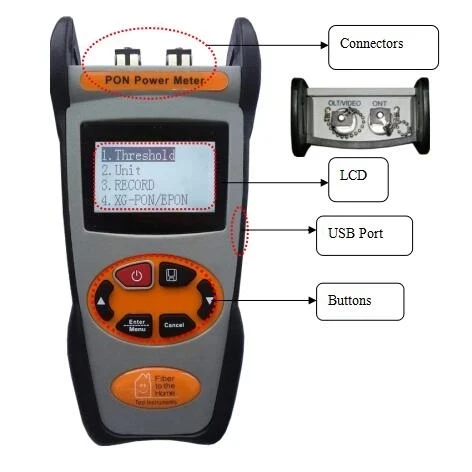

This XG-PON/10GE-PON OPM target at the FTTx application and maintenance. It is target for Normal PON network as B-PON, E-PON, G-PON (1310nm,1490nm and 1550nm) , as well as the next Generation XG-PON and 10G-PON (1270nm and 1577nm). It have two modules, one is for E-PON, G-PON another module for XG-PON/10G-EPON.

Features:

1. Providing simultaneous measurement at EPON/GPON/GEPON for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )

2. Another module for simultaneous measurement of next PON generation XG-PON/10G-EPON (1270nm and 1577nm)

3. Used in Burst mode measurement of 1310nm upstream for G/E-PON and 1270nm for XG-PON/10GEPON

4. Convenience for threshold setting, which can set the threshold on the tester

5. USB communication port enables data transfer to a PC

6. Offers up to 10 different threshold sets in total

7. User self-calibration can be retrieved in computer through the software.

8. 10 minutes Auto-off function can be activated or deactivated with keypad operation.

Specifications:

G/E-PON module
Wavelength	1310nm	1490nm		1550nm
Pass Zone(nm)	1260～1360	1470～1505		1510～1590
Isolation (dB)	>40@1490	>30@1310		>40@1310
Isolation(dB)	>40@1550	>40@1559		>40@1490
Measurement Range(dBm)	-40～+10	-40～+10		-50～+20
XGPON/10GE-PON module
Wavelength	1270nm		1577nm
Pass Zone(nm)	1260~1360		1510~1590
Isolation	>40@1577		>40@1270
Measurement Range(dBm)	-35~+10		-40~+10
Measurement Accuracy
Connatural uncertainty(dB)	±0.5
Linearity(dB)	±0.1
Passing through insertion Loss(dB)	<1.5
General Information
Detector Type	InGaAs
Optical Connector	SC/APC FC/APC
Fiber Type	9/125um
Display	LCD:128*64
Measurement Unit	dB/dBm/xW
Resolution (dB)	0.01
Power Supply	3 AA1.5V battery
Operation Temperature(℃)	-10～60
Storage temperature(℃)	-25～70
Dimension(mm)	200 X90 X50
Weight(g)	285

Note: The operation time of the battery are all for the instrument that do not turn on backlight, if the backlight turn on the operation time will be shorted.

Product Details:

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the XG-Pon/10GE-Pon Module OPM g-Pon e-Pon b-Pon SC/FC APC UPC Optical Fiber power meter xGPON 1310/1490/1550nm three wavelengths is for you.
